Model: WS-X6824-SFP-2T Cisco Catalyst 6500 Series Ethernet Module
Detail: Cisco 6500 Module WS-X6824-SFP-2T Catalyst 6500 24-port GigE Mod: fabric-enabled with DFC4
List Price: US$17,250.00
Price: $4,710.00
You save: US$12,540.00 (73% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Ashburn, VA, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 4,710.00 In stock Brand New Sealed
OR

WS-X6824-SFP-2T SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (WS-X6824-SFP-2T)

WS-X6824-SFP-2T is integrated with 24-port SFP fiber Gigabit Ethernet interface module with WS-F6K-DFC4-E daughter card for 6500 E-series with supervisor 2T only. Equipped with WS-F6K-DFC4-E daughter card, WS-X6824-SFP-2T ensures to deliver optimal performance up to a sustained 60Mpps for layer 2, IPV4 and MPLS forwarding, and makes this module ideally suited for high performance enterprise, Service provider distribution, core layer, data-center and Metro Ethernet applications. The 24-port module has one 20G fabric connection while the other new modules have two 20G fabric connections (for 40G total bandwidth).

Quick Specs

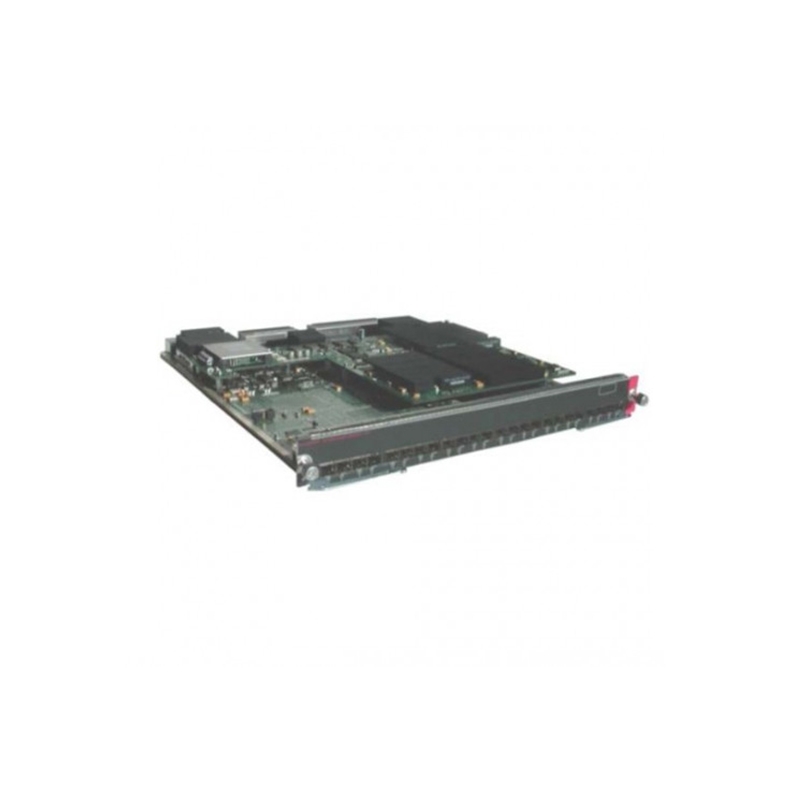

Figure 1 shows the appearance of WS-X6824-SFP-2T.

WS-X6824-SFP-2T Appearance

Table 1 shows the 6800 Series Gigabit Ethernet Fiber and Copper Modules Primary Features.

Product

Transceiver Type

Ports/Interface/
Connectors

Port Density/
Chassis Model

Maximum Frame Size

Queues per Port (Tx = Transmit, Rx = Receive),**

Scheduler

Buffer Size per Port

Onboard Memory

WS-X6824-SFP-2T and WS-X6824-SFP-2TXL

Small Form-factor Pluggable (SFP)

24-port; 1000BASE-SX, LX/LH, -ZX, -T; 1000BASE-CWDM; LC connecter

●  264 ports/6513E

● 192 ports/6509E

Up to 9216 bytes/frame

●  Tx-1p3q8T

●  Rx-2q8T

DWRR

●  Rx-166KB

●  Tx-1.17MB

1GB Default

Compare to Similar Items

Table 2 shows the comparison of WS-X6848-SFP-2T and WS-X6824-SFP-2T.

Product Code

WS-X6824-SFP-2T

WS-X6848-SFP-2T

Description

6800 Series 24-Port 1 Gigabit SFP Fiber Ethernet Module with DFC4 & DFC4XL

6800 Series 48-Port 1 Gigabit SFP Fiber Ethernet Module with DFC4 & DFC4XL

Get More Information

Do you have any question about the WS-X6824-SFP-2T?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (WS-X6824-SFP-2T)

6800 Series 10 Gigabit Ethernet modules Specifications

Standard protocols

IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, and IEEE 802.3an

Physical specifications

●  Occupies one slot in the Cisco Catalyst 6500 E-Series chassis

●  Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm)

●  Weight:

◦   WS-X6816-10G-2T & 2TXL, WS-X6816-10T-2T & 2TXL: 13.6 pounds excluding X2 components; ¼ pound for each X2

Environmental conditions

Operating temperature:

●  Agency-certified for operation: 32 to 104°F (0 to 40°C)

●  Design and tested for operation 32 to 130°F (0 to 55°C)

●  Storage temperature: -40 to 167°F (-40 to 75°C)

●  Relative humidity: 10 to 90 percent, noncondensing

Operating altitude:

●  Agency-certified for operation: -500 to 6500 ft (-150 to 2000m)

●  Designed and tested for operation -500 to 10000 ft (-150 to 3000m)

Regulatory compliance

6800 Series 10 Gigabit Ethernet Copper module, when installed in a system, comply with the following EMC and safety standards:

EMC Standards:

●  FCC Part 15 (CFR 47) Class A

●  ICES-003 Class A

●  VCCI Class A

●  EN55022 Class A

●  EN55024

●  CISPR24

●  CISPR 22 Class A

●  AS/NZS CISPR 22 Class A

●  ETS 300 386

●  KN 22 Class A

●  EN 50082-1

●  EN61000-3-2

●  EN61000-3-3

●  EN61000-6-1

●  CNS13438 Class A

●  KN6100 -4 Series

Safety Standards:

●  UL 60950-1

●  CAN/CSA C22.2 No. 60950

●  EN 60950-1

●  IEC 60950-1

●  AS/NZS 60950-1

●  IEC 60825 Class 1

●  EN 60825 Class 1

●  21CFR 1040

NEBS criteria levels

SR-3580 Issue 3, June 2007 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4)

ETSI

●  ETS 300 019-2-1, Class 1.1 Storage

●  ETS 300 019-2-2, Class 2.1 and 2.2 Transportation

●  ETS 300 019-2-3, Class 3.1E Stationary Use

Network management

●  ETHERLIKE-MIB (RFC 1643)

●  IF-MIB (RFC 1573)

●  Bridge MIB (RFC 1493)

●  CISCO-STACK-MIB

●  CISCO-VTP-MIB

●  CISCO-CDP-MIB

●  RMON MIB (RFC 1757)

●  CISCO-PAGP-MIB

●  CISCO-STP-EXTENSIONS-MIB

●  CISCO-VLAN-BRIDGE-MIB

●  CISCO-VLAN-MEMBERSHIP-MIB

●  ENTITY-MIB (RFC 2037)

●  HC-RMON

●  RFC1213-MIB (MIB-II)

●  SMON-MIB

Power requirements

●  WS-X6816-10G-2T: 488.5 Watts

●  WS-X6816-10G-2TXL: 503.5 Watts

●  WS-X6816-10T-2T: 514.96 Watts

●  WS-X6816-10T-2TXL: 529.96 Watts

Indicators

●  Status: green (operational), red (faulty), and orange (module booting)

●  Link: green (port enabled and connected), orange (port disabled), and off (port enabled and not connected)
