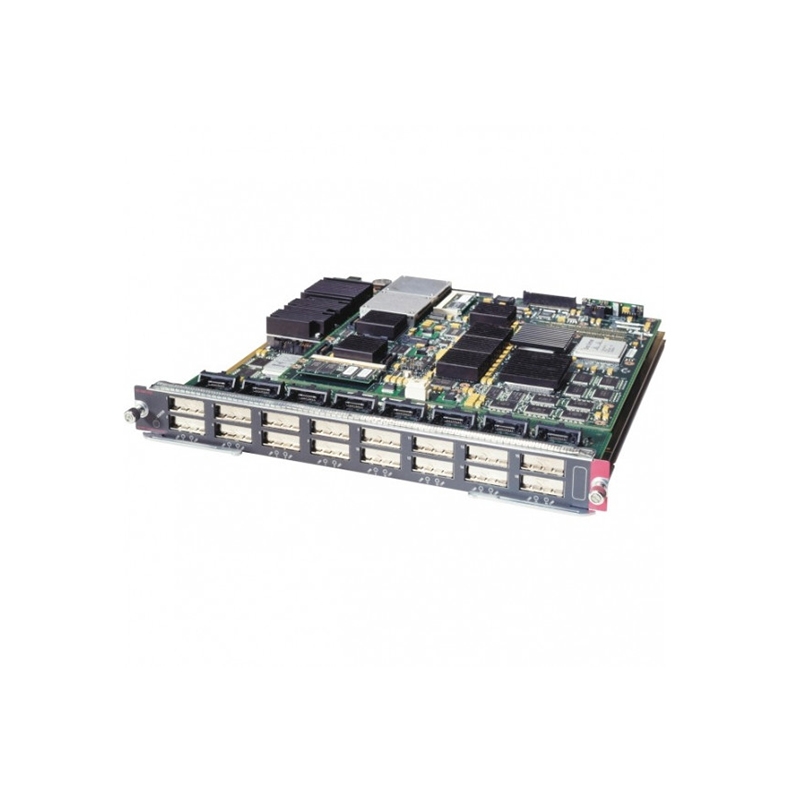

main product photo
Name:

WS-X6816-10T-2T

Model:WS-X6816-10T-2T Cisco Catalyst 6500 Series Ethernet Module
Brand: Cisco
Detail:
Cisco 6500 Module WS-X6816-10T-2T 16 Port 10T with DFC4
Rating:
100%
5/5.0
2 Reviews
List Price:US$25,875.00 (76% OFF)
Price:US$6,269.00
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: In Stock at Global Warehouses.
  • United States
  • United Kingdom
  • Germany
  • United Arab Emirates
  • Singapore
  • India
  • Hong Kong
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

You may also be interested in the following product(s)

WS-F6700-DFC3CXL (USED)

WS-F6700-DFC3CXL (USED)

US$6,959.00
WS-C6509-E-FAN (USED)

WS-C6509-E-FAN (USED)

US$151.00
WS-C6513-E-FAN (USED)

WS-C6513-E-FAN (USED)

Rating:
100%
5/5.0
1 Review
US$763.00
VS-S720-10G-3C

VS-S720-10G-3C

Rating:
91%
4.6/5.0
14 Reviews
US$15,920.00

WS-X6816-10T-2T

Cisco 6500 Module WS-X6816-10T-2T 16 Port 10T with DFC4

List Price: US$25,875.00
Price: US$6,269.00
Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

WS-X6816-10T-2T Overview

WS-X6816-10T-2T is 16-port 10 Gigabit Ethernet Copper Module for Cisco Catalyst 6500 E-series switch with exclusively supported by Supervisor Engine 2T. WS-X6816-10T-2T equipped WS-F6K-DFC4-E daughter card in order to deliver optimal performance up to a sustained 60 Mpps for L2, IPv4 and MPLS forwarding and 30 Mpps for IPv6 forwarding. WS-X6816-10T-2T is designed for data center access and switch-to-switch connectivity as well as high-spped server connectivity. Users can configure 4 port groups of 4 ports each, each port group in either oversubscription mode or performance mode, providing the flexibility to use some ports for connection to servers and other ports for interconnection of switches.

Quick Specs

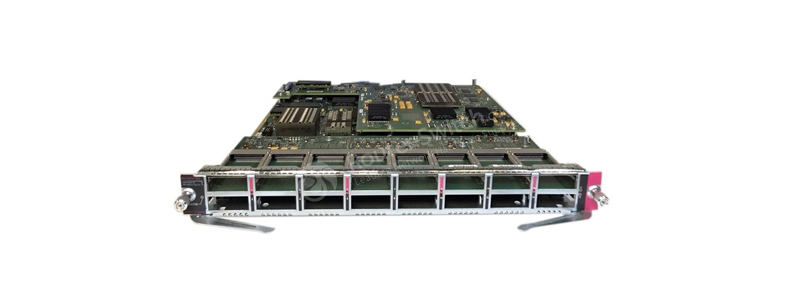

Figure 1 shows the appearance of WS-X6816-10T-2T.

WS-X6816-10T-2T

Table 1 shows the Quick Specs.

Product Code

WS-X6816-10T-2T

Description

 6800 Series 16-Port 10 Gigabit Ethernet Copper Module with DFC4 & DFC4XL

Feature

16-Port 10GbE Copper Module

Ports

16

Optics

Copper (RJ-45) connectors

Switch fabric connection

2 x 20 Gbps (40 Gbps total)

Oversubscription

4:1 16 ports (oversubscription mode)

1:1 4 ports (performance mode)

Forwarding engine

  • ●   WS-X6816-10T-2T: comes equipped with DFC4 for distributed forwarding, supporting 256K forwarding entries, increased ACL entries to 64K, increased Netflow entries to 512K and increased IPv4 forwarding speed to 60 Mpps

  • ●   WS-X6816-10T-2TXL: equipped with DFC4XL for distributed forwarding, supporting 1 million forwarding entries, increased ACL entries to 256K, increased Netflow entries to 1024K and increased IPv4 forwarding speed to 60 Mpps

  • ●   Increased performance of up to 60Mpps for L2, IPv4 and MPLS forwarding and up to 30Mpps for IPv6 forwarding

  • ●   Support for 16K Bridge Domains, allowing the standard 4K VLANs to be reused across these bridge domains, effectively increasing the number of VLANs available in the system

  • ●   Increased MAC Address Table to 128K

  • ●   Increased multicast routes to 256K

  • ●   IGMPv3 snooping in hardware

  • ●   PIM registers in hardware

  • ●   IPv6 MLDv2 snooping in hardware

  • ●   IPV4 & IPv6 in IPv6 tunnelling

  • ●   IPv6 in IPv4 tunneling ISATAP, 6to4, GRE)

  • ●   QoS support for uniform, short pipe and pipe mode tunnel

  • ●   Terminate the tunnel in the same loopback

    		•

    Queues

    Oversubscription mode:

  • ●   Receive: 1p7q2t per port

  • ●   Transmit: 1p7q4t per port group

    Performance mode:

  • ●   Receive: 8q4t per port

  • ●   Transmit: 1p7q4t per port

    		•

    Queuing mechanisms

  • ●   Class of Service (CoS) based queue mapping

  • ●   (Differentiated Service Code Point (DSCP) based queue mapping

    		•

    Scheduler

    Oversubscription mode:

  • ●   Deficit Weighted Round Robin (DWRR)

  • ●   Weighted Random Early Detection (WRED)

    Performance mode:

  • ●   DWRR

  • ●   WRED

  • ●   Shaped Round Robin (SRR) at egress

    		•

    Port buffers

    Oversubscription mode:

  • ●   90 MB per port group

    Performance mode:

  • ●   256 MB per port (128 MB for ingress and 128 MB for egress)

    		•

    Hardware-based multicast replication

  • ●   Ingress and Egress replication-mode

  • ●   Approximately 20 Gbps per replication engine

  • ●   2 replication engines per module

    		•

    Jumbo frame support for bridged and routed packets

    Up to 9216 bytes

    Maximum port density per chassis

    176 ports (6513-E chassis)

    128 ports (6509-E chassis)

    Maximum port density per VSS

    352 ports

    Can be used to form virtual switch link

  • ●   Performance mode: Yes

       Up to 4 10 Gigabit Ethernet ports can be used for virtual switch link

  • ●   Oversubscription mode: No

    		•

    Supervisor engines supported

    Catalyst 6500 Supervisor Engine 2T and 2TXL

    Chassis supported

  • ●   Any Cisco Catalyst 6500 E-Series chassis, including 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E (NEBS compliant) and 6513-E chassis

  • ●   Not supported in non-E Series chassis

    		•

    Slot requirements

  • ●   Can occupy any slot in any Cisco Catalyst 6503-E, 6504-E, 6506-E, 6509-E or 6509-V-E or chassis

  • ●   Can occupy slots 1-6 and 9-13 in a Cisco Catalyst 6513-E chassis

    		•

    Onboard memory

    1 GB default

    Cabling Supported

    Category 6, 6A UTP & STP & Category 7 STP copper cabling

    Compare to Similar Items

    Table 2 shows the comparison of WS-X6816-10G-2T, WS-X6816-10G-2TXL and WS-X6816-10T-2T.

    Product Code

    WS-X6816-10G-2T

    WS-X6816-10G-2TXL

    WS-X6816-10T-2T

    Description

    6800 Series 16-Port 10 Gigabit Ethernet Fiber Module with DFC4 & DFC4XL

     16-port 10 Gigabit Ethernet Fiber Module DFC4XL

     6800 Series 16-Port 10 Gigabit Ethernet Copper Module with DFC4 & DFC4XL

    Get More Information

    Do you have any question about the Cisco WS-X6816-10T-2T

    Contact us now via Live Chat or sales@router-switch.com.

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    WS-X6816-10T-2T Specification

    6800 Series 10 Gigabit Ethernet modules Specifications

    Standard protocols

    IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, and IEEE 802.3an

    Physical specifications

    ●  Occupies one slot in the Cisco Catalyst 6500 E-Series chassis

    ●  Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm)

    ●  Weight:

    ◦   WS-X6816-10G-2T & 2TXL, WS-X6816-10T-2T & 2TXL: 13.6 pounds excluding X2 components; ¼ pound for each X2

    Environmental conditions

    Operating temperature:

    ●  Agency-certified for operation: 32 to 104°F (0 to 40°C)

    ●  Design and tested for operation 32 to 130°F (0 to 55°C)

    ●  Storage temperature: -40 to 167°F (-40 to 75°C)

    ●  Relative humidity: 10 to 90 percent, noncondensing

    Operating altitude:

    ●  Agency-certified for operation: -500 to 6500 ft (-150 to 2000m)

    ●  Designed and tested for operation -500 to 10000 ft (-150 to 3000m)

    Regulatory compliance

    6800 Series 10 Gigabit Ethernet Copper module, when installed in a system, comply with the following EMC and safety standards:

    EMC Standards:

    ●  FCC Part 15 (CFR 47) Class A

    ●  ICES-003 Class A

    ●  VCCI Class A

    ●  EN55022 Class A

    ●  EN55024

    ●  CISPR24

    ●  CISPR 22 Class A

    ●  AS/NZS CISPR 22 Class A

    ●  ETS 300 386

    ●  KN 22 Class A

    ●  EN 50082-1

    ●  EN61000-3-2

    ●  EN61000-3-3

    ●  EN61000-6-1

    ●  CNS13438 Class A

    ●  KN6100 -4 Series

    Safety Standards:

    ●  UL 60950-1

    ●  CAN/CSA C22.2 No. 60950

    ●  EN 60950-1

    ●  IEC 60950-1

    ●  AS/NZS 60950-1

    ●  IEC 60825 Class 1

    ●  EN 60825 Class 1

    ●  21CFR 1040

    NEBS criteria levels

    SR-3580 Issue 3, June 2007 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4)

    ETSI

    ●  ETS 300 019-2-1, Class 1.1 Storage

    ●  ETS 300 019-2-2, Class 2.1 and 2.2 Transportation

    ●  ETS 300 019-2-3, Class 3.1E Stationary Use

    Network management

    ●  ETHERLIKE-MIB (RFC 1643)

    ●  IF-MIB (RFC 1573)

    ●  Bridge MIB (RFC 1493)

    ●  CISCO-STACK-MIB

    ●  CISCO-VTP-MIB

    ●  CISCO-CDP-MIB

    ●  RMON MIB (RFC 1757)

    ●  CISCO-PAGP-MIB

    ●  CISCO-STP-EXTENSIONS-MIB

    ●  CISCO-VLAN-BRIDGE-MIB

    ●  CISCO-VLAN-MEMBERSHIP-MIB

    ●  ENTITY-MIB (RFC 2037)

    ●  HC-RMON

    ●  RFC1213-MIB (MIB-II)

    ●  SMON-MIB

    Power requirements

    ●  WS-X6816-10G-2T: 488.5 Watts

    ●  WS-X6816-10G-2TXL: 503.5 Watts

    ●  WS-X6816-10T-2T: 514.96 Watts

    ●  WS-X6816-10T-2TXL: 529.96 Watts

    Indicators

    ●  Status: green (operational), red (faulty), and orange (module booting)

    ●  Link: green (port enabled and connected), orange (port disabled), and off (port enabled and not connected)

    Quality Certifications

    Q&A

    Questions & Answers

    What common troubleshooting steps should I follow for the WS-X6816-10T-2T module?

    Check connectivity and IOS version compatibility. Ensure the module is properly seated and consult Cisco's support for specific errors.

    What accessories are available for the Cisco 6500 Module WS-X6816-10T-2T?

    Accessories include compatible power supplies, fan trays, and additional networking cables.

    How does the Cisco 6500 Module WS-X6816-10T-2T compare to similar products?

    The WS-X6816-10T-2T offers better port density and advanced traffic features compared to basic modules in the same series.

    What are the main benefits of using the WS-X6816-10T-2T module?

    It provides high throughput, advanced security features, and scalability for complex networking environments.
