WS-X6716-10G-3C

Model: WS-X6716-10G-3C Catalyst 6500 10 Gigabit Ethernet Module
Detail: Catalyst 6500 16 port 10 Gigabit Ethernet w/ DFC3C (req X2)
Replacement: WS-X6816-10G-2T
List Price: US$40,000.00
Price: $11,232.00
You save: US$28,768.00 (72% OFF)
Condition: Brand New Sealed  Used
Availability: In stock
Shipping:
Express Shipping to Newark, NJ, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 11,232.00 In stock Brand New Sealed
OR

WS-X6716-10G-3C SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (WS-X6716-10G-3C)

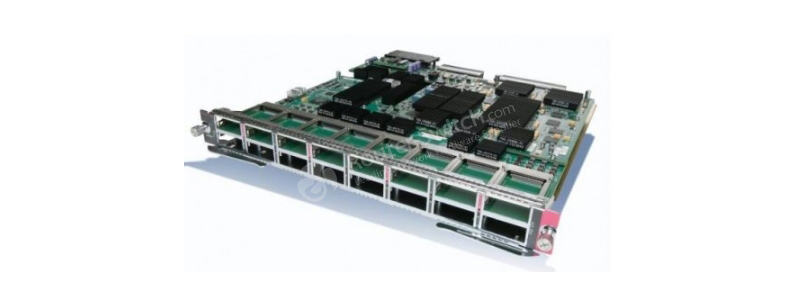

WS-X6716-10G-3C consists of 16 X2 10 Gigabit Ethernet fiber ports line card module for Cisco Catalyst 6500 series only.* WS-X6716-10G-3C equipped with WS-X6716-10G and WS-F6700-DFC3C and primarily designed for Supervisor Engine 720 with 3C daughter card to support Cisco 6500 Virtual Switching System (VSS) 1440. WS-X6716-10G-3C is ideally suited for LAN campus aggregation and data center access. Users can configure 4 port groups of 4 ports each, each port group in either oversubscription mode or performance mode. In performance mode, up to 4 10 Gigabit Ethernet ports can be used to create a virtual switch link in a VSS.

Specification

Specification (WS-X6716-10G-3C)

Model info: WS-X6716-10G-3C
Product Description Cisco Catalyst 6500 Series 10 Gigabit Ethernet interface module WS-X6716-10G-3C
Devide Tyde 10 Gigabit Ethernet interface Fiber module
Ports 16 * 10G X2 ports
Switch fabric connection 40 Gbps (80 Gbps full duplex)
Forwarding Engine WS-F6700-DFC3C
routing entries 256,000
Queues Oversubscription mode
Receive: 1 priority queue, 7 round robin queues, 2 threshold per port
Transmit: 1 priority queue, 7 round robin queues, 4 threshold per port group
Performance mode:
Receive: 8 priority queue, 4 threshold per port
Transmit: 1 priority queue, 7 round robin queues, 4 threshold per port group

Scheduler Oversubscription mode:
DWRR
WRED
Performance mode:
DWRR
WRED
SRR at egress
Virtual Switch Link (VSL) Oversubscription mode: No  Performance mode: Yes (supported in a subsequent software release)
Port buffers Oversubscription mode:
90 MB per port group
Performance mode:
200 MB per port
Queuing Mechanisms CoS-based queue mapping
DSCP-based queue mapping
Hardware-based Multicast replication (Layer 2) Ingress and egress
Approximately 20 GB per replication engine
2 replication engines per module
Hardware-based multicast replication (layer 3) Ingress and egress
Approximately 20 GB per replication engine
2 replication engines per module
Jumbo frame support for bridged and routed packets Up to 9216 bytes
Maximum port density per chassis 130 ports (9-slot chassis)
Maximum port density per VSS 260 ports
Supervisor engines supported Cisco Catalyst 6500 Series Supervisor Engine VS-S720-10G-3C
Chassis supported Cisco Catalyst 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E, 6513-E and C6509-NEB-A chassis with dual fan tray
Cisco Catalyst 6506, 6509, 6513, and C6509-NEB-A with single fan tray
Not supported in Cisco Catalyst 6503 non-E Series chassis and 7600 Series chassis
Slot requirements Can occupy any slot in any Cisco Catalyst 6503-E, 6504-E, 6506, 6506-E, 6509, 6509-E, 6509-V-E, or 6509-NEB-A chassis Can occupy only slots 9 through 13 in a Cisco Catalyst 6513 chassis
Onboard memory 1 GB default
Power requirement 457.8W (10.9A @ 42V)
X2 Pluggable Optics part number X2-10GB-LRM(multimode fiber): 1310 nm serial, 220m over multimode fiber
X2-10GB-LR(single-mode fiber): 1310 nm serial, 10 km over single-mode fiber
X2-10GB-ER(single-mode fiber): 1550 nm serial, 40 km over single-mode fiber
X2-10GB-ZR: 1550 nm serial, 80 Km over single-mode fiber
X2-10GB-SR(multimode fiber): 850 nm serial, up to 300m over multimode fiber
X2-10GB-LX4(multimode fiber): WWDM 1310 nm, up to 300m over multimode fiber
