- Overview
-
Overview (WS-C2960+24PC-S)
The Cisco Catalyst WS-C2960+24PC-S switch is comprised of 24 * 10/100 Ethernet ports with POE.
Quick Specs

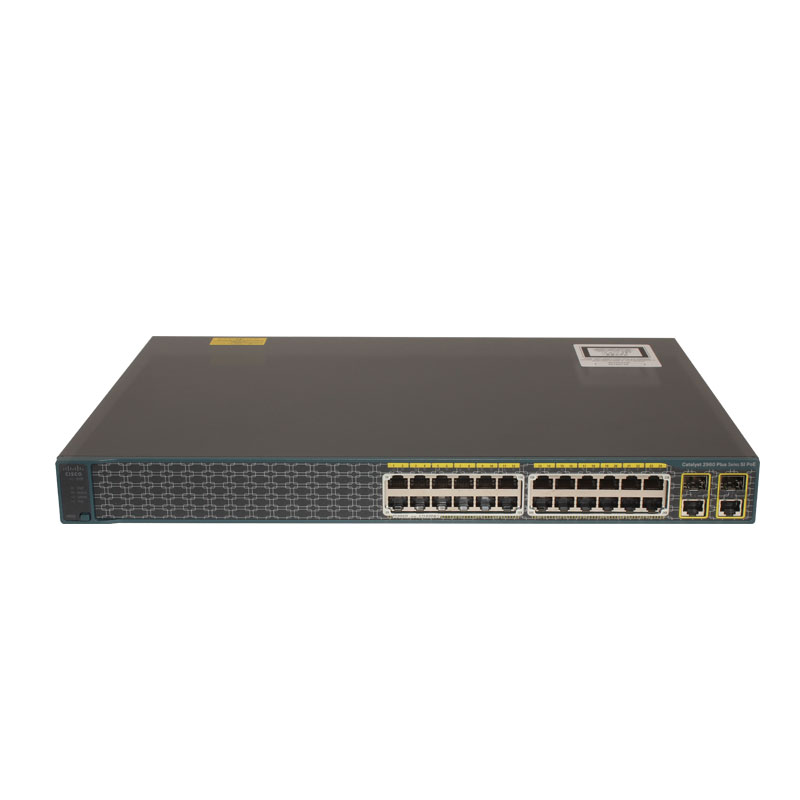

Figure 1 shows the appearance of the WS-C2960+24PC-S.
Table 1 shows the Quick Specs.
Product Code
WS-C2960+24PC-S
Enclosure Type
Rack-mountable 1U
Feature Set
LAN Lite
Uplink Interfaces
2 (SFP or 1000BASE-T)
Available PoE Power
370W
Ports
24 x 10/100 Ethernet Interfaces
Forwarding Bandwidth
16 Gbps
DRAM
128 MB
Flash Memory
64 MB
Dimensions
4.4 x 45.0 x 33.2 cm
Package Weight
9.19 Kg
Product Details
Figure 2 shows the front panel.
Note:
① Switch LEDs ② Mode button ③ 24*10/100 ports ④ Dual-purpose ports
·The switch LEDs include SYST, RPS, Status, Duplex, Speed and PoE LED.
·Dual-purpose ports support SFP or 1000BASE-T uplink port.
Figure 3 shows the back panel.
Here takes WS-C2960+24PC-L for reference. Noticed that WS-C2960+24PC-S does not have an RPS connector.
Note:
① RJ-45 console por ② Fan exhaust ③ RPS connector ④ AC power connector
The Accessories
Table 2 shows the accessories of the WS-C2960+24PC-S.
Models
Description
Console Cable 6ft with RJ45 and DB9F
GE SFP, LC connector LX/LH transceiver
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
Datasheet Download
Cisco Switch Catalyst 2960+ Series Datasheet.pdf
Get more information
Do you have any question about the Cisco Catalyst C2960+24PC-S switch?
Contact us now via Live Chat or sales@router-switch.com.
- Specification
-
Specification (WS-C2960+24PC-S)
WS-C2960+24PC-S Specification
Configurations
10/100 Ethernet Interfaces
24
Uplink Interfaces
2 (SFP or 1000BASE-T)
Cisco IOS Software Feature Set
LAN Lite
Available PoE Power
370W (24 ports up to 15.4W)
Hardware
Flash memory
64 MB
DRAM
128 MB
Performance and Scalability
Forwarding bandwidth
16 Gbps
Maximum active VLANs
644
VLAN IDs available
4K
Maximum transmission unit (MTU) - L3 packet
9000 bytes
Jumbo frame - Ethernet frame
9018 bytes
Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second
6.5
Mechanical
Dimensions (H x W x D)
1.73 x 17.70 x 13.07 in (4.4 x 45.0 x 33.2 cm)
Weight
12 lb (5.4 Kg)
Package Weight
20.26 lb (9.19 Kg)
Environmental Ranges
Operating temperature up to 5000 ft (1500 m)
23º to 113ºF
(-5º to 45ºC)
Operating temperature up to 10,000 ft (3000 m)
23º to 104ºF
(-5º to 40ºC)
Short-term exception at sea level*
23º to 131ºF
(-5º to 55ºC)
Short-term exception up to 5000 feet (1500 m)*
23º to 122ºF
(-5º to 50ºC)
Short-term exception up to 10,000 feet (3000 m)*
23º to 113ºF
(-5º to 45ºC)
Short-term exception up to 13,000 feet (4000 m)*
23º to 104ºF
(-5º to 40ºC)
Storage temperature up to 15,000 feet (4573 m)
23º to 158ºF
(-25º to 70ºC)
Operating altitude
Up to 10,000 Feet
(Up to 3,000 Meters)
Storage altitude
Up to 13,000 Feet
(Up to 4,000 Meters)
Operating relative humidity
10% to 95% noncondensing
Storage relative humidity
10% to 95% noncondensing
Sound Pressure, dBA
Typical, LpAm: 33
Maximum, LpAD: 36
Sound Power, dbA
Typical, LwA: 43
Maximum, LwAD: 46
MTBF in thousands of hours
381
Connectors and Interfaces
Ethernet Interfaces
- 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
- 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
- 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
- 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs
- Per-port status: Link integrity, disabled, activity, speed, and full duplex
- System status, Port Status, PoE, RPS, link duplex, and link speed
Console
Cisco Catalyst console cables:
- CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
Power
- The internal power supply is an auto-ranging unit and supports input voltages between 100 and 240V AC.
- Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
- The Cisco RPS connector offers connection for an optional Cisco RPS 2300 that uses AC input and supplies DC output to the switch.
- Only the Cisco RPS 2300 (model PWR-RPS2300) should be attached to the redundant-power-system receptacle.
Management and Standards Support
Management
- BRIDGE-MIB
- CISCO-CABLE-DIAG-MIB
- CISCO-CDP-MIB
- CISCO-CLUSTER-MIB
- CISCO-CONFIG-COPY-MIB
- CISCO-CONFIG-MAN-MIB
- CISCO-DHCP-SNOOPING-MIB
- CISCO-ENTITY-VENDORTYPE-OID-MIB
- CISCO-ENVMON-MIB
- CISCO-ERR-DISABLE-MIB
- CISCO-FLASH-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-IMAGE-MIB
- CISCO-IP-STAT-MIB
- CISCO-LAG-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-PAGP-MIB
- CISCO-PING-MIB
- CISCO-POE-EXTENSIONS-MIB
- CISCO-PORT-QOS-MIB
- CISCO-PORT-SECURITY-MIB
- CISCO-PORT-STORM-CONTROL-MIB
- CISCO-PRODUCTS-MIB
- CISCO-PROCESS-MIB
- CISCO-RTTMON-MIB
- CISCO-SMI-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TC-MIB
- CICSO-TCP-MIB
- CISCO-UDLDP-MIB
- CISCO-VLAN-IFTABLE
- RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- ENTITY-MIB
- ETHERLIKE-MIB
- IEEE8021-PAE-MIB
- IEEE8023-LAG-MIB
- IF-MIB
- INET-ADDRESS-MIB
- OLD-CISCO-CHASSIS-MIB
- OLD-CISCO-FLASH-MIB
- OLD-CISCO-INTERFACES-MIB
- OLD-CISCO-IP-MIB
- OLD-CISCO-SYS-MIB
- OLD-CISCO-TCP-MIB
- OLD-CISCO-TS-MIB
- RFC1213-MIB
- RMON-MIB
- RMON2-MIB
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-TARGET-MIB
- SNMPv2-MIB
- TCP-MIB
- UDP-MIB
- ePM MIB
Standards
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1p CoS Prioritization
- IEEE 802.1Q VLAN
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab (LLDP)
- IEEE 802.3ad
- IEEE 802.3af
- IEEE 802.3ah (100BASE-X single/multimode fiber only)
- IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- RMON I and II standards
- SNMP v1, v2c, and v3
RFC compliance
- RFC 768 - UDP
- RFC 783 - TFTP
- RFC 791 - IP
- RFC 792 - ICMP
- RFC 793 - TCP
- RFC 826 - ARP
- RFC 854 - Telnet
- RFC 951 - Bootstrap Protocol (BOOTP)
- RFC 959 - FTP
- RFC 1112 - IP Multicast and IGMP
- RFC 1157 - SNMP v1
- RFC 1166 - IP Addresses
- RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery
- RFC 1305 - NTP
- RFC 1492 - TACACS+
- RFC 1493 - Bridge MIB
- RFC 1542 - BOOTP extensions
- RFC 1643 - Ethernet Interface MIB
- RFC 1757 - RMON
- RFC 1901 - SNMP v2C
- RFC 1902-1907 - SNMP v2
- RFC 1981 - Path MTU Discovery for IPv6
- FRC 2068 - HTTP
- RFC 2131 - DHCP
- RFC 2138 - RADIUS
- RFC 2233 - IF MIB v3
- RFC 2373 - IPv6 Aggregatable Addrs
- RFC 2460 - IPv6
- RFC 2461 - IPv6 Neighbor Discovery
- RFC 2462 - IPv6 Autoconfiguration
- RFC 2463 - ICMP IPv6
- RFC 2474 - Differentiated Services (DiffServ) Precedence
- RFC 2597 - Assured Forwarding
- RFC 2598 - Expedited Forwarding
- RFC 2571 - SNMP Management
- RFC 3046 - DHCP Relay Agent Information Option
- RFC 3376 - IGMP v3
- RFC 3580 - 802.1X RADIUS
Voltage and Power Ratings
Voltage (Autoranging)
100 to 240 VAC
Current (Amperes)
4.0 – 2.0
Frequency
50 to 60Hz
Power Rating (kVA)
0.43
DC Input Voltages (RPS Input)
2A at 12V (7A at -52V)
Power Consumption
0% traffic: 35.0
10% traffic: 34.8
100% traffic: 35.2
ATIS weighted average: 34.9
Safety and Compliance
Regulatory Compliance
Products should comply with CE Marking per directives 2004/108/EC and 2006/95/EC
Safety
UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
IEC 60950-1 Second Edition
AS/NZS 60950-1
EMC - Emissions
47CFR Part 15 (CFR 47) Class A
AS/NZS CISPR22 Class A
CISPR22 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
KN22 Class A
CNS13438 Class A
EMC - Immunity
EN55024
CISPR24
EN300386
KN24
Environmental
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
- Q&A
-
Faq (WS-C2960+24PC-S)
Can a WS-C2960+24PC-S LAN Lite switch be upgraded to LAN Base?
No. The feature set is bound to the hardware model. To get the features and capabilities of LAN Base, you must purchase a LAN Base switch.
Can a WS-C2960+24PC-S switch support devices that require more than 15.4W?
No, Cisco WS-C2960+24PC-S switch support only up to 15.4W on PoE ports.
- Shipping & Payment
-
Delivery
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Delivery Options Estimated Delivery Time
DHL2-4 business days
Fedex2-4 business days
Hong Kong EMS5-10 business days
Hong Kong Air Parcel10-20 business days
By Sea10-20 business days Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.Deliver to door:
Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.Payment Methods
Paypal Master Card Visa Discover American
ExpressJCB
Wire Transfer eCheck WestUnion - Warranty
-
Warranty
100% Low Price Guarantee:
Router-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.Free CCIE Technical Support:
Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed Cisco product: 1 Year
Used Cisco product: 3 MonthThe Support Contacts:
If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
- Reviews
-
-
JeniferPosted on 2/15/2017Verified Buyer
A little disappointed for it can't upgrate LAN LITE to LAN BASE though it work well.
-
EdwardPosted on 8/25/2016Verified Buyer
Very happy with the cooperation, I wish more
-
AngelPosted on 6/23/2016Verified Buyer
The promotion price very great. This time I bought 1 unit, will buy 3 more soon.
-
DanielPosted on 6/17/2016Verified Buyer
Good luck, I bought with good price for 14th aniversal promotion, cheaper than other company.
-
AbuomarPosted on 6/12/2016Verified Buyer
Goods reached me next day after order. So fast!
-
RandeepPosted on 3/15/2016Verified Buyer
I bought 3pcs here, but I am not good at installing… I got free CCIE support here, good service.
-
RobertoPosted on 3/11/2016Verified Buyer
Website is pretty good!
-
BillPosted on 1/12/2016Verified Buyer
I once use WS-C2960-24PC-S, but it end of sale. I bought this new replacement, with better functions, even price cheaper, it is worthy to buy.
-
HelberthPosted on 9/18/2015Verified Buyer
There was some problem when customs clearance, but DHL solved it, we received our goods without any damage
-
JoelPosted on 5/20/2015Verified Buyer
Available PoE Power is 370W, enough to us
-
AlawiPosted on 1/16/2015Verified Buyer
The power cord is not our country standard, we got one locally, hope can send me the correct one next time
-
You may also be interested in the following product(s)
-
WS-C2960S-24PS-L
US$836.00 -
WS-C2960X-24TS-L
Regular Price: US$804.72
Special Price US$804.00
-
WS-C2960X-24PS-L
Regular Price: US$3,354.75
Special Price US$1,022.00
-
WS-C2960+24PC-L
Regular Price: US$890.72
Special Price US$848.00
-
WS-C2960+24TC-S
US$274.05 -
WS-C2960X-48TS-L
US$1,629.76
