VS-S720-10G-3C

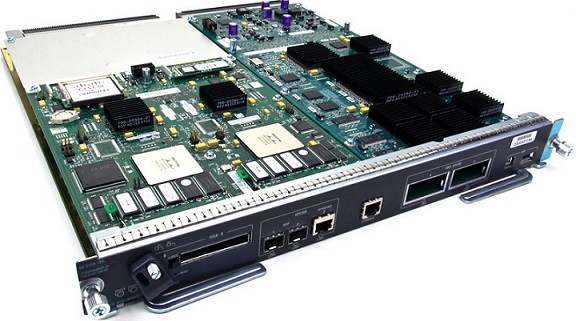

Model: VS-S720-10G-3C Cisco Catalyst 6500 Series Supervisor 720
Detail: Catalyst 6500/7600 Supervisor 720 VS-S720-10G-3C Supervisor 720 with 2 ports 10GbE and MSFC3 PFC3C
Replacement: VS-S2T-10G
List Price: US$42,000.00
Price: $13,230.00
You save: US$28,770.00 (69% OFF)
Condition: Brand New Sealed  Used
Shipping:
Express Shipping to Worldwide
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 13,230.00 Brand New Sealed

VS-S720-10G-3C SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (VS-S720-10G-3C)

Cisco Catalyst 6500 Series Virtual Switch supervisor engine VS-S720-10G-3C combines 2 * X2-base 10 Gigabit Ethernet uplinks and hardware-based layer2-4 switching feature set which enables enriched Layer 3 routing, MPLS, VPNs, QoS and security features. The combination enables high availability, operational efficiency and increased throughput with scalable performance with ease of deployment.

The supervisor engine VS-S720-10G-3C is a primary factor of the Cisco VSS 1440 Virtual Switching System, the technology pools multiple Catalyst 6500 Series switches into single virtual switch, increasing the system bandwidth to 1.4 Tbps. Configuring VSS with supervisor engine VS-720-10G-3C by using Multi-chassis EtherChannel brings numerous advantages to networks, such as increasing operational efficiency, boosting nonstop communication, providing slot efficiency, increasing throughput and improving resiliency.

Cisco Catalyst Supervisor engine VS-S720-10G-3C support for all Cisco Catalyst 6500 Series interface module classes with offering enhanced forwarding capacity and system bandwidth along with system virtualization through VSS 1440. The supervisor engine VS-S720-10G-3C with 10 Gigabit Ethernet uplinks has been proven its ability to meet the requirements of network in various applications, such as enterprise backbone, data center or campus access and Metro Ethernet.

Specification

Specification (VS-S720-10G-3C)

Model info: VS-S720-10G-3C
Product Description Catalyst 6500 Supervisor engine 720-10G-VSS (PFC 3C)
Devide Tyde Control Processor
Ports 2 * 10G  X2, 2 * 1G SFP, 1 * 10/100/1000 GE
Console ports RS-232
Centralized switching capacity 720 Gbps
Per-slot switching capacity 40 Gbps
Compatibility Cisco 6500 Catalyst Series
Cisco 7600 Catalyst Series
FNF (Flexible NetFlow)  entries 128000
Forn Factor Plug-in Module
Memory WS-SUP720 supports 512MB of DRAM for the route processor and 512 MB for the switch processor
64MB or 512MB (s/w image dependent) Boot Flash for SP switch processor and 64-MB of Boot Flash for the route processor
Options Removable storage: 64MB, 128 MB, 256 MB, 512 MB (Compact Flash)
Throughput (in hardware)   450 Mpps for IPv4
  225 Mpps for IPv6
  450Mpps for Layer 2 Bridging
Routing entries   IPV4: 256,000
  IPV6: 128,000
NetFlow Entries 128,000
Security ACL entries 32,000
Number of interfaces with unique ACLs 512
MAC ACLs on IP  No
Aggregate Traffic Rate-Limiting Policers 1,023
NAT Hardware assisted
Slot assignment Catalyst 6503-E/7603: Slot 1 and 2
Catalyst 6504-E: Slot 1 and 2
Catalyst 6506/7606: Slot 5 and 6
Catalyst 6506-E: Slot 5 and 6
Catalyst 6509/7609: Slot 5 and 6
Catalyst 6509-E: Slot 5 and 6
Catalyst 6509-V-E: Slot 5 and 6
Catalyst 6513/7613: Slot 7 and 8
Protocol Layer 3 routing protocols, Border Gateway Protocol version 4 (BGPv4), Open Shortest Path First (OSPF), Intermediate System-to-Intermediate System (IS-IS), Enhanced Interior Gateway Routing Protocol(EIGRP), Routing Information Protocol (RIP), Distributed FIB Switching, Cisco Discover Protocol (CDP), Internet Control Message Protocol (ICMP)
Traditional Protocols such as Internetwork Packet Exchange (IPX), Appletalk, DECnet, Virtual Integrated Network Service (VINES), Connectionless Network Service (CLNS)
Multicast forwarding, Protocol independent Multicast (PIM) (both sparse and dense mode), (S,G), (*,G), Bi-Directional PIM in hardware
Comprehensive MPLS support
Cisco Group Management Protocol and Internet Group Management Protocol (IGMP) snooping
System software / Modules
Software Compatibility Catalyst 6500 Series
WS-Sup720: 8.1(1) and higher
WS-SUP720: 12.2(14)SX and higher
Cisco 7600 Series
WS-SUP720 supports Cisco IOS 12.2(14)SX2 and later
Reliability and Availability Virtual Switching System (VSS)
Fast software upgrade
Route Processor Redundancy+ (RPR+)
Stateful Switchover + Nonstop Forwarding (SSO + NSF)
Online insertion and removal (OIR) hot swap
Fast fabric switchover
DRAM MEM-S3-1GB: Catalyst 6500 1GB SP DRAM for Sup720 and Sup720-3B
MEM-MSFC2-512MB: Catalyst 6500 512MB DRAM on the MSFC2 or SUP720 MSFC3
Compact Flash memory MEM-C6K-CPTFL1G: Catalyst 6500 Compact Flash Memory 1GB
MEM-C6K-CPTFL512M: Catalyst 6500 Sup720 Compact Flash Mem 512MB
MEM-C6K-CPTFL256M: Cat6500 Sup720 Compact Flash Mem 256MB
MEM-C6K-CPTFL128M: Cat6500 Sup720 Compact Flash Mem 128MB
Environmental Conditions
