SPA-2XOC48POS/RPR

Model: SPA-2XOC48POS/RPR Cisco ASR 9000 Series Shared Port Adapter
Detail: Cisco ASR 9000 Adapter SPA-2XOC48POS/RPR 2-port OC48/STM16 POS/RPR Shared Port Adapters
List Price: US$87,400.00
Price: $33,954.90
You save: US$53,445.10 (61% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Ashburn, VA, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 33,954.90 In stock Brand New Sealed
OR

SPA-2XOC48POS/RPR SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (SPA-2XOC48POS/RPR)

SPA-2XOC48POS/RPR is the Cisco Router Shared Port Adapter. This Cisco 1-, 2-, and 4-Port OC-48c/STM-16c POS/RPR SPAs are available on high-end Cisco routing platforms and offers the benefits of network scalability with lower initial costs and easy upgrades. The SPAs continues the Cisco focus on investment protection along with consistent feature support, broad interface availability, and leading-edge technology. The SPAs allow different interfaces (POS, ATM, etc.) to be deployed on the same carrier card.

Quick Specs

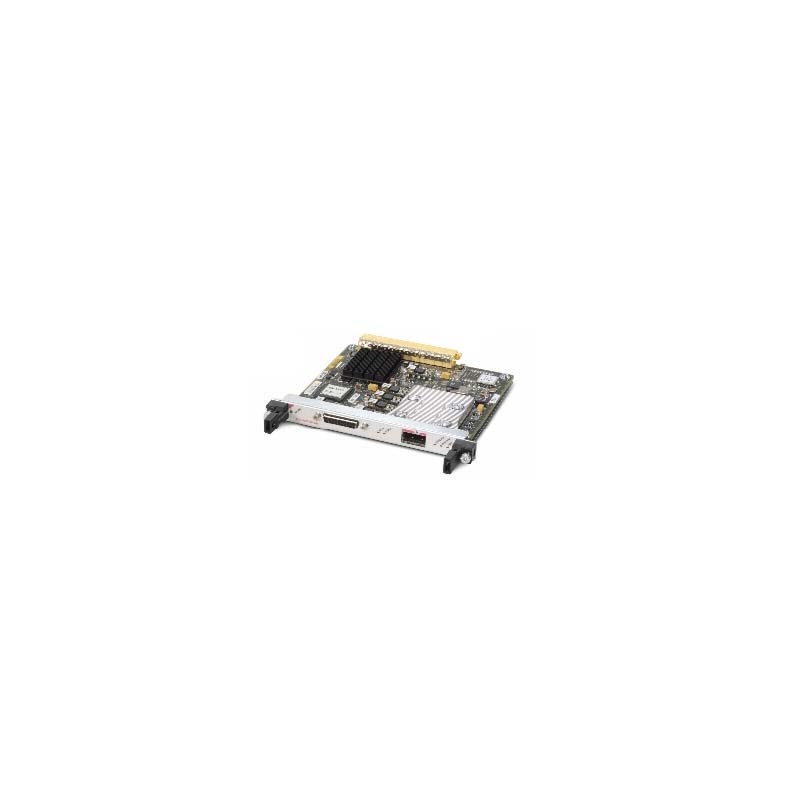

This figure shows the appearance of Cisco 1-, 2-, and 4-Port OC-48c/STM-16c POS/RPR SPAs.

SPA-2XOC48POS/RPR

Table 1 shows the quick specs.

Model

SPA-2XOC48POS/RPR

Type

Cisco Router Shared Port Adapter

Product compatibility

Cisco Catalyst 6500 Series Switches

Cisco 7600 Series Routers

Cisco 12000 Series Routers

Cisco XR 12000 Series Routers

Cisco ASR 1000 Series Router

Cisco ASR 9000 Series Router(2 port only)

Cisco CRS Carrier Routing System(2 and 4 port only)

Port density per SPA

1, 2, and 4 ports

Physical interface
(channelized OC-12)

OC-48c/STM-16c SFP optics module (see optical parameters below)

Visual status indicators (LEDs)

  • SPA status LED
  • Per port LEDs
  • Carrier/Alarm
  • Active/Loopback
  • Protect (DPT/RPR mode)
  • Pass Through (DPT/RPR mode)

Physical specifications

Weight: 0.75 lbs (0.34 kg)

Height: 0.8 inches (2.03 cm)

Width: 6.75 inches (17.15 cm)

Depth: 7.28 inches (18.49 cm)

Power

18 Watts maximum (4-port)

15.5 Watts maximum (1-, 2-, and 4-Port)

12 Watts maximum (1-port)

Compare to Similar Item

Table 2 shows the comparison between SPA-2XCHOC12/DS0 and SPA-2XOC48POS/RPR.

Model

SPA-2XCHOC12/DS0

SPA-2XOC48POS/RPR

Type

Cisco ASR 9000 Series Shared Port Adapter

Cisco Router Shared Port Adapter

Product compatibility

Cisco ASR 9000 Series Router

Cisco Catalyst 6500 Series Switches

Cisco 7600 Series Routers

Cisco 12000 Series Routers

Cisco XR 12000 Series Routers

Cisco ASR 1000 Series Router

Cisco ASR 9000 Series Router(2 port only)

Cisco CRS Carrier Routing System(2 and 4 port only)

Port density per SPA

2-port channelized OC-12/STM-4

1, 2, and 4 ports

Get More Information

Do you have any question about the Cisco SPA-2XOC48POS/RPR?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (SPA-2XOC48POS/RPR)

SPA-2XOC48POS/RPR Specifications

Type

Cisco Router Shared Port Adapter

Product Compatibility

Cisco Catalyst 6500 Series Switches

Cisco 7600 Series Routers

Cisco 12000 Series Routers

Cisco XR 12000 Series Routers

Cisco ASR 1000 Series Router

Cisco ASR 9000 Series Router(2 port only)

Cisco CRS Carrier Routing System(2 and 4 port only)

Port Density per SPA

1, 2, and 4 ports

Physical Interface

OC-48c/STM-16c SFP optics module (see optical parameters below)

Visual status indicators (LEDs)

• SPA status LED

• Per port LEDs

• Carrier/Alarm

• Active/Loopback

• Protect (DPT/RPR mode)

• Pass Through (DPT/RPR mode)

Protocols (see table below for RPR/SRP support info)

High-Level Data Link Control (HDLC), RFC 2615

Point-to-Point Protocol (PPP), RFC 1662

Frame Relay, RFC 2427

IPv4/IPv6

IEEE 802.17 - Resilient Packet Ring (RPR)

IETF 2892 - Spatial Reuse Protocol (SRP)

Features and Functions

Synchronization

• Local (internal) or loop timed (recovered from network)

• Stratum 3 clock accuracy (± 4.6 ppm) over full operating temperature

• Pointer activity monitoring

Local (diagnostic) and line (network) loopback

Section DCC (SDCC) - Platform-dependent feature

Payload mapping

• 1 + X^43 self-synchronous scrambler

SONET/SDH compliance

• Telecordia (Bellcore) GR-253-CORE (as applicable)

• ANSI T1.105, T1.231

• ITU-T G.707, G.957, G.825 (as applicable)

Supported SONET/SDH alarm and signal events

• Signal Failure Bit Error Rate (SF-BER)

• Signal Degrade Bit Error Rate (SD-BER)

• Signal Label Payload Construction (C2)

• Path Trace Byte (J1)

• Section

• Loss of Signal (LOS)

• Loss of Frame (LOF)

• Error Counts for B1

• Threshold Crossing Alarms (TCA) for B1

• Line

• Line Alarm Indication Signal (LAIS)

• Line Remote Defect Indication (LRDI)

• Line Remote Error Indication (LREI)

• Error Counts for B2

• Threshold Crossing Alarms (TCA) for B2

• Path

• Path Alarm Indication Signal (PAIS)

• Path Remote Defect Indication (PRDI)

• Path Remote Error Indication (PREI)

• Error Counts for B3

• Threshold Crossing Alarms (TCA) for B3

• Loss of Pointer (LOP)

• Positive Stuffing Event (PSE)

• Negative Stuffing Event (NSE)

• Path Unequipped Indication Signal (PUNEQ)

• Path Payload Mismatch Indication Signal (PPLM)

Network Management

RFC 2558 MIB (SONET/SDH)

Simple Network Management Protocol (SNMP)

Reliability and Availability

Online insertion and removal (OIR)

Field-replaceable SFP optical modules

1+1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols

Single SPA software reset

Physical Specifications

Weight: 0.75 lbs (0.34 kg)

Height: 0.8 inches (2.03 cm)

Width: 6.75 inches (17.15 cm)

Depth: 7.28 inches (18.49 cm)

Power

18 Watts maximum (4-port)

15.5 Watts maximum (1-, 2-, and 4-Port)

12 Watts maximum (1-port)

Environmental Specifications

Operating temperature: 41° to 104°F (5° to 40°C)

Storage temperature: -38° to 150°F (-40° to 70°C)

Operating humidity: 5 to 85% relative humidity

Storage humidity: 5 to 95% relative humidity

Compliance and Agency Approvals

Safety

UL 60950

CSA 22.2-No.60950

EN60950

IEC 60950 CB Scheme

ACA TS001

AS/NZS 3260

EN60825\IEC60825 laser safety (SR, IR-Class 1) (VSR-Class 1M)1

21CFR1040 -FDA Code of Federal Regulations (USA) laser safety (SR, IR-Class 1) (VSR-Class 1M)1

EMC

FCC Part 15 (CFR 47)

ICES 003

EN55022

CISPR 22

AS/NZ 3548

VCCI

EN55024

EN50082-1

EN61000-6-1

EN61000-3-2

EN61000-3-3

Network Equipment Building System (NEBS)

This product is designed to meet the following requirements (official qualification may be in progress):

SR-3580 - NEBS: criteria levels (Level 3 compliant)

GR-63-Core - NEBS: physical protection

GR-1089-Core - NEBS: EMC and safety

European Telecommunications Standard Institute (ETSI)

EN300 386/EN300 386-2 Class B

ETS 300 019 Storage Class 1.1

ETS 300 019 Transportation Class 2.3

ETS 300 019 Stationary Use Class 3.1
