SPA-2XCHOC12/DS0

5 1
5/5.0
1 Review(s)
Model: SPA-2XCHOC12/DS0 Cisco ASR 9000 Series Shared Port Adapter
Detail: Cisco ASR 9000 Adapter SPA-2XCHOC12/DS02 Port Channelized OC12/DS0 Shared Port Adapter
List Price: US$175,000.00
Price: $96,250.00
You save: US$78,750.00 (45% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Newark, NJ, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 96,250.00 In stock Brand New Sealed
OR

SPA-2XCHOC12/DS0 SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (SPA-2XCHOC12/DS0)

SPA-2XCHOC12/DS0 is the Cisco ASR 9000 Series Shared Port Adapter. This Cisco 2-Port Channelized OC-12/STM-4 SPA is available on high-end Cisco routing platforms offering the benefits of network scalability with lower initial costs and ease of upgrades. The Cisco SPA/SIP portfolio continues the Cisco focus on investment protection along with consistent feature support, broad interface availability, and the latest technology. The Cisco SPA/SIP portfolio allows different interfaces (Packet over SONET/SDH [POS], ATM, Ethernet, etc.) to be deployed on the same interface processor.

Quick Specs

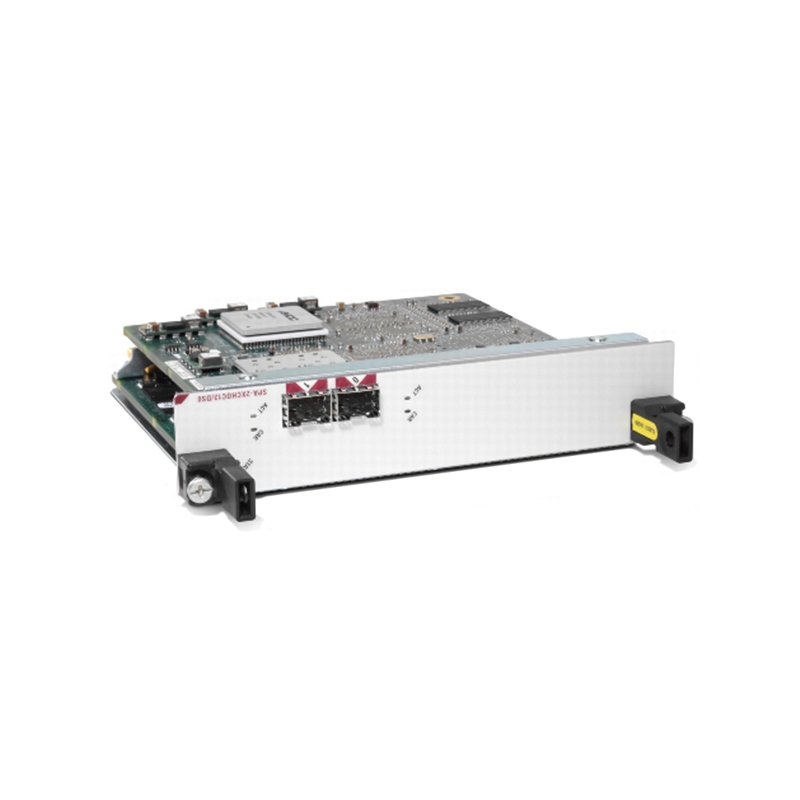

This figure shows the appearance of SPA-2XCHOC12/DS0.

Cisco SPA-2XCHOC12-DS0 Appearance

Table 1 shows the quick specs.

Model

SPA-2XCHOC12/DS0

Type

Cisco ASR 9000 Series Shared Port Adapter

Product compatibility

Cisco ASR 9000 Series Router

Port density per SPA

2-port channelized OC-12/STM-4

Physical interface
(channelized OC-12)

OC-12c/STM-4 Small Form-Factor Pluggable (SFP) optics module

Visual status indicators (LEDs):

  • SPA status LED
  • Per-port LEDs
  • Carrier and alarm
  • Active and loopback

Physical specifications

Weight: 1.27 lb (0.57 kg)

Height: 1.56 in. (3.96 cm) (double height)

Width: 6.75 in. (17.15 cm)

Depth: 7.28 in. (18.49 cm)

Power

2-port channelized OC-12/STM-4 = 52.0W (with optics)

Compare to Similar Item

Table 2 shows the comparison between SPA-2XCHOC12/DS0 and SPA-1XCHOC48/DS3.

Model

SPA-2XCHOC12/DS0

SPA-1XCHOC48/DS3

Type

Cisco ASR 9000 Series Shared Port Adapter

SPA-1XCHOC48/DS3 Cisco ASR 9000 Series & XR 12000 Shared Port Adapter

Product compatibility

Cisco ASR 9000 Series Router

Cisco XR 12000 Series Routers

Cisco ASR 9000 Series Router

Port density per SPA

2-port channelized OC-12/STM-4

1-port Channelized OC-48/STM-16

Get More Information

Do you have any question about the Cisco SPA-2XCHOC12/DS0?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (SPA-2XCHOC12/DS0)

SPA-2XCHOC12/DS0 Specifications

Type

Cisco ASR 9000 Series Shared Port Adapter

Product compatibility

Cisco ASR 9000 Series Router

Port density per SPA

2-port channelized OC-12/STM-4

Physical interface
(channelized OC-12)

OC-12c/STM-4 Small Form-Factor Pluggable (SFP) optics module

Visual status indicators (LEDs):

• SPA status LED

• Per-port LEDs

• Carrier and alarm

• Active and loopback

Protocols

IETF RFC 1490, Frame Relay Encapsulation

RFC 1662, Point-to-Point Protocol (PPP) in High-Level Data Link Control (HDLC)-like framing

Cisco HDLC

Multilink PPP (RFC 1990) (as applicable for 2-port channelized OC-12c/STM-4 (DS-1/E1)

FRF.12, link fragmentation and interleaving (LFI)

PPP, HDLC, and Frame Relay User Network Interface (UNI) encapsulations

Features and functions

DS-3

• Full- and half-duplex connectivity at DS-3 rate (44.736 MHz)

• Scrambling and subrate support of major data-service-unit (DSU) vendors

• C-bit or M23 framing (software selectable)

• MDL

• Support for 16- and 32-bit cyclic redundancy check (CRC) (16-bit default)

• 24-hour history maintained for error statistics and failure counts

• DS-3 alarm and event detection (once-per-second polling)

• Alarm indication signal (AIS)

• Out of frame (OOF)

• Far-end receive failure (FERF)

DS-1

• Superframe (SF) and Extended Superframe (ESF) support

• ANSI T1.403 FDL support

• Internal or line-derived (loop) clocking, independently selectable on each T1 tributary

• Error and alarm detection: CRC errors, framing errors, loss of frame (red), AIS (blue), remote alarm indication (yellow)

• Alarm reporting: 24-hour history maintained, 15-minute intervals on all errors

• BERT at T1 level

• Loopback capabilities: local, network line and network payload, remote network line, and remote network payload at the T1 level

SONET errors, alarms, and performance monitoring

Synchronization:

• Local (internal) or loop timed (recovered from network)

• Pointer activity monitoring

• Redundant clock source should be provisioned on different SPAs as only a single timing source can be provided by SPA

Local (diagnostic) and line (network) loopback

Payload mapping

• POS with 1 + X^43 self-synchronous scrambler

SONET/SDH compliance:

• Telcordia (Bellcore) GR-253-CORE (as applicable)

• ANSI T1.105, T1.231

• ITU-T G.707, G.957, G.825 (as applicable)

Supported SONET/SDH alarm and signal events:

• Signal failure bit error rate (SF-ber)

• Signal degrade bit error rate (SD-ber)

• Signal label payload construction (C2)

• Path trace byte (J1)

• Section

• Loss of signal (LoS)

• Loss of frame (LoF)

• Error counts for B1

• Threshold crossing alarms (TCA) for B1

• Line

• Line alarm indication signal (LAIS)

• Line remote defect indication (LRDI)

• Line remote error indication (LREI)

• Error counts for B2

• TCA for B2

• Path

• Path alarm indication signal (PAIS)

• Path remote defect indication (PRDI)

• Path remote error indication (PREI)

• Error counts for B3

• TCA for B3

• Loss of pointer (LoP)

• Positive stuffing event (PSE)

• Negative stuffing event (NSE)

• Path unequipped indication signal (PUNEQ)

• Path payload mismatch indication signal (PPLM)

Network management

SONET-MIB (RFC 3592)

SONET/SDH-MIB (RFC 2558)

CISCO-SONET-MIB

DS-3/E3-MIB (RFC 3896)

DS-1/E1-MIB (RFC 2496)

Simple Network Management Protocol (SNMP)

Reliability and availability

Online insertion and removal (OIR)

Field-replaceable SFP optical modules

1+1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols (please check platform support)

Single SPA software reset

Physical specifications

Weight: 1.27 lb (0.57 kg)

Height: 1.56 in. (3.96 cm) (double height)

Width: 6.75 in. (17.15 cm)

Depth: 7.28 in. (18.49 cm)

Power

2-port channelized OC-12/STM-4 = 52.0W (with optics)

Environmental specifications

Operating temperature: 41 to 104°F (5 to 40°C)

Storage temperature: -38 to 150°F (-40 to 70°C)

Operating humidity: 5 to 85% relative humidity

Storage humidity: 5 to 95% relative humidity

Compliance and agency approvals

Safety

• UL 60950

• CSA 22.2-No.60950

• EN60950

• IEC 60950 CB Scheme

• ACA TS001

• AS/NZS 3260

• EN60825\IEC60825 laser safety (SR, IR-Class 1) (VSR-Class 1M)1

• 21CFR1040 -FDA Code of Federal Regulations (USA) laser safety (SR, IR-Class 1) (VSR-Class 1M)1

EMC

• FCC Part 15 (CFR 47)

• ICES 003

• EN55022

• CISPR 22

• AS/NZS CISPR22

• VCCI

• EN55024

• EN50082-1

• EN61000-6-1

• EN61000-3-2

• EN61000-3-3

Network Equipment Building Standards (NEBS)

This product is designed to meet the following requirements (official qualification may be in progress):

• SR-3580 - NEBS: Criteria levels (Level 3 compliant)

• GR-63-CORE - NEBS: Physical protection

• GR-1089-CORE - NEBS: EMC and safety
