router service module
- 23 * 10/100 POE FastEthernet ports and 1 Gigabit Ethernet port
- Supported router: 2911/2921/2951/3925/3945
- Cisco Enhanced PoE, up to 20 Watts per port
- IP base feature set with update option to IP service feature set
- Layer 3 switching, IP routing, power redundant
- Ease of management, secure network connectivity, energy efficient
- IP SLA, private Vlans, RPF, MAB, advanced ACLs, advanced QoS

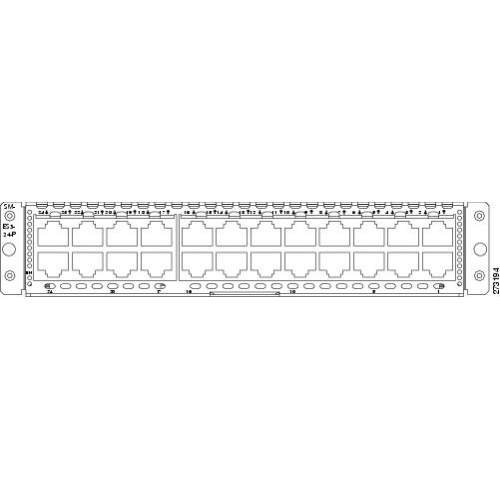

SM-ES3-24-P is the Service Modules for 2900/3900 series router to offer cost-efficiency solution to meet branch officeds or small to midsize business offices needs with no requiring physical room. SM-ES3-24-P has identical switching capacity to catalyst 3560 series switch and provides 23 FastEthernet ports and 1 Gigabit Ethernet port in IP base feature set image with POE capability which supplies up to 20 Watts per port (ePOE). Cisco Energywise technology reduces the cost of power consumption by monitoring and optimzing power delivery.
The Cisco Enhanced EtherSwitch Service Module runs independently of host router resource, it has their own processors, switching engines, flash memory and own upgradable IOS to ensure maximum concurrent switching and routing performance. The integration of Cisco Enhanced EtherSwitch Service Modules with existing router simplifies network management and troubleshooting, enhances scalability, offers investment protection and minimizes downtime that affects business operations.
Model info SM-ES3-24-P Product Type Cisco Enhanced EtherSwitch Service Module Port Density 23 * 10/100 FE ports and 1 10/100/1000 GE port Power over Ethernet (PoE) up to 20W per port Routing Protocol RIP-1, RIP-2, HSRP, static IP routing, RIPng Remote Management Protocol SNMP 1, SNMP 2,Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+ Supported router 2911 / 2921 / 2951 / 3925 / 3945 Service Module Width single slot Power Redundancy RPS 2300 IP base feature • QoS
• Static Routing
• RIP v1,v2
IP service feature • IP unicast and IP Multicast routing
• IPv6 routing
• IP SLA
Security Features • Dynamic ARP Inspection (DAI)
• DHCP Snooping
• IP Source Guard
• Private VLANs
• Unicast Reverse Path Forwarding (RPF)
• IEEE 802.1x
• Multidomain Authentication
• MAC Authentication Bypass
• Advanced ACLs
• Administrative Traffic Protection
• Switched Port Analyzer (SPAN)
• Centralized Authentication
• MAC Address Authentication
• Port Security
• Console Security
• Bridge Protocol Data Unit (BPDU) Guard
• Spanning-Tree Root Guard (STRG)
• Dynamic VLAN Assignment
• IGMP Filtering
Software license • L-ES3-24-48-IPS: IP Services License Upgrade 24/48 Port FE ES3 Enhanced EtherSwitch eDelivery
• L-ES3: Upgrade Quantity license
