PWR-C2-1025WAC=

5 1
5/5.0
1 Review(s)
Model: PWR-C2-1025WAC= Catalyst 3650 Series Spare Power Supply
Detail: 1025W AC Config 2 Power Supply Spare
List Price: US$1,450.00
Price: $551.00
You save: US$899.00 (62% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Worldwide
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 551.00 In stock Brand New Sealed
OR

PWR-C2-1025WAC= SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (PWR-C2-1025WAC=)

PWR-C2-1025WAC= is 1025W AC Config 2 Power Supply Spare.

Quick Specs

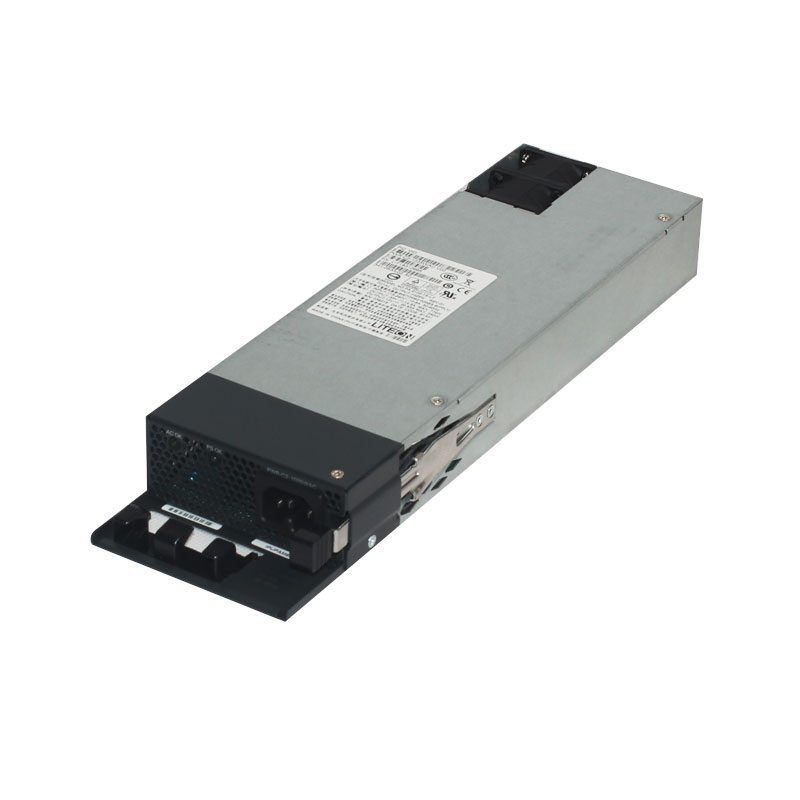

Figure 1 shows the appearance of PWR-C2-1025WAC=.

PWR-C2-1025WAC= Appearance

Table 1 shows the Quick Specs.

Product Code

PWR-C2-1025WAC=

Power Supply Rated Maximum

1025W

Total Output BTU (Note: 1000 BTU per hr = 293 W)

3497 BTU/hr, 1025W

Input-Voltage Range and Frequency

(Note: ±10% of "Input-Voltage Range”)

115-240VAC,

50-60 Hz

Input Current

12-6A

Output Ratings

12V @ 20.83A

-54V @ 14.6A

Output Holdup Time

10 ms minimum @ 102.5VAC

Power-Supply Input Receptacles

IEC 320-C16

(IEC60320-C16)

Power Cord Rating

13A

Physical Specifications

(H x W x D): 1.58 X 3.75 X 13.25 in (4.0 x 9.5 x 33.7 cm)

Weight: 3.55 lb

(1.61 kg)

The Modules, Cards, Licenses

Table 2 shows the recommended elements for the PWR-C2-1025WAC=.

Category

Model

Description

Power Cable



CAB-TA-NA

North America AC Type A Power Cable

CAB-TA-JP

Japan AC Type A Power Cable

CAB-C15-CBN

Cabinet Jumper Power Cord, 250 VAC 13A, C14-C15 Connectors

CAB-C15-CBN-JP

Japan Cabinet Jumper Power Cord, 250 VAC 12A, C14-C15

CAB-TA-SW



Switzerland AC Type A Power Cable

Compare to Similar Items

Table 3 shows the comparison of PWR-C2-250WAC=, PWR-C2-640WDC= and PWR-C2-1025WAC=.

Product Code

PWR-C2-250WAC=

PWR-C2-640WDC=

PWR-C2-1025WAC=

Power Supply Rated Maximum

250W

640W

1025W

Total Output BTU (Note: 1000 BTU per hr = 293 W)

853 BTU/hr, 250W

2188 BTU/hr, 640W

3497 BTU/hr, 1025W

Input-Voltage Range and Frequency

(Note: ±10% of "Input-Voltage Range”)

100-240VAC,

50-60 Hz

-36VDC to -72VDC

115-240VAC,

50-60 Hz

Input Current

4-2A

21 - 10.5 A

12-6A

Output Ratings

12V @ 20.83A

12V @ 20.83A

-54V @ 7.36A

12V @ 20.83A

-54V @ 14.6A

Output Holdup Time

16.7 ms minimum @ 100VAC

> 2ms@-48VDC

10 ms minimum @ 102.5VAC

Power-Supply Input Receptacles

IEC 320-C13 (IEC60320-C13)

Terminal strip

IEC 320-C16

(IEC60320-C16)

Power Cord Rating

10A

20A @ 100VDC

13A

Get More Information

Do you have any question about the PWR-C2-1025WAC=?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (PWR-C2-1025WAC=)

PWR-C2-1025 WAC= Specification

Power Supply Rated Maximum

1025W

Total Output BTU (Note: 1000 BTU per hr = 293 W)

3497 BTU/hr, 1025W

Input-Voltage Range and Frequency

(Note: ±10% of "Input-Voltage Range”)

115-240VAC,

50-60 Hz

Input Current

12-6A

Output Ratings

12V @ 20.83A

-54V @ 14.6A

Output Holdup Time

10 ms minimum @ 102.5VAC

Power-Supply Input Receptacles

IEC 320-C16

(IEC60320-C16)

Power Cord Rating

13A

Physical Specifications

(H x W x D): 1.58 X 3.75 X 13.25 in (4.0 x 9.5 x 33.7 cm)

Weight: 3.55 lb

(1.61 kg)

Operating Temperature

For the operating temperature ranges at various altitudes of AC and DC power supply module powered switches, see Table 1.

Storage Temperature

-40 to 158°F (-40 to 70°C)

Relative Humidity Operating and Nonoperating Noncondensing

5 to 96% noncondensing

Altitude

16,400 ft. (5,000 meters)

MTBF

Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Issue 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level).

EMI and EMC Compliance

“AC OK”: Input power to the power supply is OK

“PS OK”: Output power from the power supply is OK

Safety Compliance

For the operating temperature ranges at various altitudes of AC and DC power supply module powered switches, see Table 1.

LED Indicators

-40 to 158°F (-40 to 70°C)
