Name: MA5612-AC-10G-PON
SKU: MA5612-AC-10G-PON
Rating: 5 (3 reviews)

Skip to the beginning of the images gallery

Name:	MA5612-AC-10G-PON
Model:	MA5612-AC-10G-PON - Huawei SmartAX MA561x Series
Brand:	Huawei
Detail:	Huawei SmartAX MA5612 AC, with the 10G PON upstream transmission
	Rating: 100% 5/5.0 3 Reviews
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

MA5612-AC-10G-PON

Huawei SmartAX MA5612 AC, with the 10G PON upstream transmission

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

MA5612-AC-10G-PON Overview

The SmartAX MA5612 Multi-service Access Module is an optical network unit (ONU) launched by Huawei Technologies Co., Ltd.

The MA5612 applies in fiber to the building (FTTB) and fiber to the curb (FTTC) scenarios. In addition, the MA5612 supports private line access.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	MA5612-AC-10G-PON
Dimensions	43.6 mm x 442 mm x 245 mm (without mounting ears) 43.6 mm x 482.6 mm x 245 mm (with 19-inch mounting ears)
Power Supply Mode	220 V AC or 110 V AC power supply + backup power (12 V DC)
Operating Voltage Range	100 V AC to 240 V AC
Maximum Input Current	1.5 A
POTS	Supports the POTS access and provides the VoIP, FoIP, and MoIP services.
Uplink optical	GE: Supports GE upstream transmission. 10G PON: Supports GPON or 10G GPON upstream transmission.

Product Details

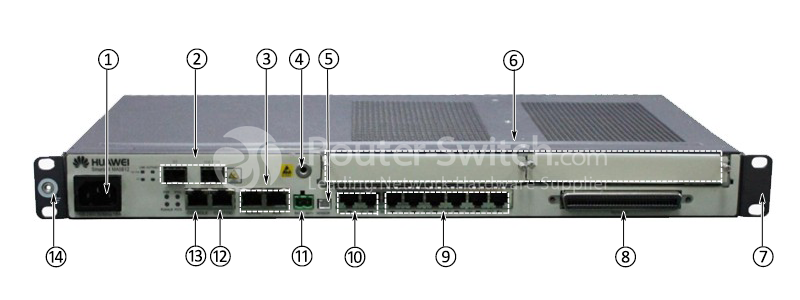

Figure 1 shows the ports and slots of MA5612-AC-10G-PON.

ports and slots of MA5612-AC-10G-PON

Note:

①	AC power port	⑧	POTS port
②	Uplink optical port	⑨	FE electrical port
③	Environment monitoring port	⑩	GE electrical port
④	ESD jack	⑪	Battery power port
⑤	Battery sensor port	⑫	Clock/Time Output port
⑥	Service board	⑬	Console port/Environment monitoring port
⑦	Mounting bracket	⑭	Grounding point

MA5612-AC-10G-PON provide these highlights:

★10G GPON Upstream Transmission

•10G PON ports allow higher access bandwidth and meet high-bandwidth service requirements.

•10G GPON networks can coexist with the current PON networks to fully use the existing optical distribution network (ODN) resources.

•The 10G GPON transmission complies with ITU-T Recommendation G.987 and ITU-T Recommendation G.988.

★Various Services

•Flexible configuration specifications: The MA5612 supports upstream transmission using GE ports, GPON ports, 10G GPON ports based on application scenarios and network construction modes. Carriers can flexibly select a configuration according to user density, obtaining maximal return on investment.

•High-performance multicast services

•VoIP services

•Comprehensive QoS functions

★High Efficiency Maintenance and Management

•Is plug and play and supports service pre-deployment.

•Supports remote fault locating, troubleshooting, and batch upgrades.

★Carrier-Class Reliability Design

•Passes the ESD test.

•Provides surge protection and anti-interference functions.

•Protects user ports and power ports.

Compare to Similar Items

Table 2 shows the comparison of Huawei SmartAX MA5612 Series.

Parameters	MA5612-AC	MA5612-DC	MA5612-AC-POTS	MA5612-DC-POTS	MA5612-AC-10G-PON	MA5612-DC-10G-PON
Power Supply Mode	AC power (220 V AC)+power backup (12 V DC)	DC power (-48 V DC)	AC power (220 V AC)+power backup (12 V DC)	DC power (-48 V DC)	AC power (220 V AC)+power backup (12 V DC)	DC power (-48 V DC)
Operating Voltage Range	100 V AC to 240 V AC	48 V DC to -60 V DC	100 V AC to 240 V AC	48 V DC to -60 V DC	100 V AC to 240 V AC	48 V DC to -60 V DC
Maximum Input Current	1.5 A	2 A	1.5 A	2 A	1.5 A	2 A
POTS			Supports the POTS access and provides the VoIP, FoIP, and MoIP services.	Supports the POTS access and provides the VoIP, FoIP, and MoIP services.	Supports the POTS access and provides the VoIP, FoIP, and MoIP services.	Supports the POTS access and provides the VoIP, FoIP, and MoIP services.
Uplink optical	Supports GPON or GE upstream transmission.	Supports GPON or GE upstream transmission.	Supports GPON or GE upstream transmission.	Supports GPON or GE upstream transmission.	GE: Supports GE upstream transmission. 10G PON: Supports GPON or 10G GPON upstream transmission.	GE: Supports GE upstream transmission. 10G PON: Supports GPON or 10G GPON upstream transmission.

Get More Information

Do you have any question about the MA5612-AC-10G-PON

Quality Certifications

Specification

MA5612-AC-10G-PON Specification

MA5612-AC-10G-PON Specification
Dimensions & Environment Specification
Dimensions		43.6 mm x 442 mm x 245 mm (without mounting ears) 43.6 mm x 482.6 mm x 245 mm (with 19-inch mounting ears)
Perating Environment Temperature		-40°C to +55°C
Operating Environment Humidity		5% RH to 95% RH
Atmospheric Pressure		70 kPa to 106 kPa
Altitude		≤ 4000 m
Power Specification
Power Supply Mode			220 V AC or 110 V AC power supply + backup power (12 V DC)
Operating Voltage Range			100 V AC to 240 V AC
Maximum Input Current			1.5 A
Backup power: •Batteries will be charged when the device is powered by an AC power source. The charging voltage supported by a lead-acid battery ranges from 13.5 V to 13.8 V. The charging voltage supported by a Fe-lithium battery ranges from 14.1 V to 14.8 V. •If the AC power source is cut off, the device will be powered by batteries. The discharging voltage supported by a lead-acid battery ranges from 10.8 V to 13.5 V. The discharging voltage supported by a Fe-lithium battery ranges from 10.8 V to 14.4 V.
Power Consumption
Typical Configurations	Static Power Consumption	Typical Power Consumption		Maximum Power Consumption
Broadband and narrowband configuration: 2 GE ports, 14 FE ports, and 32 POTS ports; AC power supply. (The mother board provides POTS ports and one FE board and one POTS board are connected to the mother board.)	34W	50.1W		78W
Broadband configuration: 2 GE ports and 22 FE ports; AC power supply. (The backplane provides POTS ports and two FE boards are connected to the backplane.)	33.1W	39.3W		56.6W
