Overview

H83BVCMM Overview

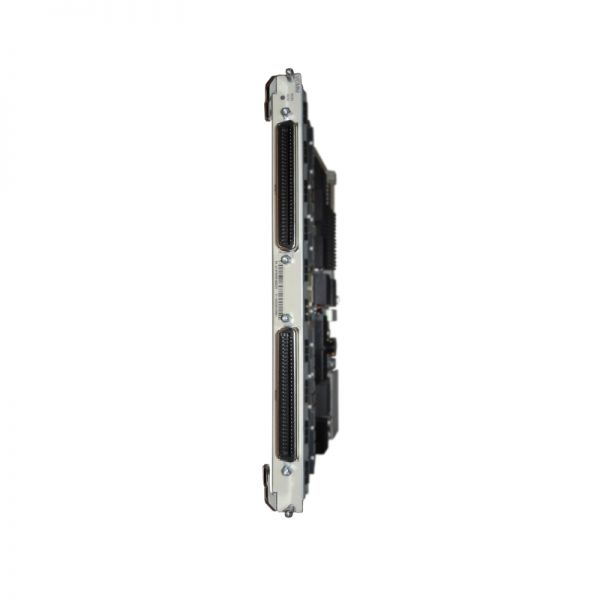

The H83BVCMM is a 48-channel VDSL2 service board without a built-in splitter. It provides VDSL2 access service, supports system-level vectoring function.

Quick Spec

Table 1 shows the quick spec.

Model	H83BVCMM
Connector	Champ 64-pin
Built-in splitter	None
Bandwidth	3 Gbit/s
Maximum frame size	PTM: 1919 bytes ATM: 2000 bytes

Product Details

H83BVCMM provides these benefits:

Supports vectoring by using together with a power board supporting vectoring

Supports up to 48 ports

H83BVCMM provides these external interfaces:

2x24 VDSL2 lines:

- G.993.2 (VDSL2)

- G.997.1 (physical layer management)

- G.998.2 (Ethernet-based multipair bonding)

- G.998.4 (INP for DSL)

- G.994.1 (handshake procedures)

- BF TR-165 (vector of profiles)

- BF TR-129 (protocol-independent management model)

- BF TR-159 (management framework for xDSL bonding)

Compare to Similar Item

Table 2 shows the comparison.

Model	H83BCVLE	H83BVCLE	H83BVCMM
Connector	Champ 64-pin	Champ 64-pin	Champ 64-pin
Built-in splitter	600 ohms	600 ohms	None
Maximum frame size	PTM: 2000 bytes ATM: 1800 bytes	2000 bytes	PTM: 1919 bytes ATM: 2000 bytes

Get More Information

Do you have any question about the H83BVCMM

Quality Certifications

Specification

H83BVCMM Specification

H83BVCMM Specification
Connector	Champ 64-pin
Built-in splitter	None
Bandwidth	3 Gbit/s
Maximum Frame Size	PTM: 1919 bytes ATM: 2000 bytes
Operating temperature	-40° C to +65° C
Power consumption	For 12a profiles: • Static: 25 W • Typical: 60 W • Maximum: 64 W For 17a profiles: • Static: 25 W • Typical: 60 W • Maximum: 65 W For 8b profiles: • Static: 25 W • Typical: 62 W • Maximum: 65 W
High temperature automatic shutdown	Supported
Powering on/off by CLI	Supported
Annex	G.992.1 (Annex A) G.992.3 (Annex A/B/J/L/M) G.992.5 (Annex A/B/J/M) G.993.2 (Annex A/B)
Profile	8a/8b/8c/8d/12a/12b/17a
Vectoring	Supported
Bonding	Supports the bonding of any four ports on the MA5616 equipped with a CCUE control board. And supports 8-pair bonding when being connected to the MA5694.
SRA	Supported
RFI notch	Supported
UPBO	Supported
DPBO	Supported
G.INP	Supported
INM	Supported
Virtual noise	Supported
Built-in MELT	Supported
Built-in SELT	Supported
IPv6	Supported
N:1 VMAC	Supported
1:1 VMAC	Supported
