Название:	TOM1000-A10F2080P
Модель:	MRD TOM1000-A10F2080P
Бренд:	MRD
Detail:	TOM1000 Series 2 100/1000BaseX SFP Ports,8 802.3af/at PoE 10/100/1000BaseT Ports
	Рейтинг: 80% 4/5.0 1 Отзыв
Наличие:	Item Backordered
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

TOM1000-A10F2080P

TOM1000 Series 2 100/1000BaseX SFP Ports,8 802.3af/at PoE 10/100/1000BaseT Ports

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

TOM1000-A10F2080P Обзор

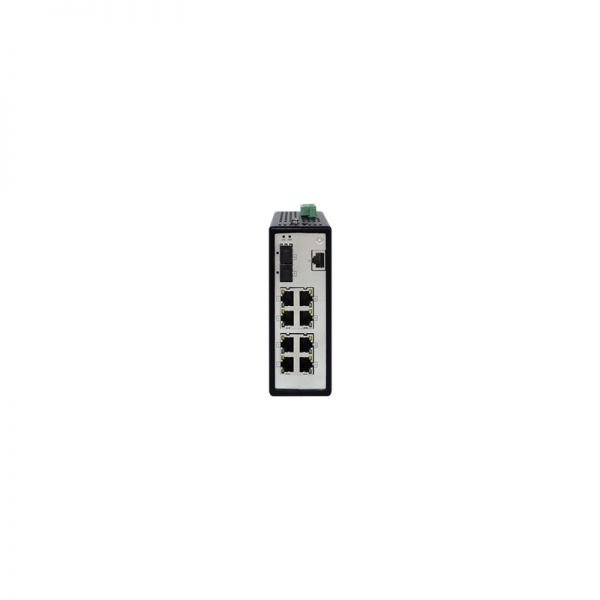

TOM1000 Unmanaged Industrial Switch made from Anti-Corrosion Casting
Aluminum Alloy. 2 100/1000BaseX SFP Ports (SFP module not included),
8 802.3af/at PoE 10/100/1000BaseT Ports. IP30 Protection Class, Operating
Temperature from -40°C to +75°C, and MTBF over 400K hours. Isolated dual
48-54VDC Power Inputs. Power Cable Order Separately.

Quick Spec

Table 1 shows the quick spec of the TOM1000-A10F2080P

Model	TOM1000-A10F2080P
Interface Configuration	2 x 100/1000BaseX SFP Ports 8 x 10/100/1000BaseT Ports
Input Voltage	48-57VDC,
Fansless	Yes
Backplane Bandwidth	20 Gbps
Installasion	DIN-Rail
IP Rating	IP30;
Conformal Coated	Optional
Dimensions (W x H x D)	52mm x 140mm x 110mm
Dimensions (W x H x D)	2.05 inch x 5.51 inch x 4.34inch
Weight	0.7 kg
Weight	1.54 lb
MTBF	≥400,000H
Operating Temperature	-40 °C~ 85 °C
Operating Temperature	-40°F ~ 185°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010 (pending)
Shipbuilding Industry	GL (pending)

Product Features

● Full Gigabit Ethernet ports
● 20Gbps backplane bandwidth
● Support IEEE 802.3af/at compliant PoE
● Each PoE port provides up to 30W output power
● PoE management: PoE device detection, PoE power management
● Dual redundant power inputs design for DC models
● IP40 Die-casting aluminum alloy housing
● Fanless, -40°C to 75°C wide operating temperature range
● MTBF≥ 400,000 hours

Supported Options

Table 2 shows the supported options of the TOM1000-A10F2080P

MDP-IE150P-54	150W Industrial DIN-Rail Power Supply for PoE/PoE+ (2250V Isolation) Input: 110/220 VAC/VDC (90~264VAC/88~300VDC) Output: 54VDC/2.78A Operating Temperature from -40°C to +75°C with conventional cooling
MRD-MGIGA-GLX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX	Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-MGIGA-GSX-850	Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
MRD-MGIGA-GSX	Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

Get More Information

Do you have any questions about the TOM1000-A10F2080P price?

Сертификаты качества

Спецификация

TOM1000-A10F2080P Спецификация

TOM1000-A10F2080P Specification
Backplane Bandwidth	20 Gbps
Processing Type	Store-and-Forward
MAC Table Size	4K
RAM:
Exchange Rate	148,800 pps/100M; 1,488,000 pps/1000 M;
Management Mode
Diagnosis Mode
Redundancy
Time Synchronization
Others
Connection	1 removable 5-contact terminal block
Input Voltage	48-57VDC,
Power Consumption	15W（without POE）
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	DIN-Rail
Housing	Die-casting aluminum alloy housing
IP Rating	IP30;
Conformal Coated	Optional
Dimensions (W x H x D)	52mm x 140mm x 110mm
Dimensions (W x H x D)	2.05 inch x 5.51 inch x 4.34inch
Weight	0.7 kg
Weight	1.54 lb
MTBF	≥400,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃ ~ 85 ℃
Operating Temperature	-40℉ ~ 185℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN55032 Class A EN55035 Class A
EMS	IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-11, Class 4 IEC (EN )61000-4-12, Class 4
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011(pending)
Rail Industry	EN50155; IEC/EN61373; EN50121
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010(pending)
Shipbuilding Industry	DNV-GL (pending)
