Название:	SRS2000-SA26PP2G24P
Модель:	MRD SRS2000-SA26PP2G24P
Бренд:	MRD
Detail:	R37 Series 2 100/1000BaseX SFP ports + 24 10/100/1000BaseT POE ports
	Рейтинг: 80% 4/5.0 1 Отзыв
Цена:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED 315,25 US$
Купон	Up to $80 Coupons Получить сейчас $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Наличие:	In Stock at Global Warehouses. United States United Kingdom Germany United Arab Emirates Singapore India Hong Kong
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

SRS2000-SA26PP2G24P

R37 Series 2 100/1000BaseX SFP ports + 24 10/100/1000BaseT POE ports

Цена: 315,25 US$

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

SRS2000-SA26PP2G24P Обзор

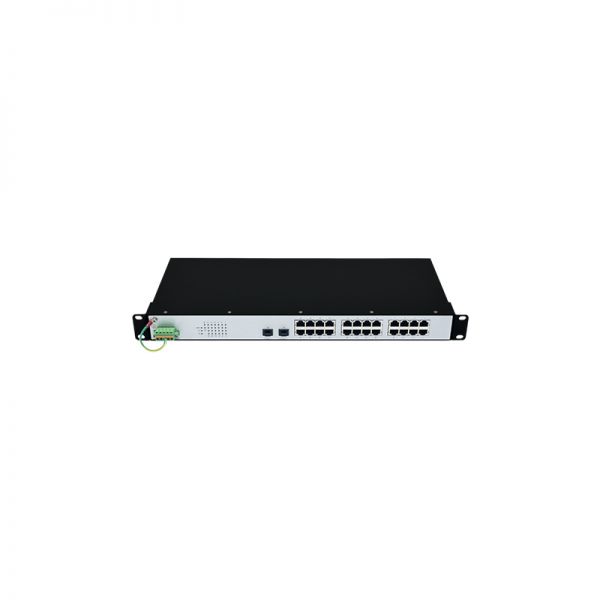

26-port unmanaged industrial switch made from Anti-corrosion aluminum alloy, support 2 100/1000BaseX SFP ports (SFP module not included) + 24 10/100/1000BaseT PoE ports. 1U high, rack-mounted. IP40 protection class. Operating temperature -40°C ~ +75°C. Dual isolated power inputs (48~54VDC), with one power cord.

Quick Spec

Table 1 shows the quick spec of the SRS2000-SA26PP2G24P

Model	SRS2000-SA26PP2G24P
Interface Configuration	2 x 100/1000BaseX SFP 24 x 10/100/1000BaseT
Input Voltage	48 ~ 54VDC, dual inputs
Fansless	Yes
Backplane Bandwidth	52 Gbps
Installasion	Rack-Mounted
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	440mm × 43.8mm × 200mm
Dimensions (W x H x D)	17.33 inch x 1.73 inch x 7.87 inch
Weight	1.7 kg
Weight	3.75 lb
MTBF	≥300,000H
Operating Temperature	-40 °C~ 75 °C
Operating Temperature	-40°F ~ 167°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A

Product Features

● All 1000M ports
● 52Gbps backplane bandwidth
● Wide and varied power supply range
● Non-rust aluminum alloy housing and torx screws
● All ports support line speed forwarding and automatic turnover, supporting long-distance transmission
● Support IEEE 802.3af/at PoE
● Each PoE port support 802.1af and 802.1at
● Lighting Protection: power port ±4KV, RJ45 port ±4KV
● Easy to install, plug and play without configuring
● Fanless design, wide working temperature and quiet operation
● MTBF ≥ 300,000h

● Industrial Switch

Supported Options

Table 2 shows the supported options of the SRS2000-SA26PP2G24P

PWRSPS-350W-48V	Dual Output Enclosure 350W Industrial Power Supply. 220VAC Input, Dual 48VDC Outputs
MRD-MGIGA-GLX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX	Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-MGIGA-GSX-850	Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
MRD-MGIGA-GSX	Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

Get More Information

Do you have any questions about the SRS2000-SA26PP2G24P price?

Сертификаты качества

Спецификация

SRS2000-SA26PP2G24P Спецификация

SRS2000-SA26PP2G24P Specification
Backplane Bandwidth	52 Gbps
Processing Type	Store-and-Forward
MAC Table Size	8K
Packet Buffer Size	4.1Mbti
Exchange Rate	148,800 pps/100M ports; 1,488,000 pps/1000M ports
Ethernet Interface	Diagnosis Mode
Connection	5-PIN terminal block
Input Voltage	48 ~ 54VDC, dual inputs
Power Consumption	20W（Without POE）
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	Rack-Mounted
Housing	Aluminum Alloy Housing
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	440mm × 43.8mm × 200mm
Dimensions (W x H x D)	17.33 inch x 1.73 inch x 7.87 inch
Weight	1.7 kg
Weight	3.75 lb
MTBF	≥300,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃~ 75 ℃
Operating Temperature	-40℉ ~ 167℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A
EMS	IEC(EN)61000-4-2, Class 4 IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 4 IEC(EN)61000-4-5, Class 4 IEC(EN)61000-4-6, Class 3 IEC(EN)61000-4-8, Class 5
Product Safety	EN/IEC62368-1
EMC	EN 55032 EN 55035 EN IEC61000-3-2 EN61000-3-3 FCC Part 15 Subpart B Class A
Others	Test Report from Ministry of Public Security, Network Access License, RoHS
