Название:	MTX140-A16R000G
Модель:	MRD MTX140-A16R000G
Бренд:	MRD
Detail:	MTX Series 16 10/100BaseT Ports
	Рейтинг: 100% 5/5.0 1 Отзыв
Наличие:	Item Backordered
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

MTX140-A16R000G

MTX Series 16 10/100BaseT Ports

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

MTX140-A16R000G Обзор

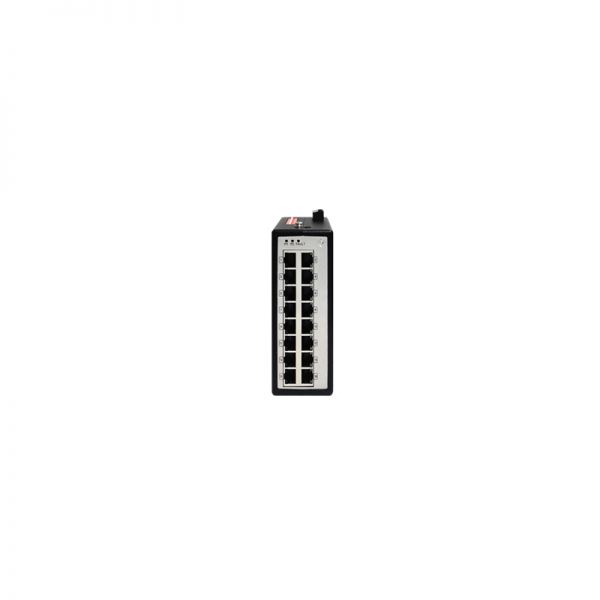

MTX140 16-port Unmanaged Industrial Switch made from Anti-Corrosion Aluminum Alloy. 16 10/100BaseT Ports. DIP-enabled Sound & Light Alarm Output & 1 Alarm Relay port (1A@24VDC). IP30 Protection Class, Operating Temperature from -40°C to +75°C. Dual 12/24/48 VDC (9.6~60 VDC ) & 24VAC (18~30 VAC) Power Input (Only connect to class 2 power supply).

Quick Spec

Table 1 shows the quick spec of the MTX140-A16R000G

Model	MTX140-A16R000G
Interface Configuration	16 x 10/100 BaseT
Input Voltage	12/24/48 VDC & 24 VAC
Fansless	Yes
Backplane Bandwidth	8.8Gbps
Installasion	DIN-rail mounting
IP Rating	IP30;
Conformal Coated	Optional
Dimensions (W x H x D)	52mm × 140mm × 110 mm
Dimensions (W x H x D)	2.04 inch x 5.51 inch x 2.43 inch
Weight	1kg
Weight	2.2 lb
MTBF	≥400,000H
Operating Temperature	-40 °C~ 75 °C
Operating Temperature	-40°F ~ 167°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A UL/cUL61010

Product Features

● Industrial-grade Chip
● Compact size for easy installation
● QoS supported to process critical data in heavy traffic
● Die-casting aluminum alloy housing
● IP30 or IP40 protection class
● Dual power inputs
● Fanless, -40°C to 75°C(IP30) or -10°C to 60°C(IP40) wide operating temperature range

Supported Options

Table 2 shows the supported options of the MTX140-A16R000G

MDP-IE50W-24

50W Industrial DIN-Rail Power Supply.
Input: 110/220 VAC/VDC (90~264VAC/88~300VDC)
Output: 24VDC/2.08A
Operating Temperature from -40°C to +75°C with conventional cooling
Class 2 Power Supply

Compare to Similar Items

Table 3 shows the comparison to similar items of the MTX140-A16R000G

Product number	Product description
MTX100-A16R000GL	MTX140 16-port Unmanaged Industrial Switch made from Anti-Corrosion Aluminum Alloy. 16 10/100BaseT Ports. DIP-enabled Sound & Light Alarm Output & 1 Alarm Relay port (1A@24VDC). IP40 Protection Class, Operating Temperature from -10°C to +60°C. Dual 12/24/48 VDC (9.6~60 VDC ) & 24VAC (18~30 VAC) Power Input (Only connect to class 2 power supply).
EDS-2016-ML	16 x FE(MOXA) -10 to 60°C(MOXA)
EDS-2016-ML-T	16 x FE(MOXA) -40 to 75°C(MOXA)

Get More Information

Do you have any questions about the MTX140-A16R000G price?

Сертификаты качества

Спецификация

MTX140-A16R000G Спецификация

MTX140-A16R000G Specification
Backplane Bandwidth	8.8Gbps
Processing Type	Store-and-Forward
MAC Table Size	8K
Packet Buffer Size	4 MB
Exchange Rate	148,800 pps/100M ports;
Ethernet Interface	Quality of Service (QoS), Power Alarm
Ethernet Interface	Broadcast Storm Protection (BSP)
Diagnosis Mode
Redundancy
Time Synchronization
Others
Connection	1 removable 6-contact terminal block
Input Voltage	9.6~60 VDC & 18~30 VAC
Power Consumption	10W
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	DIN-rail mounting
Housing	Die-casting aluminum alloy housing
IP Rating	IP30;
Conformal Coated	Optional
Dimensions (W x H x D)	52mm × 140mm × 110 mm
Dimensions (W x H x D)	2.04 inch x 5.51 inch x 2.43 inch
Weight	1kg
Weight	2.2 lb
MTBF	≥400,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃~ 75 ℃
Operating Temperature	-40℉ ~ 167℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC Part 15 Subpart B Class A EN 55032 Class A EN 55035 Class A
EMS	IEC(EN)61000-4-2, Class 3 IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 3 IEC(EN)61000-4-5, Class 3 IEC(EN)61000-4-6, Class 3 IEC(EN)61000-4-8, Class 5 IEC(EN)61000-4-18, Class 3
Product Safety	EN/IEC62368-1 UL/cUL61010
Hazardous Area	EN55032 EN55024 EN61000-3-2 EN61000-3-3 EN61000-6-2 EN61000-6-4 FCC Part 15 Subpart B Class A
