IE-9320-22S2C4X-E Cisco Catalyst IE9300 Rugged Series Switch, 22xSFP + 2xDual-Media, 4x1/10G SFP+

Бренд: Cisco
Модель: IE-9320-22S2C4X-E
In Stock
- United States
- United Kingdom
- Germany
- United Arab Emirates
- Singapore
- India
- Hong Kong

Рейтинг:

90%

4.5/5.0

2 Отзывы

List Price: 30 548,22 US$

63% OFF

11 152,00 US$

Price Alert

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New · Covered SN

Экспресс-доставка в Соединенные Штаты
Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Отследить ваш заказ

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

IE-9320-22S2C4X-E Cisco Catalyst IE9300 Rugged Series Switch, 22xSFP + 2xDual-Media, 4x1/10G SFP+

100% Genuine Ready to Ship

30 548,22 US$

63% OFF

11 152,00 US$

Обзор

Cisco IE-9320-22S2C4X-E Обзор

The Cisco IE-9320-22S2C4X-E is a rugged 1RU industrial managed switch with 22 GE SFP downlink ports, 2 GE dual-media ports, and 4 1/10G SFP+ uplinks for fiber access, aggregation, and industrial infrastructure networks.

Key Specifications

Downlink Ports

22 x 100/1000M SFP ports

Uplink Ports

4 x 1/10G SFP+ ports

Dual-Media Ports

2 x GE dual-media ports

Best Fit Applications

Manufacturing Plant Networks

Supports high-density fiber access, industrial automation protocols, and resilient connectivity for factory-floor networks.

Energy and Utility Infrastructure

Designed for rugged utility environments with dual power inputs, precision timing, conformal coating, and industrial security features.

Transportation and Field Infrastructure

Provides fiber aggregation, 10G uplinks, remote management, and industrial resiliency for distributed field deployments.

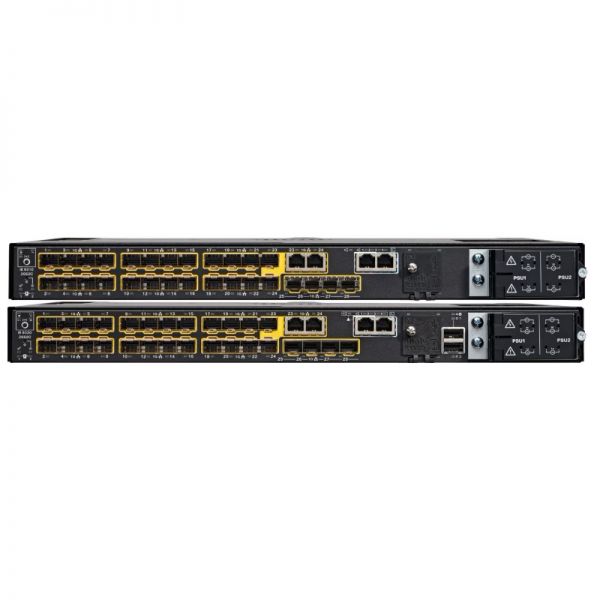

Cisco IE-9320-22S2C4X-E industrial switch front panel with SFP, dual-media, 10G, timing, console, and power interfaces

Cisco IE-9320-22S2C4X Front Panel

The front panel includes 22 GE SFP downlink ports, 2 GE dual-media ports, 4 1/10G SFP+ uplinks, GNSS and IRIG-B timing interfaces, console ports, and dual power inputs.

Compare Related Models

	IE-9320-22S2C4X-E	IE-9320-22S2C4X-A	IE-9320-26S2C-E	IE-9320-24T4X-E
Network Feature Set	Network Essentials	Network Advantage	Network Essentials	Network Essentials
Downlink Ports	22 x 100/1000M SFP + 2 x GE dual-media	22 x 100/1000M SFP + 2 x GE dual-media	24 x GE SFP	24 x 10/100/1000M copper
Uplink Ports	4 x 1/10G SFP+	4 x 1/10G SFP+	4 x GE SFP	4 x 10G SFP+
Switching Bandwidth	128 Gbps full duplex	128 Gbps full duplex	56 Gbps full duplex	128 Gbps full duplex
Forwarding Rate	95.23 Mpps	95.23 Mpps	41.66 Mpps	95.23 Mpps
Form Factor	1RU rack mount	1RU rack mount	1RU rack mount	1RU rack mount

Optional Add-ons

Model Number	Description
PWR-RGD-AC-DC-H	150W AC/DC power supply for supported IE9300 configurations.
PWR-RGD-LOW-DC-H	150W low-voltage DC power supply for supported IE9300 configurations.
PWR-RGD-AC-DC-250	250W AC/DC power supply option for supported configurations.
GLC-SX-MM-RGD	Industrial 1000BASE-SX multimode fiber SFP transceiver.
GLC-LX-SM-RGD	Industrial 1000BASE-LX single-mode fiber SFP transceiver.
GLC-SX-MMD	1000BASE-SX multimode fiber SFP; nonindustrial optics may require temperature derating.

Get More Information

Need help selecting the right configuration for the Cisco IE-9320-22S2C4X-E?

Review the Cisco IE9300 Datasheet, or contact us via Live Chat or [email protected].

Сертификаты качества

Спецификация

Cisco IE-9320-22S2C4X-E Спецификация

Feature	Description
Brand	Cisco
Model	IE-9320-22S2C4X-E
Product Type	Industrial managed Ethernet switch
Network Feature Set	Network Essentials
Downlink Ports	22 x 100/1000M SFP ports
Dual-Media Ports	2 x GE dual-media ports supporting 100/1000M SFP or 10/100/1000M RJ45
Uplink Ports	4 x 1/10G SFP+ ports
Total Ports	28
Console Ports	1 RS-232 console via RJ-45 and 1 Micro USB console
Alarm I/O	4 dry-contact alarm inputs and 1 dry-contact Form-C relay alarm output
Storage Interfaces	USB 2.0 and optional SD card; optional storage is not shipped by default
Stacking Ports	2 Cisco StackWise ports
Switching Bandwidth	128 Gbps full duplex
Forwarding Bandwidth	64 Gbps
Forwarding Rate	95.23 Mpps
Jumbo Frames	Up to 9216 bytes
MAC Address Table	24,000 unicast MAC addresses
QoS Queues	8 egress queues per port
Network Operating System	Cisco IOS XE
Management	CLI, WebUI, SNMP, NETCONF, Cisco Catalyst Center, Cisco Plug and Play, and Embedded Event Manager
Layer 3 Features	Static routing, OSPF, OSPFv3, RIP, and Policy-Based Routing; feature availability depends on the software feature set
Security Features	ACL, 802.1X, SSH, HTTPS, RADIUS, TACACS+, DHCP Snooping, Dynamic ARP Inspection, and MACsec-128; feature availability depends on the software feature set
Industrial Features	IEEE 1588v2 PTP, PROFINET, EtherNet/IP CIP, IOx, Layer 2 NAT, Modbus TCP, ERSPAN, IRIG-B, GNSS/GPS, and dying gasp
Redundancy and Resiliency	REP, PRP, MRP ring, HSR ring, EtherChannel, redundant power supplies, and industrial ring resiliency features
Form Factor	1RU rack mount
Dimensions	1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H or PWR-RGD-LOW-DC-H
Product Weight (Chassis Only)	5.76 kg (12.7 lb), excluding power supplies and blank cover
Shipping Weight	17 kg, packaged shipping weight
Cooling	Fanless convection cooling with no moving parts
Conformal Coating	Supported on the IE-9320-22S2C4X hardware platform
Power Inputs	Dual AC/DC power inputs
Supported Power Supply Options	PWR-RGD-LOW-DC-H: 150W; 24–60V DC/10A; supported input DC 18–75V PWR-RGD-AC-DC-H: 150W; 100–240V AC or 100–250V DC; supported input AC 85–264V or DC 88–300V PWR-RGD-AC-DC-250: 250W AC/DC power supply option PWR-RGD-AC-DC-400: 400W AC/DC power supply option
Indicative System Power Consumption	73W; actual consumption depends on SFP modules, power supply type and efficiency, and the number of power supplies installed
Operating Temperature	-40°C to 75°C in a blower-equipped cabinet -40°C to 70°C in a vented cabinet -40°C to 60°C in a sealed cabinet
Storage Temperature	-40°C to 85°C
Relative Humidity	5% to 95%, noncondensing
Warranty	5-year limited hardware warranty
