FAC109-POE-MR, Foredge 3-in-1 Wireless Gateway and PoE Controller

100% Genuine Ready to Ship

99,00 US$

Обзор

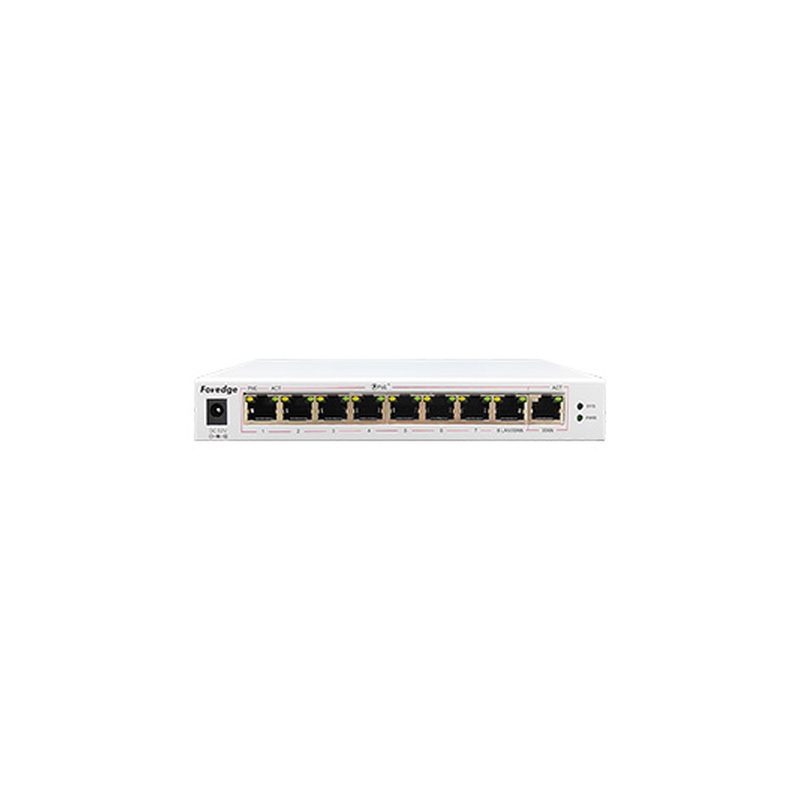

Foredge FAC109-POE-MR Обзор

The Foredge FAC109-POE-MR is a compact PoE·AC integrated Gigabit router for small and medium enterprises, offices, and villas. It combines dual-WAN resiliency, centralized Foredge AP management for up to 50 APs, and eight PoE-capable Gigabit interfaces with web, SMS, and Portal advertising authentication functions.

Key Specifications

Integrated Platform

Routing, wireless AC controller, and PoE access functions in one device; supports web, SMS, and Portal advertising authentication

PoE and Ports

8 × Gigabit PoE-capable interfaces; up to 30W per port and 120W total

AP Management

Centralized management for up to 50 Foredge APs

WAN Resiliency

Dual-WAN backup redundancy, bandwidth overlay, and traffic load balancing

Bandwidth

Up to 2Gbps maximum; 1Gbps recommended

Best Fit Applications

Small and Medium Enterprise Networks

The official product positioning combines gateway routing, AC control, Portal authentication, and PoE access in one device for small and medium enterprise networks.

Offices and Villas with PoE APs

Eight PoE-capable Gigabit interfaces and a 120W total PoE budget support wired access and Foredge AP deployment without a separate PoE access switch.

Dual-WAN Edge Access

Dual-WAN backup, traffic load balancing, ACL security, and cloud or APP remote management support a resilient branch or office edge.

Why FAC109-POE-MR

Eight PoE-Capable Gigabit Interfaces

The official port layout provides one Gigabit WAN, one Gigabit LAN/WAN, and seven Gigabit LAN interfaces, with PoE support on the LAN-side interfaces.

Controller Capacity for 50 APs

The official product page specifies centralized Foredge AP management for up to 50 APs, including AP access lists, load balancing, intelligent roaming, RF tuning, and batch upgrade management.

Integrated Authentication and Security

Web and SMS authentication, Portal advertising, IP/MAC/port/domain filtering, application-group filtering, ACL, terminal rate limiting, and PPTP/L2TP are specified as part of the platform.

Compare Related Models

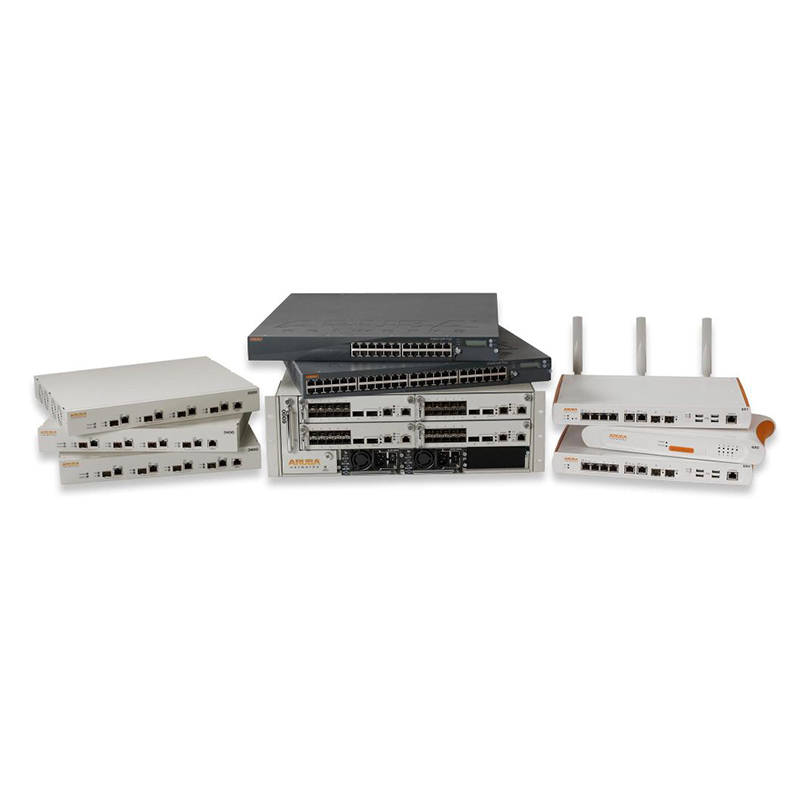

	FAC109-POE-MR	AIR-CT5508-250-K9	JW781A	WX2560H-LI
AP Management	Centralized Foredge AP management for up to 50 APs; access lists, load balancing, intelligent roaming, RF tuning, wireless mode, upgrade management, and plug and play	Up to 250 APs	Supports 256 APs	512 APs
Network Interfaces	No 2.5G interface specified; 1 × Gigabit WAN and 1 × Gigabit LAN/WANGigabit uplinkAruba 7210 controller platform4xGE SFP; 2x10GE SFP+	Gigabit uplink	Aruba 7210 controller platform	4xGE SFP; 2x10GE SFP+
Installation / Form Factor	Compact standalone appliance; official page does not specify a rack or desktop mounting standard	Wireless controller appliance	Wireless controller appliance	Wireless controller appliance
Product Type / Functions	PoE·AC integrated Gigabit router with wireless AC control and Portal authentication functions	Wireless LAN controller	Wireless controller	Wireless controller
Best Fit Scenario	Small offices, villas, and branch networks needing integrated PoE and controller functions	Centralized wireless control for up to 250 APs	Controller deployment around 256 APs	Higher-scale controller with 10GE uplinks
Not Suitable For	Deployments needing 2.5G uplinks or more than 50 managed APs	Deployments above the stated 250-AP scale	Deployments requiring the Foredge integrated gateway and Portal functions	Small deployments where 512-AP controller capacity is unnecessary

Сертификаты качества

Спецификация

Foredge FAC109-POE-MR Спецификация

General
Brand	Foredge
Model	FAC109-POE-MR
Product Type	PoE·AC integrated Gigabit router with wireless AC control and Portal authentication functions
Product Positioning	Small and medium enterprise, office, villa, and branch edge networking
Installation	Compact standalone appliance; official page does not specify a rack or desktop mounting standard
Dimensions	185 × 100 × 28 mm
Interfaces and PoE
WAN Port	1 × 10/100/1000M RJ45 WAN
LAN/WAN Port	1 × 10/100/1000M RJ45 LAN/WAN, supports PoE
LAN Ports	7 × 10/100/1000M RJ45 LAN, supports PoE
PoE Standard	IEEE 802.3af/at
PoE Output	Up to 30W per port; up to 120W total
Routing, Wireless AC, and Management
AP Management	Centralized Foredge AP management for up to 50 APs; access lists, load balancing, intelligent roaming, RF tuning, wireless mode, upgrade management, and plug and play
Routing and WAN	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, MQTT, DNS, DDNS; dual-WAN backup, bandwidth overlay, and traffic load balancing
Authentication and Security	Web and SMS authentication, Portal advertising, IP/MAC/port/domain filtering, application-group filtering, ACL security, terminal masking, and rate limiting
VPN	PPTP and L2TP
QoS and Management	QoS, DDNS, web management, cloud and APP remote management, and natural cooling
Bandwidth	Maximum 2Gbps; 1Gbps recommended
Power and Environment
Power Input	DC 52V/2.5A
Operating Temperature	-20°C to 50°C
Working Humidity	10% to 90% RH, non-condensing
Storage Temperature	-40°C to 70°C
Storage Humidity	5% to 90% RH, non-condensing
