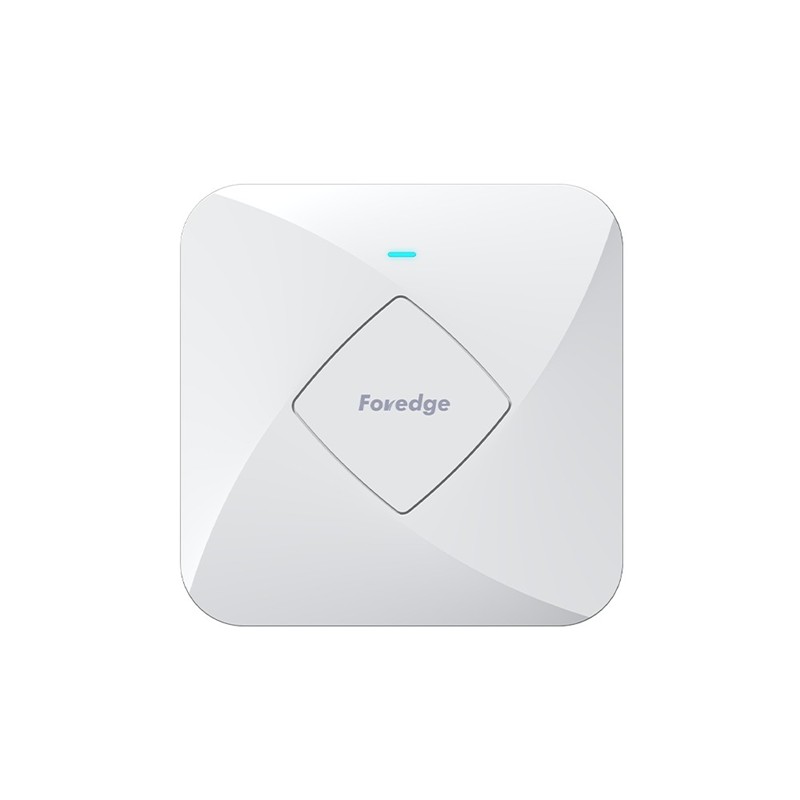

W718AP, Foredge Wi-Fi 7 Ceiling-Mount Access Point

100% Genuine Ready to Ship

159,00 US$

Обзор

Foredge W718AP Обзор

The Foredge W718AP is a Wi-Fi 7 BE5100 dual-band access point for ceiling or wall-mounted indoor coverage. It combines 160MHz bandwidth, MLO, 2.5G WAN uplink, Gigabit LAN, 802.3af/at PoE or DC power, and Apollo cloud management for high-speed office, hotel, campus, and shared-area networks.

Key Specifications

Installation

Ceiling-mounted or wall-mounted indoor AP

Wireless Capacity

BE5100 Wi-Fi 7: 688 Mbps + 4323 Mbps

Wired Interfaces

1 × 2.5G WAN + 1 × Gigabit LAN

Channel Width and MLO

160MHz ultra-wide bandwidth with MLO

Power

802.3af/at PoE or DC 12V/1.5A; maximum 12W

Best Fit Applications

Hotels and Hospitality

The ceiling or wall-mount form factor and BE5100 dual-band rate fit hotel common areas, corridors, and guest-facing indoor networks.

Campuses and Smart-City Indoor Areas

The model combines MLO, MU-MIMO, OFDMA, 2.5G uplink, and centralized management for shared indoor areas with many active clients.

High-Usage Offices

The 160MHz channel width and 2.5G WAN port are suited to offices and meeting spaces where Gigabit uplinks can constrain Wi-Fi 7 throughput.

Why W718AP

BE5100 Dual-Band Capacity

The 688 Mbps 2.4 GHz rate and 4323 Mbps 5 GHz rate provide a stated 5100 Mbps aggregate wireless capacity.

2.5G Uplink without a Separate SFP

The 2.5G WAN interface addresses the Gigabit uplink bottleneck while the additional Gigabit LAN port supports local wired access.

Wi-Fi 7 Efficiency and Management

MLO, MRU, preamble puncturing, OFDMA, MU-MIMO, BSS coloring, up to eight SSIDs, WPA3, and Apollo cloud or mobile-app management are specified for the model.

Compare Related Models

	W718AP	901-R760-WW00	AirEngine 8761-X1	RG-AP850-I
Wireless Design	Wi-Fi 7 dual-band wireless access point	Wi-Fi 6E access point with embedded IoT	Wi-Fi 6 4x4 MU-MIMO access point	High-density wireless access point
Wireless Rate	2.4 GHz 688 Mbps + 5 GHz 4323 Mbps; aggregate 5100 Mbps	8.35Gbps	2.5GE uplink	6.817Gbps; 10 spatial streams
Mounting / Deployment	Ceiling-mounted or wall-mounted installation	Enterprise access point	Enterprise indoor access point	Enterprise wireless AP
Product Positioning	High-speed indoor access for offices, hotels, campuses, and shared areas	High-throughput Wi-Fi 6E AP	Wi-Fi 6 AP with 2.5GE uplink	High-density AP with 802.3at PoE
Best Fit Scenario	Indoor coverage with a 2.5G Ethernet uplink	High-throughput Wi-Fi 6E alternative	High-density Wi-Fi 6 coverage with a 2.5GE uplink	High-density Wi-Fi 6 alternative with PoE
Not Suitable For	Deployments that need tri-band 6 GHz capacity or a 10G fiber uplink	Deployments requiring confirmed Wi-Fi 7 support	Deployments requiring confirmed Wi-Fi 7 support	Deployments requiring confirmed Wi-Fi 7 support

Сертификаты качества

Спецификация

Foredge W718AP Спецификация

General
Brand	Foredge
Model	W718AP
Product Type	Wi-Fi 7 dual-band wireless access point
Product Positioning	High-speed indoor access for offices, hotels, campuses, and shared areas
Installation	Ceiling-mounted or wall-mounted installation
Dimensions	194 × 194 × 44 mm
Wireless
Wi-Fi Standard	Wi-Fi 7 / IEEE 802.11a/b/g/n/ac/ax/be
2.4 GHz Operating Frequency	2412–2472 MHz, channels 1–13
5 GHz Operating Frequency	5180–5350 MHz; 5490–5730 MHz; 5735–5835 MHz
Wireless Rate	2.4 GHz 688 Mbps + 5 GHz 4323 Mbps; aggregate 5100 Mbps
Channel Width	160MHz
Spatial Streams	2 × 2 MU-MIMO on 2.4 GHz; 3 × 3 MU-MIMO on 5 GHz
Maximum Transmission Power	2.4 GHz 22 dBm ±2 dB; 5 GHz 23 dBm ±2 dB
Antenna Gain	5 dBi
Wireless Efficiency	MLO, MRU, preamble puncturing, OFDMA, MU-MIMO, and BSS coloring
Network and Management
WAN Port	1 × 10/100/1000/2500 Mbps WAN port, Auto MDI/MDIX
LAN Port	1 × 10/100/1000 Mbps LAN port
SSID and Security	Up to 8 simultaneous SSIDs; WPA-PSK, WPA2-PSK, WPA3-PSK, SSID VLAN, guest network, SSID isolation, TWT, and wireless black/white lists
Management	AP mode, IPv4/IPv6 dual stack, static routing, DHCP server, terminal monitoring, IP/MAC/port/domain filtering, port forwarding, local/online upgrade, Apollo cloud platform, and mobile APP management
Power and Environment
Power Input	IEEE 802.3af/at 48V PoE or DC 12V/1.5A
Maximum Power Consumption	12W
Operating Temperature	-10°C to 50°C
Working Humidity	10% to 90% RH, non-condensing
Storage Temperature	-40°C to 70°C
Storage Humidity	5% to 90% RH, non-condensing
ESD	Air 8kV; contact 6kV
Port Lightning Protection	±2kV
