Nombre:	TOM1000-C12U4080
Modelo:	MRD TOM1000-C12U4080
Marca:	MRD
Detalle:	TOM1000 Series 4 1000BaseX SFP Ports (SFP module not included), 8 10/100/1000BaseT Ports. 1 Management Serial CLI Port
	Valoración: 100% 5/5.0 1 Reseña
Disponibilidad:	Item Backordered
Condición:	New

Envío:

Envío exprés a Estados Unidos
2-6 Días, via DHL, FedEx, UPS, etc.

Pago:

Pagar por transferencia bancaria.
Paga con tu paypal.
Paga con tu webmoney.
Pay with your onafriq.
Paga con tu tarjeta de crédito Visa.
Paga con tu tarjeta de crédito Mastercard.
Paga con tu tarjeta Discover.
Pago por Western Union.

Más

Soporte:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

TOM1000-C12U4080

TOM1000 Series 4 1000BaseX SFP Ports (SFP module not included), 8 10/100/1000BaseT Ports. 1 Management Serial CLI Port

Cadena de suministro global estable para empresas prósperas.

$4,000,000 Inventario
Más de 500 proveedores confiables
Asociaciones certificadas
Colaborando con FedEx, UPS, DHL

Más de 100 000 productos diversos para todas sus necesidades

Soporte personalizado para sus necesidades con CCIE, HCIE, HPE ASE, etc.

Servicio personalizado, mantenimiento superior del producto para la máxima satisfacción.

Proyectos y Soporte Técnico
Suministro de compra fácil
Protección del ciclo de vida del producto
Soporte exclusivo del equipo F4

Vista general

TOM1000-C12U4080 Vista general

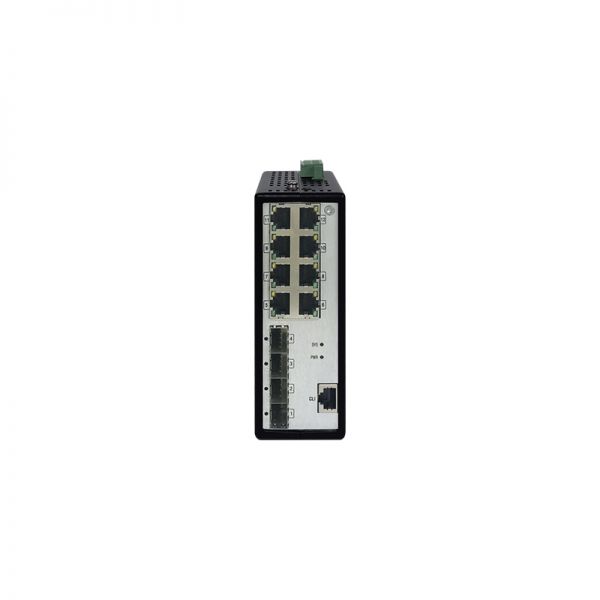

TOM1000 Layer2+ Industrial Switch made from Anti-Corrosion Casting Alu-minum Alloy. 4 2500 BaseX SFP Ports (SFP module not included), 8 10/100/1000BaseT Ports. 1 Management Serial CLI Port, IP40 Protection Class, Operating Temperature from -40°C to +75°C, and MTBF over 400K hours. Isolated Dual Universal Power Inputs (18~300VDC or 90~264VAC ). CLI and Power Cable Order Separately.

Quick Spec

Table 1 shows the quick spec of the TOM1000-C12U4080

Model	TOM1000-C12U4080
Interface Configuration	4 x 100/1000/2500BaseX SFP Ports 8 x 10/100/1000BaseT Ports
Input Voltage	18~300VDC or 90~264VAC
Fansless	Yes
Backplane Bandwidth	68 Gbps
Installasion	DIN-Rail
IP Rating	IP30;
Conformal Coated	Optional
Dimensions (W x H x D)	52mm x 140mm x 110mm
Dimensions (W x H x D)	2.05 inch x 5.51 inch x 4.34inch
Weight	0.7 kg
Weight	1.54 lb
MTBF	≥400,000H
Operating Temperature	-40 °C~ 85 °C
Operating Temperature	-40°F ~ 185°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010 (pending)
Shipbuilding Industry	GL (pending)

Product Features

● Easy network management by web browser, CLI, Telnet, serial console
● IGMP snooping and GRMP for filtering multicast traffic
● Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
● QoS (IEEE 802.1P/1Q and TOS/DiffServ) to increase determinism
● SNMPv1/v2c/v3 for different levels of network management
● Support IEEE 802.3af/at compliant PoE
● Each PoE port provides up to 30W output power
● PoE management: PoE device detection, PoE power management
● Dual redundant power inputs design for DC models
● Die-casting aluminum alloy housing
● Fanless, -40 to 75°C wide operating temperature range
● MTBF≥400, 000H

Supported Options

Table 2 shows the supported options of the TOM1000-C12U4080

MRD-MGIGA-GLX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX	Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-MGIGA-GSX-850	Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
MRD-MGIGA-GSX	Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

Compare to Similar Items

Table 3 shows the comparison to similar items of the TOM1000-C12U4080

Product number	Product description
EDS-G512E-4GSFP-T	8 x GE + 4 x GX SFP (MOXA)
EDS-G4014-6QGS-LV-T	8 x GE + 4 x 2.5G SFP (MOXA)

Get More Information

Do you have any questions about the TOM1000-C12U4080 price?

Certificaciones de calidad

Especificación

TOM1000-C12U4080 Especificación

TOM1000-C12U4080 Specification
Backplane Bandwidth	68 Gbps
Processing Type	Store-and-Forward
MAC Table Size	16K
Packet Buffer Size	4Mbti
Exchange Rate	148,800 pps/100M; 1,488,000 pps/1000 M;
Management Mode	Browser, Serial Port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2925 Ping MIB, MRD Private MIBs
Diagnosis Mode	Indicator light, journal file, relay, RMON, port mirroring, TRAP
Redundancy	RSTP, STP, MRD-Ring® , port trunking
Time Synchronization	SNTP
Others	4K VLANS, IPv4/IPv6 multicast, storm control, MC/BC Protection, support Jumbo Frame
Connection	1 removable 5-contact terminal block
Input Voltage	18~300VDC or 90~264VAC
Power Consumption	10W（without POE）
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	DIN-Rail
Housing	Aluminum Alloy Housing
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	52mm x 140mm x 110mm
Dimensions (W x H x D)	2.05 inch x 5.51 inch x 4.34inch
Weight	0.7 kg
Weight	1.54 lb
MTBF	≥400,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃ ~ 85 ℃
Operating Temperature	-40℉ ~ 185℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN55022 Class A
EMS	IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-8, Class 5
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011(pending)
Rail Industry	EN50155; IEC/EN61373; EN50121
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010(pending)
Shipbuilding Industry	DNV-GL (pending)
