Huawei SmartAX EA5801 Overview

The EA5801 is a compact and low-density box-shaped OLT. It provides GPON or XG-PON&GPON combo access, and supports passive optical LAN (POL) and fiber to the home (FTTH) solutions. It carries all services over one fiber network, simplifying network architecture and reducing OPEX. The EA5801 houses integrated control and service module, 1 pluggable fan module and 2 pluggable power modules.

Huawei SmartAX EA5801 Platforms

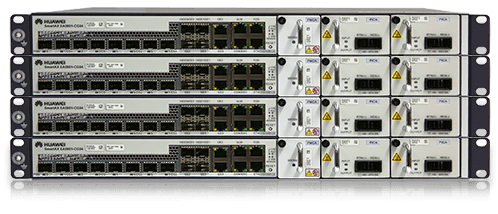

The The EA5801 supports two types of subracks: EA5801-GP08 and EA5801-CG04. The appearance is as follows.

EA5801-GP08 with AC Power Supply

EA5801-GP08 supports 8 GPON ports

Shop Quote

EA5801-CG04 with AC Power Supply

EA5801-CG04 supports 4 XG-PON & GPON combo ports.

Shop Quote

Huawei SmartAX EA5801 Highlights

Light-Weight OLT, Adapting to
Various Scenarios

The EA5801 is a box-shaped OLT that requires 1 U installation space, making it applicable to access point convergence on a small scale. It is suitable for lightweight deployment in enterprises. One OLT can meet the service carrying requirements for an enterprise or campus.

PON Combo Technology

The EA5801-CG04 supports the PON combo technology, and can work with the built-in WDM1r optical module to support smooth evolution from GPON to XG-PON.

Rapid Deployment, Facilitating Installation and Saving Engineering Cost

The EA5801 can be installed in indoors or outdoors cabinets. When installed outdoors, it can be easily deployed in high temperatures, conserving man power and cabinet space.

Huawei SmartAX EA5801 Specification

Model	SmartAX EA5801-GP08	SmartAX EA5801-CG04
Dimensions (H x W x D)	Without mounting ears: 43.6 mm x 442 mm x 222.3 mm With IEC-standard mounting ears: 43.6 mm x 482.6 mm x 222.3 mm With ETSI-standard mounting ears: 43.6 mm x 535 mm x 222.3 mm	Without mounting ears: 43.6 mm x 442 mm x 222.3 mm With IEC-standard mounting ears: 43.6 mm x 482.6 mm x 222.3 mm With ETSI-standard mounting ears: 43.6 mm x 535 mm x 222.3 mm
Power Supply Mode	DC power supply (dual for backup) AC power supply (dual for backup)	DC power supply (dual for backup) AC power supply (dual for backup)
Working Voltage Range	DC power supply: -38.4V to -72V AC power supply: 100V to 240V	DC power supply: -38.4V to -72V AC power supply: 100V to 240V
Rated Voltage	DC power supply: -48V/-60V AC power supply: 110V/220V	DC power supply: -48V/-60V AC power supply: 110V/220V
Maximum Input Current	DC power supply: 6A AC power supply: 2.5A	DC power supply: 6A AC power supply: 2.5A
Ambient Temperature	-40°C to +65°C* (normal operation), Minimum startup temperature: -25°C *+65°C indicates the temperature of the air intake vent of the service subrack	-40°C to +65°C* (normal operation), Minimum startup temperature: -25°C *+65°C indicates the temperature of the air intake vent of the service subrack
Ambient Humidity	5% RH to 95% RH	5% RH to 95% RH
Atmospheric Pressure	70 kPa to 106 kPa	70 kPa to 106 kPa
Altitude	< 4,000m The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.	< 4,000m The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.
MAC Addresses	32,768	32,768
ARP Table	16,384	16,384
GE Upstream Ports	2 optical/electrical combo ports	2 optical/electrical combo ports
10 GE/GE Upstream Ports	2	2
Number of Service Ports	8 x GPON	4 x G-PON and GPON combo

Huawei SmartAX EA5801 Hardware Description

SmartAX EA5801-GP08 Appearance and Structure

The EA5801-GP08 is a box-shaped OLT. It houses integrated control and service module, 1 pluggable fan module and 2 pluggable power modules. Its mounting ears are applicable to IEC specifications and ETSI specifications, and are used in racks or cabinets of different specifications.

SmartAX EA5801-CG04 Appearance and Structure

The EA5801-CG04 is a box-shaped OLT. It houses integrated control and service module, 1 pluggable fan module and 2 pluggable power modules. Its mounting ears are applicable to IEC specifications and ETSI specifications, and are used in racks or cabinets of different specifications.

SmartAX EA5801 Physical Specifications

Dimensions and Weight

Specification	EA5801-GP08	EA5801-CG04
Dimensions (H x W x D, excluding mounting ears) mm	43.6 mm x 442.0 mm x 222.3 mm	43.6 mm x 442.0 mm x 222.3 mm
Dimensions (H x W x D, including mounting ears of IEC standard) mm	43.6 mm x 482.6 mm x 222.3 mm	43.6 mm x 482.6 mm x 222.3 mm
Dimensions (H x W x D, including mounting ears of ETSI standard) mm	43.6 mm x 535.0 mm x 222.3 mm	43.6 mm x 535.0 mm x 222.3 mm
Maximum fully-loaded weight (DC)	4.2 Kg	4.1 Kg
Maximum fully-loaded weight (AC)	4.6 Kg	4.5 Kg

Power Supply

The DC power module H921PICA leads one –48 V DC or –60 V DC power through a 2- pin 30 A quick-connect terminal. Power passes through a protection circuit and isolated power converter, and is converted to stable 12 V power for the backplane. The backplane then supplies power to other devices in the service subrack.

The AC power module ME170-12A converts 220 V AC or 110 V AC power to 12 DC power for the backplane. The backplane then supplies power to other devices in the service subrack.

SmartAX EA5801 Fan Tray

The fan module of the EA5801 has three fans and fan monitoring board H921FMCA, and functions heat dissipation, monitoring, and fan speed adjustment, which ensures that the device works at a stable temperature.

Resource

Datasheet

Huawei SmartAX EA5801 Datasheet
