Short Reach vs Long Reach Cabling in Data Centers

Short Reach vs Long Reach Cabling in Data Centers
  • вступление
  • Challenges
  • Recommended Products
  • Сравнить
  • Use Cases
Get Expert Help

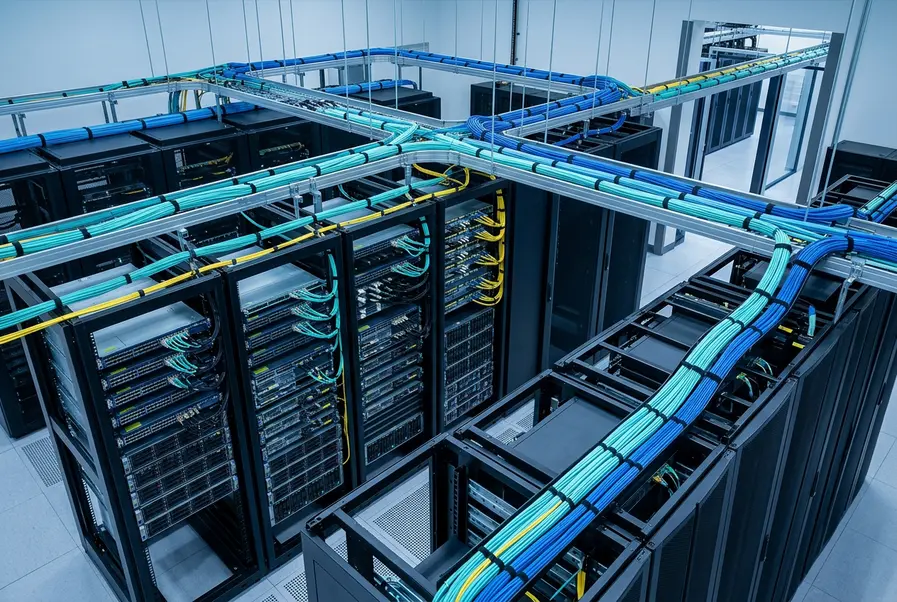

Balancing Short and Long Reach

Balancing Short and Long Reach

  • Modern data centers rarely operate on a single cabling model. High-density racks, AI/ML clusters, and leaf-spine fabrics all mix very short intra-rack runs with longer inter-row and sometimes building-to-building links. The real challenge is not just achieving reach, but doing so while controlling latency, power, thermal load, and lifecycle cost as speeds move from 40G and 100G to 400G and beyond.

    This section frames how to decide between short-reach DAC/AOC, mid-reach active optical cables, and long-reach optical transceivers as link distances and topologies change. By mapping typical intra-rack, row-to-row, and campus-scale scenarios to appropriate cabling options, the page helps you converge on a consistent design that meets bandwidth targets, simplifies operations, and avoids over-engineering long-reach optics where short-reach solutions are sufficient.

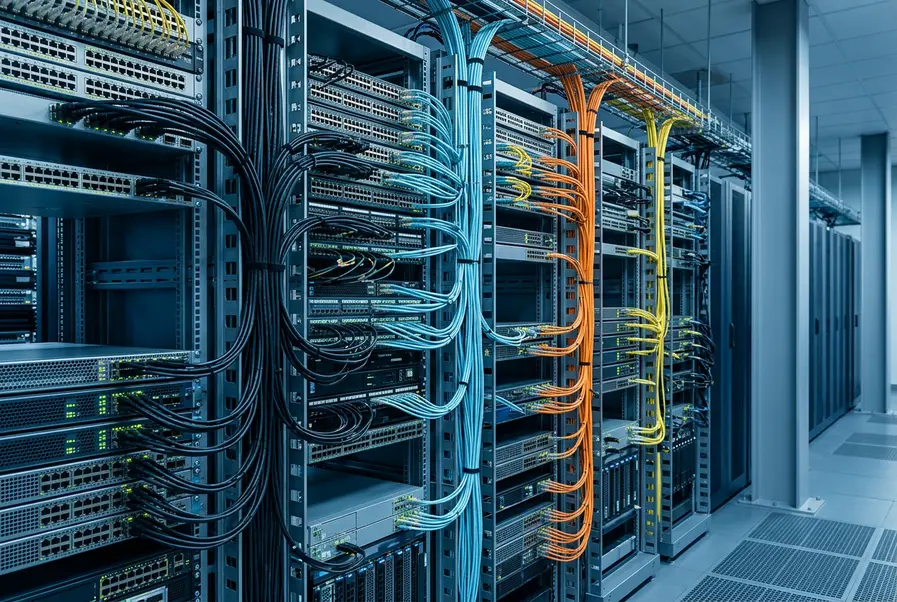

Balancing Short- and Long-Reach Cabling Choices

Selecting between DAC/AOC and long-reach optics is a non-trivial trade-off across density, cost, power, and lifecycle in real data center topologies.

Balancing Short- and Long-Reach Cabling Choices

  • Unclear reach, bandwidth, and topology mapping

    Matching cable type to rack, row, and spine-leaf distances without over- or under-specifying optics is complex at scale.

  • Capex, power, and upgrade path trade-offs

    Low-cost copper, mid-reach AOC, and long-reach optics each impact budget, port power, and future speed migration differently.

  • Multi-vendor interoperability and reliability risk

    Mixing DACs, AOCs, and LR optics across vendors can create link flaps, qualification gaps, and troubleshooting complexity.

Short-Reach vs Long-Reach Cabling Comparison

Compare DAC/AOC short-reach cabling with long-reach optics to pick the right data center link strategy by distance and scale.

Feature Short-Reach DAC/AOC
Long-Reach Optical Transceivers (hot)
 Business Impact
Typical deployment fit Intra-rack and adjacent-rack links up to ~3m (DAC) and 7–30m (AOC); ideal for TOR, spine-to-leaf in same rack/row. Inter-row, cross-row, and building-to-building links over single-mode fiber up to 10km; ideal for aggregation and DCI. Map cabling choice to actual path length: short-reach for dense rack wiring, long-reach for structured fiber backbone and campus/DCI.
Performance and latency Very low latency and stable signal over short distances; excellent for east-west traffic within a rack. Slightly higher latency due to optical serialization but negligible at data center scale; consistent over long runs. Both meet high-speed requirements; choose based on distance and architecture rather than pure latency numbers.
Capex per link Lowest cost per port at short distance; passive DAC is cheapest, AOC slightly higher but still economical. Higher optics cost per port, plus single-mode fiber infrastructure; capex grows with port count and distance. Use DAC/AOC wherever reach allows to control spend, reserve long-reach optics for links that truly need kilometer-scale reach.
Cabling complexity and manageability Thicker copper bundles and fixed-length AOCs can create bulk in high-density racks; limited flexibility once installed. Slim single-mode fibers scale cleanly across rows and buildings; transceiver modularity makes rerouting and upgrades simpler. Short-reach is best for fixed, predictable rack layouts; long-reach optics simplify structured cabling across large facilities.
Power and thermal profile DAC is near-zero power; AOC consumes power but still efficient over short links; minimal additional heat load. Optical transceivers draw more power per port; cumulative impact on rack and facility power budget is higher. Keep short runs on DAC/AOC to save power and cooling, and budget extra capacity where long-reach optics are unavoidable.
Upgrade and scalability path Best for incremental speed bumps within the rack; may require full cable replacement when moving to new speeds or form factors. Transceiver swap enables smoother migrations (e.g., 40G/100G to 400G) while reusing fiber plant where possible. Plan long-term growth around a fiber-based backbone with pluggable optics, using short-reach only at the edge of that fabric.
Failure domain and maintenance Cable failures usually local to a rack; AOC replacement means swapping the whole assembly; tracing bulky copper can be slower. Optic or fiber issues span longer paths; optics are field-replaceable, and structured fiber is easier to label and test at scale. For large environments, optics plus structured fiber simplify troubleshooting; short-reach is simpler for local, contained domains.
When to prioritize Choose when racks are close, port density is high, and budget and power efficiency are critical over short runs. Choose when spanning rows/floors/buildings, standardizing on SMF, and future high-speed expansion is a priority. Blend both: maximize short-reach in-cabinet to save cost and power, standardize long-reach optics for core, aggregation, and inter-site links.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Get a Quote
Чат в прямом эфире
Need Help? Technical Experts Available Now.

Ideal Applications for Short- and Long-Reach Cabling

Where data center teams should use short-reach DAC/AOC versus long-reach optics to balance cost, density, and scalability.

Intra-Rack and Adjacent-Rack High-Density Connectivity

Intra-Rack and Adjacent-Rack High-Density Connectivity

  • Use short-reach DAC and AOC links like QSFP-H40G-AOC2M, QSFP-H40G-AOC3M, and QDD-400-CU1M for ToR switch-to-server connections within a single rack to minimize latency and cabling cost.

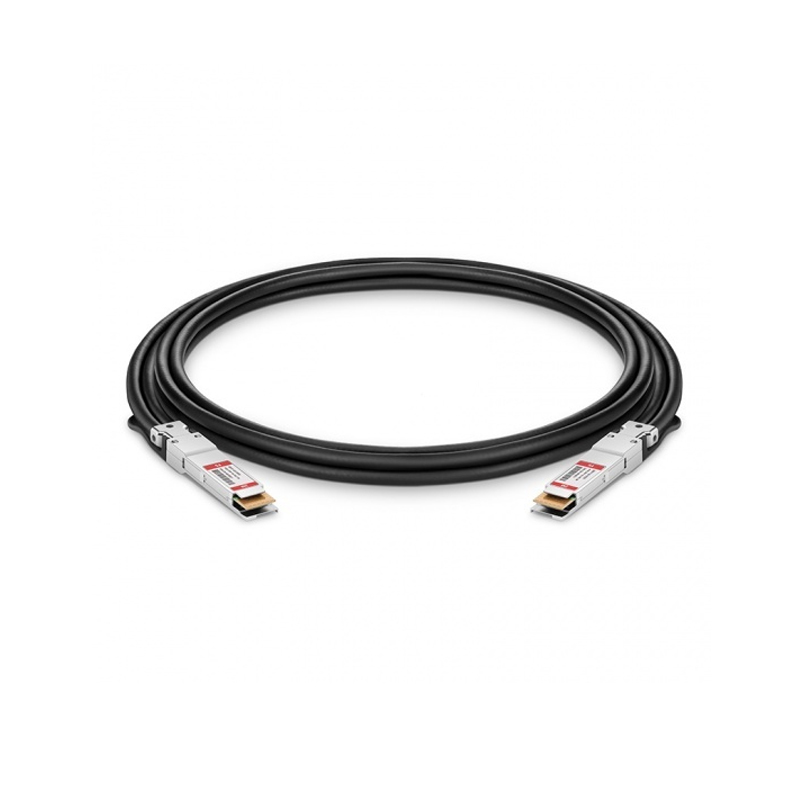

  • Deploy QSFP-4X10G-AOC2M, QSFP-4X10G-AOC3M, and QDD-400-CU2.5M for adjacent-rack switch uplinks where reach is under 3 m but you still need flexible cable routing and reduced airflow blockage compared with copper.
  • Standardize on short-reach assemblies such as QSFP-H40G-ACU7M and HW:QSFP-DD-400G-CU1M for predictable, pre-tested connections between top-of-rack and leaf switches in compact pods or edge micro data centers.
Row-to-Row and Leaf-Spine Fabric Where Copper Reach Is Not Enough

Row-to-Row and Leaf-Spine Fabric Where Copper Reach Is Not Enough

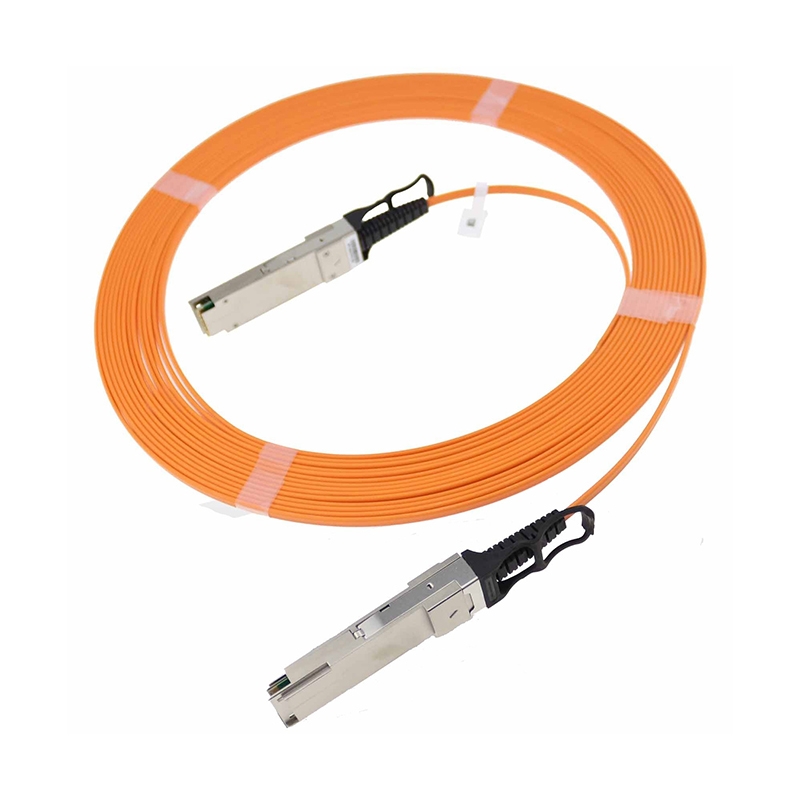

  • Use mid-reach AOCs such as QSFP-H40G-AOC15M and QSFP-H40G-AOC20M to connect leaf switches across cold and hot aisles where cable routes require more than 7 m but you still want integrated cable-plus-optic simplicity.

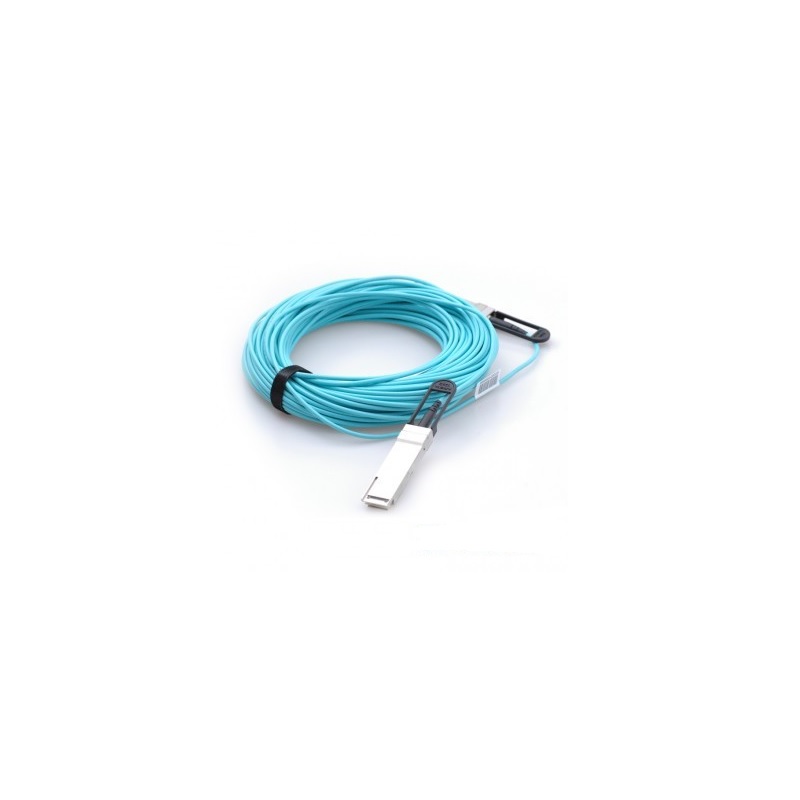

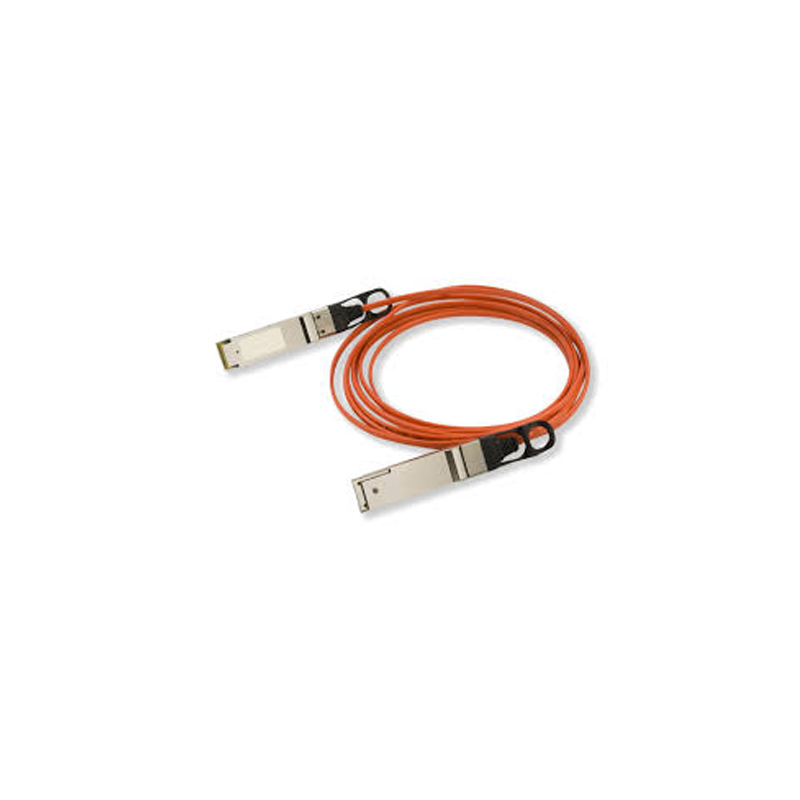

  • Build spine uplinks in medium-size data halls using QSFP-H40G-AOC25M, CIS:QDD-400-AOC10M, and HW:QSFP-100G-AOC-10M to achieve 40G/100G/400G over 10–25 m while avoiding separate transceivers and patch cords.
  • Adopt long AOCs like CIS:QDD-400-AOC20M, CIS:QDD-400-AOC25M, and CIS:QDD-400-AOC30M for flexible row-to-row cabling in leaf–spine fabrics where fiber management is critical but reach is still confined within a single data hall.
Inter-Row, Cross-Hall, and Campus Fiber Uplinks

Inter-Row, Cross-Hall, and Campus Fiber Uplinks

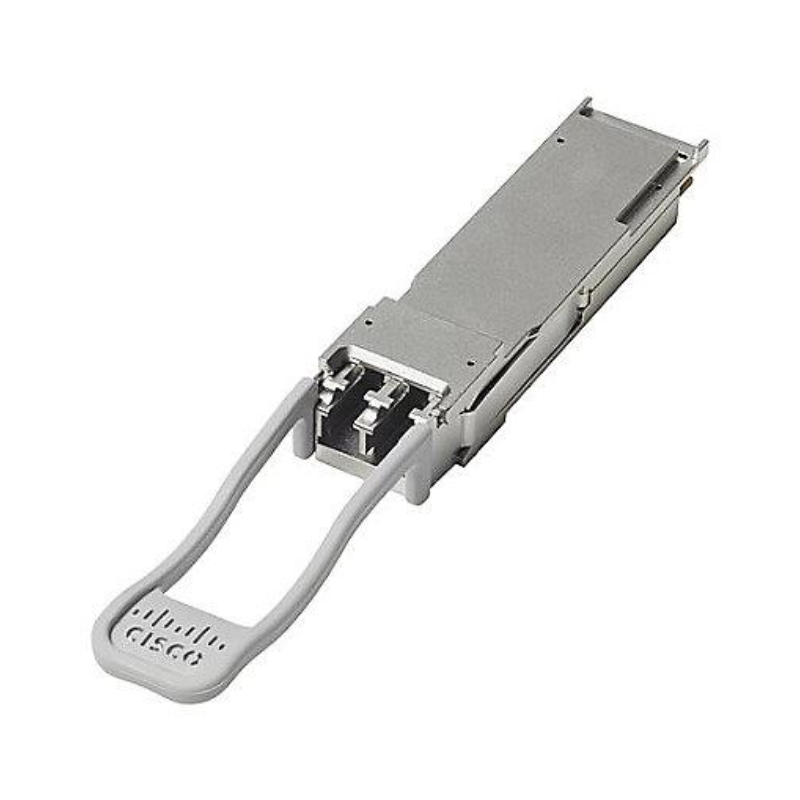

  • Use long-reach optics like QSFP-4X10G-LR-S= and CIS:ONS-QSFP28-LR4 for inter-row or cross-hall uplinks where distances extend to 10 km over single-mode fiber and future bandwidth growth is expected.
  • Deploy CIS:QDD-2X100-LR4-S, CIS:QDD-4X100G-LR-S, and CIS:QDD-400G-LR4-S for high-capacity 200G/400G links between core/aggregation layers or between data centers on the same campus using existing SMF plant.
  • Leverage SFP-OC12-LR1, SFP-OC12-LR2, and CIS:SFP-10G-BX40D-I for long-reach access, metro handoff, or building-to-building connections where telco-grade distances and single-fiber BX deployments are required.
AI/Analytics Clusters Requiring Deterministic Latency

AI/Analytics Clusters Requiring Deterministic Latency

  • Use low-loss DAC assemblies like QDD-400-CU1M, QDD-400-CU2.5M, and HW:QSFP-DD-400G-CU1M inside AI training racks where ultra-short, predictable latency between GPUs and TOR switches is critical.
  • Connect adjacent AI racks with short AOCs such as QSFP-H40G-AOC2M, QSFP-H40G-AOC3M, and QSFP-4X10G-AOC2M to maintain consistent performance while easing cable routing and serviceability.
  • Design low-latency leaf–spine fabrics for AI inference or real-time analytics using mid-reach AOCs like CIS:QDD-400-AOC10M and HW:QSFP-100G-AOC-10M where you need more than a few meters of reach but want to avoid the complexity of separate optics and fiber jumpers.
Hybrid Data Center and Telco Edge Interconnects

Hybrid Data Center and Telco Edge Interconnects

  • Use long-reach optics including CIS:SFP-10G-BX40D-I alongside SFP-OC12-LR1 and SFP-OC12-LR2 to extend 10G and legacy OC-12 services from enterprise data centers out to telco edge or PoP locations.
  • Deploy QSFP-4X10G-LR-S= and CIS:ONS-QSFP28-LR4 for connecting core routers, edge aggregation, and data center gateways across campus fiber rings where both Ethernet and transport requirements coexist.
  • Combine short-reach DAC/AOC inside racks with long-reach QSFP-DD LR4 optics such as CIS:QDD-2X100-LR4-S and CIS:QDD-400G-LR4-S for end-to-end designs that span from server NICs to carrier handoff over tens of kilometers of SMF.

Часто задаваемые вопросы

How do I decide between short‑reach DAC/AOC and long‑reach optical transceivers for my data center links?

  • Use short‑reach DAC and AOC cables (for example QSFP-H40G-AOC2M, QDD-400-CU1M, HW:QSFP-DD-400G-CU1M) when the leaf–server or leaf–ToR distances are typically within the rack or to an adjacent rack, and you need simple, low‑latency connectivity with minimal patching complexity.
  • Choose long‑reach optical transceivers (such as CIS:QDD-400G-LR4-S, CIS:QDD-4X100G-LR-S, CIS:ONS-QSFP28-LR4, CIS:SFP-10G-BX40D-I) when you must cross rows, connect distant spine blocks, or bridge buildings over single‑mode fiber up to 10 km, where copper DAC cannot meet reach or loss budgets.
  • As a decision reminder, map each link type (server access, leaf–spine, DCI, campus aggregation backhaul) to its physical distance and available fiber or copper, then shortlist part numbers only after checking switch port speed, form factor, and optic type in the vendor datasheet and QSFP/SFP compatibility matrix.

Are these DAC, AOC, and long‑reach optics compatible with my existing switches and NICs?

  • Compatibility depends on form factor (SFP, SFP+, QSFP+, QSFP28, QSFP-DD), speed (10G/40G/100G/400G), and vendor coding on both the switch and NIC/adapter ports; the same 400G AOC (for example CIS:QDD-400-AOC10M or CIS:QDD-400-AOC30M) may behave differently on different platform families and software releases.
  • Before ordering, verify each SKU (for example QSFP-4X10G-LR-S= or CIS:QDD-2X100-LR4-S) against your platform’s official hardware compatibility list and current OS version, and consider running a small PoC in a non‑production rack to validate link bring‑up, auto‑negotiation, and DOM visibility.

What practical distance and layout limits should I consider when mixing short‑reach DAC, mid‑reach AOC, and long‑reach SMF optics?

  • For dense intra‑rack and adjacent‑rack cabling, keep passive copper DAC such as QDD-400-CU1M, QDD-400-CU2.5M, and HW:QSFP-DD-400G-CU1M to short, well‑documented paths, and avoid running them through congested overhead trays where bend radius or EMI could cause marginal performance at higher speeds.
  • For row‑to‑row or leaf‑to‑spine where distance exceeds copper limits but stays within tens of meters, plan AOC (for example QSFP-H40G-AOC15M, QSFP-H40G-AOC20M, CIS:QDD-400-AOC20M, CIS:QDD-400-AOC25M) with clear labeling and patch‑panel discipline, and reserve long‑reach optics (like CIS:QDD-400G-LR4-S or CIS:QDD-4X100G-LR-S on single‑mode fiber) for structured fiber runs or building‑to‑building trunks where you can control fiber quality, connector cleanliness, and end‑to‑end loss budgets.

What should I pay attention to when deploying 400G DAC/AOC versus 400G LR transceivers in a mixed‑speed fabric?

  • On 400G leaf–spine or GPU clusters, short‑reach DAC (QDD-400-CU1M, QDD-400-CU2.5M) and AOC (CIS:QDD-400-AOC10M, CIS:QDD-400-AOC30M) simplify bring‑up, but you must verify port breakout mode configurations (for example 4x100G vs 2x200G) and ensure consistent policies across both ends to avoid mismatched lane mapping.
  • For long‑reach 400G LR4 optics (CIS:QDD-400G-LR4-S) that traverse structured SMF or campus ducts, validate fiber type and quality, confirm duplex vs BiDi requirements versus SKUs like CIS:SFP-10G-BX40D-I, and plan for optical power testing and cleaning during maintenance windows, especially when links carry mixed 10G/40G/100G/400G traffic and may interact with older DWDM or legacy aggregation layers.

How does Router-switch.com handle stock availability, shipping, and customs for these cabling and optical SKUs?

  • Stock levels for items such as QSFP-H40G-AOC2M, QSFP-H40G-AOC25M, QDD-400-CU1M, and CIS:QDD-400G-LR4-S may vary by warehouse and region; lead times are typically dependent on real‑time availability, order quantity, vendor allocation, and your destination country or data center location.
  • International delivery options and transit times are influenced by courier selection, consolidation needs, and any required export paperwork; for an overview of possible methods and conditions, please refer to our shipping methods guide, and for duty/VAT planning and import compliance, see our taxes and customs duties explanation.

What technical support, warranty, and RMA safeguards do I have for these DAC, AOC, and long‑reach optics?

  • For design validation—such as checking whether QSFP-4X10G-AOC2M or CIS:ONS-QSFP28-LR4 is more appropriate for a specific spine link—you can consult vendor documentation and also submit your topology and BOM to Router-switch.com, where CCIE‑level engineers can help you optimize port types, breakout strategies, and optics selection; see free CCIE support for how to engage.
  • Warranty coverage and RMA options for optics and cables are subject to manufacturer policies and Router-switch.com terms; you can review high‑level conditions in our warranty policy and follow the instructions for returning faulty goods if you encounter failures in the field. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.
