Planning 100G Single-Fiber Links

Planning 100G Single-Fiber Links

  • Many data center and metro operators are under pressure to light 3 km dark fiber routes with 100G, but only have a single usable strand between sites. The core design dilemma is whether to keep optics simple with BiDi-style single-fiber transmission, or introduce passive CWDM multiplexing while balancing port costs, wavelength plans, interoperability, and operational risk across mixed Cisco, Juniper, and Huawei environments.

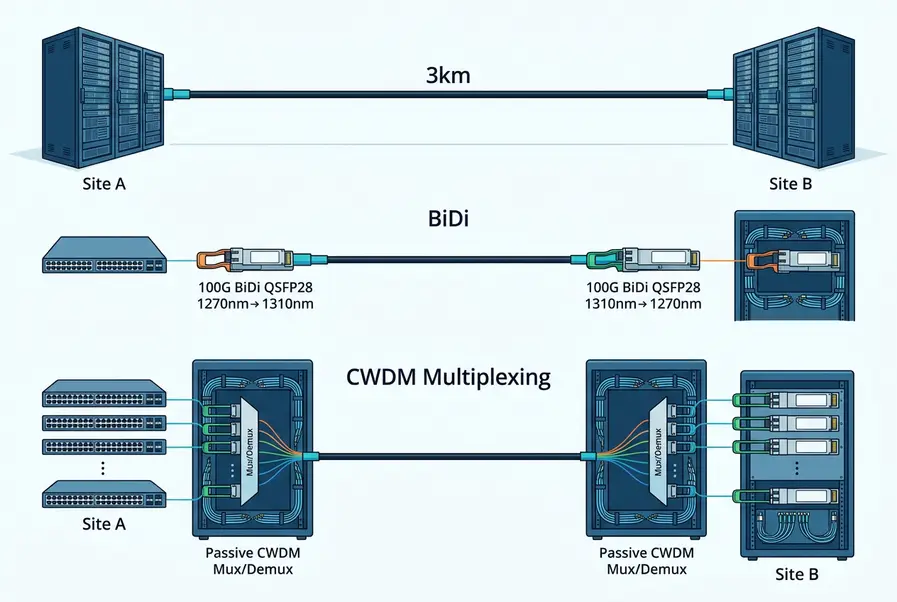

    This article frames the single-fiber 100G decision as a concrete interconnect design exercise: comparing BiDi versus CWDM-based architectures on a 3 km dark fiber, assessing how CWDM4, LR4, and 4WDM optics behave in real deployments, and mapping each choice to scalability, sparing, and migration paths. The goal is to give you clear design guardrails, not just part lists, so you can standardize a repeatable 100G single-fiber blueprint.

Design Tradeoffs for 100G Single-Fiber Links

Balancing reach, capacity, interoperability and future growth on a single fiber strand makes 100G BiDi vs CWDM design far from straightforward.

Design Tradeoffs for 100G Single-Fiber Links

  • BiDi vs CWDM capacity and fiber constraints

    Choosing between simple BiDi optics and CWDM multiplexing on a single strand directly affects 100G reach, channel count and upgrade headroom.

  • Multi-vendor 100G optics interoperability risk

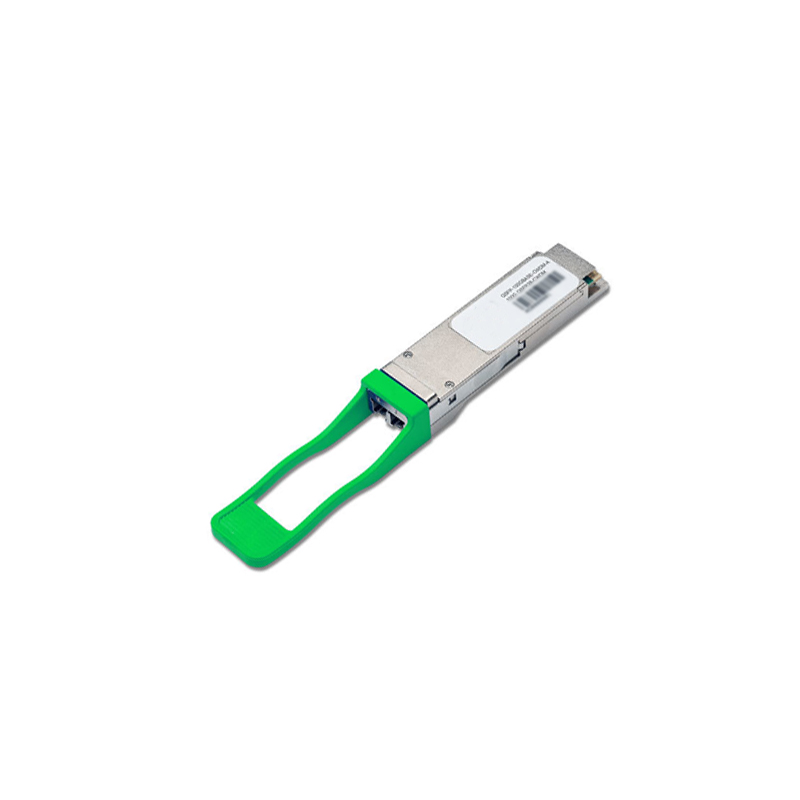

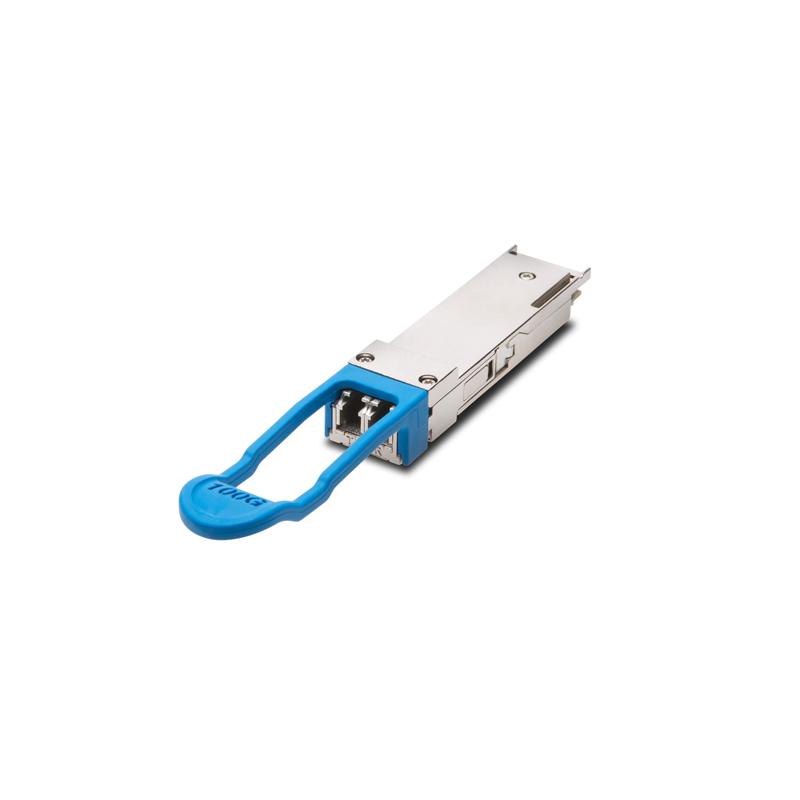

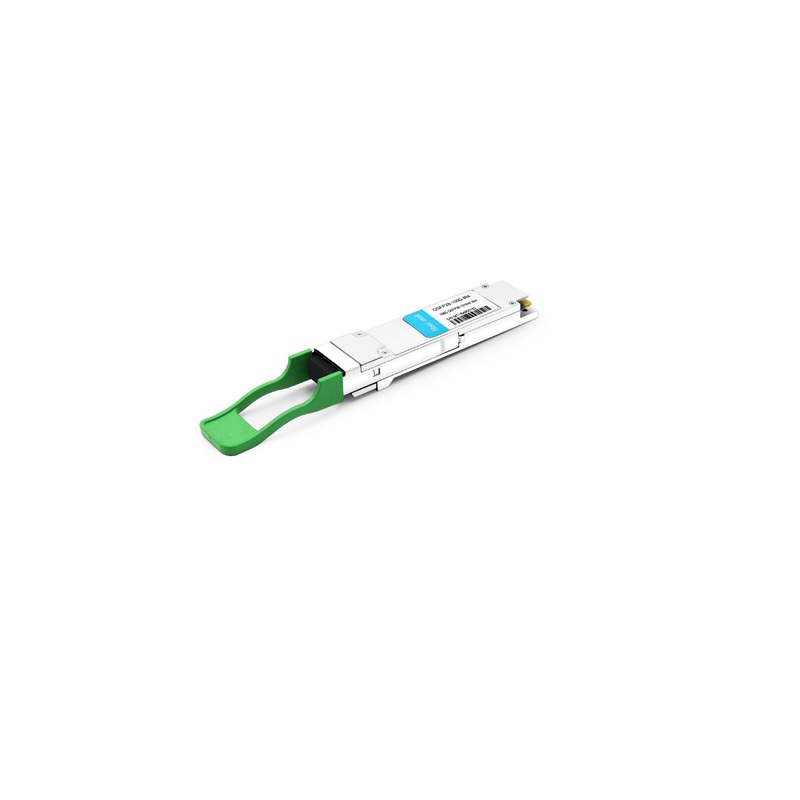

    Mapping LR4, CWDM4, 4WDM and platform-specific QSFP28 parts across Cisco, Juniper, Huawei without proven link budgets adds failure risk.

  • Power, dispersion and maintenance complexity

    Managing loss, dispersion, optical power and troubleshooting across passive CWDM Mux/Demux on 3 km dark fiber increases O&M overhead.

100G Single-Fiber BiDi vs CWDM Comparison

Contrast direct 100G BiDi optics with single-fiber CWDM muxing to choose the most efficient 3 km dark fiber design.

Feature 100G BiDi Direct on Single Fiber
Single-Fiber 100G CWDM Mux Demux (hot)
 Outcome for You
Primary deployment fit Simple point-to-point 3 km link where only one 100G service is required today and growth is limited. 3 km dark fiber where multiple 100G services or mixed 100G/10G wavelengths must share a single strand now or in future. Clarifies whether you should design for a one-off 100G hop or a scalable wavelength platform on that single fiber.
Scalability on single fiber Typically locked to a single 100G circuit per direction; adding more services needs new wavelengths or additional engineering changes. Supports multiple CWDM wavelengths over the same single fiber strand, enabling incremental 100G and sub-100G services without re-cabling. Helps you avoid a redesign in 12–24 months if bandwidth demand is uncertain or likely to grow.
Multi-vendor & platform alignment Relies mainly on transceiver support (e.g., LR4/4WDM/CWDM4 variants) on Cisco/Juniper/Huawei but does not inherently standardize wavelength planning. Uses standardized CWDM grids (e.g., CWDM-MUX-4-SF1/SF2) that can be paired with 100G CWDM4 optics across Cisco, Juniper, and Huawei platforms. Reduces interoperability risk and simplifies wavelength planning across mixed-vendor router and DWDM edge environments.
Complexity & operations Operationally simple: fewer components, but each upgrade (new service) touches active ports and may require maintenance windows. Initial design adds passive modules but then scales with minimal changes; new services are often turn-ups on existing mux ports only. Determines whether you prioritize immediate simplicity or ongoing operational agility and clean change management.
Cost profile over 3–5 years Lower day-one cost when only one 100G service is needed; TCO rises as you bolt on additional links or upgrade optics. Slightly higher upfront spend due to CWDM Mux Demux, but more favorable TCO when adding multiple 100G or mixed-rate services. Highlights if your budget strategy is CapEx-minimal today vs optimized TCO across the dark fiber lifecycle.
Future 400G/aggregation readiness May require forklift to higher-speed optics or additional fibers; limited reuse of the original point solution. Single-fiber CWDM layer can be reused as an access aggregation shelf, feeding higher-speed uplinks or additional CWDM waves as you grow. Ensures today’s 100G design can act as a building block for later 200G/400G or multi-tenant service models.
Resilience & troubleshooting Fewer elements simplify fault isolation but offer limited options for service-level separation or diverse wavelengths. Per-wavelength visibility and isolation simplify planning of maintenance, SLAs, and service demarcation on shared dark fiber. Guides how easily your ops team can isolate faults and maintain service quality on a shared, high-value fiber pair.
Best use case summary Best when you need a fast, budget-friendly 100G single-service hop, with predictable, low future growth on that fiber. Best when the single fiber is scarce or strategic, and you expect multiple services, tenants, or steady capacity growth over time. Aligns the chosen design with your dark fiber importance: tactical 100G link vs strategic service platform.
