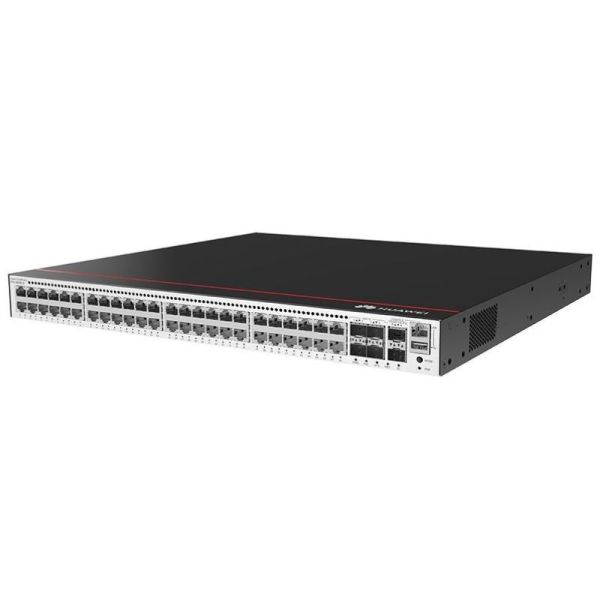

Huawei CloudEngine S5735-S48P4XE-V2 48-Port PoE+ Managed Layer 3 Switch, 4x 10GE SFP+ Uplinks

100% Genuine Ready to Ship

1 312,00 US$

Обзор

Huawei S5735-S48P4XE-V2 Обзор

The Huawei CloudEngine S5735-S48P4XE-V2 is a Layer 3 campus switch in the CloudEngine S5735-S-V2 Series, providing 48 10/100/1000BASE-T PoE+ ports, four 10GE SFP+ uplinks, and two dedicated stacking ports for enterprise campus access and aggregation.

Key Specifications

Downlink Ports

48 x 10/100/1000BASE-T PoE+ ports

10GE Uplinks

4 x 10GE SFP+ ports

Stacking

2 dedicated stacking ports

Product Features

High-Density PoE+ Access	Provides 48 10/100/1000BASE-T PoE+ ports for high-density Gigabit access across enterprise campus networks.
10GE Uplinks and Stacking	Four 10GE SFP+ uplinks support high-speed connections to aggregation or core switches, while two dedicated stacking ports support scalable switch deployment.
Layer 3 Routing and IPv6	Supports static routing, RIP, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and other enhanced Layer 3 features.
VLAN Segmentation and Access Control	Supports up to 4094 VLANs, Voice VLAN, MUX VLAN, and VLAN assignment based on MAC address, protocol, IP subnet, policy, or port.
Resilient Power and Intelligent O&M	Supports three power modules with N+1 power backup, AC and DC power module mixing, and Telemetry-based device monitoring.

Best Fit Applications

Enterprise Campus Access

The PoE+ downlink ports provide high-density Gigabit access for powered devices deployed across enterprise campus networks.

Enterprise Campus Aggregation

The 10GE SFP+ uplinks, Layer 3 routing features, and stacking interfaces support access-switch aggregation and connections to higher-level campus network layers.

Large Enterprise Campus Networks

High-density PoE+ access, 10GE uplinks, Layer 3 features, stacking, and power backup support scalable and resilient large enterprise campus networks.

Compare Related Models

	S5735-S48P4XE-V2	S5735-S48T4XE-V2	S5735-S48S4XE-V2	S5735-L48P4XE-A-V2
Downlink Ports	48 x 10/100/1000BASE-T	48 x 10/100/1000BASE-T	48 x GE SFP	48 x 10/100/1000BASE-T
PoE	PoE+	No	No	PoE+
10GE Uplink Ports	4 x 10GE SFP+	4 x 10GE SFP+	4 x 10GE SFP+	4 x 10GE SFP+
Stacking	2 dedicated stacking ports	2 dedicated stacking ports	2 dedicated stacking ports	2 dedicated stacking ports
Forwarding Performance	327 Mpps / 770 Mpps	327 Mpps / 770 Mpps	168 Mpps	207 Mpps
Switching Capacity	1.36 Tbps / 13.6 Tbps	1.36 Tbps / 13.6 Tbps	224 Gbps / 520 Gbps	672 Gbps / 6.72 Tbps
Power Supply	3 power modules, N+1 backup	1+1 power backup	1+1 power backup	Built-in AC power
Recommended Use Scenario	Enterprise campus access and aggregation with PoE+	Campus access or aggregation where PoE is not required	Fiber-based campus access, aggregation, or metro access	Enterprise campus access with PoE+

Сертификаты качества

Спецификация

Huawei S5735-S48P4XE-V2 Спецификация

Brand	Huawei
Product Family	CloudEngine S5735-S-V2 Series
Model	S5735-S48P4XE-V2
Product Type	Layer 3 fixed campus switch
Downlink Ports	48 x 10/100/1000BASE-T Ethernet ports with PoE+
Uplink Ports	4 x 10GE SFP+ ports
Stacking Ports	2 dedicated stacking ports
PoE Capability	PoE+
Maximum PoE Capacity	Up to 1680W with three 1000W AC PoE power modules; configuration dependent
Forwarding Performance	327 Mpps / 770 Mpps
Switching Capacity	1.36 Tbps / 13.6 Tbps
MAC Address Table	Up to 32K MAC address entries
VLAN Capacity	Up to 4094 VLANs
VLAN Features	Sub-VLAN, Super-VLAN, MUX VLAN, Voice VLAN, VLAN Stacking, VLAN Mapping, QinQ, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN, policy-based VLAN, and port-based VLAN
IP Routing	Static routing, route policy, policy-based routing, RIP, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, VRRP6, and ECMP
FIB Capacity	Up to 8192 IPv4 FIB entries and 4000 IPv6 FIB entries
IPv6 Features	Neighbor Discovery, PMTU, IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
Layer 2 and Network Protection	STP, RSTP, MSTP, VBST, SmartLink, MonitorLink, ERPS, SEP, BPDU protection, root protection, loop protection, LBDT, L2PT, and DLDP
Link Aggregation and Reliability	LACP, VRRP, BFD, LLDP, intelligent stacking, stack fast upgrade, and support for up to 9 switches in an iStack system
Multicast Features	PIM-DM, PIM-SM, PIM-SSM, IGMP v1/v2/v3, IGMP Snooping, MLD Snooping, IGMP Fast Leave, multicast load balancing, and VLAN multicast
QoS Features	8 queues per port, port rate limiting, traffic policing, traffic shaping, 802.1p and DSCP remarking, packet redirection, and FIFO, DRR, SP, WDRR, DRR+SP, and WDRR+SP scheduling
ACL and Traffic Filtering	Layer 2 to Layer 4 packet filtering based on source MAC, destination MAC, source IP, destination IP, TCP/UDP port, protocol type, and VLAN ID
Security Features	DoS protection, ARP attack protection, ICMP attack protection, IP/MAC/port/VLAN binding, port isolation, port security, Sticky MAC, MAC learning limits, blacklist and whitelist functions, CPU protection, and broadcast suppression
Authentication	IEEE 802.1X, MAC authentication, Portal authentication, AAA, RADIUS, HWTACACS, and NAC
Management	SNMPv1/v2c/v3, RMON, NMS, system logs, hierarchical alarms, NETCONF/YANG, Web-based management, Telemetry, sFlow, NQA, IFIT, port mirroring, and Virtual Cable Test
Stacking	iStack intelligent stacking and stack fast upgrade; up to 9 switches per stack
Power Supply Options	600W AC PoE power supply, 1000W AC PoE power supply, and 1000W DC PoE power supply
Power Redundancy	Three power modules with N+1 power backup
Rated Input Voltage	100-130V AC or 200-240V AC at 50/60Hz; 240V DC high-voltage DC input; -48V to -60V DC input
Maximum Input Voltage	90-290V AC at 45-65Hz; 190-290V DC high-voltage DC input; -38.4V to -72V DC input
Maximum Power Consumption	Without PoE: 62.90W with two 600W AC power modules, 67.20W with two 1000W AC power modules, or 76.93W with two 1000W DC power modules. With PoE at full load: 1931.44W with three 1000W AC PoE power modules.
Cooling	Fan cooling with intelligent fan-speed adjustment
Operating Temperature	-5°C to +50°C at altitudes from 0 to 1800m; above 1800m, the maximum operating temperature decreases by 1°C for every additional 220m
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95%, non-condensing
Surge Protection	AC power port: ±6kV differential mode and ±6kV common mode; DC power port: ±2kV differential mode and ±4kV common mode
Noise	Sound power: 50dBA with three 600W AC PoE modules, 49.9dBA with three 1000W AC PoE modules, and 48.5dBA with three 1000W DC PoE modules. Sound pressure: 38dBA, 37.9dBA, and 36.5dBA respectively at 30% load.
Form Factor	1U rack-mount switch
Dimensions (W x D x H)	442 x 420 x 43.6 mm
Expansion Slot	Not available
Shipping Weight	15 kg, packaged shipping weight
