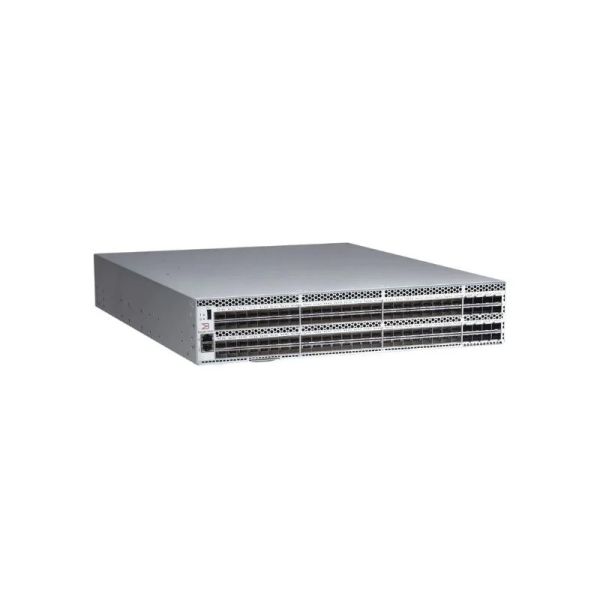

Brocade BR-G730-48-64G-F Datasheet & Price Guide

Пропустить и перейти к галереям изображений

Название:	BR-G730-48-64G-F
Модель:	Brocade BR-G730-48-64G-F-Switch
Бренд:	Brocade
Detail:	Brocade G730 series 128 port switch, 48 port activation, including 48 Brocade 64Gb/s shortwave multi-mode modules，port side intake

Наличие:	Item Backordered
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Доставляет в:

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

BR-G730-48-64G-F

Brocade G730 series 128 port switch, 48 port activation, including 48 Brocade 64Gb/s shortwave multi-mode modules，port side intake

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

BR-G730-48-64G-F Обзор

Brocade G730 series 128 port switch, 48 port activation, including 48 Brocade 64Gb/s shortwave multi-mode modules，port side intake

Сертификаты качества

Спецификация

BR-G730-48-64G-F Спецификация

BR-G730-48-64G-F Specification
Fibre Channel ports	128 ports (96 64G SFP+ ports, plus 16 2x64G SFP-DD ports), each supporting E_Ports, F_Ports, M_Ports, D_Ports, and EX_Ports. 48-port base configuration; additional ports are enabled with two 24-port SFP+ PODs (Ports on Demand), plus a 32-port SFP-DD POD (16 2x64G SFP-DD transceivers), scaling the switch from 48 ports to 128 ports.
Scalability	Full-fabric architecture with a maximum of 239 switches
Certified maximum	4K active nodes; 56 switches, 19 hops in Brocade Fabric OS fabrics.
Performance	Fibre Channel: 8.5Gb/s line speed, full duplex; 10.53Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; 57.8Gb/s line speed, full duplex; auto-sensing of 8, 10, 16, 32, and 64G port speeds. 10G optionally programmable to fixed-port speed.
ISL trunking	Frame-based trunking with up to eight 64G SFP+ ports per ISL trunk; up to 512Gb/s per ISL trunk; up to two (4 x 32G) QSFP ports per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS.
Aggregate bandwidth	8.192Tb/s
Maximum fabric latency	Latency for locally switched ports is <780 ns (including FEC); compression is 1 μs per node.
Maximum frame size	2,112-byte payload
Frame buffers	2K per switching ASIC
Classes of service	Class 2, Class 3, Class F (inter-switch frames)
Port types	F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port) on 24 SFP+ ports Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port
Data traffic types	Fabric switches supporting unicast
Size	Width: 440.00 mm (17.32 in.) Height: 86.7 mm (3.41 in.) Depth: 609.6 mm (24.00 in.)
System weight	18.92 kg (41.71 lb) with two power supplies, fans, without transceivers 21.80 kg (48.06 lb) with two power supplies, fans, fully populated with transceivers
Operating environment	Temperature: 0°C to 40°C/32°F to 104°F Humidity: 10% to 85% (non-condensing)
Non-operating environment	Temperature: –25°C to 70°C/–13°F to 158°F Humidity: 10% to 90% (non-condensing)
Operating altitude	Up to 3,000 m (9,843 ft)
Storage altitude	Up to 12 km (39,370 ft)
Power supply	Dual, hot-swappable redundant power supplies with integrated system cooling fans. 80 Plus Gold
AC input	100 to 240 VAC nominal, 90 to 264 VAC range, maximum input current 12A @ 100V or 5A @ 240V
Input line frequency	50 Hz to 60 Hz nominal, 47 Hz to 63 Hz range.
Power consumption	Maximum power draw: • 969W with all 128 ports operating at 64G (96 ports populated with 64G SWL transceivers, 16 ports populated SFP-DD SWL transceivers, each providing two ports of 64G connectivity). • 364W for an empty chassis with no transceivers. Typical power draw: • 515W for Brocade G730 switch with 64 64G SW optics modules under 50% traffic rate. • 675W for Brocade G730 switch with 128 64G SW optics modules under 50% traffic rate.
