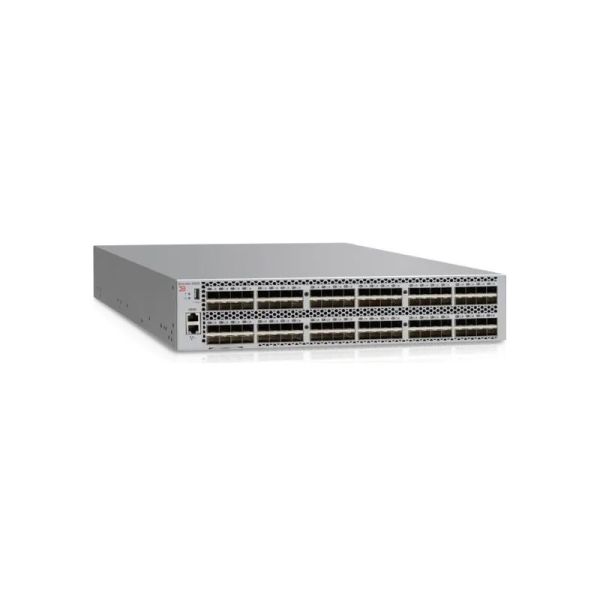

Название:	BR-G630-96-32G-F
Модель:	Brocade BR-G630-96-32G-F-Switch
Бренд:	Brocade
Detail:	Brocade G630 series 128 port switch, 96 port activation, including 96 Brocade 32Gb/s shortwave multi-mode modules，port side intake

Цена:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED 69 184,00 US$
Купон	Up to $80 Coupons Получить сейчас $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Наличие:	In Stock at Global Warehouses. United States United Kingdom Germany United Arab Emirates Singapore India Hong Kong
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Доставляет в:

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

BR-G630-96-32G-F

Brocade G630 series 128 port switch, 96 port activation, including 96 Brocade 32Gb/s shortwave multi-mode modules，port side intake

Цена: 69 184,00 US$

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

BR-G630-96-32G-F Обзор

Brocade G630 series 128 port switch, 96 port activation, including 96 Brocade 32Gb/s shortwave multi-mode modules，port side intake

Сертификаты качества

Спецификация

BR-G630-96-32G-F Спецификация

BR-G630-96-32G-F Specification
Fibre Channel ports	96 SFP+ ports capable of operating at 4, 8, 16, 32G Fibre Channel auto-sensing speeds; 8 QSFP ports capable of operating at 4×32, 4×16, 4×8, 4×4G Fibre Channel speeds. Offers a base configuration of 48 ports, two 24-port SFP+ PoD (Ports on Demand), and one 32-port QSFP PoD. The switch has a total of eight 32G QSFP ports. This allows users to grow from 48 ports to 128 ports. Supports F/E/EX_Port, M_Port, and D_Port types on the SFP+ ports and only F/E/EX_Port and D_Port types on the QSFP ports with Brocade Fabric OS® (FOS) v8.2.0.
Scalability	Full-fabric architecture with a maximum of 239 switches
Certified maximum	Single fabric: 56 domains, 7 hops MPR fabric: 19 hops
Performance	Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds. 10G optionally programmable to fixed port speed. Auto-sensing of 4×32/4×16/4×8/4×4 Gb/s speeds on the QSFP ports with Brocade FOS v8.2.0.
ISL trunking	Frame-based trunking with up to eight 64G SFP+ ports per ISL trunk; up to 512Gb/s per ISL trunk; up to two (4 x 32G) QSFP ports per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS.
Aggregate bandwidth	4Tb/s
Maximum fabric latency	Latency for locally switched ports is <780 ns (including FEC); compression is 1 μs per node.
Maximum frame size	2,112-byte payload
Frame buffers	15K frame buffers with dynamic buffer sharing capability across ports
Classes of service	Class 2, Class 3, Class F (inter-switch frames)
Port types	F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port) on 24 SFP+ ports Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port
Data traffic types	Fabric switches supporting unicast
Size	Width: 440.00 mm (17.32 in.) Height: 86.70 mm (3.41 in.) Depth: 609.60 mm (24.00 in.)
System weight	7.07 kg (15.59 lb) with two power supplies, fans, without transceivers 8.41 kg (18.54 lb) with two power supplies, fans, fully populated with transceivers
Operating environment	Temperature: 0°C to 40°C/32°F to 104°F Humidity: 10% to 85% (non-condensing)
Non-operating environment	Temperature: –25°C to 70°C/–13°F to 158°F Humidity: 10% to 90% (non-condensing)
Operating altitude	Up to 3,000 m (9,843 ft)
Storage altitude	Up to 12 km (39,370 ft)
Power supply	Two power supply FRUs with integrated power module, voltage range of 90V to 264V AC. 80 Plus Platinum.
Fans	Three fan FRUs with two fans each.
AC input	100V to 240V nominal, 90V to 264V range. Maximum input current: 12A.
Input line frequency	50 Hz to 60 Hz nominal, 47 Hz to 63 Hz range.
Power consumption	Maximum 942W with all 128 ports operating at 32G (96 ports populated with 32G SWL optics and 8 QSFP ports populated with 4×32G SWL optics). Maximum of 495W for empty chassis with no optics in idle configuration.
