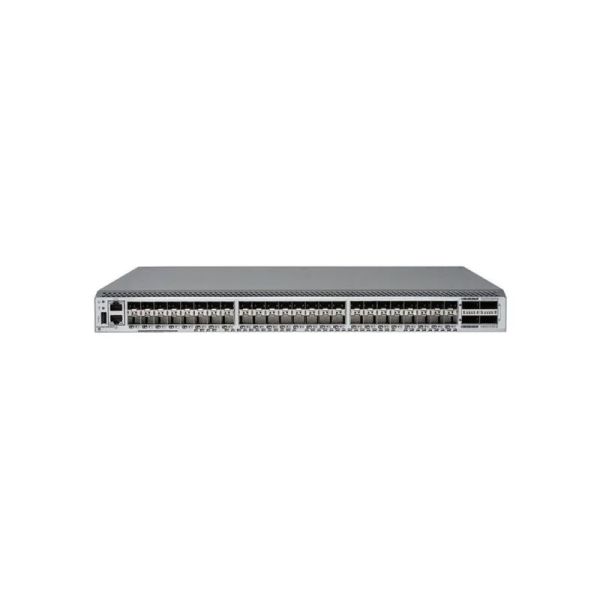

Название:	BR-G620-24-32G-F
Модель:	Brocade BR-G620-24-32G-F-Switch
Бренд:	Brocade
Detail:	Brocade G620 series 64 port switch, 24 port activation, including 24 Brocade 32Gb/s shortwave multi-mode modules，port side intake

Цена:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED 15 102,00 US$
Купон	Up to $80 Coupons Получить сейчас $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Наличие:	In Stock at Global Warehouses. United States United Kingdom Germany United Arab Emirates Singapore India Hong Kong
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Доставляет в:

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

BR-G620-24-32G-F

Brocade G620 series 64 port switch, 24 port activation, including 24 Brocade 32Gb/s shortwave multi-mode modules，port side intake

Цена: 15 102,00 US$

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

BR-G620-24-32G-F Обзор

Brocade G620 series 64 port switch, 24 port activation, including 24 Brocade 32Gb/s shortwave multi-mode modules，port side intake

Сертификаты качества

Спецификация

BR-G620-24-32G-F Спецификация

BR-G620-24-32G-F Specification
Fibre Channel ports	Switch mode (default): Minimum of 24 ports and maximum of 64 ports configuration. Port numbers above minimum are enabled through 12-port SFP+ increments via Ports on Demand (PoD) licenses and through one 4-port QSFP PoD, providing 16-port increments through a Q-Flex license; E_Ports, F_Ports, M_Port, D_Ports, EX_Ports. Brocade Access Gateway default port mapping: 40 SFP+ F_Ports, 8 SFP+ N_Ports
Scalability	Full-fabric architecture with a maximum of 239 switches
Certified maximum	6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required
Performance	Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds. 10G optionally programmable to fixed port speed. Auto-sensing of 4×32/4×16/4×8/4×4 Gb/s speeds on the QSFP ports with Brocade FOS v8.2.0.
ISL trunking	Frame-based trunking with up to eight 64G SFP+ ports per ISL trunk; up to 512Gb/s per ISL trunk; up to two (4 x 32G) QSFP ports per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS.
Aggregate bandwidth	2Tb/s
Maximum fabric latency	Latency for locally switched ports is <780 ns (including FEC); compression is 1 μs per node.
Maximum frame size	2,112-byte payload
Frame buffers	15,360 dynamically allocated
Classes of service	Class 2, Class 3, Class F (inter-switch frames)
Port types	F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port) on 24 SFP+ ports Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port
Data traffic types	Fabric switches supporting unicast
Size	Width: 440.00 mm (17.32 in.) Height: 43.90 mm (1.73 in.) Depth: 355.60 mm (14.00 in.)
System weight	7.07 kg (15.59 lb) with two power supplies, fans, without transceivers 8.41 kg (18.54 lb) with two power supplies, fans, fully populated with transceivers
Operating environment	Temperature: 0°C to 40°C/32°F to 104°F Humidity: 10% to 85% (non-condensing)
Non-operating environment	Temperature: –25°C to 70°C/–13°F to 158°F Humidity: 10% to 90% (non-condensing)
Operating altitude	Up to 3,000 m (9,843 ft)
Storage altitude	Up to 12 km (39,370 ft)
Power supply	Base switch includes a single, hot-swappable power supply with integrated system cooling fans. Optional dual redundant hot-swappable power supply.
AC input	90V to 264V, maximum input current: 3.5A
Input line frequency	47 Hz to 63 Hz
Power consumption	Maximum 205W with all 64 ports populated with 48×32G SFP+ SWL optics and 4× (4×32G) QSFP SWL optics. 85W for empty chassis with no optics
