IE-3100-8P2C-E, Switch Cisco IE3100, 8xGE PoE+ 2xGE Combo Système Fixe

100% Genuine Ready to Ship

7 749,00 US$

59% OFF

3 205,90 US$

Vue d’ensemble

Cisco IE-3100-8P2C-E Vue d’ensemble

The IE-3100-8P2C-E is a Cisco Catalyst IE3100 Rugged Series industrial Ethernet switch configured with 8 x 10/100/1000M PoE+ copper ports and 2 x 1GE Combo ports for industrial automation, surveillance, and utility networks.

Key Configuration

Total Ports

10 total ports

PoE+ Ports

8 x 10/100/1000M RJ45 PoE+ ports

Combo Ports

2 x 1GE Combo ports

PoE Budget

240W PoE budget

Power Inputs

Dual DC inputs

Mounting

DIN rail mounting

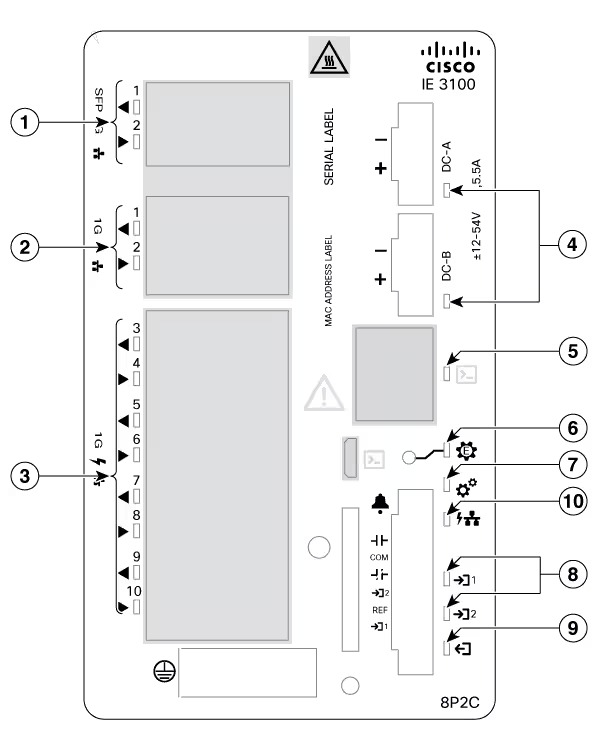

Cisco IE-3100-8P2C-E LED and port status indicators

Official Cisco illustration showing the LED indicators and port status information for the IE-3100-8P2C-E.

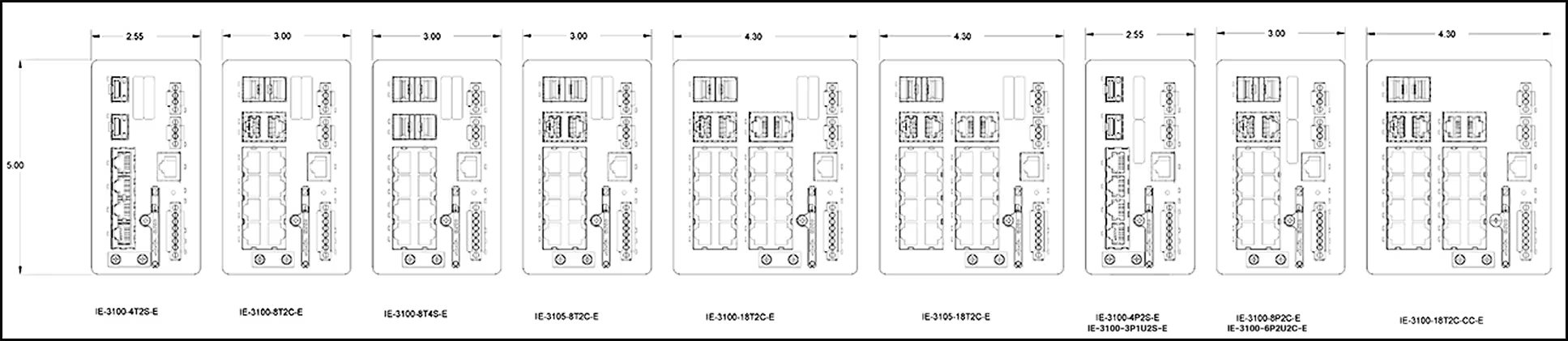

Cisco Catalyst IE3100 front view dimensions

Official Cisco dimensional drawing showing the front view and enclosure measurements of the Catalyst IE3100 Rugged Series switch.

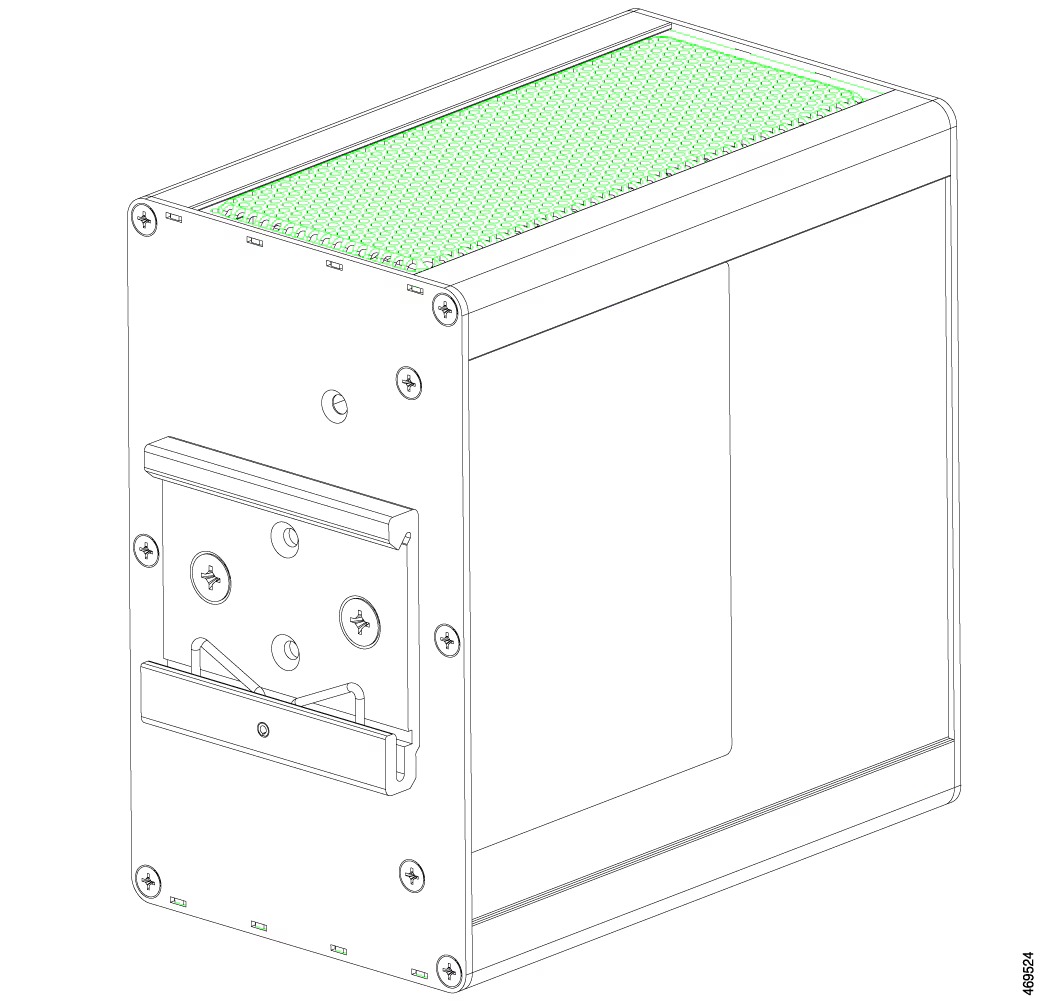

Cisco Catalyst IE3100 Rugged Series rear panel and DIN rail latch

Official Cisco rear-panel illustration showing the DIN rail latch and installation-oriented design of the Catalyst IE3100 Rugged Series.

Cisco Catalyst IE3100 Rugged Series switch models including IE-3100-8P2C-E

Official Cisco series-level image showing Catalyst IE3100 Rugged Series models, including the IE-3100-8P2C-E platform.

Best Fit Workloads

Factory Automation Networks

Connect PLCs, HMIs, drives, sensors, and other industrial Ethernet devices through Gigabit copper access and industrial automation protocols.

Industrial Video Surveillance

Use the 8 PoE+ ports and 240W PoE budget to connect IP cameras, PTZ cameras, and other PoE-powered surveillance devices.

Utility and Energy Networks

Support utility and energy deployments that require dual DC inputs, industrial timing features, and resilient Ethernet protocols.

Space-Constrained Industrial Edge

Deploy a compact DIN rail switch in control cabinets, distribution centers, warehouses, and other industrial edge locations.

Why IE-3100-8P2C-E

PoE Connectivity for Industrial Endpoints

Eight PoE+ copper ports simplify the connection of cameras, access points, sensors, and other powered devices.

Dual DC Power Inputs

Dual DC inputs support industrial power architectures and resilient DC power designs.

Industrial Protocol Support

Network Essentials supports industrial features such as EtherNet/IP, Modbus, PROFINET, SCADA protocol classification, GOOSE, and PTP capabilities.

Network Management and Security

WebUI, SNMP, syslog, NETCONF, RESTCONF, Cisco Network Plug and Play, and security functions support managed industrial networks.

Compact DIN Rail Installation

The fixed industrial form factor is designed for DIN rail mounting in space-constrained control cabinets and industrial edge environments.

Compare Similar Models

	IE-3100-8P2C-E	IE-3100-8T2C-E	IE-3100-4P2S-E	IE-3100-18T2C-CC-E
Total Ports	10	10	6	20
Port Configuration	8 x 10/100/1000M PoE+ RJ45 and 2 x 1GE Combo	8 x 10/100/1000M RJ45 and 2 x 1GE Combo	4 x 10/100/1000M PoE+ RJ45 and 2 x 1GE SFP	18 x 10/100/1000M RJ45 and 2 x 1GE Combo
PoE Power Budget	240W	Not applicable	120W	Not applicable
Software License	Network Essentials	Network Essentials	Network Essentials	Network Essentials
Conformal Coating	Not specified for this model	Not specified for this model	Not specified for this model	Yes
Power Input	Dual DC inputs	Dual DC inputs	Dual DC inputs	Dual DC inputs
Mounting	DIN rail	DIN rail	DIN rail	DIN rail
System Weight	2.3 lb (1.04 kg)	1.9 lb (0.86 kg)	2.0 lb (0.91 kg)	2.8 lb (1.27 kg)
Management	WebUI, SNMP, syslog, NETCONF, RESTCONF, Cisco Network Plug and Play	WebUI, SNMP, syslog, NETCONF, RESTCONF, Cisco Network Plug and Play	WebUI, SNMP, syslog, NETCONF, RESTCONF, Cisco Network Plug and Play	WebUI, SNMP, syslog, NETCONF, RESTCONF, Cisco Network Plug and Play
Recommended Use Scenario	PoE-enabled industrial access, surveillance, and edge networks	Industrial Gigabit connectivity where PoE is not required	Smaller PoE deployments requiring GE SFP uplinks	Higher-density industrial networks requiring conformal coating

System Compatible Components

Type	Part Number	Description
GE Transceiver	GLC-TE	1000BASE-T Gigabit Ethernet transceiver with RJ-45 copper interface for connections up to 100 meters.

Type	Part Number	Description
Removable Storage	SD-IE-1GB=	1GB SD memory card for Cisco IE switches.
Removable Storage	SD-IE-16GB=	16GB SD memory card for Cisco IE switches.

Type	Part Number	Description
Power Supply Options	PWR-IE50W-AC=	50W AC-to-DC or high-DC-to-DC power supply; PoE/PoE+ support is not listed.
	PWR-IE50W-AC-L=	50W AC-to-DC power supply; PoE/PoE+ support is not listed.
	PWR-IE50W-AC-IEC=	50W AC-to-DC power supply with IEC 60320 C14 connector; PoE/PoE+ support is not listed.
	PWR-IE65W-PC-AC=	65W AC-to-DC or high-DC-to-DC power supply with PoE/PoE+ support.
	PWR-IE65W-PC-DC=	65W low-DC-to-DC power supply with PoE/PoE+ support.
	PWR-IE170W-PC-AC=	170W AC-to-DC or high-DC-to-DC power supply with PoE/PoE+ support.
	PWR-IE240W-AC-IEC=	240W AC-to-DC power supply with IEC 60320 C16 connector and PoE/PoE+ support.
	PWR-IE240W-PCAC-L=	240W AC-to-DC power supply with PoE/PoE+ support.
	PWR-IE400W-AC-IEC=	400W AC-to-DC power supply with IEC 60320 C16 connector and PoE/PoE+ support.
	PWR-IE480W-PCAC-L=	480W AC-to-DC power supply with PoE/PoE+ support.

The combined switch and PoE load must remain within the selected power supply wattage. The PWR-IE170W-PC-DC= option is not supported with IE-3100-8P2C-E.

Type	Part Number	Description
Mounting	STK-RACK-DINRAIL=	19-inch DIN rail mount kit.

Certificats de qualité

spécification

Cisco IE-3100-8P2C-E spécification

Product and Hardware
Product Model	IE-3100-8P2C-E
Product Series	Cisco Catalyst IE3100 Rugged Series
Product Type	Industrial Gigabit Ethernet Switch
Form Factor	Fixed-form-factor rugged industrial switch
Total Ports	10
10/100/1000 Mbps RJ45 Copper Ports	8 PoE/PoE+ ports
1GE Combo Ports	2
PoE Standards	IEEE 802.3af and IEEE 802.3at PoE/PoE+
PoE Power Budget	240W
Maximum PoE+ Output	Up to 30W on all 8 downlink ports
DRAM	4GB
Flash Storage	1.5GB user-accessible flash
Removable Storage	SD card; optional and not shipped by default
Supported SD Card Capacities	1GB, 4GB, and 16GB
Alarm Inputs	2 dry-contact alarm inputs
Console Ports	1 RS-232 via RJ-45 and 1 Micro USB
Power Inputs	Dual DC inputs
Cooling	Fanless, convection-cooled design
Software License	Network Essentials perpetual license
Performance and Scalability
Forwarding Rate	14.88 Mpps
Forwarding Bandwidth	10Gbps
Egress Queues	8
Unicast MAC Addresses	8,000
IGMP Multicast Groups	512
VLANs	256
IPv4 Indirect Routes	2,000
Spanning Tree Protocol Instances	128
MTBF	682,250 hours based on Telcordia Issue 4
Power Specifications
Input Voltage Range	12V to 54V nominal; 9.6V to 60V absolute
Maximum Current at 12V Input	6.1A during normal operation
Maximum Current at 24V Input	7.5A during normal operation
Maximum Current at 54V Input	5.8A during normal operation
Inrush Current	80A for 1ms with 12V, 24V, and 48V input
Power Consumption	26W, excluding PoE power
Power Supply Sizing	The combined switch and PoE load must remain within the selected power supply wattage.
Unsupported Power Supply	PWR-IE170W-PC-DC= is not supported with the IE-3100-8P2C-E.
Management and Software Features
Operating System	Cisco IOS XE
Management	WebUI, SNMP, syslog, NETCONF, RESTCONF, Cisco Network Plug and Play, Express Setup, EEM, and ZTP
Management Platform	Cisco Catalyst Center support; license optional
Layer 2 Switching	802.1Q, RSTP, MSTP, LACP, PVST+, RPVST, STP, SPAN, RSPAN, FSPAN, Storm Control, VTP, Q-in-Q, EtherChannel, and 802.1Q tunneling
Multicast	IGMP v1/v2/v3, IGMP snooping, and MLD snooping
Layer 3 Routing	Inter-VLAN routing and static routing
Quality of Service	802.1p, priority queuing, ingress policing, egress queuing and shaping, Auto-QoS, DSCP mapping, and low-latency queuing
Redundancy Protocols	REP, MRP, Fast MRP, and G.8032 Ethernet Ring Protection
Industrial Automation Protocols	EtherNet/IP, CIP, Modbus, SCADA, PROFINET, GOOSE, and IEEE 1588v2 PTP
Security Features
Platform Security	Secure Boot, image signing, and Cisco Trust Anchor module
Authentication	802.1X, RADIUS, TACACS+, AAA, and NEAT
Network Protection	DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, IPv6 Guard, IPv6 Snooping, and IPv6 RA Guard
Secure Management	HTTPS, SSH, SCP, X.509v3, PACL, VACL, and Security Exchange Protocol
Physical Specifications
Dimensions (H x W x D)	5.00 x 3.00 x 5.08 in. (12.70 x 7.62 x 12.90 cm)
Net Weight	2.3 lb (1.04 kg)
Packaged Weight	4kg
Mounting	DIN rail
Protection Rating	IP30
Design	Compact, fixed-form-factor, fanless industrial design
Operating Environment
Operating Temperature	-40° to 75°C (-40° to 167°F) in blower-equipped cabinet; -40° to 60°C (-40° to 140°F) in sealed cabinet; -40° to 70°C (-40° to 158°F) in vented cabinet
High-Temperature Type Test	+85°C for 96 hours
Storage Temperature	-40° to 85°C (-40° to 185°F)
Relative Humidity	5% to 95%, noncondensing
Operating Altitude	Up to 15,000 feet (4,572m) without temperature derating
Maximum Rated Altitude	Up to 40,000 feet (12,192m) with temperature derating to 25°C
Shock Resistance	IEC 60068-2-27 operational shock up to 30G and non-operational shock up to 55–70G
Vibration Resistance	IEC 60068-2-6, IEC 60068-2-64, and EN 61373
Corrosion Resistance	IEC 60068-2-52 salt mist and IEC 60068-2-60 flowing mixed gases
Compliance and Certifications
Industrial Security Standards	IEC 62443-4-1 and IEC 62443-4-2
Industrial and Utility Standards	EN 61131-2, IEEE 1613, IEC 61850-3, EN 50121-3-2, EN 50121-4, ODVA EtherNet/IP, PROFINET v2.3, and NEMA TS2
Emissions and Immunity	FCC Class A, EN 55032 Class A, EN 55035, VCCI Class A, CE, RCM, ICES-003 Class A, and IEC/EN 61000 series
Safety Certifications	UL/CSA 60950-1, UL/CSA 62368-1, UL/CSA 61010-2-201, and CB certification
Hazardous Location Certifications	UL121201 Class I Division 2, CSA 22.2 No. 213, IECEx, ATEX, and Class I Zone 2 certifications
Environmental Compliance	RoHS compliance for the European Union and China
Transportation and Marine Standards	ECE R10, EN 50125-1, EN 50125-3, DNV Certification, and IACS UR E10
Warranty	Five-year limited hardware warranty
Compatible SFP Module
GLC-TE	1000BASE-T copper SFP module with up to 100m transmission distance

Still unsure about your config? Talk to an engineer →

Certificats de qualité

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Avis des clients

Rédigez votre propre commentaire

Seuls les utilisateurs sauvegardés peuvent soumettre leur avis. Veuillez vous connecter ou créer un compte

garantie

Your Trusted Global ICT Partner
Delivering reliable, cross-border fulfillment with 20+ years of expertise, backed by rigorous QC, fast logistics, and worldwide warehousing.
Global warehousing
10+ hubs positioned for fast international dispatch and stable availability.
Seamless cross-border
QC-verified packing and predictable delivery via FedEx, DHL, UPS.
ICT Tools Hub for Confident Monitoring
Stay informed on product lifecycle status and real-time inventory availability—supporting confident planning, sourcing, and operational execution.
EOL/EOSL Checker
Verify product lifecycle status to plan purchases and avoid EOL/EOSL risks.
Request VIP Inventory Portal Access
Connect via live chat for VIP access to real-time inventory on priority SKUs.
Certified Experts Across Leading Vendors
Professional guidance for network, security & data center builds, delivered by certified experts with extensive, hands-on deployment experience.
Multi-vendor engineering
Certified expertise across Cisco, HPE, Aruba, Dell, Juniper, Huawei and Fortinet.
Deployment-ready guidance
Faster, safer rollouts with project-focused engineering guidance.

The Choice of 21,500 +Global Customers

Industry-Leading Warranty Coverage You Can Trust

100% Low Price Guarantee
Router-switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.
100% Quality Assurance
All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.
100% Money-Back Guarantee
If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly.
Visit Politique de retour page for more information.
Free Cisco CCIE Soutien technique
Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.
Flexible & Secure Payment and Shipping
We support multiple secure payment and logistics options, backed by industry-leading verification:
Payer par virement bancaire.

Payez avec votre paypal.

Payez avec votre carte de crédit Visa.

Payez avec votre carte de crédit Mastercard.

Payez avec votre Discover Card.

Pay by American Express.
Plus
Trusted & Secure Payments ×
100% Trusted, Secure Purchase at Router-switch.com
120+ Local Currencies

Multiple Payment Options

100% Secure Payments
Choose the payment method that works for you—local options, multiple currencies, or bank transfers. Every payment is protected by SSL encryption, PCI DSS-level security, McAfee Secure, and VeriSign Secured for complete peace of mind.

Guaranteed Safe Checkout

View Payment Options
Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage
- Factory New Sealed Enterprise Hardware: 3 Years
- Factory New Sealed Consumer Devices: 1 Year
Visit Politique de garantie page for more information
How to Get Support
If you encounter issues with products, please reach out to your dedicated sales representative. They will assist with diagnostics, remote troubleshooting, and RMA processing if necessary.
Visit Nous contacter page for more support options.
