Enterprise Network Redundancy & High Availability Architecture — Key Advantages

Resilient enterprise network architecture with redundant core, WAN, power, and optical links—designed to minimize downtime and protect critical services.

End-to-End Redundancy

Dual core, dual WAN, dual uplinks and VRRP/MC-LAG keep services online during failures.

High-Speed Uplinks

10G/25G/40G optical uplinks with link aggregation enable rapid failover and fast convergence.

Resilient Power Design

Hot-swap redundant PSUs and separate power feeds safeguard PoE access and core uptime.

Designing Redundant Enterprise Network Architectures

Understand how to design redundant enterprise network architectures that improve availability, minimize downtime, and protect critical services. Explore core-to-edge redundancy models, WAN failover options, and power and optical link resiliency to support always-on business operations.

Designing

  • Key Challenges in Enterprise Network High Availability

    Designing high availability in enterprise networks starts with understanding where single points of failure exist. Legacy core and aggregation designs, oversubscribed access layers, and non-redundant WAN edges can all lead to extended outages. Inconsistent failover policies, limited link diversity, and lack of redundancy for power and optics further weaken resilience. Without a structured redundancy strategy across layers, maintenance windows, hardware faults, or provider issues can quickly disrupt business‑critical applications and remote connectivity.

    Discuss Your Challenges
Designing

  • High Availability Design Principles from Core to WAN Edge

    Once key risks are identified, high availability design focuses on building redundancy at each layer. Dual core and aggregation switches, resilient access stacks, and diverse uplinks reduce the blast radius of any single device failure. At the WAN edge, dual links, multiple providers, and failover-ready routing and VPN policies sustain branch and remote access. Redundant power, hot‑swappable components, and high‑capacity optical links help maintain performance during faults, while fast convergence technologies minimize disruption to real‑time applications.

    Get Design Recommendations

Cisco StackWise vs Aruba VSX/VSF: High Availability Comparison

Compare Cisco StackWise and Aruba VSX/VSF to choose the right high availability design for resilient enterprise campus and aggregation networks.

AspectCisco StackWise
Aruba VSX / VSF
Outcome for You
High Availability ModelSingle logical switch with centralized control plane across stack members.Dual control planes (VSX) or distributed stack (VSF) for active-active resilience.Reduces single points of failure and improves uptime for core and aggregation layers.
Failover & Convergence TimeSub-second failover, but recovery can depend on stack master and member roles.Fast convergence with independent control planes and non-stop forwarding on VSX peers.More predictable recovery for critical links and latency-sensitive applications.
Topology FlexibilityBest suited to stackable access and small aggregation rings with short distances.Supports multi-chassis LAG, dual-home access, and flexible core/aggregation designs.Easier to design resilient campus cores with dual-home uplinks and no STP blocking.
Maintenance & Hitless UpgradesISSU support on selected platforms; stack reloads can still impact connected access.VSX allows rolling upgrades with minimal traffic loss; VSF supports hitless member updates.Perform software upgrades with lower risk to production services and branch users.
Scaling & Stack SizeSupports multiple members per stack but constrained by stack bandwidth and distance.VSX scales via dual-chassis pairs; VSF stacks multiple members with high-speed backplane.Scale out high-availability designs without redesigning the entire campus or MDF.
Interoperability & StandardsCisco-proprietary stacking; integrates best within Catalyst access and core ecosystems.Standards-based MLAG behavior with VSX and broad interoperability at L2/L3.Simplifies mixed-vendor deployments and gradual migration of legacy networks.
Best-Fit Use CasesSimple, single-vendor Cisco access stacks and smaller aggregation blocks.Highly available enterprise cores, dual-home access, and WAN edge redundancy.Select VSX/VSF when always-on services, dual-ISP, and resilient uplinks are priorities.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Get a Quote
Live Chat
Need Help? Technical Experts Available Now.

High Availability Enterprise Network Use Cases

Enterprise network use cases illustrating how Cisco, Aruba, Juniper, Fortinet, and Huawei redundancy designs improve availability and resilience.

Campus Backbone

Campus Backbone

  • Redundant cores: Dual Cisco/Aruba/Juniper cores avoid single‑point campus outages.
  • Stacked access: StackWise, VSF, or EX VC keep users online during switch failure.
  • Fiber uplinks: 10G/40G dual-homed links ensure fast failover for key services.
Branch WAN

Branch WAN

  • Dual ISPs: FortiGate and Cisco ISR leverage dual carriers for nonstop branch access.
  • SD-WAN overlays: Intelligent path selection keeps SaaS and VPN traffic resilient.
  • VPN failover: Automated IPsec re-routing maintains secure links during outages.

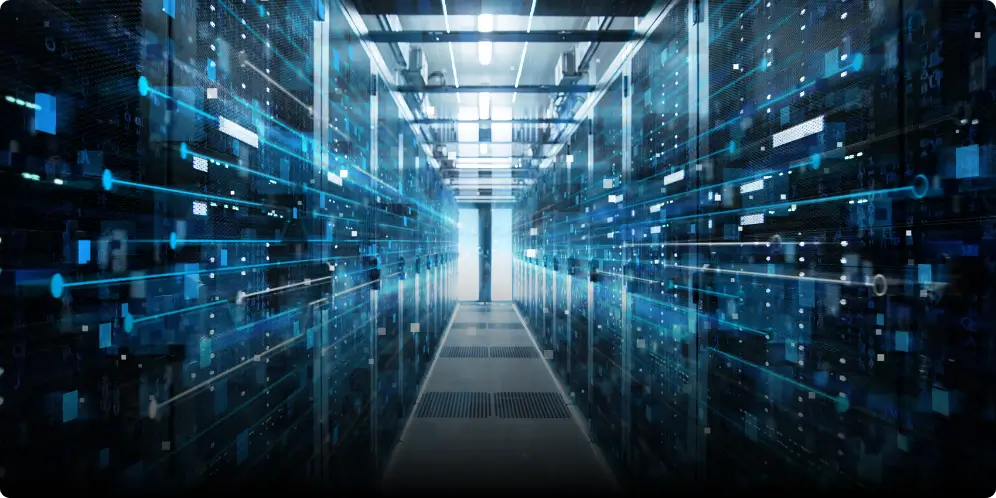

Centro de datos

Centro de datos

  • MC-LAG/VSX: Active-active leaf–spine designs keep East–West traffic always flowing.
  • Optical redundancy: Dual 10G/40G optics protect storage traffic and vMotion.
  • Power diversity: Redundant PSUs and feeds safeguard critical compute racks.
SMB Branches

SMB Branches

  • Compact stacks: Stackable access switches give small sites seamless failover.
  • Secure WAN: Entry FortiGate or ISR adds resilient VPN for remote offices.
  • PoE resilience: Redundant power keeps IP phones and APs running during faults.
Industrial OT

Industrial OT

  • Rugged uplinks: Redundant fiber SFPs keep plant and SCADA links available.
  • Segmentation: Fortinet and Cisco security isolate OT from IT disruptions.
  • Edge redundancy: Dual aggregation switches protect production-line networks.

Featured Reviews

Michael Turner

We needed resilient campus and branch connectivity with no single point of failure. Router-switch.com designed an enterprise network redundancy solution using Cisco Catalyst and FortiGate that gave us seamless WAN failover and stable core switching. Their fast delivery, genuine parts, and expert pre-sales support made the rollout smooth and future-proof.

Daniel Brooks

Our challenge was to build a highly available network core with dual-ISP WAN redundancy on a tight schedule. Router-switch.com proposed Cisco and Aruba switches with Fortinet SD-WAN, delivered in time and within budget. The solution improved uptime, simplified management, and their lifecycle advice helped us plan scalable upgrades confidently.

Andrew Collins

We required a redundant core, secure WAN, and optics in one consolidated design. Router-switch.com combined Juniper EX, FortiGate, and Cisco ISR to give us high availability and fast convergence across sites. Their competitive pricing, clear BoM planning, and responsive after-sales support made them a trusted partner for future expansions.

Preguntas frecuentes

What is an Enterprise Network Redundancy & High Availability Design and why do I need it?

An Enterprise Network Redundancy & High Availability Design uses dual core/aggregation switches, resilient WAN routers, SD-WAN/VPN firewalls, redundant power supplies, and multiple uplinks (10G/40G optics) to eliminate single points of failure. For enterprises running business‑critical applications, this design significantly reduces unplanned downtime, speeds up failover during link or device failures, and ensures users maintain access to key services across campus and branch networks.

How do I choose between Cisco, Aruba, Juniper, Fortinet, and Huawei for high availability?

  • Define your use cases first: campus core/aggregation, access layer, branch WAN, SD-WAN, or VPN firewall. This helps determine whether Cisco Catalyst 9300/9500, Aruba CX 6300/6400/8325, Juniper EX, Fortinet FortiGate, or Huawei switches/routers best fit your needs.
  • Compare HA and redundancy features (StackWise, VSX/VSF, MC-LAG, clustering, dual-ISP failover), OS familiarity (Cisco IOS XE, Aruba AOS-CX, Junos, FortiOS), budget, and existing vendor ecosystem. Router-switch.com can help you evaluate a mixed-vendor design to balance cost, performance, and resiliency.

What are the key components of a highly available enterprise network solution?

A robust high availability solution typically includes multiple layers of redundancy across hardware, links, and services. In this design, Cisco, HPE Aruba, Juniper, and Fortinet platforms are combined to build a resilient campus and branch architecture.
    Core, access, and WAN redundancy
  • Redundant core and aggregation switches (e.g., Cisco Catalyst 9500, Aruba CX 6400/8325, Juniper EX) with stacking or MC-LAG/VSX/VSF for fast convergence and nonstop forwarding.
  • Stackable access switches with dual uplinks via SFP/SFP+/QSFP optics to separate core switches, plus dual-ISP WAN routers and SD-WAN/VPN firewalls (e.g., Cisco ISR and Fortinet FortiGate) for carrier and path diversity.
    Power, optics, and management resilience
  • Redundant power supplies and hot-swappable fan modules to keep switches and routers online during PSU or cooling failures; fiber uplink modules designed for high availability and long-distance campus connectivity.
  • Centralized management, monitoring, and automation (e.g., Cisco DNA Center, Aruba Central, Juniper Mist, Fortinet management tools) to quickly detect failures, trigger failover policies, and maintain configuration consistency across the entire HA environment.

How does this solution improve WAN and VPN uptime for branches?

The design uses dual-ISP connectivity with enterprise WAN routers and SD-WAN/VPN firewalls, such as Cisco ISR and Fortinet FortiGate, to provide intelligent path selection and failover. If one carrier or link goes down, traffic is automatically rerouted through the secondary ISP or VPN tunnel. Policy-based routing, dynamic VPN failover, and health‑check probes ensure that business‑critical applications (ERP, VoIP, SaaS, cloud services) remain accessible with minimal packet loss and short convergence times.

Are Cisco, Aruba, Juniper, Fortinet, and Huawei devices compatible in one redundancy design?

  • Yes, multi-vendor high availability designs are common. Standards-based features such as LACP, BGP, OSPF, VRRP, and 802.1Q VLANs allow Cisco, HPE Aruba, Juniper, Fortinet, and Huawei equipment to interoperate for link and routing redundancy.
  • Some advanced HA features (e.g., Cisco StackWise, Aruba VSX/VSF, proprietary clustering) are vendor-specific and work within a single brand, but they can still be integrated into a broader multi-vendor architecture using open protocols and well‑designed network layers.

What about licensing, warranty, and technical support for these high availability solutions?

  • Licensing requirements vary by vendor and feature set: for example, advanced routing, SD-WAN, VPN, and security subscriptions on Cisco, Fortinet, Aruba, Juniper, or Huawei may require additional licenses. Always confirm license tier and term when planning your HA deployment.
  • Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.
