What Is Enterprise Network Rack & Cabling?

Enterprise network rack and cabling design is the physical foundation of modern data centers, MDFs, and IDFs, bringing together 42U racks and cabinets, rack PDUs, copper patch panels, fiber enclosures, and structured cabling to support high‑density switching. It standardizes how Cisco, HPE Aruba, and Huawei infrastructure is mounted, powered, and interconnected for predictable performance and easier lifecycle management.
By combining well‑planned rack layouts, vertical and horizontal cable management, and high‑performance optics such as SFP+, QSFP+, QSFP28 and DACs, enterprises can build reliable leaf‑spine and top‑of‑rack architectures with clean airflow, simplified troubleshooting, and scalable capacity. This best‑practice approach reduces downtime, avoids cable congestion, and accelerates turn‑up of new services across campus cores, data centers, and colocation environments.

Enterprise Rack & Cabling Refresh Pressures

High‑density switching, 25/100G uplinks, and hybrid copper‑fiber plants are reshaping enterprise build‑outs, exposing legacy rack, PDU, and cabling limits that must be fixed before the next refresh cycle.

Density, power, and thermal trade‑offs
Spine–leaf, Wi‑Fi 6/6E, PoE, and GPU clusters drive dense Cisco, Aruba, and Huawei switching, but racks, PDUs, and airflow are often mismatched. We help align rack choice, PDU layout, and cabling paths to performance and power budgets.
Mixed vendor optics and cabling complexity
Upgrading to 10/25/40/100G with multi‑vendor switches creates uncertainty around SFP+/QSFP, DAC, and structured cabling interoperability. Our experts recommend compatible optics and links so you avoid costly trial‑and‑error.
Escalating install and operations overhead
Ad‑hoc rack layouts, unmanaged patching, and limited spares inflate deployment time and troubleshooting costs. With full‑stack racks, panels, and management accessories, Router‑switch.com helps standardize designs and control lifecycle TCO.

Enterprise Rack & Cabling Highlights

Optimize enterprise racks, PDUs, copper and fiber cabling with Cisco, HPE Aruba, and Huawei optics for scalable, low-latency networks.

Standardized Physical Layer

42U racks, PDUs, copper and fiber panels unify MDF/IDF and data center builds.

High-Performance Optics

10/25/40/100G SFP+/QSFP+/QSFP28 optics and DACs for spine–leaf and ToR links.

Efficient Cable Management

Vertical and horizontal managers streamline airflow, moves, adds, and changes.

High-Density Fiber & DAC for Enterprise Racks

Optimize ToR/EoR uplinks and spine–leaf fabrics with Cisco, HPE Aruba & Huawei-ready SFP+/QSFP optics and high-performance DAC assemblies.

Top-of-Rack / End-of-Row Fiber Uplinks
Short-Run 10G/25G DAC ToR Cabling
Spine–Leaf & Aggregation Fiber Backbones

Veja mais produtos

Top-of-Rack vs End-of-Row: Data Center Cabling Comparison

Compare ToR and EoR switching designs to align fiber, DAC, and structured cabling with scalable, cost-efficient enterprise data center builds.

Aspect	End-of-Row (EoR) Architecture	Top-of-Rack (ToR) Architecture	Outcome for You
Cabling Approach	Longer horizontal copper runs from servers to EoR switches	Short DAC/fiber jumpers from servers to ToR switches inside each rack	Cleaner racks with predictable pathways and easier standards-based labeling
Rack Density & Flexibility	Fixed switch locations can limit per-rack port density and growth	Each rack has its own ToR switch, allowing modular scale-out by rack	Add Cisco, HPE Aruba, or Huawei ToR switches and optics as you expand racks
Cable Management Complexity	High cable count in EoR cabinets, complex bundles to manage and trace	Short intra-rack runs with vertical/horizontal managers for neat routing	Simplifies troubleshooting and reduces risk of accidental disconnects
Latency & Performance	More electrical hops and longer copper can add marginal latency	High-speed SFP+/QSFP DAC and fiber links minimize delay to aggregation	Improved performance for east–west traffic and low-latency applications
Cost Model (Cabling vs Switches)	Fewer switches but higher spend on long copper and structured cabling	More ToR switches but lower-cost short DAC and patch cabling per rack	Balance optics, DACs, and rack PDUs to match your CAPEX and growth plan
Operations & Moves/Adds/Changes	MACs require re-routing long cables across aisles and rows	Changes are local to the rack, with minimal impact on other rows	Faster deployments for new servers and simpler lifecycle management
Best-Fit Use Cases	Smaller pods, legacy layouts, or environments with limited switch SKUs	Modern spine–leaf data centers, high-density compute, and cloud-style racks	Standardize ToR with Router-switch.com racks, optics, and structured cabling

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Enterprise Rack & Cabling Use Cases

Where Cisco, HPE Aruba, and Huawei racks, optics, DACs, and structured cabling deliver resilient, standardized enterprise infrastructure.

Core Data Centers

Spine–leaf fabric: Use Cisco, Aruba, Huawei optics and DACs for non‑blocking fabrics.
Top‑of‑rack builds: Standardize 42U racks, PDUs, and cable managers for ToR blocks.
High‑density patching: Optimize copper and fiber panels for fast MACs and scaling.

Campus MDF / IDF

MDF aggregation: Deploy well‑labeled racks, PDUs, and fiber shelves for core links.
IDF closets: Use vertical managers and patch panels for clean access cabling.
Uplinks & trunks: Connect MDF–IDF with Cisco, Aruba, Huawei optics and trunks.

Enterprise Server Rooms

Top‑of‑rack access: Pair ToR switches with DACs for low‑latency server links.
End‑of‑row design: Centralize panels and cable trays for easier lifecycle upgrades.
Power distribution: Use intelligent rack PDUs to balance loads and improve uptime.

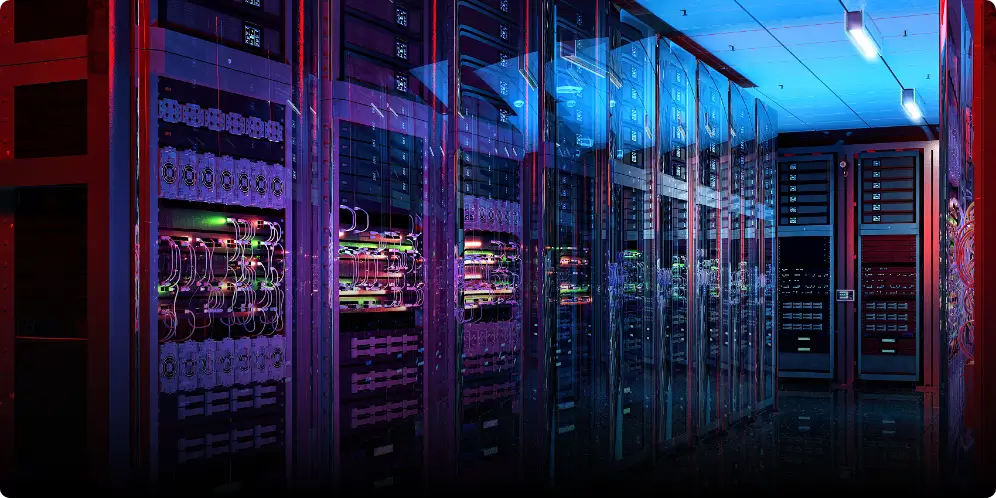

Specialized Facilities

Healthcare networks: Use enclosed cabinets and structured cabling for compliance.
Financial trading: Deploy low‑loss optics and tidy patching for latency‑sensitive apps.
Industrial edge: Protect switches in sealed racks with organized copper harnesses.

SMB / Branch Sites

Compact racks: Use shallow cabinets and small PDUs for space‑constrained rooms.
Simplified patching: Standardize panels to keep moves and changes predictable.
WAN and access: Combine optics and DACs to link branch switches and routers.

perguntas frequentes

How do I choose the right network rack size (e.g., 42U) and depth for my enterprise build?

Start by listing all core, aggregation, and access switches, servers, and patch panels you plan to install over the next 5–7 years. For most enterprise MDF/IDF and data center deployments, a 42U rack with a minimum depth of 1000–1200 mm supports typical Cisco, HPE Aruba, and Huawei switches plus structured cabling and PDUs. Reserve 20–30% free rack space for future growth, and ensure adequate clearance for rear cable bend radius and vertical cable managers. Router-switch.com can help you validate rack height and depth based on your specific switch and transceiver models.

What is the difference between Top-of-Rack (ToR) and End-of-Row (EoR) cabling architectures, and which should I choose?

Top-of-Rack (ToR): Switches are installed in each rack, directly connecting to servers via short DAC cables or fiber jumpers. This minimizes server cabling length, simplifies moves/adds/changes, and is ideal for high‑density spine–leaf data center designs.
End-of-Row (EoR): Switches are placed at the end of a rack row, and servers in each rack connect back via structured copper or fiber cabling to EoR patch panels. This centralizes switching, can reduce switch count, and is common in more traditional or mixed‑vendor environments. Router-switch.com provides Cisco, HPE Aruba, and Huawei optics and cabling to support both ToR and EoR designs.

How should I plan fiber transceivers, DACs, and cabling types for 10G/25G/40G/100G links in my spine–leaf architecture?

For short‑reach switch‑to‑switch or switch‑to‑server links within a rack or adjacent racks, passive DAC cables (SFP+/QSFP+/QSFP28) are highly cost‑effective and simplify cable management. For longer runs across rows or between MDF/IDF rooms, use multimode or single‑mode fiber with the corresponding Cisco, HPE Aruba, or Huawei optical transceivers, sized to your required distance and speed.

Typical link planning guidelines

10G/25G access links: Use SFP+ or SFP28 DACs (up to ~3–5 m) or multimode fiber with SR optics for rack‑to‑rack and row‑to‑row connections.
40G/100G spine–leaf uplinks: Use QSFP+/QSFP28 DACs for in‑rack/adjacent‑rack, and breakout DACs or MPO‑based fiber trunks with corresponding transceivers for higher‑density leaf–spine fabrics.

Best practices for cabling and patching

Standardize on color‑coded fiber and copper patch cords by function (spine, leaf, management, storage) to simplify operations and troubleshooting.
Use horizontal and vertical cable managers, high‑density fiber enclosures, and clearly labeled patch panels in every rack to maintain bend‑radius, airflow, and auditability.

Are Cisco, HPE Aruba, and Huawei compatible transceivers and DAC cables from router-switch.com safe to use in my switches?

Router-switch.com provides original and compatible optical transceivers and DACs that are individually tested for interoperability, signal integrity, and compliance with MSA standards where applicable. When correctly matched to your Cisco, HPE Aruba, or Huawei switch models and software versions, these modules and cables can deliver the same link performance as OEM‑branded parts, often at lower TCO. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

How do I design rack power distribution (PDUs) and cooling to protect my network and cabling investment?

Size PDUs based on the maximum power draw of fully populated racks (core, aggregation, and access switches, plus optics), allowing at least 20% headroom. Use vertical PDUs to free horizontal space and keep power cords away from dense network cabling.
Align rack layout with cold‑aisle/hot‑aisle containment, choose vented doors, and avoid over‑stuffing cable managers to maintain airflow. Proper power and cooling design increases the reliability and life span of Cisco, HPE Aruba, and Huawei switches, transceivers, and structured cabling components.

Can router-switch.com help me plan a complete enterprise rack and structured cabling bill of materials (BOM)?

Yes. Router-switch.com can work from your high‑level network design (ToR/EoR, spine–leaf, MDF/IDF topology) to recommend a complete physical layer BOM: 42U racks and cabinets, vertical/horizontal cable managers, PDUs, copper patch panels, fiber enclosures, trunk cables, patch cords, and Cisco/HPE Aruba/Huawei transceivers and DACs. This helps you standardize across sites, optimize cost per port, and simplify installation and future expansions. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.
