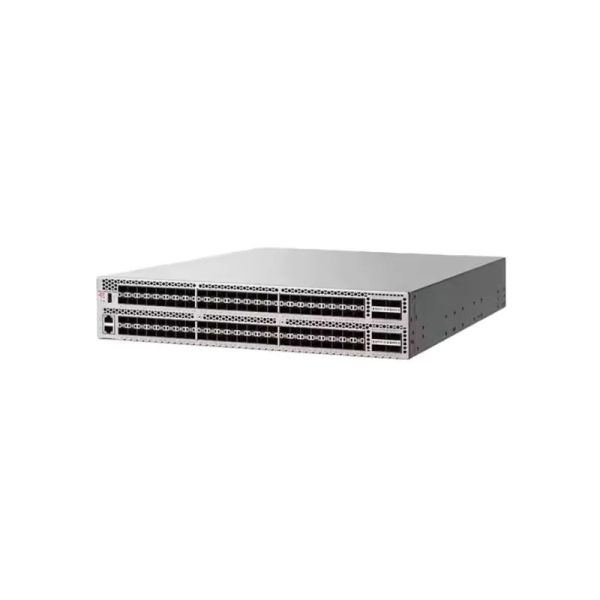

Nome:	BR-G720-56-64G-F
Modelo:	Brocade BR-G720-56-64G-F-Switch
Marca:	Brocade
Detalhe:	Brocade G720 series 64 port switch, 56 port activation, including 56 Brocade 64Gb/s shortwave multi-mode modules，port side intake

Preço:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED 50 816,00 US$
Cupão	Up to $80 Coupons Obter agora $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Disponibilidade:	In Stock at Global Warehouses. United States United Kingdom Germany United Arab Emirates Singapore India Hong Kong
Condição:	New

Envio:

Envio Expresso para Estados Unidos
2-6 Dias, via DHL, FedEx, UPS, etc.

Envio para:

Pagamento:

Pague por transferência bancária.
Pague com seu paypal.
Pague com seu webmoney.
Pay with your onafriq.
Pague com seu cartão de crédito Visa.
Pague com seu cartão de crédito Mastercard.
Pague com seu cartão Discover.
Pague pela Western Union.

Suporte:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

BR-G720-56-64G-F

Brocade G720 series 64 port switch, 56 port activation, including 56 Brocade 64Gb/s shortwave multi-mode modules，port side intake

Preço: 50 816,00 US$

Cadeia de suprimentos global estável para negócios prósperos.

Inventário de $ 4.000.000
Mais de 500 fornecedores confiáveis
Parcerias certificadas
Colaboração com FedEx, UPS, DHL

Mais de 100.000 produtos diversos para todas as suas necessidades

Suporte personalizado para suas necessidades com CCIE, HCIE, HPE ASE, etc.

Serviço personalizado, manutenção superior do produto para máxima satisfação.

Projetos e Suporte Técnico
Fornecimento de compra fácil
Proteção do ciclo de vida do produto
Suporte exclusivo da equipe F4

Vista Geral

BR-G720-56-64G-F Vista Geral

Brocade G720 series 64 port switch, 56 port activation, including 56 Brocade 64Gb/s shortwave multi-mode modules，port side intake

Certificações de qualidade

Especificação

BR-G720-56-64G-F Especificação

BR-G720-56-64G-F Specification
Fibre Channel ports	Switch mode (default): 64 ports (48 64G SFP+ ports, plus 8 2x64G SFP-DD ports), each supporting E_Ports, F_Ports, M_Ports, D_Ports, and EX_Ports. 24-port base configuration; additional ports are enabled with three 8-port SFP+ PODs (Ports on Demand), plus a 16-port SFP-DD POD (8 2x64G SFP-DD transceivers), scaling the switch from 24 ports to 64 ports. Brocade Access Gateway default port mapping: 56 F_Ports, 8 N_Ports.
Scalability	Full-fabric architecture with a maximum of 239 switches
Certified maximum	4K active nodes; 56 switches, 19 hops in Brocade Fabric OS fabrics.
Performance	Fibre Channel: 8.5Gb/s line speed, full duplex; 10.53Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; 57.8Gb/s line speed, full duplex; auto-sensing of 8, 10, 16, 32, and 64G port speeds. 10G optionally programmable to fixed-port speed.
ISL trunking	Frame-based trunking with up to eight 64G SFP+ ports per ISL trunk; up to 512Gb/s per ISL trunk; up to two (4 x 32G) QSFP ports per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS.
Aggregate bandwidth	4.096Tb/s
Maximum fabric latency	Latency for locally switched ports is <780 ns (including FEC); compression is 1 μs per node.
Maximum frame size	2,112-byte payload
Frame buffers	24K per switching ASIC
Classes of service	Class 2, Class 3, Class F (inter-switch frames)
Port types	F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port) on 24 SFP+ ports Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port
Data traffic types	Fabric switches supporting unicast
Size	Width: 440.00 mm (17.32 in.) Height: 43.90 mm (1.73 in.) Depth: 355.60 mm (14.00 in.)
System weight	7.34 kg (16.18 lb) with two power supplies, fans, without transceivers 8.78 kg (19.36 lb) with two power supplies, fans, fully populated with transceivers
Operating environment	Temperature: 0°C to 40°C/32°F to 104°F Humidity: 10% to 85% (non-condensing)
Non-operating environment	Temperature: –25°C to 70°C/–13°F to 158°F Humidity: 10% to 90% (non-condensing)
Operating altitude	Up to 3,000 m (9,843 ft)
Storage altitude	Up to 12 km (39,370 ft)
Power supply	Dual, hot-swappable redundant power supplies with integrated system cooling fans. 80 Plus Gold
AC input	90V to 264V, maximum input current 4.5A
Input line frequency	50 Hz to 60 Hz nominal, 47 Hz to 63 Hz range.
Power consumption	Maximum power draw: • 349W with all 64 ports operating at 64G (48 ports populated with 64G SWL transceivers and 8 ports populated with 2x64G SFP-DD SWL transceivers). • 57W for an empty chassis with no transceivers. Typical power draw: • 155W for Brocade G720 switch with 32 64G SW optics modules under 50% traffic rate. • 252W for Brocade G720 switch with 64 64G SW optics modules under 50% traffic rate.
