25G 100G 400G Interconnect Planning for Data Center Fabrics

25G 100G 400G Interconnect Planning for Data Center Fabrics
  • Introduction
  • Challenges
  • Recommended Products
  • Comparer
  • Use Cases
Get Expert Help

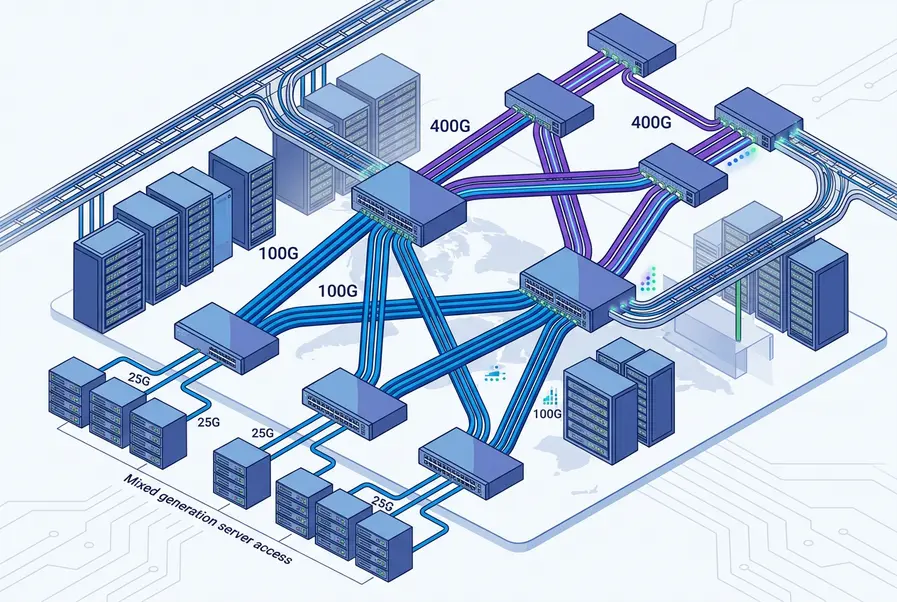

Aligning Fabric Speeds with Growth

Aligning Fabric Speeds with Growth

  • As data center fabrics shift from legacy 10G/40G designs to 25G/100G/400G architectures, network teams must align server access, spine capacity, and interconnect optics to rapidly changing workload patterns. AI training clusters, east–west traffic growth, and mixed-generation servers create pressure to upgrade without disrupting existing services or overinvesting in bandwidth that may sit idle for years.

    This guide focuses on how to plan a pragmatic evolution path: 25G leaf access with 100G uplinks, scalable 100G/400G spine layers, and an optics strategy that balances short-reach AOCs, breakout connectivity, and long-reach links. The goal is to turn SKU choices for switches and transceivers into clear design decisions around oversubscription, migration phases, and fabric readiness for future 400G expansion.

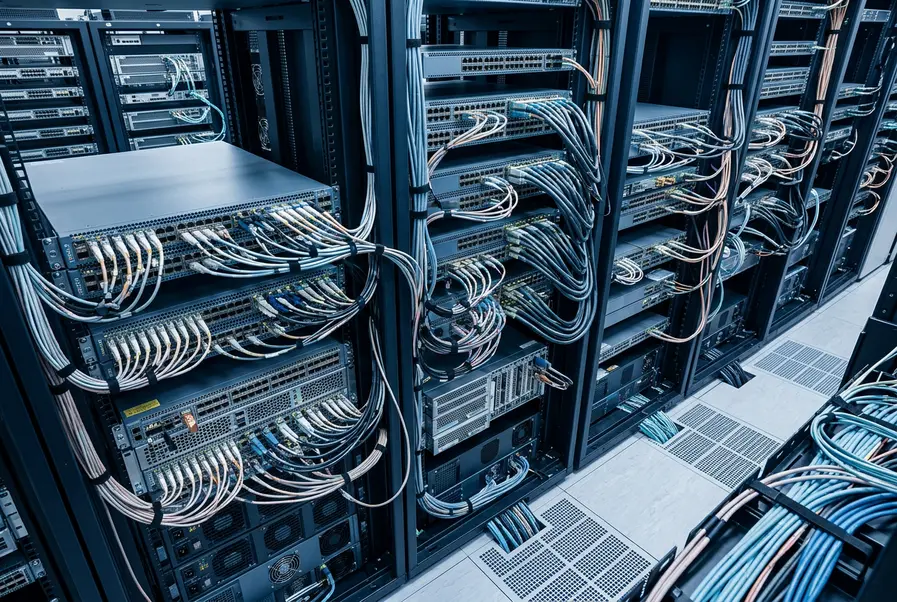

Balancing 25G/100G/400G Fabric Trade-offs

Designing 25G/100G/400G fabrics is hard because every choice on port speed, optics, and topology impacts scale, cost, and long-term flexibility.

Balancing 25G/100G/400G Fabric Trade-offs

  • Leaf–spine capacity versus oversubscription

    Choosing 25G access and 100G/400G uplinks without clear oversubscription targets risks bottlenecks or overbuilt, underused fabrics.

  • Optics mix and cabling cost control

    Selecting FR/LR, AOC, and breakout optics per tier is complex; misalignment drives stranded ports, inventory sprawl, and fiber waste.

  • Migration path and multivendor risk

    Aligning 25G to 100G/400G upgrades across switch lines and optics SKUs is difficult, with interoperability gaps that threaten rollout plans.

Interconnect choices that shape your fabric

Clarify how to mix 25G/100G/400G switches and optics for scalable, low-risk data center fabrics.

Right-speed leaf design

Balance 25G server access with 100G uplinks to avoid overbuild or oversubscription.

Spine built to scale

Use 100G/400G spine tiers to grow east–west capacity without redesigning the fabric.

Optics aligned to distance

Match SR, LR, and breakout optics to rack distances and growth, not just link speed.

25G vs 100G vs 400G fabric interconnect

Compare 25G/100G/400G data center fabrics to choose the right spine–leaf interconnect for current and future growth.

Feature 25G/100G Fabric (Leaf-centric) 100G Fabric (Spine-centric)
400G-Ready Fabric (Spine hot)
 Your Takeaway
Target deployment fit Best for moderate-scale leaf/server access using 25G downlinks and 100G uplinks; e.g. N9K-C93240YC-FX2, QFX5120-48Y. Suited to mid–large spine cores aggregating multiple 25G/100G leafs at 100G; e.g. DCS-7060DX5-32-R, N9K-C9336C-FX2-B2. Ideal for fabrics expecting rapid east–west growth and AI/analytics clusters using 100G/400G; e.g. DCS-7388X5-32C-48DR-F, CE8851-32CQ8DQ-KB0. Match fabric type to your scale: 25/100G for steady growth, 400G-ready for fast-growing or AI-driven data centers.
Bandwidth & scale headroom Up to 25G per server and 100G per uplink; sufficient for most virtualized and general enterprise workloads today. Delivers dense non-blocking 100G spine capacity but may need upgrades when 200G/400G nodes appear. Provides native 400G plus high-density 100G ports, supporting future 200G/400G hosts and AI clusters without a rip-and-replace. If traffic is doubling in ≤3 years, 400G-ready avoids near-term fabric redesign and disruptive migrations.
Optics & cabling design Primarily 25G/100G optics; short runs on DAC/AOC, longer on QSFP-100G-FR-S and ONS-QSFP28-LR4; simpler but less flexible for 400G. Standardized on 100G links using LR4/FR and breakout from higher speeds; good mix of cost and reach. Leverages QDD-400G-LR4-S and QDD-400G-AOCxM plus QDD-2X100-LR4-S / QDD-4X100G-LR-S breakouts to feed 100G leaves. 400G-ready optics strategy lets you start with 100G and scale to 400G using the same cabling plant and transceiver families.
Cost profile (CapEx & OpEx) Lowest upfront switch cost; more ports and optics as you scale; potential step-change upgrade later when 400G is needed. Balanced CapEx; good for incremental growth but eventual transition to 400G core still required. Higher initial spend on 400G-capable spines/optics, but extends fabric life and reduces frequent core replacements. Choose 25/100G if budgets are tight and growth is predictable; choose 400G-ready to avoid repeated core upgrades and migrations.
Migration & upgrade path Future 400G adoption likely requires new spine layer and partial recabling; limited reuse of 25G optics. Can introduce 400G spines later and connect at 100G, but may hit power/space limits with many 100G-only devices. Designed for smooth evolution: add more 400G links, use 2x100G/4x100G breakouts, phase-in newer leafs without redesign. A 400G-ready spine gives you the cleanest path to higher-speed servers and storage without fabric re-architecture.
Latency & east–west performance Adequate per-hop latency; more hops as you add pods, potentially impacting chatty or storage-heavy applications. Improved spine capacity reduces oversubscription but still constrained when line-rate 100G hosts become widespread. High-radix 400G spines with 100G/400G optics minimize oversubscription and hops, ideal for microservices and AI workloads. If east–west traffic is critical, 400G-ready fabrics deliver better consistency under load and simpler oversubscription control.
Operational complexity & standardization Simple to operate but may create mixed generations of gear when 400G is finally introduced. Homogeneous 100G core is easy to standardize, yet later 400G introduction adds another technology layer. Standardize early on 400G-capable spines and coherent optics SKUs, reducing future platform diversity and design changes. Early 400G standardization simplifies long-term operations, tooling, and sparing across the data center fabric.
Ideal decision trigger Choose when hosting mainly enterprise apps, moderate VM density, and no near-term 100G-per-node requirement. Choose when consolidating multiple 25G domains and you expect to stay at 100G per node for 3–5 years. Choose when planning AI/ML, NVMe-oF, or high-density container platforms and expect rapid bandwidth growth. If in doubt and growth is uncertain, bias toward 400G-ready spines to keep options open without frequent re-platforming.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Obtenir une estimation
Chat en direct
Need Help? Technical Experts Available Now.

Ideal Use Cases for 25G/100G/400G Fabrics

Where a structured 25G/100G/400G interconnect plan best fits into modern data center and cloud network designs.

Enterprise Private Clouds and Leaf-Spine Modernization

Enterprise Private Clouds and Leaf-Spine Modernization

  • Standardize 25G server access with 100G uplinks on leaf switches like N9K-C93240YC-FX2 or QFX5120-48Y to replace aging 10G top-of-rack designs.
  • Introduce non-blocking 100G spine layers with platforms such as N9K-C9336C-FX2-B2 or CE8851-32CQ8DQ-KB0 to support east-west heavy enterprise applications.
  • Use QSFP-100G-FR-S= and ONS-QSFP28-LR4 optics to design predictable short-reach and long-reach leaf–spine links across campus and multi-floor data rooms.
Hyperscale and Cloud Provider Fabric Expansion

Hyperscale and Cloud Provider Fabric Expansion

  • Plan multi-tier 100G/400G spines using high-density switches like DCS-7388X5-32C-48DR-F and DCS-7800R3A-36D-LC for rapid capacity growth between pods and clusters.
  • Deploy 25G/100G leaf switches such as DCS-7050SX3-96YC8-F and QFX5120-48Y-AFI to support large-scale virtualized and container workloads with consistent oversubscription policies.
  • Design wave-agnostic interconnects with QDD-400G-LR4-S and QDD-4X100G-LR-S for long-reach 400G core links and flexible 4×100G breakouts to edge or aggregation layers.
Latency-Sensitive AI, Analytics, and High-Traffic Platforms

Latency-Sensitive AI, Analytics, and High-Traffic Platforms

  • Create low-diameter 100G/400G leaf-spine fabrics using DCS-7060DX5-32-R or DCS-7280CR3A-32S-F to support AI training clusters and real-time analytics pipelines.
  • Attach GPU and NVMe platforms over 25G leaf switches like N9K-C93180YC-FX3S and DCS-7050SX3-48YC12-F with predictable congestion domains and QoS-aware 100G uplinks.
  • Leverage QDD-400-AOC3M and QDD-400-AOC10M active optic cables for short-reach 400G GPU-to-spine or TOR-to-spine connectivity where deterministic latency and cable manageability matter.
Colocation, Interconnection, and Multi-Tenant Data Centers

Colocation, Interconnection, and Multi-Tenant Data Centers

  • Design flexible 25G/100G access layers with switches like N3K-C34180YC and QFX5120-48Y-AFO to serve diverse tenant VLANs, VRFs, and bandwidth profiles from a common fabric.
  • Scale 100G/400G aggregation and interconnect tiers using DCS-7050CX4-24D8-F or DCS-7280SR3AK-48YC8-F to terminate peering, ISP, and cross-connect traffic efficiently.
  • Use QDD-400-AOC25M, QDD-2X100-LR4-S, and QDD-4X100G-LR-S to plan structured cabling for meet-me rooms, cross-connect corridors, and flexible tenant handoff options.
Campus Core, Edge Aggregation, and WAN Data Center Gateways

Campus Core, Edge Aggregation, and WAN Data Center Gateways

  • Upgrade campus cores with 100G/400G-capable spine switches like CE8851-32CQ8DQ-KB0 or DCS-7060DX5-32-R to aggregate multiple buildings and remote closets.
  • Use 25G/100G leaf switches such as N9K-C93240YC-FX2 and DCS-7050SX3-48YC8-R at aggregation rings to connect campus distribution, wireless controllers, and edge compute nodes.
  • Plan inter-DC and WAN edge optics with QSFP-100G-FR-S=, ONS-QSFP28-LR4, and QDD-400G-LR4-S for resilient, standards-based links to routers, firewalls, and carrier gear.

Questions fréquemment posées

How do I choose between 25G leaf and 100G/400G spine switches for my new fabric?

  • A practical way is to start from your server NIC and oversubscription targets. If your servers are on 10/25G NICs and you plan to aggregate them into 100G or 400G spine uplinks, 25G/100G leaf switches such as N9K-C93240YC-FX2, N9K-C93180YC-FX3S, N3K-C34180YC, JNP:QFX5120-48Y-AFI/AFO or ARI:DCS-7050SX3 series are typically used at the access layer, while high-density 100G/400G platforms such as ARI:DCS-7060DX5-32-R, N9K-C9336C-FX2-B2, HW:CE8851-32CQ8DQ-KB0 or ARI:DCS-7280/7388/7800 spine switches terminate the uplinks.
  • As a rule of thumb, select leaf models based on port mix and breakout needs (25G downlinks, 100G uplinks) and spine models based on required ECMP scale, buffer depth and total 100G/400G port count; our presales team can help you simulate topology and SKU combinations before you place an order.

Are these Cisco, Arista, Juniper and Huawei switches and optics interoperable in the same 25G/100G/400G fabric?

  • Many data center fabrics successfully mix different switch vendors at L3 boundaries, but optical and DAC/AOC interoperability is more sensitive and must be validated per link. For instance, a Cisco N9K-C9336C-FX2-B2 spine can often run L3 ECMP toward an Arista DCS-7280CR3A-32S-F, but you may need vendor-matched QSFP-100G-FR-S= or CIS:QDD-400G-LR4-S on the Cisco side and compatible optics on the Arista side rather than the same coded module on both ends.
  • Before purchasing, we recommend you share your intended mixed-vendor matrix (switch models and optics like CIS:QDD-400-AOC10M, CIS:QDD-2X100-LR4-S, CIS:QDD-4X100G-LR-S, etc.) so we can double-check compatibility notes, firmware caveats and any vendor lock restrictions to avoid costly rework during deployment.

What should I pay attention to when planning 100G and 400G optics and breakouts in a spine–leaf design?

  • Beyond reach and connector type, you need to plan lane mapping and breakout topology carefully: for example, using CIS:QDD-4X100G-LR-S or CIS:QDD-2X100-LR4-S to fan out a 400G spine port into 4×100G or 2×100G leaf uplinks changes both port numbering and oversubscription ratios on platforms like ARI:DCS-7388X5-32C-48DR-F or ARI:DCS-7800R3A-36D-LC.
  • We also recommend planning forward-compatibility: where possible, choose 400G-capable switches even if you initially light them with 100G optics (QSFP-100G-FR-S=, CIS:ONS-QSFP28-LR4) so that later you can upgrade to true 400G links with modules or AOCs such as CIS:QDD-400G-LR4-S or CIS:QDD-400-AOC25M without re-cabling the entire fabric.

How can I minimize deployment risk when upgrading an existing 10G/40G fabric to 25G/100G/400G?

  • The main risks are around optics/port-mode compatibility, unexpected FEC settings, and software feature gaps on new spine/leaf models. When moving to switches like ARI:DCS-7050SX3-96YC8-F or N9K-C93180YC-FX3S, we advise a phased migration: start with a small pod, validate 25G server links, 100G/400G uplinks, breakouts and routing behavior, then roll out to the rest of the rows.
  • You can also share your current and target design (including optics such as CIS:QDD-400-AOC3M or CIS:QDD-400-AOC10M) with our technical team to review BOM assumptions, port groups, and migration runbooks upfront, reducing the chance of downtime during cutover. For detailed architectural questions, you may request design help via our free CCIE support. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

What should I expect in terms of delivery, import duties, and potential delays for these high-speed interconnect products?

  • Stock levels for switches such as N9K-C93240YC-FX2, HW:CE8851-32CQ8DQ-KB0, or optics like CIS:QDD-400G-LR4-S and CIS:QDD-4X100G-LR-S can change quickly, so lead times are typically estimated case-by-case; for in-stock items, shipping time will still depend on final destination, chosen carrier, and local customs processing timelines.
  • To better plan your rollout windows, you can review our available shipping methods and country-specific taxes and customs duties guidance, then reserve additional buffer time in your project schedule for any clearance checks or compliance documentation that may be required in your region.

How are lifecycle, warranty, and returns handled for 25G/100G/400G switches and optics?

  • For lifecycle risk, we recommend checking each prospective SKU (for example N3K-C34180YC, ARI:DCS-7060DX5-32-R, JNP:QFX5120-48Y-AFI or CIS:ONS-QSFP28-LR4) against our EOL / EOSL checker so you understand how long vendor software and hardware support is expected to last before you standardize your fabric design on those models.
  • Coverage conditions, advance replacement options, and RMA processes for switches and optics are guided by our general warranty policy; if a unit is confirmed faulty, you can follow the step-by-step return instructions to submit it for evaluation or replacement. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.
