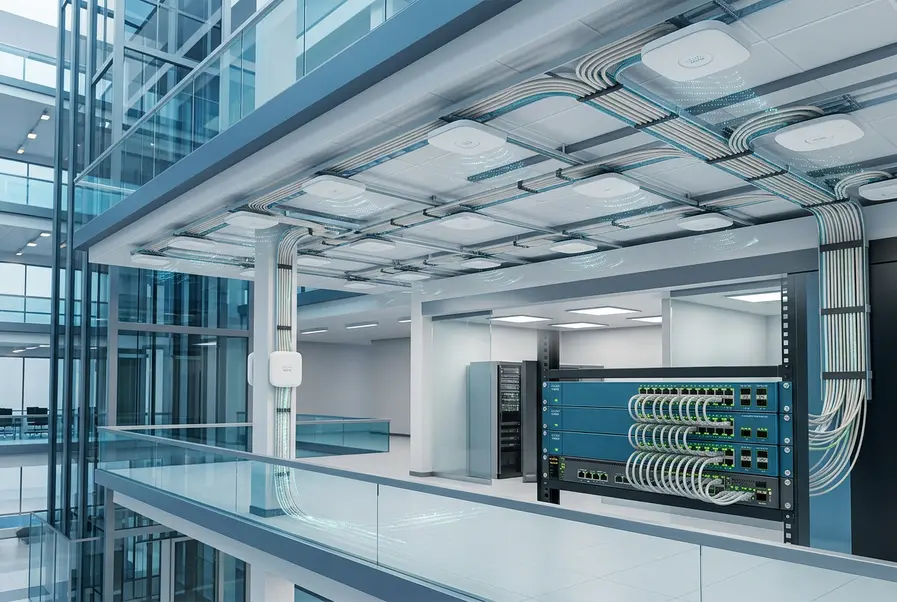

Powering High-Density Wi‑Fi

Powering High-Density Wi‑Fi

  • Wi‑Fi 6, 6E, and emerging Wi‑Fi 7 rollouts put unprecedented pressure on access layer power and uplink design. Higher radio capacities, multi‑gigabit uplinks, and denser AP placements quickly expose weak PoE planning, leading to throttled AP performance, brownouts at peak load, or overbuilt switch capacity. Across campus, branch, and high‑density venues, the real challenge is aligning PoE budgets, cabling, and multigig access with realistic, site‑specific WLAN growth.

    This section focuses on how to translate Wi‑Fi 6/6E/7 design assumptions into concrete PoE and access‑switch decisions. Using Cisco and Aruba multigig PoE switches and Wi‑Fi 6/6E access points as reference points, the following guidance helps you size per‑port power, choose uplink speeds, and define AP‑to‑switch ratios. The goal is to give network teams a repeatable method to right‑size PoE, avoid stranded power, and keep headroom for future Wi‑Fi generations.

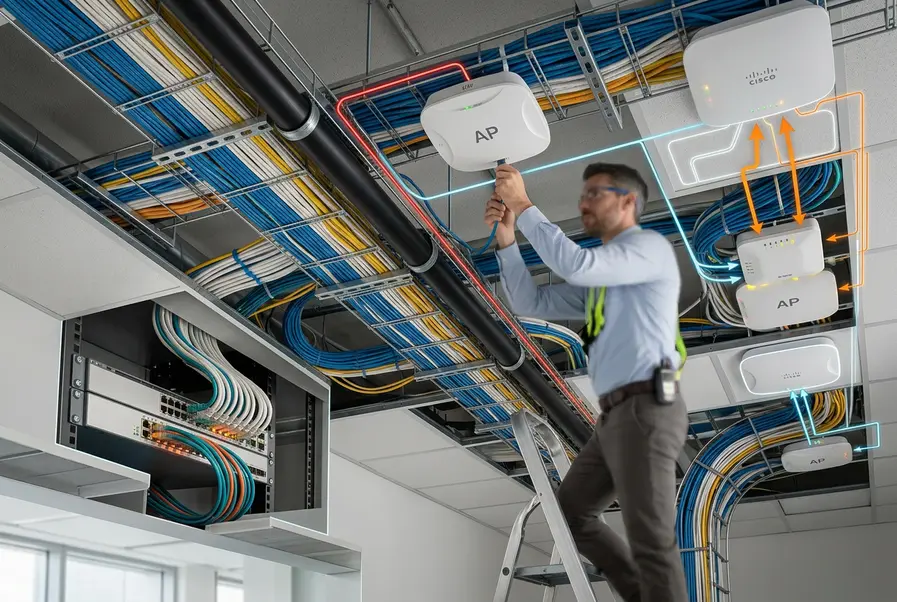

PoE Constraints in High-Density Wi‑Fi 6/7

Designing PoE for Wi‑Fi 6/6E/7 is hard because AP power draw, cabling limits, and switch budgets rarely align with real-world density and upgrade paths.

PoE Constraints in High-Density Wi‑Fi 6/7

  • Uncertain AP power draw and oversubscription

    Mixed Wi‑Fi 6/6E/7 APs with different PoE classes make it hard to size switch PoE budgets and avoid mid-life power shortfalls.

  • Multigigabit and cabling limits at the edge

    Higher AP throughput needs mGig PoE ports, but legacy cabling and 1G switches can bottleneck capacity and complicate refresh phasing.

  • Lifecycle and upgrade path risk

    Planning only for current APs risks stranded switches or outages when adding more radios, IoT endpoints, or higher-power Wi‑Fi generations.

PoE Planning: Multigig vs Campus Switches

Compare Cisco multigig PoE and Aruba campus PoE switching options to right-size power, uplinks, and lifecycle for Wi‑Fi 6/6E/7.

Feature Cisco Multigig PoE Access Switches Aruba PoE Campus Access Switches
Wi‑Fi 6/6E Access Points (hot)
 Why It Matters
Deployment fit Optimized as high-density access edge for large Cisco WLAN deployments with multigig runs to new APs. Flexible for mixed-vendor campus/branch, good for aggregation or moderate-density AP closets. Defines actual AP count, PoE draw, and uplink needs that drive which switch tier you really require. Avoids over- or under-building the PoE edge by aligning switch choice to real AP design.
PoE and power budgeting High total PoE budget designs, strong for fully loaded Wi‑Fi 6/6E AP stacks but vendor-specific planning tools. Solid PoE capabilities but may need closer per-port planning for dense, full-power tri-radio APs. Spec sheets show worst-case (full features on), helping you validate if 802.3at/af is enough or 802.3bt is needed. You size PoE by AP reality, not brochure claims, reducing surprise power shortfalls at turn-up.
Uplink speed and multigig support Native multigig (2.5/5G) on selected ports, ideal for new Cat6A runs to Wi‑Fi 6E/7 APs at higher throughput. Mix of 1G/10G, some models with multigig; may rely more on 10G uplinks to distribution for headroom. Each AP model’s Ethernet interface (1G vs 2.5G+) clarifies whether multigig edge is essential or just nice-to-have. You only pay for multigig where APs can truly use it, keeping refresh CAPEX in check.
Ecosystem and management Best fit when you already run Cisco DNA Center, Cisco WLCs, and want unified policy and telemetry. Aligns with Aruba Central/ArubaOS; strong if your campus standardizes on Aruba WLAN and NAC. AP telemetry and controller platform (Cisco, Aruba, Huawei, etc.) indicate which switch ecosystem will integrate cleanly. Tighter end-to-end ops, faster troubleshooting, and simpler automation through a consistent stack.
Scalability and upgrade path Smooth path to higher-density Wi‑Fi generations with existing Cisco infrastructure and licensing models. Good for gradual growth in distributed campuses; can segment PoE capacity by building or floor. AP roadmap (Wi‑Fi 6E to 7) shows likely future power/throughput, guiding how aggressively you must scale switches now. You avoid premature forklift upgrades and plan a staged, budget-aligned migration to Wi‑Fi 7.
Cost and TCO profile Higher upfront for multigig PoE, offset if you fully exploit Cisco features and automation at scale. Potentially lower entry cost; attractive where you mix moderate AP density with other campus edge workloads. AP count per closet plus power profile lets you model per-user cost across different switch families. You benchmark real TCO per connected user or AP, not just hardware list prices.
Risk, interoperability, and vendor lock-in Deep Cisco-to-Cisco optimization; strongest when end-to-end Cisco but less flexible for multi-vendor WLAN. Better if you expect multi-vendor WLAN or want to avoid hard lock-in to a single RF/platform stack. AP choices expose how tightly you are already bound to one WLAN vendor versus staying open. Clearer view of lock-in vs simplicity trade-offs to match your governance and procurement strategy.
When to prioritize Choose when you standardize on Cisco Wi‑Fi, need dense multigig PoE, and value Cisco automation the most. Choose when you favor Aruba campus fabric, or need versatile PoE for mixed AP and edge device loads. Use first: validate real AP power, radios, and uplinks, then back into the right switch family and SKU set. You plan from the AP layer up, ensuring PoE, throughput, and lifecycle decisions are demand-driven.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Get a Quote
الدردشة المباشرة
Need Help? Technical Experts Available Now.

Ideal PoE Application Scenarios

Where PoE planning for Wi-Fi 6/6E/7 delivers the most impact across campus, branch, and high-density wireless environments.

High-Density Campus Wi-Fi 6/6E Access Layers

High-Density Campus Wi-Fi 6/6E Access Layers

  • Plan multigig PoE access layers to power dense Wi-Fi 6/6E AP grids in lecture halls, auditoriums, and open office floors without oversubscribing switch power budgets.
  • Dimension PoE budgets on Cisco Multigig PoE access switches for mixed AP classes (2x2, 4x4, 8x8) and validate draw per model using Wi-Fi 6/6E AP datasheets.
  • Align uplink speeds and PoE classes to support future Wi-Fi 7 upgrades, ensuring copper runs, switch ports, and aggregation tiers can absorb additional throughput and power needs.
Distributed Branch and Retail Wi-Fi Modernization

Distributed Branch and Retail Wi-Fi Modernization

  • Design PoE budgets on Aruba campus access switches so each branch can power Wi-Fi 6 APs, IoT sensors, and IP phones from a shared PoE pool without triggering mid-day power shedding.
  • Use AP power profiles and PoE priority policies to keep business-critical SSIDs online during UPS or generator operation while throttling non-essential radios or ports.
  • Standardize PoE classes, cable lengths, and uplink types across hundreds of branches to simplify rollout of Wi-Fi 6/6E and prepare for incremental Wi-Fi 7 adoption.
Stadiums, Arenas, and High-Traffic Venues

Stadiums, Arenas, and High-Traffic Venues

  • Map high-density Wi-Fi 6/6E AP placements in bowls, concourses, and hospitality areas to PoE switch locations, ensuring cable runs and PoE budgets support thousands of concurrent users.
  • Engineer multigig PoE access switches to serve clusters of high-draw APs, with clear headroom for dual 5 GHz radios, 6 GHz radios, and advanced features like real-time analytics.
  • Model worst-case radio and client utilization to confirm PoE power and backhaul capacity remain stable during peak events, avoiding brownouts or radio shutdowns under load.
Healthcare, Education, and Mission-Critical Campuses

Healthcare, Education, and Mission-Critical Campuses

  • Plan PoE power domains so life-safety Wi-Fi devices, medical carts, and clinical collaboration APs remain powered through outages, using switch-level PoE priorities and UPS-backed feeds.
  • Align classroom, lab, and exam-room Wi-Fi 6/6E AP densities with per-port PoE budgets to support higher MCS rates and AR/VR applications without forcing mid-life switch replacements.
  • Segment operational technology and patient/guest Wi-Fi on separate PoE pools and VLANs, ensuring critical OT APs are protected from power budget contention caused by public networks.
Smart Buildings and IoT-Rich Enterprise Networks

Smart Buildings and IoT-Rich Enterprise Networks

  • Consolidate Wi-Fi 6/6E APs, smart lighting, security cameras, and sensors on Cisco or Aruba PoE switches, using accurate power planning to avoid oversizing closets or PDUs.
  • Use AP and IoT device power profiles to define per-floor PoE capacity, then map to multigig switch SKUs so that future Wi-Fi 7 upgrades do not require re-cabling or additional racks.
  • Implement granular PoE monitoring and telemetry to detect abnormal power draws from APs or IoT devices, improving troubleshooting speed and lifecycle planning for edge infrastructure.

أسئلة مكررة

How do I size PoE budgets for dense Wi‑Fi 6/6E/7 AP deployments on Cisco and Aruba switches?

  • For high‑density Wi‑Fi 6/6E/7, start from the maximum PoE class and worst‑case draw of your access points (for example C9120AXE-EWC-A, C9130AXI-EWC-Z, CIS:CW9166I-x, AirEngine 6760-X1E) and map this against the switch PoE capacity of models such as C9200L-48PXG-2Y-A, JL002A, JG962A or JL073A.
  • Plan for at least 20–30% headroom over calculated power to accommodate future firmware features, radio optimizations, and potential Wi‑Fi 7 upgrades; our team can help you validate per-port and total PoE budgets before you place an order via free CCIE PoE and Wi‑Fi design review.

Are Cisco and Aruba multigig PoE switches compatible with my existing Wi‑Fi 6/6E APs and cabling?

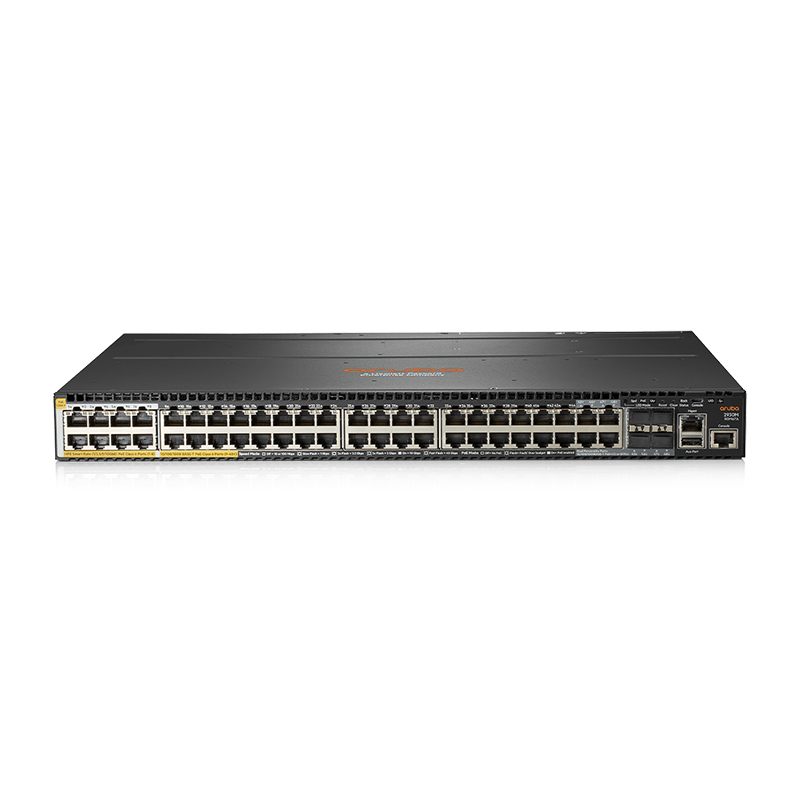

  • Cisco C9200L-48PXG-2Y-A and Aruba PoE campus switches such as R0M68A, JG963A, JL173A, and R0M67A support multigigabit (NBASE-T/802.3bz) and a range of PoE standards (PoE/PoE+/UPoE/PoE++ depending on SKU), which are compatible with typical Wi‑Fi 6/6E APs like C9120AXE-E, C9117AXI-E1, C9115AXE-F and similar models.
  • For stable operation, verify: (1) each AP’s PoE class and required minimum to avoid radio throttling, (2) switch port speed (1G vs 2.5G/5G) versus uplink requirements, and (3) cable grade (Cat5e vs Cat6/6A) and run lengths; if your environment mixes older APs with new Wi‑Fi 6E/7, we recommend a quick compatibility check with our engineers before committing to a standard switch SKU list.

What are the main deployment risks if my PoE plan is too tight for Wi‑Fi 6/6E/7?

  • If PoE budgets on switches like C9200L-48PXG-2Y-A, JL002A or J9779A are sized only to theoretical averages, you can face AP radio downgrades (dropping 6 GHz or 4x4 chains), unstable reboots during peak usage, and limited ability to add IoT/ble beacons or extra APs later.
  • To mitigate risk, treat datasheet maximums for APs (e.g., C9120AXP-E, C9130AXI-EWC-Z, CIS:CW9166I-x) as your baseline, apply a margin, and separate high‑draw APs across multiple PoE supplies or stacks; also design for firmware growth, as new Wi‑Fi features can increase real power use over time.

How should I choose between Cisco multigig PoE and Aruba campus PoE switches for my Wi‑Fi rollout?

  • If you already run a Cisco controller or Catalyst-based campus, Cisco multigig PoE models like C9200L-48PXG-2Y-A align best with Cisco Wi‑Fi 6/6E APs (C9120AXE-EWC-A, C9117AXI-E1, C9120AXE-E), simplify features such as mGig uplinks per AP, and keep one operating system and tooling stack.

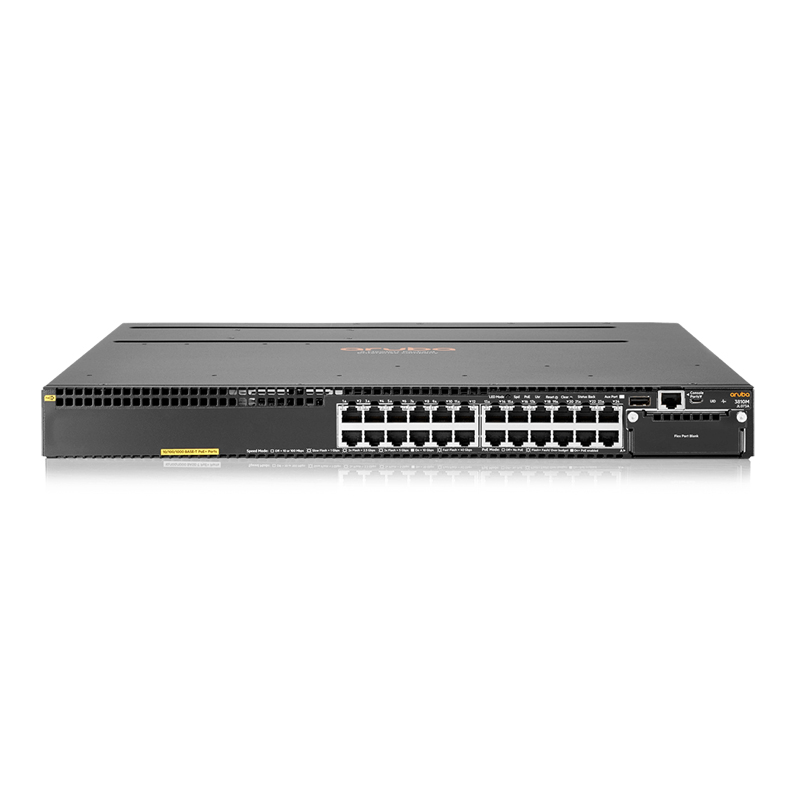

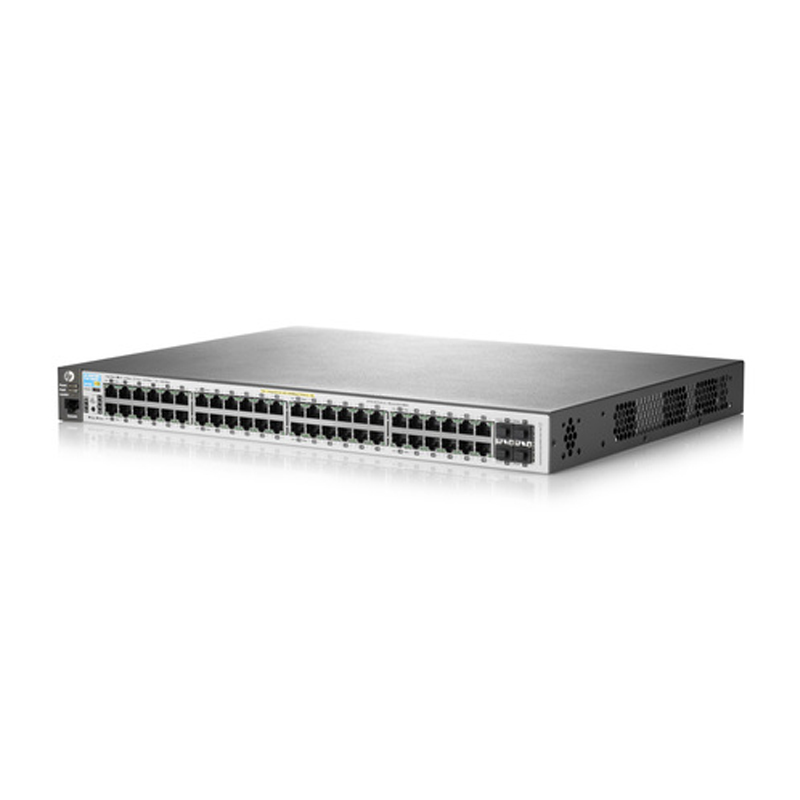

  • If your environment is Aruba-centric or you want campus-wide unified management, Aruba switches such as JL073A, JL173A, J9772A, J9773A and R0M67A integrate tightly with Aruba Central/ArubaOS and are a better fit with Aruba or mixed‑vendor AP estates; in both cases, plan the mix of 1G vs multigig ports based on AP density per floor and target client concurrency, rather than on port counts alone.

What should I know about lifecycle, EOL, and refresh risk when buying PoE switches for Wi‑Fi 6/6E/7?

  • When designing around platforms like C9200L-48PXG-2Y-A, JL002A, JG962A, or JL173A, you should confirm that the specific hardware revisions are not approaching vendor end‑of‑sale or end‑of‑support to avoid premature refresh or mixed generations in the same stack.
  • You can quickly check current and planned lifecycle status of candidate models with our EOL / EOSL checker tool, then align your PoE and Wi‑Fi roadmap (including potential Wi‑Fi 7 AP upgrades) to switches that will remain in full software and hardware support throughout your planned deployment window.

How do ordering, shipping, tax, and warranty work for PoE switches and Wi‑Fi 6/6E APs purchased for these projects?

  • Stock levels and lead times for models like C9200L-48PXG-2Y-A, R0M68A, J9779A, C9120AXE-EWC-A, or CIS:CW9166I-x can vary by batch and region; shipping options and delivery timeframes are always subject to product availability and destination, and are detailed on our shipping methods page.
  • Import taxes, VAT, and customs clearance conditions depend on your country and Incoterms; you can review typical scenarios and responsibilities in our taxes and customs duties guidance before budgeting your Wi‑Fi project.
  • For warranty handling, replacement procedures, and what happens if a PoE switch or AP arrives faulty or fails in service, please see our warranty policy and return instructions so your deployment plan includes realistic risk and RMA timelines.
  • Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.
