WS-X45-SUP6L-E

4.5 4
4.5/5.0
4 Review(s)
Model: WS-X45-SUP6L-E Catalyst 4500 E-Series Supervisor Engine
Detail: Catalyst 4500 E-Series Supervisor Engine 6-E Lite, 2x10GE(X2) w/ Twin Gig
Replacement: WS-X45-SUP7L-E
List Price: US$14,995.00
Price: $1,458.00
You save: US$13,537.00 (90% OFF)
Condition: Used
Availability: In stock
Shipping:
Express Shipping to Worldwide
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 1,458.00 In stock Used
OR

WS-X45-SUP6L-E SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (WS-X45-SUP6L-E)

The Cisco® Catalyst® 4500 Supervisor Engine 6L-E (Figure 1) is a next-generation, Layer 3 supervisor addition to the Cisco Catalyst 4500 E-Series product line. The Supervisor 6L-E now supports full routing protocols, Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), and many other advanced features with the Enterprise Services package. (Note: You must use Cisco IOS® Software Release 12.2(53)SG2 or later for Enterprise Services support).

Quick Specs

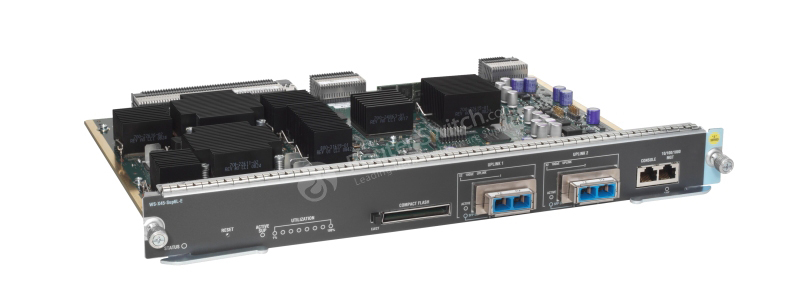

Figure 1 shows the appearance of WS-X45-SUP6L-E

 WS-X45-SUP6L-E

Table 1 shows the Quick Specs.

Model info:

WS-X45-SUP6L-E

Product Description

Catalyst 4500 E-Series Supervisor 6L-E

Devide Tyde

Control Processor

Ports

2 * 10G * 2 Optics or 4 * 1G SFP

Console ports

10/100/1000 RJ-45

Centralized switching capacity

280 Gbps

Per-slot switching capacity

24 Gbps

FNF (Flexible NetFlow)  entries

128000

Forn Factor

Plug-in Module

Boot flash

64 MB and 128 MB options

DRAM

512MB upgradable to 1 GB

Throughput

●  225 Mpps for IPv4
●  110 Mpps for IPv6
●  225 Mpps for L2 Bridging

Routing entries

●  IPV4: 57,000
●  IPV6: 30,000
●  Multicast: 16,000

Security and QoS hardware entries

64,000

DHCP snooping entries

3,072

Get More Information

Do you have any question about the WS-X45-SUP6L-E?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (WS-X45-SUP6L-E)

WS-X45-SUP6L-E Specification

Product Description

Catalyst 4500 E-Series Supervisor 6L-E

Devide Tyde

Control Processor

Ports

2 * 10G * 2 Optics or 4 * 1G SFP

Console ports

10/100/1000 RJ-45

Centralized switching capacity

280 Gbps

Per-slot switching capacity

24 Gbps

FNF (Flexible NetFlow)  entries

128000

Forn Factor

Plug-in Module

Boot flash

64 MB and 128 MB options

DRAM

512MB upgradable to 1 GB

Throughput

●  225 Mpps for IPv4
●  110 Mpps for IPv6
●  225 Mpps for L2 Bridging

Routing entries

●  IPV4: 57,000
●  IPV6: 30,000
●  Multicast: 16,000

Security and QoS hardware entries

64,000

DHCP snooping entries

3,072

Shipping & Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
DHL 2-4 business days
Fedex 2-4 business days
Hong Kong EMS 5-10 business days
Hong Kong Air Parcel 10-20 business days
By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.

Payment Methods

Paypal Master Card Visa
Discover American
Express
JCB
Wire Transfer eCheck WestUnion
Warranty

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Reviews

Customer Reviews

4.5 5
4.5 (4 reviews)
5 Stars
2
4 Stars
2
3 Stars
0
2 Stars
0
1 Stars
0

Share your thoughts with other customers?

Posted on 8/7/2015
Verified Buyer
45
weight info

pls tell us the weight information of WS-X45-SUP6L-E?

it's 7.5KGs.

Posted on 7/6/2015
Verified Buyer
55
payment online

I tried several times to pay you online from your website, it failed, how to solve the problem?

we checked it with here bank, it shows that your credit card balance is not enough to pay, please try to use other ways, we accpet TT, WU, PayPal etc.

Posted on 6/5/2015
Verified Buyer
45
Good service

picked it from your warehouse, checking the goods then paid, really very convenient

Posted on 5/4/2015
Verified Buyer
55
technical support

I have WS-C4507R+E chassis, which slot that can insert WS-X45-SUP6L-E?

Slot 3 or 4, dear friend
