WS-C4506-E

4.9 11
4.9/5.0
11 Review(s)
| 5 answered questions

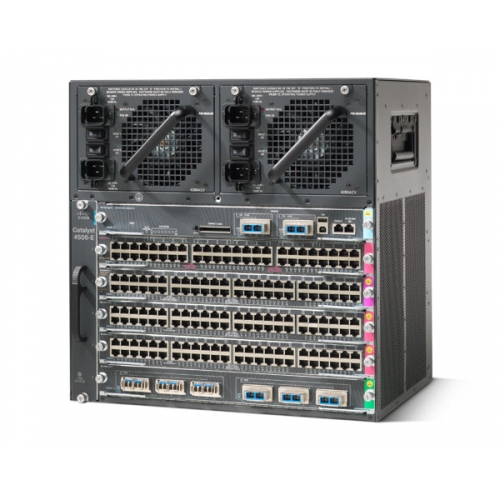

Model: WS-C4506-E Cisco 4500 Switch
Detail: Catalyst 4500 E-Series 6-Slot Chassis, fan, no ps
List Price: US$4,995.00
Price: $2,203.00
You save: US$2,792.00 (56% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Ashburn, VA, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 2,203.00 In stock Brand New Sealed
OR

WS-C4506-E SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (WS-C4506-E)

Cisco Catalyst 4506-E chassis offers 6 slots with Fan, 5 line-card slots and 1 supervisor engine slot with supporting up to 244 ports and up to 1500W POE power per slot. The solution provides centralized network architecture for enterprises-level, small and medium-size business through simplified operations. The highly intelligence performance offers non-blocking layer 2 - 4 switching with Secure, flexible communications. Any two Cisco Catalyst 4500E series Switches with Supervisor Engine 7L-E/7-E/8-E can be pooled together into a VSS, which doubles the system bandwidth, improves resiliency of the system and delivers the highest centralized reliable performance.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

WS-C4506-E

Supervisor engine slot

Slot 1

Line-card slots

5

Redundant power supplies

2

Backplane

48 Gbps full duplex per slot (240 Gbps)

Dimensions (H x W x D)

44.13 x 43.97 x 31.70 cm

Rack Units (RU)

10 RU

Package Weight

46 kg

Airflow

Chassis fan tray: Right to left

Power supply fan: Front to back

Product Details

Figure 1 shows the front view of WS-C4506-E with installed modules, supervisor engines and cards. These modules, supervisor engines and cards should be ordered separately.

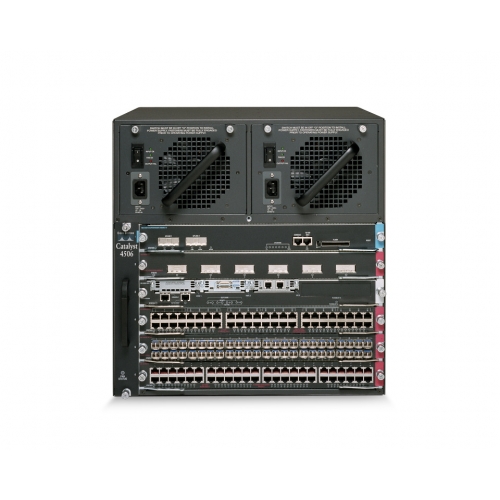

WS-C4506-E Front View

Note:

① Redundant power supplies      ② Supervisor engine (slot 1)      ③ Switching modules (slots 2 to 6)      ④ Fan tray assembly

Table 2 shows the Cisco Catalyst 4506-E Switch Features

Feature

Description

Chassis

Three horizontal slots. Slots are numbered from 1 (top) to 6 (bottom).

Supervisor engines

Supports the following supervisor engines:

- Supervisor Engine 8-E

- Supervisor Engine 7L-E

- Supervisor Engine 7-E

Modules

Supports up to 5 Catalyst 4500 series modules.

Backplane

48 Gbps full duplex per slot (240 Gbps)

Fan tray

The chassis supports a single hot-swappable fan tray.

Power supply

Supports one or two power supplies.

All Catalyst 4500 series AC-input power supplies require single-phase source AC.

The Accessories

Table 3 shows the recommended elements for the WS-C4506-E.

Category

Model

Description

AP License

L-LIC-CTIOS-1A

1 AP Adder License for the IOS based Wireless Controller (e-delivery)

Primary Supervisor

WS-X45-SUP8-E

Catalyst 4500 E-Series Supervisor 8-E

WS-X45-SUP7-E

Catalyst 4500 E-Series Supervisor, 848Gbps

WS-X45-SUP7L-E

Catalyst 4500 E-Series Supervisor LE, 520Gbps

10/100/1000/MGig Line Cards

WS-X4748-RJ45-E

Cisco 4500 Line Card WS-X4748-RJ45-E Catalyst 4500 E-Series 48-Port 10/100/1000 Non-Blocking

WS-X4748-UPOE+E

Cisco 4500 Line Card WS-X4748-UPOE+E Catalyst 4500E 48-Port UPOE 10/100/1000(RJ45)

WS-X4748-RJ45V+E

Cisco 4500 Line Card WS-X4748-RJ45V+E Catalyst 4500E 48-Port PoE 802.3at 10/100/1000(RJ45)

1 G Fiber Line Cards

WS-X4724-SFP-E

Catalyst 4500 E-Series 24-Port GE (SFP)

WS-X4748-SFP-E

Catalyst 4500 E-Series 48-Port GE (SFP)

WS-X4712-SFP-E

Catalyst 4500 E-Series 12-Port GE (SFP)

10 G Fiber Line Cards

WS-X4606-X2-E

Catalyst 4500 E-Series 6-Port 10GbE (X2)

WS-X4712-SFP+E

Catalyst 4500 E-Series 12-Port 10GbE (SFP+)

Power Supply

PWR-C45-1400AC

Catalyst 4500 1400W AC Power Supply (Data Only)

PWR-C45-1400DC

C4500 1400W DC Triple Input SP Power Supply-data only

Supervisor Software License

L-C4500E-IP-ES=

Cisco Catalyst 4500E IP Base to Enterprise Services IOS upgrade license

Compare to Similar Items

Table 4 shows the comparison of WS-C4503-E and WS-C4506-E.

Model

WS-C4503-E

WS-C4506-E

Supervisor engine slot

1

1

Line-card slots

2

5

Redundant power supplies

2

2

Supervisor engines

- Supervisor Engine 8-E

- Supervisor Engine 7L-E

- Supervisor Engine 7-E

- Supervisor Engine 8-E

- Supervisor Engine 7L-E

- Supervisor Engine 7-E

Backplane

48 Gbps full duplex per slot (96 Gbps)

48 Gbps full duplex per slot (240 Gbps)

Datasheet Download

Cisco Switch Catalyst 4500 Series Datasheet.pdf

Get More Information

Do you have any question about the WS-C4506-E?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (WS-C4506-E)

WS-C4506-E Specification

Total number of slots

6

Line-card slots

5

Supervisor engine slots

1

Dedicated supervisor engine slot numbers

1

Supervisor engine redundancy

No

Supervisor engines supported

Supervisor Engines 8-E, 8L-E, 7-E, 7L-, 6-E, and 6L-E

Maximum PoE per slot

1500W

Bandwidth scalability per line-card slot

Up to 48 Gbps on all slots

Number of power supply bays

2

AC input power

Yes

DC input power

Yes

Integrated PoE

Yes

Minimum number of power supplies

1

Power supplies supported

1000W AC

1400W AC

1300W ACV

2800W ACV

4200W ACV

6000W ACV

9000W ACV

1400W DC (triple input)

1400W-DC-P

Number of fan-tray bays

1

Location of 19-inch rack-mount

Front

Location of 23-inch rack-mount

Front (option)

Physical Specifications

Dimensions (H x W x D)

17.38 x 17.31 x 12.50 in. (44.13 x 43.97 x 31.70 cm)

Rack units (RU)

10RU

Chassis weight (with fan tray)

40.50 lb (18.37 kg)

Mounting

19- and 23-in. rack compatible (19-in. rack and cable guide hardware included)

Q&A

Faq (WS-C4506-E)

What different levels of software licenses are available on the Cisco Catalyst 4500 E-Series?

The following three levels are available: ● Cisco IOS XE Software LAN Base: This feature set on the bundles provides Layer 2 features for access. ● Cisco IOS XE Software IP Base: This feature set is upgradable with a software activation license (SAL). It includes all Layer 2 features and some basic Layer 3 features. ISSU and SSO are supported in this package. ● Cisco IOS XE Software Enterprise Services: This feature set is upgradable with a SAL; it supports full Layer 3 protocols and advanced features such as complete routing scalability, Border Gateway Protocol (BGP), Virtual Route Forwarding (VRF), Policy-Based Routing (PBR), and so on. These features can be enabled using the software-licensing mechanism. For details about software licensing, refer to the "Licensing" section later in this document or visit http://www.cisco.com/go/sa.

What licensing model does the Cisco Catalyst 4500E use?

The Cisco Catalyst 4500E uses a right-to-use (RTU) licensing model. RTU is a trust-based licensing model designed to give customers the flexibility to upgrade, downgrade, or move the license for RMA purpose by using simple EXEC CLI commands.

What licenses are required to enable wireless termination capability on available on an Cisco 4500E Supervisor Engine 8-E?

No additional license on top of IP Base is required to enable wireless termination. Note that this feature is targeted for 1HCY14.

What licenses are required to enable wireless controller capability on available on a Catalyst 4500E Supervisor Engine 8-E?

In addition to IP Base or Enterprise Services, the customer would need to buy access point licenses to enable wireless controller functionality. Note that this feature and license are targeted for 1HCY14.

What licenses are required to configure VSS (Virtual Switch System) on the Cisco Catalyst 4500E platform?

For VSS support with the Supervisor Engine 7-E, an IP Base license is required, and with the Supervisor Engine 7L-E, and Enterprise Base license is required.
