WS-C4503-E

4.8 11
4.8/5.0
11 Review(s)
| 10 answered questions
Model: WS-C4503-E Cisco 4500 Switch
Detail: Cat4500 E-Series 3-Slot Chassis, fan, no ps
List Price: US$1,045.00
Price: $460.85
You save: US$584.15 (56% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Ashburn, VA, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 460.85 In stock Brand New Sealed
OR

WS-C4503-E SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (WS-C4503-E)

Cisco Catalyst 4503-E chassis offers 3 slots with Fan, one for supervisor engine slot, two for line-card slot with supporting up to 100 ports and up to 1500W POE power per slot. The solution provides centralized network architecture for enterprises-level, small and medium-size business through simplified operations. The highly intelligence performance offers non-blocking layer 2 - 4 switching with Secure, flexible communications. Any two Cisco Catalyst 4500E series Switches with Supervisor Engine 7L-E/7-E/8-E can be pooled together into a VSS, which doubles the system bandwidth, improves resiliency of the system and delivers the highest centralized reliable performance.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

WS-C4503-E

Supervisor engine slot

Slot 1

Line-card slots

2

Redundant power supplies

2

Backplane

48 Gbps full duplex per slot (96 Gbps)

Dimensions (H x W x D)

31.12 x 43.97 x 31.70 cm

Rack Units (RU)

7 RU

Weight

35 Kg

Airflow

Chassis fan tray: Right to left

Power supply fan: Front to back

Product Details

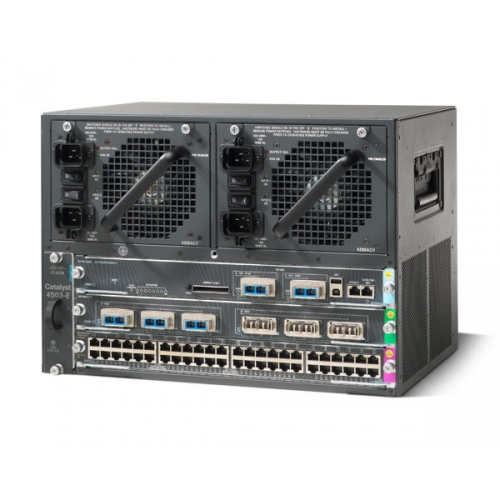

Figure 1 shows the front view of WS-C4503-E with installed modules, supervisor engines and cards. These modules, supervisor engines and cards should be ordered separately.

WS-C4503-E Front View

Note:

① Redundant power supplies      ② Supervisor engine (slot 1)      ③ Switching module (slots 2 and 3)      ④ Fan tray assembly

Table 2 shows the Cisco Catalyst 4503-E Switch Features

Feature

Description

Chassis

Three horizontal slots. Slots are numbered from 1 (top) to 3 (bottom).

Supervisor engines

Supports the following supervisor engines:

- Supervisor Engine 8-E

- Supervisor Engine 7L-E

- Supervisor Engine 7-E

Modules

Supports up to two Catalyst 4500 series modules.

Backplane

48 Gbps full duplex per slot (96 Gbps)

Fan tray

The chassis supports one hot-swappable fan tray.

Power supply

Supports one or two power supplies.

All Catalyst 4500 series AC-input power supplies require single-phase source AC.

The Accessories

Table 3 shows the recommended elements for the WS-C4503-E.

Category

Model

Description

AP License

L-LIC-CTIOS-1A

1 AP Adder License for the IOS based Wireless Controller (e-delivery)

Primary Supervisor

WS-X45-SUP8-E

Catalyst 4500 E-Series Supervisor 8-E

WS-X45-SUP7-E

Catalyst 4500 E-Series Supervisor, 848Gbps

WS-X45-SUP7L-E

Catalyst 4500 E-Series Supervisor LE, 520Gbps

10/100/1000/MGig Line Cards

WS-X4748-RJ45-E

Cisco 4500 Line Card WS-X4748-RJ45-E Catalyst 4500 E-Series 48-Port 10/100/1000 Non-Blocking

WS-X4748-UPOE+E

Cisco 4500 Line Card WS-X4748-UPOE+E Catalyst 4500E 48-Port UPOE 10/100/1000(RJ45)

WS-X4748-RJ45V+E

Cisco 4500 Line Card WS-X4748-RJ45V+E Catalyst 4500E 48-Port PoE 802.3at 10/100/1000(RJ45)

1 G Fiber Line Cards

WS-X4724-SFP-E

Catalyst 4500 E-Series 24-Port GE (SFP)

WS-X4748-SFP-E

Catalyst 4500 E-Series 48-Port GE (SFP)

WS-X4712-SFP-E

Catalyst 4500 E-Series 12-Port GE (SFP)

10 G Fiber Line Cards

WS-X4606-X2-E

Catalyst 4500 E-Series 6-Port 10GbE (X2)

WS-X4712-SFP+E

Catalyst 4500 E-Series 12-Port 10GbE (SFP+)

Power Supply

PWR-C45-1400AC

Catalyst 4500 1400W AC Power Supply (Data Only)

PWR-C45-1400DC

C4500 1400W DC Triple Input SP Power Supply-data only

Supervisor Software License

L-C4500E-IP-ES=

Cisco Catalyst 4500E IP Base to Enterprise Services IOS upgrade license

Compare to Similar Items

Table 4 shows the comparison of WS-C4503-E and WS-C4506-E.

Model

WS-C4503-E

WS-C4506-E

Supervisor engine slot

1

1

Line-card slots

2

5

Redundant power supplies

2

2

Supervisor engines

- Supervisor Engine 8-E

- Supervisor Engine 7L-E

- Supervisor Engine 7-E

- Supervisor Engine 8-E

- Supervisor Engine 7L-E

- Supervisor Engine 7-E

Backplane

48 Gbps full duplex per slot (96 Gbps)

48 Gbps full duplex per slot (240 Gbps)

Datasheet Download

Cisco Switch Catalyst 4500 Series Datasheet.pdf

Get More Information

Do you have any question about the WS-C4503-E?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (WS-C4503-E)

WS-C4503-E Specification

Total number of slots

3

Line-card slots

2

Supervisor engine slots

1

Dedicated supervisor engine slot numbers

1

Supervisor engine redundancy

No

Supervisor engines supported

Supervisor Engines 8-E, 8L-E, 7-E, 7L-E, 6-E, and 6L-E

Maximum PoE per slot

1500W

Bandwidth scalability per line-card slot

Up to 48 Gbps on all slots

Number of power supply bays

2

AC input power

Yes

DC input power

Yes

Integrated PoE

Yes

Minimum number of power supplies

1

Power supplies supported

1000W AC

1400W AC

1300W ACV

2800W ACV

4200W ACV

6000W ACV

9000W ACV

1400W DC (triple input)

1400W-DC-P

Number of fan-tray bays

1

Location of 19-inch rack-mount

Front

Location of 23-inch rack-mount

Front (option)

Physical Specifications

Dimensions (H x W x D)

12.25 x 17.31 x 12.50 in. (31.12 x 43.97 x 31.70 cm)

Rack units (RU)

7RU

Chassis weight (with fan tray)

32.25 lb (14.63 kg)

Mounting

19- and 23-in. rack compatible (19-in. rack and cable guide hardware included)

Q&A

Faq (WS-C4503-E)

Is there a power supply in WS-C4503-E?

No, there is no power supply in WS-C4503-E.

What's the maximum rated power in WS-C4503-E?

The maximam rated power is 60W.

Then what's the rated MTBF?

It's 1,064,279 hours.

What's the maximan poE per slot?

It's 1500W.

Are the E-Series line cards supported in non-E-Series chassis?

No. The classic Cisco Catalyst 4000 and 4500 chassis maximum per slot capacity is 6 gigabits per slot.

Is local switching supported on the E-Series line cards?

No. It is not supported on the Cisco 4500-E line cards.

Are there any visual differentiators between the E-Series line cards and the classic line cards?

Yes, of course. The E-Series line cards will have a subtle cross-hatch pattern and a yellow circle on the right end tab, visually identifying them as E-Series line cards. This will be useful in a mixed E-Series/classic line-card configuration.

Are the E-Series line cards supported in non-E-Series chassis?

No. The classic Cisco Catalyst 4000 and 4500 chassis maximum per slot capacity is 6 gigabits per slot.

Is local switching supported on the E-Series line cards?

No. It is not supported on the Cisco 4500-E line cards.

Are there any visual differentiators between the E-Series line cards and the classic line cards?

Yes, of course. The E-Series line cards will have a subtle cross-hatch pattern and a yellow circle on the right end tab, visually identifying them as E-Series line cards. This will be useful in a mixed E-Series/classic line-card configuration.

Shipping & Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
DHL 2-4 business days
Fedex 2-4 business days
Hong Kong EMS 5-10 business days
Hong Kong Air Parcel 10-20 business days
By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.

Payment Methods

Paypal Master Card Visa
Discover American
Express
JCB
Wire Transfer eCheck WestUnion
Warranty

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Reviews

Customer Reviews

4.8 5
4.8 (11 reviews)
5 Stars
9
4 Stars
2
3 Stars
0
2 Stars
0
1 Stars
0

Share your thoughts with other customers?

Posted on 11/18/2016
Verified Buyer
55
Good

My customer say that the switch is good.

Posted on 11/17/2016
Verified Buyer
55
PERFECT

Received and test, it is great switch with powerful function.

Posted on 9/27/2016
Verified Buyer
55
Good quality

Got my machines last week. All look good. Still installing. Will update more if any questions later.

Posted on 8/12/2016
Verified Buyer
55
Data center switch

This is a good data center switch

Posted on 6/4/2016
Verified Buyer
45
Starts to Nancy

Nancy give me much support on this project. Thank you, lovely girl.

Posted on 2/24/2016
Verified Buyer
55
five stars

It is worth to give five stars to you

Posted on 12/19/2015
Verified Buyer
55
Technical support

Wow, so great, their technician give us a complete solution for our system

Posted on 9/25/2015
Verified Buyer
45
WS-C4503-E

It is only a chassis?

Yes, this is only a chassis, need to configure with Engine, Power supply, Module, Software Image together, then work

Posted on 2/10/2015
Verified Buyer
55
Great partner

We worked together for 3 years, and just finished a big project last month. Router-switch is a great partner with good product & price & technical support & sales service. If you want to find a reliable partner, recommend!

Posted on 8/21/2014
Verified Buyer
55
High-end Switch

CISCO WS-C4503-E has a common architecture, using the existing Cisco Catalyst 4000 series line cards can be extended to 384 10/100 or 100BASE-FX Fast Ethernet ports, or 384 10/100 / 1000BASE-T Or 1000BASE-LX Gigabit Ethernet ports. However, this model is only a chassis. Necessary modules must be purchased alone.

Posted on 5/11/2014
Verified Buyer
55
WS-C4503-E

it supports Supervisor Engines 8-E, 8L-E, 7-E, 7L-E, 6-E, and 6L-E.
