WS-C4500X-32SFP+ is a Cisco Catalyst 4500-X Series Switch. It is a fixed aggregation switch that delivers best-in-class scalability, simplified network virtualization, and integrated network services for space-constrained environments in campus networks.

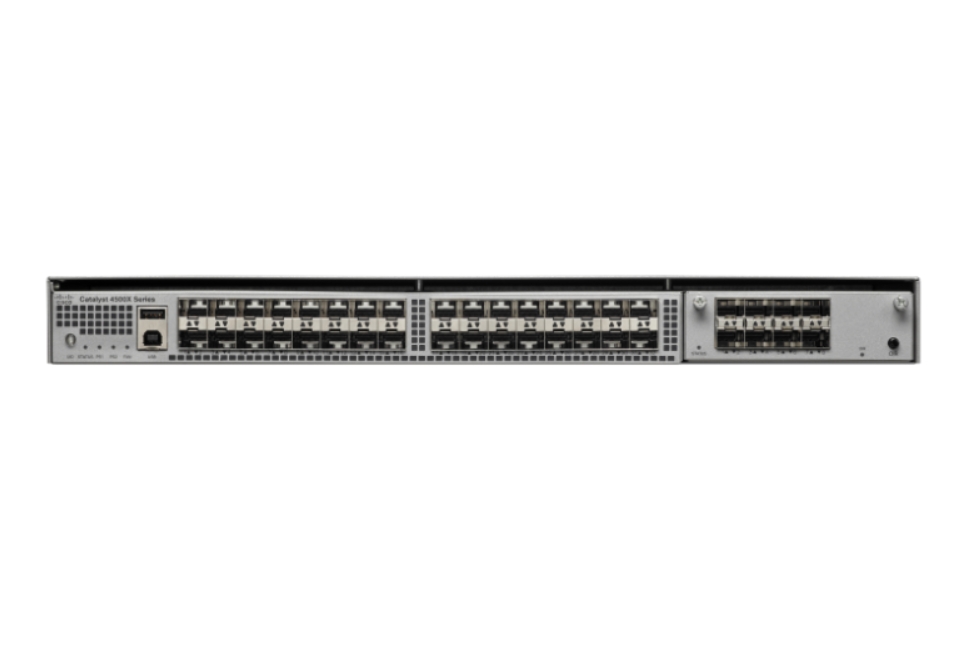

Figure 1 shows the appearance of WS-C4500X-32SFP+.
Table 1 shows the Quick Specs.
32 × 1G or 10G Ethernet ports (requires either SFP or SFP+ transceivers)
Uplink Module Slot
1 (8 x 10 GE SFP+/SFP - C4KX-NM-8SFP+)
Up to 800-Gbps
Onboard Memory (SRAM DDR-II)
32-MB Shared Memory
Dual Core 1.5 GHz
Optional External Memory (SD Card)
Chassis dimensions (H x W x D)
4.4 x 43.8 x 53.3 cm
Figure 2 shows the front panel of WS-C4500X-32SFP+.
① LEDs Area
② USB ports (2 ports) Top port is a Type A connector; bottom port is a Type B connector
③ 32 × Ethernet ports
④ 8-port uplink module slot (Purchased alone)
· There are five LEDs in the LEDs Area: UID LED, STATUS LED, PS1 LED, PS2 LED and FAN LED.
Figure 3 shows the back panel of WS-C4500X-32SFP+ with installed AC-input power supply. No power supply is included in this product. Need to order a power supply in addition.
①SECURE DIGITAL port
③10/100/1000 MGT port
④Fan assemblies (5 assemblies)
⑤Chassis ground pad
⑥Power supply bay (AC-input power supply shown installed)
⑦Power supply bay (AC-input power supply shown installed)
Table 2 shows the recommended elements for the WS-C4500X-32SFP+.
Cisco Catalyst 4500-X 8 Port 10GE Ethernet port uplink Module C4KX-NM-8SFP+
Catalyst 4500X 750W AC front to back cooling power supply
Catalyst 4500X 750W AC front to back cooling 2nd PWR supply
Cisco Catalyst 4500-X IP BASE to Enterprise Services upgrade license (electronic delivery) for 32-port and 40-port models
Console Cable 6ft with RJ45 and DB9F
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
10GBASE-SR SFP Module
Cisco 10GBASE-ZR SFP10G Module for SMF
Get More Information
Do you have any question about the WS-C4500X-32SFP+?
Contact us now via Live Chat or firstname.lastname@example.org.
Expansion Module (Optional)
8x10 GE SFP+/SFP - C4KX-NM-8SFP+
Type A (storage and boot) up-to 4 GB
Dual Power Supply
Field Replaceable Fans
Yes (5 fans)
No performance impact with single fan failure
Up to 800 Gbps
IPv4 Routing in Hardware
Up to 250 Mpps
IPv6 Routing in Hardware
Up to 125 Mpps
L2 Bridging in Hardware
Up to 250 Mpps
Media Access Control (MAC) Entries
32x10 GE Port Base SKU: IPv4: 256K, IPv6: 128K
Flexible Netflow Entries
Switched Port Analyzer (SPAN), Remote Switched Port Analyzer (RSPAN)
8 line rate bidirectional sessions (ingress and egress)
Total Switched Virtual Interfaces (SVIs)
32x10 GE Port Base SKU: IPv4: 32K, IPv6: 32K
Dynamic Host Configuration Protocol (DHCP) Snooping Entries
12K (DHCP snooping bindings)
Spanning Tree Protocol Instances
Jumbo Frame Support for Bridged and Routed Packets
Up to 9216 bytes
High Availability Solution
Virtual Switching System (VSS)
Number of stackable switches in VSS
Up to 2
Up to 1.6 Tbps
Virtual Switch Link
1GE or 10GE
Max number of Virtual Switch Links
In-Service Software Upgrade
Across the switches
Nonstop Forwarding with Stateful Switchover
Across the switches
Onboard Memory (SRAM DDR-II)
32-MB Shared Memory
Dual Core 1.5 GHz
Optional External Memory (SD Card)
128K (64K ingress and 64K in egress) Shared with ACL
Ingress port or VLAN and egress VLAN or Layer 3 port
Rate-Limiting Level Types
Committed Information Rate (CIR), Peak Information Rate (PIR)
Aggregate Traffic Rate-Limiting Policers (1K=1024)
Flow-Based Rate-Limiting Method; Number of Rates
Supported using flow-records in the classification criteria and policing action
Qos Policy Enforcement
Per Port or Per Vlan or Per Port, Per VLAN Granularity
Class of Service (CoS)
Differentiated Services Code Point (DSCP)
IEEE 802.1x and 802.1x Extensions
VLAN, Router, and Port ACLs
Security ACL Entries (1K=1024)
128K (64K ingress and 64K in egress) Shared with QoS
Unicast Reverse Path Forwarding (uRPF) Check in Hardware
CPU Rate Limiters (DoS Protection) Includes Control Plane Policing
Micro Flow Policer
Yes. Supported using flow records in the class-map
CPU HW Rate Limiters by Packet Per Second (pps) and Bit Rate Policers (bps)
Supported in hardware control-plane policing (CoPP)
Control Plane Policing (CoPP) for Multicast
SMARTnet Support Quick Guide
Cisco SMARTnet Overview - Cisco SMARTnet Service Codes - Cisco SMARTnet Types
Cisco SMARTnet F.A.Q
WS-C4500X-32SFP+ SMARTnet Service Tool
Product Name Detail Price CON-3SNT-C45X32SF 3YR SNTC 8X5XNBD Catalyst 4500-X 32 Pt 10G IP Base. Fro Inquiry CON-3SNTP-C45X32SF 3YR SNTC 24X7X4 Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-3OSP-C45X32SF 3YR SNTC 24X7X4OS Catalyst 4500-X 32 Pt 10G IP Base. Fro Inquiry CON-SNT-C45X32SF SNTC-8X5XNBD Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-SNTE-C45X32SF SNTC-8X5X4 Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-SNTP-C45X32SF SNTC-24X7X4 Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-OS-C45X32SF SNTC-8X5XNBDOS Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-OSE-C45X32SF SNTC-8X5X4OS Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-OSP-C45X32SF SNTC-24X7X4OS Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCD2-C45X32SF CMB SVC 24X7X2 NCD2 Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCD2P-C45X32SF CMBSV 24X7X2OS NCD2P Catalyst 4500-X 32 Port 10G IP Base.Fro Inquiry CON-NCD4P-C45X32SF CMBSV 24X7X4OS NCD4P Catalyst 4500-X 32 Port 10G IP BaseFro Inquiry CON-NCD4S-C45X32SF CMB SV 8X5X4OS NCD4S Catalyst 4500-X 32 Port 10G IP Base.Fro Inquiry CON-NCDCS-C45X32SF CBSV 8X5XNBDOS NCDCS Catalyst 4500-X 32 Port 10G IP Base.Fro Inquiry CON-NCDE-C45X32SF CMB SVC 8X5X4 NCDE Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCDP-C45X32SF CMB SVC 24X7X4 NCDP Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCDT-C45X32SF CMBSVC 8X5XNBD NCDT Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCDW-C45X32SF CMB SPT SVC SW NCDW Catalyst 4500-X 32 Port 10G IP Base.Fro Inquiry CON-NCF2-C45X32SF CMB SVC 24X7X2 Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCF2P-C45X32SF CMB SVC 24X7X2OS Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCF4P-C45X32SF CMB SVC 24X7X4OS Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCF4S-C45X32SF CMB SVC 8X5X4OS Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCFCS-C45X32SF CMB SVC 8X5XNBDOS Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCFE-C45X32SF CMB SVC 8X5X4 Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCFP-C45X32SF CMB SVC 24X7X4 Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCFT-C45X32SF CMB SVC 8X5XNBD Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCFW-C45X32SF CMB SVC SW Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCH2-C45X32SF CMB SVC 24X7X2 NCH2 Catalyst 4500-X 32 Port 10G IP Base.Fro Inquiry CON-NCH2P-C45X32SF CMBSV 24X7X2OS NCH2P Catalyst 4500-X 32 Port 10G IP Base Fro Inquiry CON-NCH4P-C45X32SF CMBSV 24X7X4OS NCH4P Catalyst 4500-X 32 Port 10G IP BaseFro Inquiry CON-NCH4S-C45X32SF CMB SV 8X5X4OS NCH4S Catalyst 4500-X 32 Port 10G IP Base.Fro Inquiry CON-NCHCS-C45X32SF CBSV 8X5XNBDOS NCHCS Catalyst 4500-X 32 Port 10G IP Base.Fro Inquiry CON-NCHE-C45X32SF CMB SVC 8X5X4 NCHE Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCHP-C45X32SF CMB SVC 24X7X4 NCHP Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCHT-C45X32SF CMBSVC 8X5XNBD NCHT Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCHW-C45X32SF CMB SPT SVC SW NCHW Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCJ2-C45X32SF CMB SVC 24X7X2 NCJ2 Catalyst 4500-X 32 Port 10G IP Base.Fro Inquiry CON-NCJ2P-C45X32SF CMBSV 24X7X2OS NCJ2P Catalyst 4500-X 32 Port 10G IP Base Fro Inquiry CON-NCJ4S-C45X32SF CMB SV 8X5X4OS NCJ4S Catalyst 4500-X 32 Port 10G IP Base.Fro Inquiry CON-NCJCS-C45X32SF CBSV 8X5XNBDOS NCJCS Catalyst 4500-X 32 Port 10G IP Base.Fro Inquiry CON-NCJE-C45X32SF CMB SVC 8X5X4 NCJE Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCJT-C45X32SF CMBSVC 8X5XNBD NCJT Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-NCJW-C45X32SF CMB SPT SVC SW NCJW Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-PREM-C45X32SF SNTC-24X7X2OS Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-S2P-C45X32SF SNTC-24X7X2 Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-SMBS-C45X32SF SMBS 8X5XNBD Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry CON-SSC2P-C45X32SF SOLN SUPP 24X7X2OS Catalyst 4500-X 32 Port 10G IP Base. Fron Inquiry CON-SSC4S-C45X32SF SOLN SUPP 8X5X4OS Catalyst 4500-X 32 Port 10G IP Base. Front Inquiry CON-SSS2P-C45X32SF SOLN SUPP 24X7X2 Catalyst 4500-X 32 Port 10G IP Base. Front- Inquiry CON-SSSNE-C45X32SF SOLN SUPP 8X5X4 Catalyst 4500-X 32 Port 10G IP Base. Front-t Inquiry CON-SSSNP-C45X32SF SOLN SUPP 24X7X4 Catalyst 3750V2 24 10 100 PoE + 2 SFP Stand Inquiry CON-SSSNT-C45X32SF SOLN SUPP 8X5XNBD Catalyst 4500-X 32 Port 10G IP Base. Front Inquiry CON-SW-C45X32SF SNTC-NO RMA Catalyst 4500-X 32 Port 10G IP Base. Fro Inquiry
Does it support AC power? If support, what's the max rated power?
Yes, it support. The max rated power is 750W.
Then how about the system power consumption?
330W nominal/400W max.
Does it suppport AC to DC failover and vice versa?
Yes, it support.
What is Cisco software activation?
Cisco software activation is the mechanism used to activate software features and components on the next-generation supervisor engines for the Cisco Catalyst 4500E, the Cisco Catalyst 4500 Supervisor Engine 7-E and 7L-E, as well as on the Cisco Catalyst 4500-X Series switches. Cisco software activation is used to generate a unique license key for a feature set or technology package on a specific device, and activate that functionality on the system.
Which licenses are available for Supervisor Engine 7-E, 7L-E or a Cisco Catalyst 4500-X Series system?
See the following table for package licenses. These will be delivered with new Supervisors or available as an upgrade through Cisco software activation. The Cisco Catalyst 4500-X Series only supports IP Base (default) and Enterprise Services (as an upgrade).
What is a universal image?
The universal image contains all feature packages: LAN Base, IP Base, and Enterprise Services feature sets. The level of functionality available is determined by the license applied to the device. A software activation license (SAL) enables specific functionality. For example, an IP Base package license enables IP Base functionality in the Cisco IOS Software universal image.
What is a product authorization key?
A product authorization key (PAK) is an 11-digit alphanumeric key created by Cisco manufacturing which defines the feature set associated with the PAK. A PAK is not tied to a specific device until the license is created.
How is a PAK delivered?
Delivery of PAKs can be paper based or electronic. Paper-based PAKs begin with L- for feature package licenses. Paper-based PAKs are sent on a piece of paper by postal mail to customers.
What is an e-delivery PAK?
E-delivery is Cisco’s process for electronic fulfillment and subsequent asset management of customer orders for software license entitlement documentation. With e-delivery, users will be able to manage and download their PAKs. After a customer has placed an order for an e-delivery product, they receive an email containing a link to the e-delivery application. Customers access the application using their Cisco.com user profile, user ID and password, and download a claim certificate in pdf format. The claim certificate contains the PAK number.
Do I need to install licenses for software purchased with a Supervisor Engine 7-E, 7L-E or a Cisco Catalyst 4500-X Series system?
Cisco installs licenses where possible. If a spare Supervisor7-E is purchased, it will ship with the default license enabled (LAN Base) and a PAK for IP Base.
