WS-C4500X-24X-ES

5 2
5/5.0
2 Review(s)
Detail:

Catalyst 4500-X 24 Port 10G Ent. Services, Frt-to-Bk, No P/S

List Price: US$24,000.00
Price: $8,064.00
You save: US$15,936.00 (66% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Worldwide
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 8,064.00 In stock Brand New Sealed
OR

WS-C4500X-24X-ES SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (WS-C4500X-24X-ES)

WS-C4500X-24X-ES is one of the Catalyst 4500-X Series Switches. The Catalyst 4500-X series switch is a 1RU unit that provides either 16 or 32 10GBASE-X (SFP+) or 1GBASE-X (SFP) ports. An additional 8 ports of 1000BASE-X (SFP) or 10GBASE-X (SFP+) are available in a removable Ethernet uplink module that mounts in a bay on the front of the switch chassis.

Quick Specs

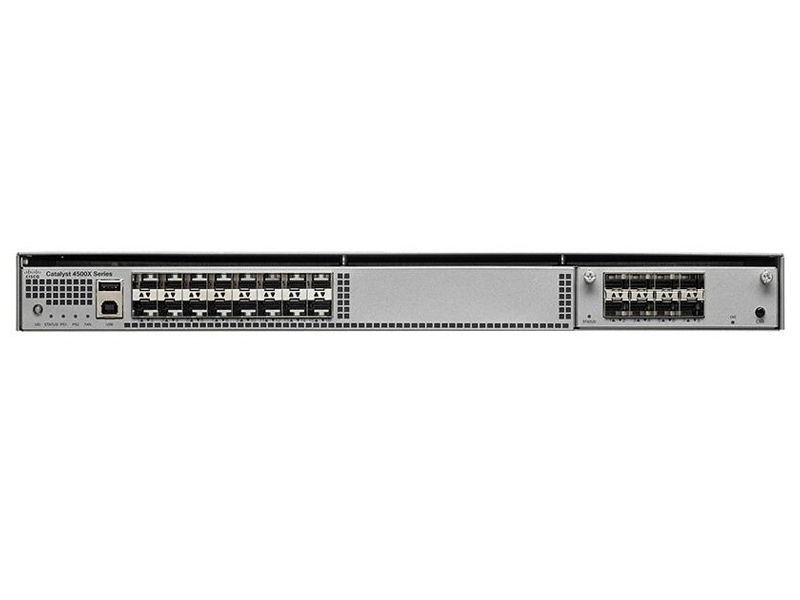

Figure 1 shows the appearance of WS-C4500X-24X-ES.

WS-C4500X-24X-ES Appearance

Table 1 shows the Quick Specs.

Product Code

WS-C4500X-24X-ES

Switch type

Managed

Switch layer

L3

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

SFP+ module slots quantity

24

Console port

RJ-45

Networking standards

IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ad,IEEE 802.3ae

Switching capacity

800  Gbit/s

Throughput

250  Mpps

Processor frequency

1.5  MHz

Internal memory

2000  MB

Packet buffer memory

32  MB

Mean time between failures (MTBF)

209330  h

Power consumption (typical)

750  W

ports

16 1G or 10G Ethernet ports (requires either SFP or SFP+ transceivers)

airflow

Front-to-back airflow (fan assemblies and the power supplies are color coded burgundy)

uplink module

8 port uplink module (requires either SFP or SFP+ transceivers)

Chassis dimensions

1.75 x 17.25 x 21 in. (4.4 x 43.8 x 53.3 cm) (H x W x D)

Chassis weight

·20 lb (9.07 kg) (without power supplies)
·22 lb (9.98 kg) (with one power supply installed)
·24 lb (10.89 kg) (with two power supplies installed)

Product Details

Figure 2 shows the front panel of WS-C4500X-24X-ES.

WS-C4500X-24X-ES Front Panel

Note:

LEDs Area

USB ports (2 ports) Top port is a Type A connector; bottom port is a Type B connector

16 × Ethernet ports

8-port uplink module slot

(Purchased alone)

Figure 3 shows the back panel of WS-C4500X-24X-ES.

WS-C4500X-24X-ES Back Panel

Note:

SECURE DIGITAL port

CONSOLE port

10/100/1000 MGT port

Fan assemblies (5 assemblies)

Chassis ground pad

Power supply bay (AC-input power supply shown installed)

Power supply bay (AC-input power supply shown installed)

The Accessories

Table 2 shows the recommended elements for the WS-C4500X-24X-ES.

Category

Model

Description

AC Power Supplies

C4KX-PWR-750AC-R/2

Catalyst 4500X 750W AC front to back cooling 2nd PWR supply

C4KX-PWR-750AC-R

Catalyst 4500X 750W AC front to back cooling power supply

CARD



C4KX-NM-8SFP+

Catalyst 4500X 8 Port 10G Network Module

CONSOLE CABLES

CAB-CONSOLE-RJ45

Console Cable 6ft with RJ45 and DB9F

1G SFP



GLC-SX-MMD

1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

GLC-BX-U

1000BASE-BX SFP, 1310NM

10G SFP

SFP-10G-SR

10GBASE-SR SFP Module

SFP-H10GB-CU1M

10GBASE-CU SFP+ Cable 1 Meter

Compare to Similar Items

Table 3 shows the comparison of WS-C4500X-24X-ES and WS-C4500X-F-16SFP+.

Product Code

WS-C4500X-24X-ES

WS-C4500X-F-16SFP+

Switching capacity

800  Gbit/s

800  Gbit/s

Internal memory

2000  MB

4096  MB

Packet buffer memory

32  MB

32  MB

Mean time between failures (MTBF)

209330  h

209330  h

Power consumption (typical)

750  W

330  W

ports

16 1G or 10G Ethernet ports (requires either SFP or SFP+ transceivers)

16 1G or 10G Ethernet ports (requires either SFP or SFP+ transceivers)

airflow

Front-to-back airflow (fan assemblies and the power supplies are color coded burgundy)

Back-to-front airflow (fan assemblies and the power supplies are color coded blue)

Get More Information

Do you have any question about the WS-C4500X-24X-ES?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (WS-C4500X-24X-ES)

WS-C4500X-24X-ES Specification

System

Expansion Module (Optional)

8x10 GE SFP+/SFP - C4KX-NM-8SFP+

Management Port

10/100/1000 Base-T

USB Port

Type A (storage and boot) up-to 4 GB

Dual Power Supply

Yes

Field Replaceable Fans

Yes (5 fans)

Fan Redundancy

No performance impact with single fan failure

Scalability

System Throughput

Up to 800 Gbps

IPv4 Routing in Hardware

Up to 250 Mpps

IPv6 Routing in Hardware

Up to 125 Mpps

L2 Bridging in Hardware

Up to 250 Mpps

Media Access Control (MAC) Entries

55K

Flexible Netflow Entries

128K

Switched Port Analyzer (SPAN), Remote Switched Port Analyzer (RSPAN)

8 line rate bidirectional sessions (ingress and egress)

Total VLANs

4094

Total Switched Virtual Interfaces (SVIs)

4094

IGMP groups

32K

Dynamic Host Configuration Protocol (DHCP) Snooping Entries

12K (DHCP snooping bindings)

ARP Entries

47K

Spanning Tree Protocol Instances

10K

Jumbo Frame Support for Bridged and Routed Packets

Up to 9216 bytes

High Availability and Resiliency

High Availability Solution

Virtual Switching System (VSS)

Number of stackable switches in VSS

Up to 2

VSS Throughput

Up to 1.6 Tbps

Virtual Switch Link

1GE or 10GE

Max number of Virtual Switch Links

8

In-Service Software Upgrade

Across the switches

Nonstop Forwarding with Stateful Switchover

Across the switches

CPU and Memory

Onboard Memory (SRAM DDR-II)

4 GB

Port Buffers

32-MB Shared Memory

CPU

Dual Core 1.5 GHz

NVRAM

2 GB

Optional External Memory (SD Card)

2 GB

QoS Features

Port Queues

8 Queues/Port

CPU Queues

64

QoS Entries

128K (64K ingress and 64K in egress) Shared with ACL

Aggregate Rate-Limiting

Ingress port or VLAN and egress VLAN or Layer 3 port

Rate-Limiting Level Types

Committed Information Rate (CIR), Peak Information Rate (PIR)

Aggregate Traffic Rate-Limiting Policers (1K=1024)

16K

Flow-Based Rate-Limiting Method; Number of Rates

Supported using flow-records in the classification criteria and policing action

Qos Policy Enforcement

Per Port or Per Vlan or Per Port, Per VLAN Granularity

Class of Service (CoS)

Yes

Differentiated Services Code Point (DSCP)

Yes

Security Features

Port Security

Yes

IEEE 802.1x and 802.1x Extensions

Yes

VLAN, Router, and Port ACLs

Yes

Security ACL Entries (1K=1024)

128K (64K ingress and 64K in egress) Shared with QoS

Unicast Reverse Path Forwarding (uRPF) Check in Hardware

Yes

CPU Rate Limiters (DoS Protection) Includes Control Plane Policing

Yes

Private VLANs

Yes

Micro Flow Policer

Yes. Supported using flow records in the class-map

CPU HW Rate Limiters by Packet Per Second (pps) and Bit Rate Policers (bps)

Supported in hardware control-plane policing (CoPP)

Control Plane Policing (CoPP) for Multicast

Yes

ACL Labels

Yes

Port ACL

Yes

Traffic Storm Control (formally known as Broadcast/Multicast Suppression)

Yes

Virtualization Features

VRF-Lite Scalability

64

Easy Virtual Network (EVN) Scalability

32

Environmental Conditions

Operating Temperature

0°C to 40°C (RH to 90%)

Storage Temperature

-40°C to 70°C (RH 93%)

Operating Altitude

60m below sea level to 3000m above sea level

Relative Humidity

Nonoperating Humidity: 95% RH

Acoustic Noise Measured per ISO 7779 and Declared per ISO 9296 Bystander Positions Operating to an Ambient Temperature of 25°C

Industrial Product: 65 dBA maximum

RoHS

Reduction of Hazardous Substances (ROHS) 5

Power Supply

AC Power Max Rating

750W

System Power Consumption

330W nominal/400W max

Input-Voltage Range and Frequency

AC 100 to 240 VAC 50-60 Hz/DC -72 VDC to -40 VDC

DC Power Max Rating

750W

AC to DC failover and vice versa

Yes

Total Output BTU (Note: 1000 BTU/hr = 293W)

1122 BTU/hr (330 W) nominal/1365 BTU/hr (400 W) max

Input Current

AC 11A @ 110VAC, 6 A @ 200VAC/DC 25A Max

Output Ratings

12V @ 62A & 3.3V @ 3A

Output Holdup Time

AC = 16 ms; DC = 4 ms @ maximum load

Power-Supply Input Receptacles

AC IEC 60320 C15/DC Custom detachable screw terminal (supplied)

Power Cord Rating

AC 15A/DC 25A

MTBF Information

WS-C4500X-24X-ES

209,330

WS-C4500X-40X-ES

199,720

WS-C4500X-F-16SFP+

209,330

WS-C4500X-F-32SFP+

199,720

C4KX-FAN-R

L10 Life 60,000 at 40C

Regulatory Standards Compliance

Regulatory Compliance

CE marking

EMI and EMC Compliance

47CFR Part 15 (CFR 47) Class A

AS/NZS CISPR22 Class A

CISPR22 Class A

EN55022 Class A

ICES003 Class A

VCCI Class A

EN61000-3-2

EN61000-3-3

KN22 Class A

CNS13438 Class A

EN55024

CISPR24

EN300386

KN24

Safety Certifications

UL 60950-1 Second Edition

CAN/CSA-C22.2 No. 60950-1 Second Edition

EN 60950-1 Second Edition

IEC 60950-1 Second Edition

AS/NZS 60950-1

Industry EMC, Safety, and Environmental Standards

GR-63-Core Network Equipment Building Systems (NEBS) Level 3

GR-1089-Core Level 3

Shipping & Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
DHL 2-4 business days
Fedex 2-4 business days
Hong Kong EMS 5-10 business days
Hong Kong Air Parcel 10-20 business days
By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.

Payment Methods

Paypal Master Card Visa
Discover American
Express
JCB
Wire Transfer eCheck WestUnion
Warranty

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Reviews

Customer Reviews

5 5
5 (2 reviews)
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Share your thoughts with other customers?

Posted on 8/11/2016
Verified Buyer
55
shipping cost

I want to buy this switch from you but the shipping cost is a little expensive.

Posted on 6/5/2016
Verified Buyer
55
WS-C4500X-24X-ES-24 Port 10GE Enterprise Services

It has the same function with C4500X-40X-ES, but it just has 24 Port 10GE Enterprise Services.

You may also be interested in the following product(s)

Product Tags

Register now to get updates on promotions and coupons

We’ll never share your email address with a third-party.

Router-switch.com is neither a partner of nor an affiliate of Cisco Systems. Logos remain the property of the corresponding company.
Copyright @ 2002-2017 Router-switch Ltd. | HongKong Yejian Technologies Co., Ltd | All Rights Reserved.
