WS-C3850-12S-S

4.8 11
4.8/5.0
11 Review(s)
| 10 answered questions
Model: WS-C3850-12S-S Catalyst 3850 Switch
Detail: Cisco Catalyst C3850-12S Switch Layer 3 - 12 SFP - IP Base - Wireless controller - managed- stackable
List Price: US$10,000.00
Price: $3,465.00
You save: US$6,535.00 (65% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Worldwide
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 3,465.00 In stock Brand New Sealed
OR

WS-C3850-12S-S SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (WS-C3850-12S-S)

Cisco Catalyst WS-C3850-12S-S is the next generation enterprise-level stackable switch that is integrated with 12 SFP ports in IP base feature set.

Quick Specs

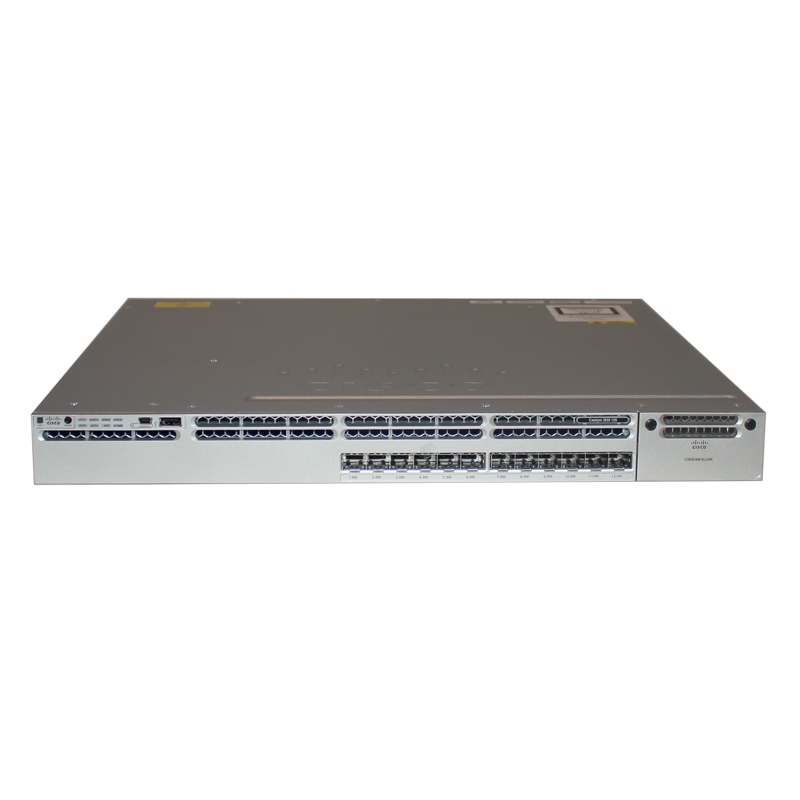

Figure 1 shows the appearance of the Cisco Catalyst WS-C3850-12S-S.

WS-C3850-12S-S

Table 1 shows the Quick Specs.

Product Code

WS-C3850-12S-S

Enclosure Type

1 RU

Feature Set

IP base

Network SFP uplink module selection

C3850-NM-4-1G

C3850-NM-2-10G

Ports

12 ports of SFP Ethernet fiber connection with Flexible Netflow feature

Maximum stacking number

9

Stack bandwidth

480Gbps

Forwarding Performance

68.4Mpps

Switching Capacity

68Gbps

RAM

4 G

Flash Memory

2 G

Number of AP per switch/stack

100

Number of wireless clients per switch/stack

2000

Dimensions

44.5 cm x 45.0 cm x 4.45 cm

Package Weight

17.49 Kg

Product Details

Figure 2 shows the front panel of the Cisco 3850 series 12 ports switch.

WS-C3850-12S-S Front Panel

Note:

① UID (blue beacon) ② Mode button ③ Status LEDs ④ USB mini-Type B (console) port ⑤ USB Type A storage port ⑥ 12 ports of SFP ⑦ Network SFP uplink module slot

·The status LEDs include STAT (status), DUPLX (duplex), SPEED, STACK, SYST (system), ACTV (active) and S-PWR (Stack Power).

·The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.

Figure 3 shows the back panel of the WS-C3850-12S-S switch.

WS-C3850-12S-S Back Panel

Note:

① Ground connector ② CONSOLE (RJ-45 console port) ③ Fan modules ④ MGMT port ⑤ UStackWise port connectors ⑥ StackPower connectors  ⑦ Power supply modules

Figure 4 shows the StackWise-480 and StackPower connectors.

In order to stacking with LAN base feature set, WS-C3850-12S-S needs to configure in LAN base mode from CLI.

StackWise-480

Figure 5 shows the unboxing view of WS-C3850-12S-S.

WS-C3850-12S-S unboxing view

The Modules, Licenses and Accessories

Table 2 shows some recommended modules,licenses and accessories of this switch.

Models

Description

C3850-NM-4-1G

Cisco 3850 Series 4 x 1GE Network Module

C3850-NM-2-10G

Cisco 3850 Series 2 x 10GE Network Module

L-C3850-12-S-E=

C3850-12 IP Base to IP Services Electronic RTU License

PWR-C1-350WAC

Cisco 3850 Series Power Supply 350W AC

PWR-C1-350WAC/2

Cisco 3850 Series Secondary Power Supply 350W AC Config 1 Secondary Power Supply

STACK-T1-50CM=

Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch

STACK-T1-1M=

Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch

Datasheet Download

Cisco Switch Catalyst 3850 Series Datasheet.pdf

Get more information

Do you have any question about the WS-C3850-12S-S?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (WS-C3850-12S-S)

WS-C3850-12S-S Specification

model info:

WS-C3850-12S-S

enclosure type

Rack-mountable - 1U

Ports

12 x SFP ports

Network management Interface

● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
● Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power

None

Switching Capacity

68Gbps

Maximum stacking number

9

Stack Bandwidth

480Gbps

Forwarding Performance

68.4Mpps

FNF entries

48,000 flows

Maximum VLANs IDs

1,000

MAC Address Table Size

32K

CPU

Multicore CPU

RAM

4 G

Flash Memory

2 G

Wireless

Number of AP per switch/stack

100

Number of wireless clients per switch/stack

2000

Total number of WLANs per switch

64

Wireless bandwidth per switch

up to 20Gbps

Supported Aironet AP series

3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

1 network module slot and 1 power redundant slot

Network Modules Selection

● C3850-NM-4-1G: 4 x 1G uplinks network module
●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module

Stacking cable

●STACK-T1-50CM StackWise stacking cable with a 0.5 m length
●STACK-T1-1M StackWise stacking cable with a 1.0 m length
●STACK-T1-3M StackWise stacking cable with a 3.0 m length

Stack Power Cable (recommended)

●CAB-SPWR-30CM stack power cable with a 30CM length
●CAB-SPWR-150CM stack power cable with a 150CM length

Power supply

PWR-C1-350WAC

Power Device

Power supply - redundant - plug-in module

Power Redundancy

optional

Voltage range (Auto)

100V-240V

Power Consumption of standalone(in Watts)

109.75 (Max)

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

17.7 Inches (45.0 cm)

Height

1.75 Inches (4.45 cm)

Weight

15.48 Pounds (7.02 Kg)

Rack Mounting Kit

optional

 MTBF in hours

315,840

Compliant Standards

● IEEE 802.1D Spanning Tree Protoco
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1X-Rev
●IEEE 802.11
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3

System software / license

System software

IOS IP Base (Upgradable)

EnergyWise license

ENERGY-MGMT, ENERGY-MGT-100-K9

Software license

●C3850-12-S-E: IP Base to IP Services RTU paper license

●L-C3850-12-S-E: IP Base to IP Services RTU electronic license

Access Point Licenses

●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
●LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)

Features

●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP

● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast  ●Dynamic Trunking Protocol (DTP) ● port CoS Trust

and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies

● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority

Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS

and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency

● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM  OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4  ● VRF-lite  ● PIM-SM/DM,

PIM sparse-dense mode, SSM ● Flexible Netflow

Advanced Network security

● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF)
● Bidirectional data support on a SPAN ● User authentication
● Private VLAN  ●Router and VLAN ACLs  ● complete identity and security
● Multidomain authentication ● MAC address notification
● IGMP filtering ● Cisco security VLAN ACL
● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae
● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs
●  Bridge protocol data unit (BPDU) Guard
● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security

Management

●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB
●CISCO-BGP4-MIB, BGP4-MIB ●CISCO-BRIDGE-EXT-MIB
●CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB
●CISCO-CALLHOME-MIB ●CISCO-CEF-MIB
●CISCO-CIRCUIT-INTERFACE-MIB
●CISCO-ENTITY-VENDORTYPE-OID-MIB
●CISCO-CONTEXT-MAPPING-MIB
●CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB
●CISCO-EIGRP-MIB
●CISCO-EMBEDDED-EVENT-MGR-MIB
●CISCO-ENTITY-FRU-CONTROL-MIB ●CISCO-ENTITY-SENSOR-MIB
●ENTITY-MIB ●CISCO-ERR-DISABLE-MIB
●CISCO-CONFIG-COPY-MIB ●CISCO-FLOW-MONITOR-MIB
●CISCO-FTP-CLIENT-MIB ●CISCO-HSRP-EXT-MIB
●CISCO-HSRP-MIB ●CISCO-IETF-ISIS-MIB
●CISCO-IF-EXTENSION-MIB ●CISCO-IGMP-FILTER-MIB
●CISCO-CONFIG-MAN-MIB ●CISCO-IP-CBR-METRICS-MIB
●CISCO-IPMROUTE-MIB ●CISCO-IP-STAT-MIB
●CISCO-IP-URPF-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB
●CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB
●CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB
●CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-OSPF-MIB
●CISCO-OSPF-TRAP-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB
●CISCO-PIM-MIB ●CISCO-PING-MIB ●CISCO-PORT-QOS-MIB
●CISCO-PORT-SECURITY-MIB●CISCO-PORT-STORM-CONTROL-MIB
●CISCO-POWER-ETHERNET-EXT-MIB ●CISCO-PRIVATE-VLAN-MIB
●CISCO-PROCESS-MIB ●CISCO-PRODUCTS-MIB●CISCO-RF-MIB
●CISCO-RTP-METRICS-MIB ●CISCO-RTTMON-MIB
●CISCO-SMART-INSTALL-MIB

●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB
●CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB
●CISCO-SYSLOG-MIB ●CISCO-TCP-MIB ●CISCO-UDLDP-MIB
●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB
●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB
●IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB
●IP-MIB ●IPMROUTE-STD-MIB ●LLDP-EXT-MED-MIB
●LLDP-MIB ●NOTIFICATION-LOG-MIB
●OLD-CISCO-MEMORY-MIB ●CISCO-CDP-MIB
●POWER-ETHERNET-MIB ●RMON2-MIB
●RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB
●SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-PROXY-MIB
●SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB
●SNMP-VIEW-BASED-ACM-MIB ●TCP-MIB ●UDP-MIB
●CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB
●AIRESPMACE-WIRELESS-MIB ●CISCO-LWAPP-IDS-MIB
●CISCO-LWAPP-AP-MIB ●CISCO-LWAPP-CCX-RM-MIB
●CISCO-LWAPP-CLIENT-ROAMING-MIB
●CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
●CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
●CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
●CISCO-LWAPP-DOT11-CLIENT-MIB ●CISCO-LWAPP-DOT11-MIB
●CISCO-LWAPP-DOWNLOAD-MIB ●CISCO-LWAPP-LINKTEST-MIB
●CISCO-LWAPP-MFP-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB
●CISCO-LWAPP-QOS-MIB ●CISCO-LWAPP-REAP-MIB
●CISCO-LWAPP-ROGUE-MIB ●CISCO-LWAPP-RRM-MIB
●CISCO-LWAPP-SI-MIB ●CISCO-LWAPP-TSM-MIB
●CISCO-LWAPP-WLAN-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB

Technical Support and Services

● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services

Environmental Ranges

With AC power supply Operating environment and altitude

Operating temperature up to 5000 ft (1500 m)

23ºF to 113ºF (-5ºC to +45ºC)

Operating temperature up to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to +40ºC)

Short-term exception at sealevel with single fan failure

23ºF to 113ºF (-5ºC to +45ºC)

Short-term exception up to 5000 feet (1500 m)

23ºF to 122ºF (-5ºC to 50ºC)

Short-term exception up to 10,000 feet (3000 m)

23ºF to 113ºF (-5ºC to 45ºC)

With DC power supply Operating environment and altitude (NEBS)

Operating temperature up to 6000 ft (1800 m)

23ºF to 113ºF (-5ºC to +45ºC)

Operating temperature up to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to +40ºC)

Operating temperature up to 13,000 ft (4000m)

23ºF to 95ºF (-5ºC to 35ºC)

Short-term exception up to 6,000 feet (1800 m)

23ºF to 131ºF (-5ºC to +55ºC)

Short-term exception up to 10,000 feet (3000 m)

23ºF to 122ºF (-5ºC to +50ºC)

Short-term exception up to 13,000 feet (4000 m)

23ºF to 113ºF (-5ºC to +45ºC)

Short-term exception at sealevel with single fan failure

23ºF to 113ºF (-5ºC to +45º)

Storage environment

 -40ºF to 160ºF (-40ºC to 70ºC)

Operating altitude

Up to 13,000 Feet (Up to 4000 Meters)

Storage altitude

Up to 15,000 Feet (Up to 4573 Meters)

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing

Q&A

Faq (WS-C3850-12S-S)

Can the Cisco Catalyst 3850 act as a wired switch?

The Cisco Catalyst 3850 switch can act as a wired switch as well as a converged wired wireless switch.

Does WS-C3850-12S-S support LAN Base?

No, it doesn't. SFP models WS-C3850-12S, WS-3850-24S and SFP+ models WS-C3850-12XS, WS-C3850-16XS, WS‑C3850-24XS, WS-C3850-32XS, and WS-C3850-48XS support IP Base and IP Services only.

What is SSO technology?

The Cisco SSO technology synchronizes the Layer 2/3 and wireless tunnel protocol state machines from Active to Standby stack switch. During Active switch switchover the Standby switch performs graceful-recovery with neighbors without disrupting network topology.

What StackWise-480 cable lengths are supported?

The Cisco Catalyst 3850 StackWise-480 cable length sizes are in the range of 50 cm, 1m, and 3m sizes.

What is the difference between new Cisco Catalyst 3850 and legacy Cisco Catalyst 3750G-WS Series Switch with integrated controller?

The 3750G-WS has separate control and data planes for wired and wireless functionality. The Cisco IOS XE architecture enables converged wired and wireless in the next-generation Cisco Catalyst 3850 switch. The new converged access delivers a single OS, system operation, and management for wired and wireless users. Both wired and wireless features can be configured and monitored using a single console.

Does the Cisco Catalyst 3850 10G SFP+ 48-port switch support uplink modules?

No. It has 4 fixed 40G QSFP ports for uplinks. This is not field-replaceable.

How do you manage the Cisco Catalyst 3850?

The Cisco Catalyst 3850 can be managed using the Cisco IOS Software CLI or using Cisco Prime ™ Infrastructure 2.0.

Does the Cisco Catalyst 3850 support 802.1ae on downlink ports?

The Cisco Catalyst 3850 is hardware capable for 802.1ae on all ports on the switch. Software support will be available later.

What management ports are available on the Cisco Catalyst 3850?

The Cisco Catalyst 3850 comes with a 10/100 Ethernet dedicated management port on the backside of the switch right above the console port. This port is in separate VRF called “Mgmt-vrf.” This is to segment the management traffic from the global routing table of the switch.

 Can both console ports be used simultaneously?

No. When the USB console is used, the RJ-45 console receives the output of the USB console as well. This design allows the administrator to see when the USB console port is in use. This capability is useful for remote administrators.

Shipping & Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
DHL 2-4 business days
Fedex 2-4 business days
Hong Kong EMS 5-10 business days
Hong Kong Air Parcel 10-20 business days
By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.

Payment Methods

Paypal Master Card Visa
Discover American
Express
JCB
Wire Transfer eCheck WestUnion
Warranty

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Reviews

Customer Reviews

4.7 5
4.7 (11 reviews)
5 Stars
8
4 Stars
3
3 Stars
0
2 Stars
0
1 Stars
0

Share your thoughts with other customers?

Posted on 11/5/2016
Verified Buyer
55
A good recommendation

I need WS-C3750X-12S-S, but it will be end of life, they suggest us take WS-C3850-12S-S instead of, very good, more cheaper.

Posted on 10/20/2016
Verified Buyer
45
SFP module

Tks for suggest C3850-NM-2-10G & SFP-10G-SR for my switch, it work well now.

Posted on 10/11/2016
Verified Buyer
55
More discount

Switch & Modules work well, hope more discount next PO.

Posted on 8/10/2016
Verified Buyer
55
good functions

It with 12 GE SFP port, IP base…really good functions

Posted on 6/8/2016
Verified Buyer
55
CO document

Pls put CO into the box next time and take photo to me before delivery...

Posted on 3/22/2016
Verified Buyer
55
GOOD QUALITY

Goods are superior in quality compared with those of other manufacturers.

Posted on 2/29/2016
Verified Buyer
55
Great experience

It was good experience with this company, I really appreciate the help that you can give me during all process. The order was very quickly .

Posted on 10/17/2015
Verified Buyer
55
Layer 3 Switch 12 Port SFP Switch Ship Fast

I bought this switch because I had experiance to use Cisco hardware and at this point this switch is great one.

Posted on 2/2/2015
Verified Buyer
45
Good shipment

They help me arrange shipment, safe and fast, I just waiting at home.

Posted on 1/9/2015
Verified Buyer
45
Réduire les co?ts

Après comparaison, leur prix est très bon.

Posted on 1/2/2015
Verified Buyer
55
Adequate inventory

They have many avaibale stock, satisfy my large quantities inquiry.

You may also be interested in the following product(s)

Product Tags

Register now to get updates on promotions and coupons

We’ll never share your email address with a third-party.

Router-switch.com is neither a partner of nor an affiliate of Cisco Systems. Logos remain the property of the corresponding company.
Copyright @ 2002-2017 Router-switch Ltd. | HongKong Yejian Technologies Co., Ltd | All Rights Reserved.
