Model: WS-C3650-48TS-L Catalyst 3650 Switch
Detail: Cisco Catalyst 3650 48 Port Data 4x1G Uplink LAN Base
List Price: US$6,100.00
Price: US$2,434.00
You save: US$3,666.00 (60% OFF)
Condition: Brand New Sealed
Availability: In stock
US$ 2,434.00 In stock Brand New Sealed
OR

Add Protection Add SMARTnet

Order Cisco SMARTnet Warranty? Free Quote Now >

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (WS-C3650-48TS-L)

Cisco Catalyst WS-C3650-48TS-L is next generation of enterprise-level stackable access layer switch and integrates with 48 Gigabit Ethernet ports and 4 x 1G SFP uplink ports in LAN base feature set.

Quick Specs

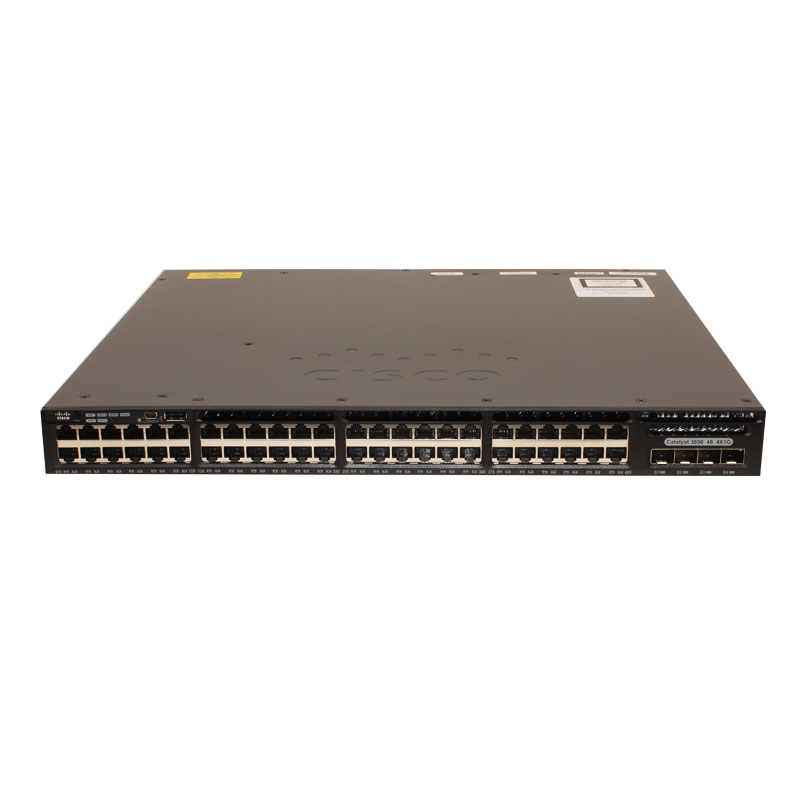

Figure 1 shows the appearance of WS-C3650-48TS-L.

WS-C3650-48TS-L

Table 1 shows the Quick Specs.

Product Code

WS-C3650-48TS-L

Enclosure Type

Rack-mountable - 1U

Feature Set

LAN base

Uplink Interfaces

4 x 1G SFP uplinks

Ports

48 x 10/100/1000 Ethernet ports

Maximum stacking number

9

Stack bandwidth

160Gbps

Forwarding Performance

77.37Mpps

Switching Capacity

176Gbps

RAM

4 GB

Flash Memory

2 GB

Dimensions

44.5 x 44.8 x 4.4 cm

Package Weight

17.49 Kg

Product Details

Figure 2 shows the front panel of WS-C3650-48TS-L.

WS-C3650-48TS-L Front Panel

Note:

Mode button

USB Type A storage port

Status LEDs

48 x 10/100/1000 Ports

USB mini-Type B (console) port

Uplink ports

Figure 3 shows the back panel of WS-C3650-48TS-L.

WS-C3650-48TS-L Back Panel

Note:

Ground connector

Fan module

CONSOLE (RJ-45 console port)

Power supply modules slots

MGMT (RJ-45 10/100/1000 management port)

Stacking modules slots

Figure 4 shows the StackWise-160

The Cisco Catalyst 3650 supports an optional stacking module that is based on the Cisco StackWise-160 technology which allows stacking up to 9 switches. StackWise-160 creates a highly resilient single unified system of up to 9 switches, providing simplified management with a single IP address. For stacking purpose, stack module is required and LAN base feature set can only stack with other 3650 series in LAN feature set. LAN base feature supports 255 VLANs in max with inactive Flexible Netflow features and wireless controller functionality. To activate wireless controller and Flexiable Netflow features, update to IP base image is necessary.

StackWise-160

The Modules, Licenses and Accessories

Table 2 shows some recommended modules, licenses and accessories of this switch.

Models

Description

C3650-STACK-KIT

Cisco Catalyst 3650 Stack Module Spare

L-C3650-48-L-S

C3650-48 LAN Base to IP Base Electronic RTU License

L-C3650-48-L-E=

C3650-48 LAN Base to IP Services Electronic RTU License

PWR-C2-1025WAC=

1025W AC Config 2 Secondary Power Supply

PWR-C2-640WDC=

640W DC Config 2 Secondary Power Supply

CAB-CONSOLE-RJ45

Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Console Cable 6 ft with USB Type A and mini-B

Compare to Similar Items

Table 3 shows the comparison between WS-C3650-48TD-L and WS-C3650-48TS-L.

Models

WS-C3650-48TD-L

WS-C3650-48TS-L

Feature Set

LAN Base

LAN Base

Uplink Interfaces

2 x 10G SFP+ OR 4 x 1G SFP uplinks

4 x 1G SFP

Ports

48 x 10/100/1000 Ethernet ports

48 x 10/100/1000 Ethernet ports

StackWise-160

Optional

Optional

Get more information

Do you have any question about the Cisco C3650-48TS-L switch?

Contact us now via Live Chat or cisco@router-switch.com.

Specification

Specification (WS-C3650-48TS-L)

WS-C3650-48TS-L Specification

Enclosure type

Rack-mountable - 1U

Ports

48 x 10/100/1000 + 4 x 1G SFP

Network management Interface

· Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
· Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power

None

Switching Capacity

176Gbps

Maximum stacking number

9

Stack Bandwidth

160Gbps

Forwarding Performance

77.37Mpps

FNF entries

Disabled (IP base license required)

Maximum VLANs IDs

255

MAC Address Table Size

32K

CPU

Multicore CPU

RAM

4 G

Flash Memory

2 G

Wireless

Number of AP per switch/stack

25

Number of wireless clients per switch/stack

1000

Total number of WLANs per switch

64

Wireless bandwidth per switch

up to 40Gbps

Supported Aironet AP series

3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

 power redundant slot

Accessory & Rack Moubt Kits

· ACC-KIT-T1: Accessory kit
· RACK-KIT-T1: Rack mount kit
· 4PT-KIT-T1:Extension rails and brackets for four-point mounting

Stacking module & cable

· C3650-STACK-KIT: Stack Module
· STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
· STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
· STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length

Power supply

PWR-C2-1025WAC

Power Device

Power supply - redundant - plug-in module

Power Redundancy

optional

Voltage range (Auto)

100V-240V

Power Consumption of standalone (in Watts)

86. 4 (max)

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

17.625 Inches (44.8 cm)

Height

1.73 Inches (4.4 cm)

Weight

15.9 Pounds (7.21Kg)

Rack Mounting Kit

optional

 MTBF in hours

527,580

Compliant Standards

· IEEE 802.1D Spanning Tree Protoco
· IEEE 802.1p CoS Prioritization
· IEEE 802.1Q VLAN
· IEEE 802.1s
· IEEE 802.1w
· IEEE 802.1X
· IEEE 802.1X-Rev
· IEEE 802.11
· IEEE 802.1ab (LLDP)
· IEEE 802.3ad
· IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
· IEEE 802.3 10BASE-T
· IEEE 802.3u 100BASE-TX
· IEEE 802.3ab 1000BASE-T
· IEEE 802.3z 1000BASE-X
· RMON I and II standards
· SNMP v1, v2c, and v3

System software / license

System software

IOS LAN Base (Upgradable)

EnergyWise license

ENERGY-MGMT, ENERGY-MGT-100-K9

Software license

· C3650-48-L-S : LAN Base to IP Base RTU paper license
· C3650-48-L-E: LAN Base to IP Services RTU paper license
· L-C3650-48-L-S: LAN Base to IP Base RTU electronic license
· L-C3650-48-L-E: LAN Base to IP Services RTU electronic license

Access Point Licenses

· L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery)
· L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
· L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
· LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)

Features

· EEM · RPS Support  · IP service-level agreements (SLAs)  · Advanced IP unicast routing protocols

· Jumbo Frames · VLANS · Voice Vlan · VTPv2 · CDPv2 · LLDP · 802.3ad LACP and PAgP · PVST/PVST+

· 802.1W/802.1S · Port Fast/Uplink Fast  · Dynamic Trunking Protocol (DTP) · port CoS Trust and Override

· Trusted Boundary · ACL Classification · ingress Policing · Auto QoS · Per VLAN policies · 802.1p queues

· Scheduling · Priority Queuing · Configure CoS Priority Queues · Configure CoS Priority Queues

· Configure Queue Weights · Configure Buffers and Thresholds · Class & Policy Maps · Modify CoS and DSCP Mapping

· Weighted Tail Drop · IGMPv1,v2,v3 and MLDv1, v2 · DHCP server · DSCP transparency · HSRP, VRRP, BLGP

· RIPv1, v2 EIGRP, PIM  OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4  · VRF-lite  · PIM-SM/DM, PIM sparse-dense

mode, SSM · Flexible Netflow

Advanced Network security

· Port security · DHCP snooping · Dynamic ARP inspection (DAI) · IP source guard

· The Unicast Reverse Path Forwarding (uRPF)
· Bidirectional data support on a SPAN · User authentication
· Private VLAN  · Router and VLAN ACLs  · complete identity and security
· Multidomain authentication · MAC address notification
· IGMP filtering · Cisco security VLAN ACL
· Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
· Port-based ACLs · TrustSec SXP · IEEE 802.1ae
· TACACS+ and RADIUS authentication · Cisco standard and extended IP security router ACLs
· Bridge protocol data unit (BPDU) Guard
· Spanning Tree Root Guard (STRG) · Wireless end-to-end security

Management

· BRIDGE-MIB · CISCO-AUTH-FRAMEWORK-MIB
· CISCO-BGP4-MIB, BGP4-MIB · CISCO-BRIDGE-EXT-MIB
· CISCO-BULK-FILE-MIB · CISCO-CABLE-DIAG-MIB
· CISCO-CALLHOME-MIB · CISCO-CEF-MIB
· CISCO-CIRCUIT-INTERFACE-MIB
· CISCO-ENTITY-VENDORTYPE-OID-MIB
· CISCO-CONTEXT-MAPPING-MIB
· CISCO-DEVICE-LOCATION-MIB · CISCO-DHCP-SNOOPING-MIB
· CISCO-EIGRP-MIB
· CISCO-EMBEDDED-EVENT-MGR-MIB
· CISCO-ENTITY-FRU-CONTROL-MIB · CISCO-ENTITY-SENSOR-MIB
· ENTITY-MIB · CISCO-ERR-DISABLE-MIB
· CISCO-CONFIG-COPY-MIB · CISCO-FLOW-MONITOR-MIB
· CISCO-FTP-CLIENT-MIB · CISCO-HSRP-EXT-MIB
· CISCO-HSRP-MIB · CISCO-IETF-ISIS-MIB
· CISCO-IF-EXTENSION-MIB · CISCO-IGMP-FILTER-MIB
· CISCO-CONFIG-MAN-MIB · CISCO-IP-CBR-METRICS-MIB
· CISCO-IPMROUTE-MIB · CISCO-IP-STAT-MIB
· CISCO-IP-URPF-MIB · CISCO-L2L3-INTERFACE-CONFIG-MIB
· CISCO-LAG-MIB · CISCO-LICENSE-MGMT-MIB
· CISCO-MAC-AUTH-BYPASS-MIB · CISCO-MAC-NOTIFICATION-MIB
· CISCO-MDI-METRICS-MIB · CISCO-FLASH-MIB · CISCO-OSPF-MIB
· CISCO-OSPF-TRAP-MIB · CISCO-PAE-MIB · CISCO-PAGP-MIB
· CISCO-PIM-MIB · CISCO-PING-MIB · CISCO-PORT-QOS-MIB
· CISCO-PORT-SECURITY-MIB· CISCO-PORT-STORM-CONTROL-MIB
· CISCO-POWER-ETHERNET-EXT-MIB · CISCO-PRIVATE-VLAN-MIB
· CISCO-PROCESS-MIB · CISCO-PRODUCTS-MIB· CISCO-RF-MIB
· CISCO-RTP-METRICS-MIB · CISCO-RTTMON-MIB
· CISCO-SMART-INSTALL-MIB
· CISCO-SNMP-TARGET-EXT-MIB · CISCO-STACKMAKER-MIB
· CISCO-MEMORY-POOL-MIB · CISCO-STP-EXTENSIONS-MIB
· CISCO-SYSLOG-MIB · CISCO-TCP-MIB · CISCO-UDLDP-MIB
· CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB · CISCO-VLAN-MEMBERSHIP-MIB

· CISCO-VTP-MIB · EtherLike-MIB

· HC-RMON-MIB · IEEE8021-PAE-MIB · IEEE8023-LAG-MIB
· IF-MIB · IGMP-MIB · IGMP-STD-MIB · IP-FORWARD-MIB
· IP-MIB · IPMROUTE-STD-MIB · LLDP-EXT-MED-MIB
· LLDP-MIB · NOTIFICATION-LOG-MIB
· OLD-CISCO-MEMORY-MIB · CISCO-CDP-MIB
· POWER-ETHERNET-MIB · RMON2-MIB
· RMON-MIB · SNMP-COMMUNITY-MIB · SNMP-FRAMEWORK-MIB
· SNMP-MPD-MIB · SNMP-NOTIFICATION-MIB · SNMP-PROXY-MIB
· SNMP-TARGET-MIB · SNMP-USM-MIB · SNMPv2-MIB
· SNMP-VIEW-BASED-ACM-MIB · TCP-MIB · UDP-MIB
· CISCO-IMAGE-MIB · CISCO-STACKWISE-MIB
· AIRESPMACE-WIRELESS-MIB · CISCO-LWAPP-IDS-MIB
· CISCO-LWAPP-AP-MIB · CISCO-LWAPP-CCX-RM-MIB
· CISCO-LWAPP-CLIENT-ROAMING-MIB
· CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
· CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
· CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
· CISCO-LWAPP-DOT11-CLIENT-MIB · CISCO-LWAPP-DOT11-MIB
· CISCO-LWAPP-DOWNLOAD-MIB · CISCO-LWAPP-LINKTEST-MIB
· CISCO-LWAPP-MFP-MIB · CISCO-LWAPP-MOBILITY-EXT-MIB
· CISCO-LWAPP-QOS-MIB · CISCO-LWAPP-REAP-MIB
· CISCO-LWAPP-ROGUE-MIB · CISCO-LWAPP-RRM-MIB
· CISCO-LWAPP-SI-MIB · CISCO-LWAPP-TSM-MIB
· CISCO-LWAPP-WLAN-MIB · CISCO-LWAPP-WLAN-SECURITY-MIB

Technical Support and Services

· Cisco SMARTnet Service · Cisco Smart Foundation Service · Cisco SP Base Service

· Cisco Focused Technical Support Services

Environmental Ranges

With AC power supply
Operating environment and altitude

Operating temperature up to 5000 ft (1500 m)

23ºF to 113ºF (-5ºC to +45ºC)

Operating temperature up to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to +40ºC)

Short-term exception at sealevel with single fan failure

23ºF to 113ºF (-5ºC to +45ºC)

Short-term exception up to 5000 feet (1500 m)

23ºF to 122ºF (-5ºC to 50ºC)

Short-term exception up to 10,000 feet (3000 m)

23ºF to 113ºF (-5ºC to 45ºC)

With DC power supply
Operating environment and altitude (NEBS)

Operating temperature up to 6000 ft (1800 m)

23ºF to 113ºF (-5ºC to +45ºC)

Operating temperature up to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to +40ºC)

Operating temperature up to 13,000 ft (4000m)

23ºF to 95ºF (-5ºC to 35ºC)

Short-term exception up to 6,000 feet (1800 m)

23ºF to 131ºF (-5ºC to +55ºC)

Short-term exception up to 10,000 feet (3000 m)

23ºF to 122ºF (-5ºC to +50ºC)

Short-term exception up to 13,000 feet (4000 m)

23ºF to 113ºF (-5ºC to +45ºC)

Short-term exception at sealevel with single fan failure

23ºF to 113ºF (-5ºC to +45º)

Storage environment

 -40ºF to 160ºF (-40ºC to 70ºC)

Operating altitude

Up to 16,400 Feet (Up to 5000m)

Storage altitude

Up to 16,400 Feet (Up to 5000m)

Operating relative humidity

5% to 96% noncondensing

Storage relative humidity

5% to 96% noncondensing

Short-term exception at sealevel with single fan failure

23ºF to 113ºF

Storage environment

 -40ºF to 160ºF

Shipping & Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
DHL 2-4 business days
Fedex 2-4 business days
Hong Kong EMS 5-10 business days
Hong Kong Air Parcel 10-20 business days
By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.

Payment Methods

Paypal Master Card Visa
Discover American
Express
JCB
Wire Transfer eCheck WestUnion
Warranty

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Reviews

Customer Reviews

5 5
5 (6 reviews)
5 Stars
6
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Share your thoughts with other customers?

Posted on 10/21/2016
Verified Buyer
55
Technical support

Look for a 48 port core switch. The sales suggest this model. It works well now.

Posted on 10/16/2016
Verified Buyer
55
C3650-48TS-L-4 x 1G SFP

4 x 1G SFP supported. Nice!

Posted on 6/8/2016
Verified Buyer
55
Good company

Always buy Cisco here. Good price. Fast shipping.

Posted on 3/16/2016
Verified Buyer
55
Recommend

My friend recommend this company. All is good so far.

Posted on 2/25/2016
Verified Buyer
55
WS-C3650-48TS-L

Buena compa?ía. Envío rápido

Posted on 2/11/2014
Verified Buyer
55
RTU Cisco 3650

it uses a right-to-use (RTU) licensing model.

You may also be interested in the following product(s)

Product Tags

Subscription

Register now to get updates on promotions and coupons

Stay Connected

Router-switch.com is neither a partner of nor an affiliate of Cisco Systems. Logos remain the property of the corresponding company.
Copyright @ 2002-2017 Router-switch Ltd. | HongKong Yejian Technologies Co., Ltd | All Rights Reserved.
