WS-C3650-24PS-S

4.7 14
14 Review(s)
Model: WS-C3650-24PS-S Catalyst 3650 Switch
Detail: Cisco Catalyst 3650 24 10/100/1000 Ethernet Ports  - 4x1G SFP uplinks- Layer 3 - POE - IP Base IOS - managed
Price: US$2,035.00
List Price: US$5,100.00
You save: US$3,065.00 (60% OFF)
Condition: Brand New Sealed
Availability: In stock
US$ 2,035.00 In stock Brand New Sealed
OR
Product Overview

Overview (WS-C3650-24PS-S)

Cisco Catalyst WS-C3650-24PS-S is the next generation enterprise-level standalone with stackable option switch with IP Base image. WS-C3650-24PS-S has 24 Gigabit Ethernet POE+ ports with 4 fixed 1G SFP uplink ports and provides fully convergence between wired and wireless capacity on a single platform.

Quick Specs

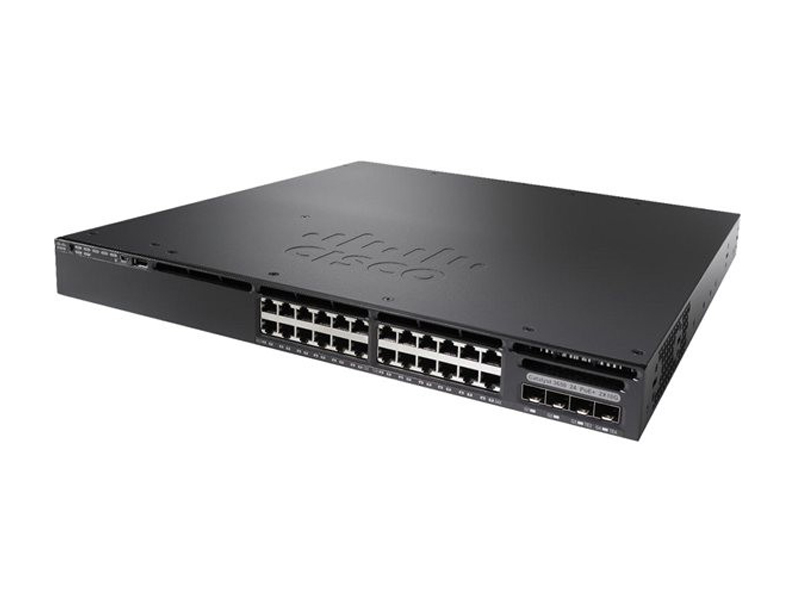

Figure 1 shows the appearance of WS-C3650-24PS-S.

WS-C3650-24PS-S

Table 1 shows the Quick Specs.

Product Code

WS-C3650-24PS-S

Enclosure Type

Rack-mountable - 1U

Feature Set

IP Base

Uplink Interfaces

4 x 1G SFP

Ports

24 x 10/100/1000 (POE+)

Available PoE Power

390w

Maximum stacking number

9

Stack bandwidth

88Gbps

Forwarding Performance

41.66Mpps

Switching Capacity

88Gbps

RAM

4 GB

Flash Memory

2 GB

Dimensions

44.5 cm x 44.5 cm x 4.4 cm

Package Weight

17.49 Kg

Product Details

Figure 2 shows the front panel of WS-C3650-24PS-S.

WS-C3650-24PS-S Front Panel

Note:

Mode button

USB Type A storage port

Status LEDs

24 x 10/100/1000 POE+ Ethernet Ports

USB mini-Type B (console) port

4 x 1G SFP Uplink ports

Figure 3 shows the back panel of the Cisco C3650-24PS-S switch.

WS-C3650-24PS-S Back Panel

Note:

Ground connector

CONSOLE (RJ-45 console port)

MGMT (RJ-45 10/100/1000 management port)

Fan module

Power supply modules (AC power supply shown)

Power supply modules

StackWise port connector

Figure 4 shows the StackWise-160 Kit.

The Cisco Catalyst 3650 supports an optional stacking module that is based on the Cisco StackWise-160 technology which allows stacking up to 9 switches.

StackWise-160

The Modules, Licenses and Accessories

Table 2 shows some recommended modules,licenses and accessories of this switch.

Models

Description

C3650-STACK-KIT

Cisco Catalyst 3650 Stack Module Spare

L-C3650-24-S-E=

C3650-24 IP Base to IP Services Electronic RTU License

PWR-C2-1025WAC=

1025W AC Config 2 Secondary Power Supply

PWR-C2-640WDC=

640W DC Config 2 Secondary Power Supply

CAB-CONSOLE-RJ45

Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Console Cable 6 ft with USB Type A and mini-B

Compare to Similar Items

Models

WS-C3650-24PD-L

WS-C3650-24PS-S

Feature Set

LAN Base

IP Base

Uplink Interfaces

2 x 10G SFP+ OR 4 x 1G SFP uplinks

4 x 1G SFP uplinks

Ports

24 x 10/100/1000 POE+ Ethernet ports

24 x 10/100/1000 POE+ Ethernet ports

Available POE Power

390W

390W

Get more information

Do you have any question about the Cisco C3650-24PS-S switch?

Contact us now via Live Chat or cisco@router-switch.com.

Specification

Specification (WS-C3650-24PS-S)

Cisco catalyst 3650-24PS-S
Model info: WS-C3650-24PS-S
Enclosure type Rack-mountable - 1U
Ports 24 x 10/100/1000 (POE+) + 4 x 1G SFP
Network management Interface Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power 390w
Switching Capacity 88Gbps
Maximum stacking number 9
Stack Bandwidth 160Gbps
Forwarding Performance 41.66Mpps
FNF entries 24000
Maximum VLANs IDs 4,094
MAC Address Table Size 32K
CPU Multicore CPU
RAM 4 G
Flash Memory 2 G
Wireless
Number of AP per switch/stack 25
Number of wireless clients per switch/stack 1000
Total number of WLANs per switch 64
Wireless bandwidth per switch up to 20Gbps
Supported Aironet AP series 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)  power redundant slot
Accessory & Rack Moubt Kits ACC-KIT-T1: Accessory kit
RACK-KIT-T1: Rack mount kit
4PT-KIT-T1:Extension rails and brackets for four-point mounting

Stacking module & cable C3650-STACK-KIT: Stack Module
STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length

Power supply PWR-C2-640WAC
Power Device Power supply - redundant - plug-in module
Power Redundancy optional
Voltage range (Auto) 100V-240V
Power Consumption of standalone (in Watts) 65.9 (max)
Miscellaneous
Width 17.5 Inches (44.5 Cm)
Depth 17.625 Inches (44.5 Cm)
Height 1.73 Inches (4.4 Cm)
Weight 16 Pounds (7.26Kg)
Rack Mounting Kit optional
 MTBF in hours 528,280
Compliant Standards IEEE 802.1D Spanning Tree Protoco
IEEE 802.1p CoS Prioritization
IEEE 802.1Q VLAN
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1X-Rev
IEEE 802.11
IEEE 802.1ab (LLDP)
IEEE 802.3ad
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
RMON I and II standards
SNMP v1, v2c, and v3
System software / license
System software IOS IP Base (Upgradable)
EnergyWise license ENERGY-MGMT, ENERGY-MGT-100-K9
Software license C3650-24-S-E: IP Base to IP Services RTU paper license
L-C3650-24-S-E: IP Base to IP Services RTU electronic license

Access Point Licenses L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery)
L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)

features RPS Support  Jumbo Frames VLANS Voice Vlan VTPv2 CDPv2 LLDP 802.3ad LACP and PAgP PVST/PVST+ 802.1W/802.1S Port Fast/Uplink Fast  Dynamic Trunking Protocol (DTP) port CoS Trust and Override Trusted Boundary ACL Classification ingress Policing Auto QoS Per VLAN policies 802.1p queues Scheduling Priority Queuing Configure CoS Priority Queues Configure CoS Priority Queues Configure Queue Weights Configure Buffers and Thresholds Class & Policy Maps Modify CoS and DSCP Mapping Weighted Tail Drop IGMPv1,v2,v3 and MLDv1, v2 DHCP server DSCP transparency HSRP, VRRP RIPv1, v2 EIGRP stub, PIM stub, OSPF stub IPV6 management
Advanced Network security Port security DHCP snooping Dynamic ARP inspection (DAI) IP source guard The Unicast Reverse Path Forwarding (uRPF)
Bidirectional data support on a SPAN User authentication
Private VLAN  Router and VLAN ACLs  complete identity and security
Multidomain authentication MAC address notification
IGMP filtering Cisco security VLAN ACL
Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
Port-based ACLs TrustSec SXP IEEE 802.1ae
TACACS+ and RADIUS authentication Cisco standard and extended IP security router ACLs
  Bridge protocol data unit (BPDU) Guard
Spanning Tree Root Guard (STRG) Wireless end-to-end security

Management BRIDGE-MIB CISCO-AUTH-FRAMEWORK-MIB
CISCO-BGP4-MIB, BGP4-MIB CISCO-BRIDGE-EXT-MIB
CISCO-BULK-FILE-MIB CISCO-CABLE-DIAG-MIB
CISCO-CALLHOME-MIB CISCO-CEF-MIB
CISCO-CIRCUIT-INTERFACE-MIB
CISCO-ENTITY-VENDORTYPE-OID-MIB
CISCO-CONTEXT-MAPPING-MIB
CISCO-DEVICE-LOCATION-MIB CISCO-DHCP-SNOOPING-MIB
CISCO-EIGRP-MIB
CISCO-EMBEDDED-EVENT-MGR-MIB
CISCO-ENTITY-FRU-CONTROL-MIB CISCO-ENTITY-SENSOR-MIB
ENTITY-MIB CISCO-ERR-DISABLE-MIB
CISCO-CONFIG-COPY-MIB CISCO-FLOW-MONITOR-MIB
CISCO-FTP-CLIENT-MIB CISCO-HSRP-EXT-MIB
CISCO-HSRP-MIB CISCO-IETF-ISIS-MIB
CISCO-IF-EXTENSION-MIB CISCO-IGMP-FILTER-MIB
CISCO-CONFIG-MAN-MIB CISCO-IP-CBR-METRICS-MIB
CISCO-IPMROUTE-MIB CISCO-IP-STAT-MIB
CISCO-IP-URPF-MIB CISCO-L2L3-INTERFACE-CONFIG-MIB
CISCO-LAG-MIB CISCO-LICENSE-MGMT-MIB
CISCO-MAC-AUTH-BYPASS-MIB CISCO-MAC-NOTIFICATION-MIB
CISCO-MDI-METRICS-MIB CISCO-FLASH-MIB CISCO-OSPF-MIB
CISCO-OSPF-TRAP-MIB CISCO-PAE-MIB CISCO-PAGP-MIB
CISCO-PIM-MIB CISCO-PING-MIB CISCO-PORT-QOS-MIB
CISCO-PORT-SECURITY-MIBCISCO-PORT-STORM-CONTROL-MIB
CISCO-POWER-ETHERNET-EXT-MIB CISCO-PRIVATE-VLAN-MIB
CISCO-PROCESS-MIB CISCO-PRODUCTS-MIBCISCO-RF-MIB
CISCO-RTP-METRICS-MIB CISCO-RTTMON-MIB
CISCO-SMART-INSTALL-MIB
CISCO-SNMP-TARGET-EXT-MIB CISCO-STACKMAKER-MIB
CISCO-MEMORY-POOL-MIB CISCO-STP-EXTENSIONS-MIB
CISCO-SYSLOG-MIB CISCO-TCP-MIB CISCO-UDLDP-MIB
CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB CISCO-VLAN-MEMBERSHIP-MIB CISCO-VTP-MIB EtherLike-MIB
HC-RMON-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB
IF-MIB IGMP-MIB IGMP-STD-MIB IP-FORWARD-MIB
IP-MIB IPMROUTE-STD-MIB LLDP-EXT-MED-MIB
LLDP-MIB NOTIFICATION-LOG-MIB
OLD-CISCO-MEMORY-MIB CISCO-CDP-MIB
POWER-ETHERNET-MIB RMON2-MIB
RMON-MIB SNMP-COMMUNITY-MIB SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB SNMP-NOTIFICATION-MIB SNMP-PROXY-MIB
SNMP-TARGET-MIB SNMP-USM-MIB SNMPv2-MIB
SNMP-VIEW-BASED-ACM-MIB TCP-MIB UDP-MIB
CISCO-IMAGE-MIB CISCO-STACKWISE-MIB
AIRESPMACE-WIRELESS-MIB CISCO-LWAPP-IDS-MIB
CISCO-LWAPP-AP-MIB CISCO-LWAPP-CCX-RM-MIB
CISCO-LWAPP-CLIENT-ROAMING-MIB
CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
CISCO-LWAPP-DOT11-CLIENT-MIB CISCO-LWAPP-DOT11-MIB
CISCO-LWAPP-DOWNLOAD-MIB CISCO-LWAPP-LINKTEST-MIB
CISCO-LWAPP-MFP-MIB CISCO-LWAPP-MOBILITY-EXT-MIB
CISCO-LWAPP-QOS-MIB CISCO-LWAPP-REAP-MIB
CISCO-LWAPP-ROGUE-MIB CISCO-LWAPP-RRM-MIB
CISCO-LWAPP-SI-MIB CISCO-LWAPP-TSM-MIB
CISCO-LWAPP-WLAN-MIB CISCO-LWAPP-WLAN-SECURITY-MIB
Technical Support and Services Cisco SMARTnet Service Cisco Smart Foundation Service Cisco SP Base Service Cisco Focused Technical Support Services
Environmental Ranges
  Fahrenheit Centigrade
With AC power supply
Operating environment and altitude

Operating temperature up to 5000 ft (1500 m) 23ºF to 113ºF  -5ºC to +45ºC
Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF  -5ºC to +40ºC
Short-term exception at sealevel with single fan failure 23ºF to 113ºF -5ºC to +45ºC
Short-term exception up to 5000 feet (1500 m) 23ºF to 122ºF -5ºC to 50ºC
Short-term exception up to 10,000 feet (3000 m) 23ºF to 113ºF -5ºC to 45ºC
With DC power supply
Operating environment and altitude (NEBS)

Operating temperature up to 6000 ft (1800 m) 23ºF to 113ºF  -5ºC to +45ºC
Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF  -5ºC to +40ºC
Operating temperature up to 13,000 ft (4000m) 23ºF to 95ºF  -5ºC to 35ºC
Short-term exception up to 6,000 feet (1800 m) 23ºF to 131ºF  -5ºC to +55ºC
Short-term exception up to 10,000 feet (3000 m) 23ºF to 122ºF  -5ºC to +50ºC
Short-term exception up to 13,000 feet (4000 m) 23ºF to 113ºF  -5ºC to +45ºC
Short-term exception at sealevel with single fan failure 23ºF to 113ºF  -5ºC to +45º
Storage environment  -40ºF to 160ºF  -40ºC to 70ºC
  Feet Meters
Operating altitude Up to 16,400 Up to 5000m
Storage altitude Up to 16,400 Up to 5000m
Operating relative humidity 5% to 96% noncondensing
Storage relative humidity 5% to 96% noncondensing
Short-term exception at sealevel with single fan failure 23ºF to 113ºF  -5ºC to +45º
Storage environment  -40ºF to 160ºF  -40ºC to 70ºC
  Feet Meters
Operating altitude Up to 13,000 Up to 4000m
Storage altitude Up to 15,000 Up to 4573m
Operating relative humidity 10% to 95% noncondensing
Storage relative humidity 10% to 95% noncondensing
Shipping Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
DHL 2-4 business days
Fedex 2-4 business days
Hong Kong EMS 5-10 business days
Hong Kong Air Parcel 10-20 business days
By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.

Payment Methods

Paypal Master Card Visa Discover American
Express
JCB Wire Transfer eCheck WestUnion
Paypal Master Card Visa
Discover American
Express
JCB
Wire Transfer eCheck WestUnion
Warranty

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

You can contact our customer service team to exchange or return any product that you bought from us.

100% Money Back Guarantee:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Reviews

Customer Reviews 14 item(s)

delivery fast

only 2days, we got the switches, why not meet you earlier :)

55
by / (Posted on 10/23/2016)
reliable vender

never purchase from HK before, you made us trust you from now on, reliable vender.

55
by / (Posted on 9/22/2016)
POE or not

want to buy this item, it's POE or not?

yes, it configures with 24 POE ports.

55
by / (Posted on 8/21/2016)
C3650-24PS-S-Good

I chose this 3650 item. Good!

55
by / (Posted on 8/20/2016)
good source

we search 3750V2, finanly, knows 3650 new switch replace it, good source, good recommend

55
by / (Posted on 7/20/2016)
Came as described

Super Fast shipping, Came as described. worked perfectly. THANKS!

55
by / (Posted on 7/19/2016)
All parts are included.

I got it with all I need

45
by / (Posted on 7/8/2016)
Great quality, performance and value

You can expect you want from Cisco products

45
by / (Posted on 3/18/2016)
Very good

It works as described

45
by / (Posted on 2/15/2016)
Shipment is fast

I bought this 3 days ago. Shipment is fast.

45
by / (Posted on 2/6/2016)
Rapid delivery

Item was well packaged and worked perfectly. Rapid delivery. Great job!

55
by / (Posted on 2/6/2016)
C3650-24PS-S-with PoE+

this 3650 model with PoE+.

55
by / (Posted on 11/12/2015)
Outstanding!

I purchased this Monday evening and received it Thursday afternoon. Outstanding!

55
by / (Posted on 8/13/2015)
everything I expected it to be

Super quick processing and shipping. Works as advertised. New condition. Was everything I expected it to be will be purchasing from again.

55
by / (Posted on 7/12/2015)

You may also be interested in the following product(s)

Product Tags
