WS-C2960L-24TS-LL

5 3
5/5.0
3 Review(s)
Model: WS-C2960L-24TS-LL Catalyst 2960-L Switch
Detail: Catalyst 2960L 24 port GigE, 4 x 1G SFP, LAN Lite
List Price: US$1,270.00
Price: $600.00
You save: US$670.00 (53% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Ashburn, VA, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 600.00 In stock Brand New Sealed
OR
SMARTnet
WS-C2960L-24TS-LL SMARTnet Service Tool.

Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (WS-C2960L-24TS-LL)

WS-C2960L-24TS-LL offering 24 x GigE ports, 4 x 1G SFP and LAN Lite, is one of the Cisco Catalyst 2960-L Series Switches. These 2960-L switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure and energy-efficient business operations with a range of Cisco IOS Software features.

Quick Specs

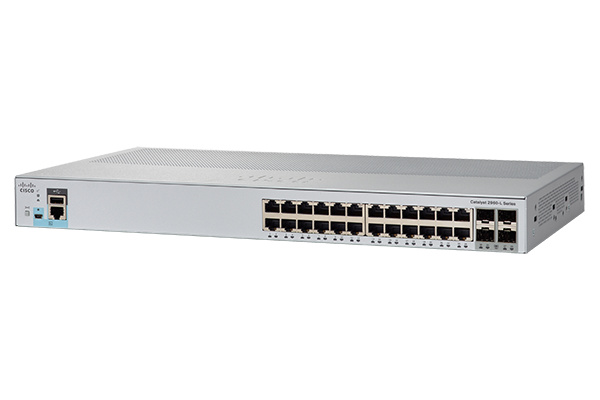

Figure 1 shows the appearance of WS-C2960L-24TS-LL.

WS-C2960L-24TS-LL

Table 1 shows the Quick Specs.

Product Code

WS-C2960L-24TS-LL

IOS

LAN Lite

Forwarding bandwidth

28 Gbps

Switching bandwidth

56 Gbps

10/100/1000 Ethernet Ports

24

Uplink Interfaces

4 x 1G SFP

Fanless

Y

DRAM

512 MB

Flash memory

256 MB

Dimensions (H x D x W)

1.73 x 9.45 x 17.5 in. (4.4 x 24 x 44.5 cm)

Net Weight

6.61 lb (3.0 kg)

Product Details

Figure 2 shows the front panel of WS-C2960L-24TS-LL.

WS-C2960L-24TS-LL Front Panel

Note:

Mode button

USB mini-Type B (console) port

USB Type A port  and RJ-45 Console Port

24 x 10/100/1000 ports

SFP module slots

· There are a Security slot and an AC power connector on the back panel.

The Accessories

Table 2 shows the recommended elements for the WS-C2960L-24TS-LL.

Model

Description

CAB-CONSOLE-USB

Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

CAB-CONSOLE-RJ45

Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

CAB-ACE=

CAB-ACE= AC Power Cord (Europe), C13, CEE 7, 1.5M

CAB-ACU=

CAB-ACU= AC Power Cord (UK), C13, BS 1363, 2.5m

Compare to Similar Items

Table 3 shows the comparison of WS-C2960L-24TS-LL and WS-C2960L-16TS-LL.

Model

WS-C2960L-24TS-LL

WS-C2960L-16TS-LL

IOS

LAN Lite

LAN Lite

Forwarding bandwidth

28 Gbps

18 Gbps

Switching bandwidth

56 Gbps

36 Gbps

10/100/1000 Ethernet Ports

24

16

Uplink Interfaces

4 x 1G SFP

2 x 1G SFP

Get More Information

Do you have any question about the WS-C2960L-24TS-LL?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (WS-C2960L-24TS-LL)

WS-C2960L-24TS-LL Specification

Configurations

10/100/1000 Ethernet Ports

24

Uplink Interfaces

4 SFP

Available PoE Power

-

Fanless

Y

Dimensions (H x D x W)

1.73 x 9.45 x 17.5 in. (4.4 x 24 x 44.5 cm)

Net Weight

6.61 lb (3.0 kg)

Console Ports

RJ45 Ethernet

1

USB mini-B

1

USB-A port for storage and Bluetooth console

1

Memory and Processor

CPU

ARMv7 800 MHz

DRAM

512 MB

Flash memory

256 MB

Performance

Forwarding bandwidth

28 Gbps

Switching bandwidth

56 Gbps

Forwarding rate (64-byte L3 packets)

41.67 Mpps

Unicast MAC addresses

8K

Maximum active VLANs

64

VLAN IDs available

4094

Maximum STP instances

64

Maximum SPAN sessions

1

MTU-L3 packet

9198 bytes

Jumbo Ethernet frame

10,240 bytes

MTBF in hours (Data)

2,412,947

MTBF in hours (PoE)

909,838

Environment

Operating temperature

Up to 5,000 ft

23ºF to 113ºF (–5ºC to 45ºC)

Up to 10,000 ft

23ºF to 104ºF (–5ºC to 40ºC)

Operating altitude

10,000 ft (3000m)

Operating relative humidity

5% to 90% at 40ºC

Storage temperature

–13º to 158ºF (–25º to 70ºC)

Storage altitude

15,000 ft (4500m)

Storage relative humidity

5% to 95% at 65ºC

Storage altitude

Minimum ambient temperature for cold start is 0°C (32°F)

Electrical

Data

Voltage (autoranging)

110 to 220V AC in

Frequency

50 to 60 Hz

Current

0.20A to 0.33A

Power rating (maximum consumption)

0.06 kVA

Power consumption (watts)

       0% traffic

       10% traffic

       100% traffic

       Weighted average



19.4

26.5

26.5

24.1

Safety and Compliance

Safety

UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1

EMC: emissions

47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A

EMC: immunity

EN55024, CISPR24, EN300386, KN24

Environmental

Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU

Telco

Common Language Equipment Identifier (CLEI) code

U.S. government certifications

USGv6 and IPv6 Ready Logo

Connectors and Interfaces

Ethernet interfaces

10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Indicator LEDs

Per-port status: link integrity, disabled, activity, speed, and full duplex

System status: system, PoE, and link speed

Console cables

CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors

Power

Use the supplied AC power cord to connect the AC power connector to an AC power outlet
