Overview (USG6350-AC)
The Huawei USG6350-AC next-generation firewall provides comprehensive protection in small- to medium-sized enterprise networks, ideal solution for branch locations. It provides fine-grained service access control and service acceleration through context awareness by Application, Content, Time, User, Attack, or Location (ACTUAL).
Quick Specs

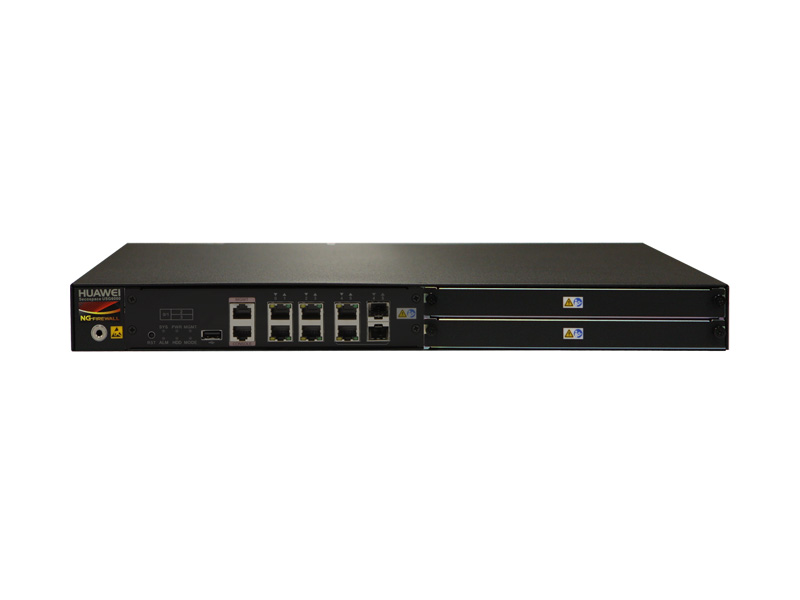

Figure 1 shows the appearance of Huawei USG6350-AC firewall.
Table 1 shows the Quick Specs.
Product Code
USG6350-AC
Mandatory service ports
2 x GE Combo ports,
4 x 10/100/1000M autosensing Ethernet electrical ports
Expansion slot
2×WSIC
Hard disk
Optional hot-swappable 300GB 2.5-inch SAS hard disks
AC Power Supply
100V to 240V
Height
1 U
Dimensions (W x D x H)
442mm×421mm×44.4mm
Features
NAT, application-specific access control, VPN, intrusion prevention, antivirus, data leak prevention, bandwidth management,
anti-DDoS, URL filtering, and anti-spam
Product Details
Figure 2 shows the front panel of Huawei USG6350 -AC firewall.
Note:
①
ESD Jack
⑤
8 × 10/100/1000M Autosensing Ethernet Electrical Ports
②
RST Button
⑥
2 x Expansion Slots
③
One USB 2.0 Ports
⑦
One Out-of-band Management Port
④
One Console Port
⑧
Slot Numbering Layout and Indicator Area
Figure 3 shows the back panel of Huawei USG6350-AC firewall.
This is a Schematic diagram, not a real product.
Note:
①
Hard Drive Assembly (Optional)
②
Power Module
③
Slot for Optional Power Module
The Modules, Cards, Licenses
Table 2 shows the recommended elements for the Huawei USG6350- AC firewall.
Category
Model
Description
Business Module Group
Huawei SVN5800 Secure Access Gateways 8GE Electric Ports Interface Card
Huawei 2*10GE Optical Ports+8GE Electric Ports Interface Card for USG6300 Next-Generation Firewall.
Hard disk Group
Huawei 300GB 10K RPM SAS Hard Disk for 1U rack Gateway
Option Power Group
Huawei Power-AC-B 170W AC power module
Optical Transmitter
Module Collection
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC)
Huawei AR G3 Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,4 0km, LC)
Optical Transceiver,eSFP,GE,Multi-mode Module 850nm,0.5km,LC
Function License
Huawei Quantity of Virtual Firewall (10 Vsys) Software/License
Huawei Software/License: Quantity of SSL VPN Concurrent Users License (100 Users)
NGFW License
Huawei IPS Update Service Subscribe for 12 Months(Applies to USG6330/50/60) license.
Huawei URL Filtering Update Service Subscribe for 12 Months(Applies to USG6330/50/60) license.
Huawei Anti-Virus Update Service Subscribe for 12 Months(Applies to USG6330/50/60) license.
Basic License
Huawei LIC-CONTENT Content Filtering Function Software/License
Compare to Similar Items
Table 3 shows the comparison of Huawei USG6380-AC and USG6350 -AC firewalls.
Models
USG6350-AC
Mandatory service ports
4 x 10GE optical ports,
8 x 10/100/1000M autosensing Ethernet electrical ports
2 x GE Combo ports,
4 x 10/100/1000M autosensing Ethernet electrical ports
Expansion slot
2 × WSIC
2 × WSIC
Hard disk
Optional hot-swappable 300GB 2.5-inch SAS hard disks
Optional hot-swappable 300GB 2.5-inch SAS hard disks
Redundant Power Supply
Optional
None
Features
NAT, application-specific access control, VPN, intrusion prevention, antivirus, data leak prevention, bandwidth management,
anti-DDoS, URL filtering, and anti-spam
Get More Information
Do you have any question about the Huawei USG6350-AC firewall?
Contact us now via Live Chat or sales@router-switch.com.
- Specification
-
Specification (USG6350-AC)
USG6350-AC Specifications
Description
USG6350 AC Host(4GE(RJ45)+2GE Combo,4GB Memory,1 AC Power)
IPv4 Firewall Throughput1 (1,518/512/64-byte, UDP)
2 Gbit/s, 2 Gbit/s, 0.4 Gbit/s
IPv6 Firewall Throughput1 (1,518/512/84-byte, UDP)
2 Gbit/s, 2 Gbit/s, 0.5 Gbit/s
Firewall Throughput (packets per second)
0.6 Mpps
Firewall Latency (64-byte, UDP)
40 µs
FW + SA* Throughput2
1.2 Gbit/s
FW + SA + IPS Throughput2
950 Mbit/s
FW + SA + Antivirus Throughput2
950 Mbit/s
FW + SA + IPS + Antivirus + URL Throughput2
400 Mbit/s
FW + SA + IPS + Antivirus Throughput (real world)3
350 Mbit/s
Concurrent Sessions (HTTP1.1)1
2,000,000
New Sessions/Second (HTTP1.1)1
30,000
IPsec VPN Throughput1 (AES-128 + SHA1, 1,420-byte)
800 Mbit/s
Maximum IPsec VPN Tunnels (GW to GW)
4,000
Maximum IPsec VPN Tunnels (client to GW)
4,000
SSL Inspection Throughput4
16 Mbit/s
SSL VPN Throughput5
50 Mbit/s
Concurrent SSL VPN Users (default/maximum)
100/500
Security Policies (maximum)
15,000
Virtual Firewalls (default/maximum)
10/50
URL Filtering: Categories
More than 130
URL Filtering: URLs
Can access a database of over 120 million URLs in the cloud
Third-Party and Open-Source Ecosystem6
Open APIs for integration with third-party products through RESTCONF and NETCONF interfaces
Other third-party management software based on SNMP, SSH, and syslog
Collaboration with third-party tools, such as FireMon
Collaboration with Anti-APT solutionCentralized Management
Centralized configuration, logging, monitoring, and reporting is performed by Huawei eSight and LogCenter
VLANs (maximum)
4,094
Virtual Interfaces (maximum)
1,024
High Availability Configurations
Active/Active, Active/Standby
Dimensions (H x W x D)
44.4 mm x 442 mm x 421 mm
Form Factor/Height
1U
Fixed Interfaces
4 x GE (RJ45) + 2 x GE (Combo)
USB 2.0 Port
Supported
Expansion Slot
2WSIC*
Expansion I/O
WSIC: 2 x 10 GE (SFP+) + 8 x GE (RJ45), 8 x GE (RJ45), 8 x GE (SFP), and 4 x GE (RJ45) BYPASS
Maximum Number of Interfaces
22 x GE (RJ45) + 4 x 10 GE (SFP+) or 18 x GE (SFP) + 4 x GE (RJ45)
MTBF
11.58 years
Weight (full configuration)
7.9 kg
Local Storage
Optional. Supports a 300 GB or 600 GB hard disk (the hard disk is hot-swappable, but the hard disk card is not)
AC Power Supply
100V to 240V, 50 Hz/60 Hz
Power Consumption (average/maximum)
30.7W/107.83W
Heat Dissipation
368 BTU/h
Power Supplies
Single 150W AC power supply; optional 170W AC power supply
Operating Environment (temperature/humidity)
Temperature: 0°C to 45°C (without optional HDD)
5°C to 40°C (with optional HDD)
Humidity: 5% to 95% (without optional HDD), non-condensing
5% to 90% (with optional HDD), non-condensingNon-operating Environment
Temperature: -40°C to 70°C
Humidity: 5% to 95% (without optional HDD), non-condensing;
5% to 90% (with optional HDD), non-condensingOperating Altitude (maximum)
5,000 meters (without optional HDD); 3,000 meters (with optional HDD)
Non-operating Altitude (maximum)
5,000 meters (without optional HDD); 3,000 meters (with optional HDD)
Noise
54.1 dBA
Regulatory Compliance
Products comply with CE markings per directives 2014/30/EU and 2014/35/EU
Safety
UL 60950-1
CSA-C22.2 No. 60950-1
EN 60950-1
IEC 60950-1EMC: Emissions
AS/NZS CISPR 22
CISPR 22 Class A
EN 55022 Class A
ETSI EN 300 386
IEC 61000-6-4/EN 61000-6-4
IEC 61000-3-2/EN 61000-3-2
IEC 61000-3-3/EN 61000-3-3
FCC CFR47 Part 15 Subpart B Class A
ICES-003 Class A
VCCI V-3 Class A
CNS 13438 Class AEMC: Immunity
EN 55024
CISPR 24
ETSI EN 300 386
IEC 61000-6-2/EN 61000-6-2
CNS 13438 Class A - Shipping & Payment
-
