SPA-1CHSTM1/OC3V2=

Model: SPA-1CHSTM1/OC3V2= - Cisco Module & Card
Detail: 1-Port Channelized STM-1/OC-3 to DS-0 Shared Port Adapter Version 2
List Price: US$41,400.00
Price: $9,450.00
You save: US$31,950.00 (77% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Ashburn, VA, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 9,450.00 In stock Brand New Sealed
OR
SMARTnet
SPA-1CHSTM1/OC3V2= SMARTnet Service Tool.

Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (SPA-1CHSTM1/OC3V2=)

The Cisco SPA-1CHSTM1/OC3V2=, 1-Port STM-1/OC-3 SPA Version 2 enables customers to scale services by upgrading bandwidth from DS-0/E1 to T3/E3 connections - all without any additional interfaces in their routers.

Quick Specs

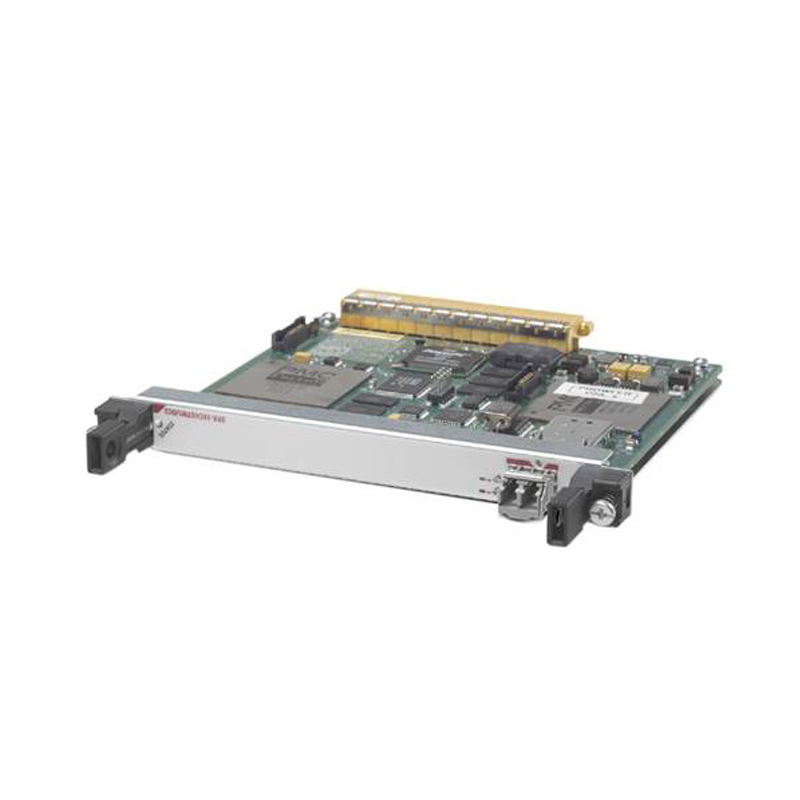

Figure 1 shows the appearance of SPA-1CHSTM1/OC3V2=.

 SPA-1CHSTM1/OC3V2=

Table 1 shows the Quick Specs.

Product Code

SPA-1CHSTM1/OC3V2=

Product compatibility

  • Cisco 7600 Series Routers
  • Cisco ASR 1000 Series Routers
  • Cisco ASR 9000 Series Routers

Minimum software version

  • Cisco 7600 Series Routers: Cisco IOS® Software Release 15.4(2)S and Cisco IOS XE Software Release 3.12.0.0S
  • Cisco ASR 1000 Series Routers with Cisco IOS XE Software Releases 3.12.0,3.11.2, and 3.10.3
  • Cisco ASR 9000 Series Routers with Cisco IOS XR Software Release 5.2.0

Protocols

Serial encapsulations:

*High-Level Data Link Control (HDLC)
*Point-to-Point Protocol (PPP), RFC 1662
*Frame Relay, RFC 1490

Multilink support (bundle limit dependent on number of links per bundle; maximum of 12 links per bundle):

*Multilink PPP (MLPPP), RFC 1990
*Link fragmentation and interleaving (LFI) over Frame Relay (FRF.12) and MLPPP

Networking protocols:

*IPv4/IPv6

Cards, ports, and slots

1 port

Reliability and availability

OIR

Field-replaceable SFP optics modules

Support for both 1 + 1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols

Single SPA software reset

MIBs

RFC 2558 MIB (SONET/SDH)

RFC 2495 MIB (T1/E1)

RFC 2496 MIB (T3/E3)

Network management

Simple Network Management Protocol (SNMP)

Physical specifications

Weight: 0.75 lb (0.34 kg)

Height: 0.8 in. (2.03 cm)

Width: 6.75 in. (17.15 cm)

Depth: 7.28 in. (18.49 cm)

Get More Information

Do you have any question about the SPA-1CHSTM1/OC3V2=?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (SPA-1CHSTM1/OC3V2=)

SPA-1CHSTM1/OC3V2= Specification

Product compatibility

  • Cisco 7600 Series Routers
  • Cisco ASR 1000 Series Routers
  • Cisco ASR 9000 Series Routers

Minimum software version

  • Cisco 7600 Series Routers: Cisco IOS® Software Release 15.4(2)S and Cisco IOS XE Software Release 3.12.0.0S
  • Cisco ASR 1000 Series Routers with Cisco IOS XE Software Releases 3.12.0,3.11.2, and 3.10.3
  • Cisco ASR 9000 Series Routers with Cisco IOS XR Software Release 5.2.0

Protocols

Serial encapsulations:

*High-Level Data Link Control (HDLC)
*Point-to-Point Protocol (PPP), RFC 1662
*Frame Relay, RFC 1490

Multilink support (bundle limit dependent on number of links per bundle; maximum of 12 links per bundle):

*Multilink PPP (MLPPP), RFC 1990
*Link fragmentation and interleaving (LFI) over Frame Relay (FRF.12) and MLPPP

Networking protocols:

*IPv4/IPv6

Cards, ports, and slots

1 port

Reliability and availability

OIR

Field-replaceable SFP optics modules

Support for both 1 + 1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols

Single SPA software reset

MIBs

RFC 2558 MIB (SONET/SDH)

RFC 2495 MIB (T1/E1)

RFC 2496 MIB (T3/E3)

Network management

Simple Network Management Protocol (SNMP)

Physical specifications

Weight: 0.75 lb (0.34 kg)

Height: 0.8 in. (2.03 cm)

Width: 6.75 in. (17.15 cm)

Depth: 7.28 in. (18.49 cm)
