Router Service modules
- 24 * 10/100/1000 POE Gigabit Ethernet ports
- Supported router: 2911/2921/2951/3925/3945
- Up to 20 Watts per port , Cisco EnergyWise technology
- IP base feature set with update option to IP service feature set
- Layer 3 switching, IP routing, power redundant
- Ease of management, secure network connectivity, energy efficient
- IP SLA, private Vlans, RPF, MAB, advanced ACLs, advanced QoS

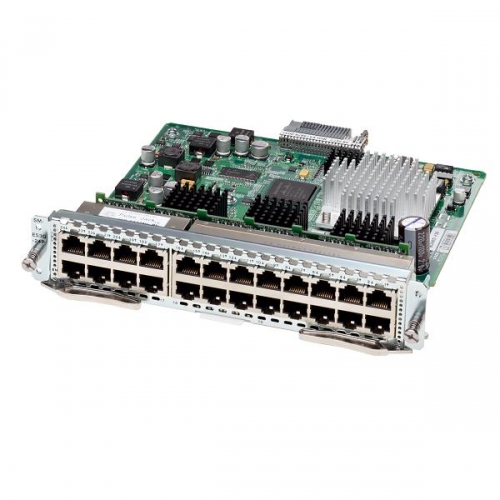

The Cisco Enhanced EtherSwitch Service Modules SM-ES3G-24-P is router blade for the Cisco Integrated Services Routers Generation 2 (ISR2). SM-ES3G-24-P has 24 Gigabit Ethernet POE ports in IP base feature set which delivers identical switching capacity to catalyst 3560 series switch. The POE capacity supplies up to 20 Watts per port (ePOE), the Cisco EnergyWise technology provides energy efficient solution to reduce power consumption. The Cisco Enhanced EtherSwitch Service Modules offers cost-efficiency solution to meet branch offices or small to midsize business offices needs with no requiring physical room.
The Cisco Enhanced EtherSwitch Service Module runs independently of host router resource, it has their own processors, switching engines, flash memory and own upgradable IOS to ensure maximum concurrent switching and routing performance. Cisco EnergyWise technology provides energy efficient solution by optimize power delivery in order to reduce energy cost. The integration of Cisco Enhanced EtherSwitch Service Modules with existing router provides various benefits, which include simplifying network management and troubleshooting, enhancing scalability, offering investment protection; minimizing downtime that affects business operations.
Model info SM-ES3G-24-P Product Type Cisco Enhanced EtherSwitch Service Module Port Density 24 * 10/100/1000 GE ports Power over Ethernet (PoE) up to 20W per port Routing Protocol RIP-1, RIP-2, HSRP, static IP routing, RIPng Remote Management Protocol SNMP 1, SNMP 2,Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+ Supported router 2911 / 2921 / 2951 / 3925 / 3945 Service Module Width single slot Power Redundancy RPS 2300 IP base feature • QoS
• Static Routing
• RIP v1,v2
IP service feature • IP unicast and IP Multicast routing
• IPv6 routing
• IP SLA
Security Features • Dynamic ARP Inspection (DAI)
• DHCP Snooping
• IP Source Guard
• Private VLANs
• Unicast Reverse Path Forwarding (RPF)
• IEEE 802.1x
• Multidomain Authentication
• MAC Authentication Bypass
• Advanced ACLs
• Administrative Traffic Protection
• Switched Port Analyzer (SPAN)
• Centralized Authentication
• MAC Address Authentication
• Port Security
• Console Security
• Bridge Protocol Data Unit (BPDU) Guard
• Spanning-Tree Root Guard (STRG)
• Dynamic VLAN Assignment
• IGMP Filtering
Software license • L-ES3G-24-48-IPS: IP Services License Upgrade 24/48 Port GE ES3 Enhanced EtherSwitch eDelivery
• L-ES3: Upgrade Quantity license
