SF200E-48-CN

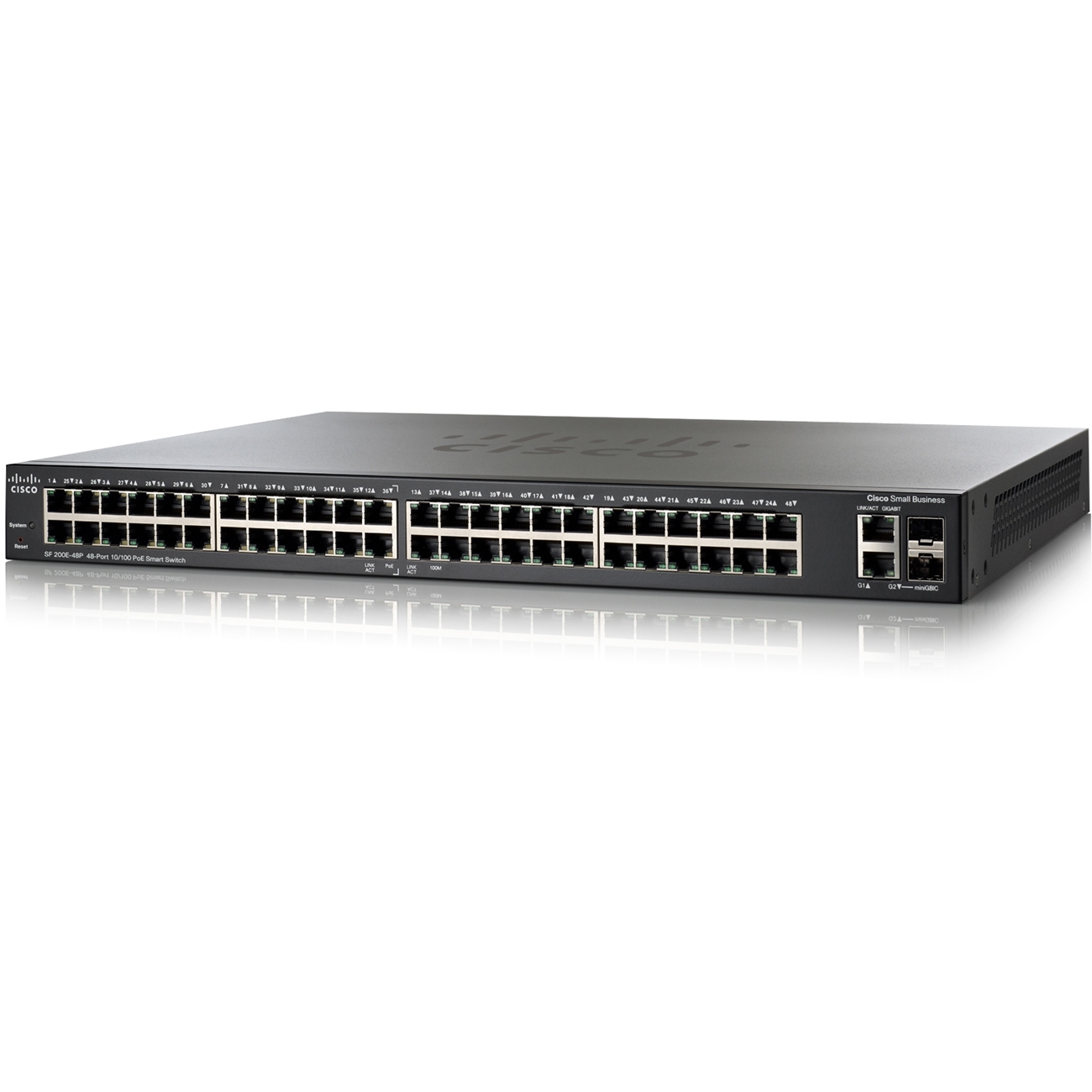

Model: SF200E-48-CN Cisco 200E Switch
Detail: SF200E-48 48-Port 10/100 Smart Switch
Price: $395.00
Condition: Brand New Sealed
Shipping:
Express Shipping to Newark, NJ, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 395.00 Brand New Sealed

SF200E-48-CN SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (SF200E-48-CN)

Specification

Specification (SF200E-48-CN)

Feature SF200E-48
Performance
Switching capacity and forwarding rate
Capacity in Millions of Packets per Second (mpps) (64-byte packets) 10.12
Layer 2 Switching
Spanning Tree Protocol (STP) Standard 802.1d STP support
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default
Multiple Spanning Tree instances using 802.1s (MSTP)
Link Aggregation Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• Up to 4 groups
• Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs). Port-based and 802.1Q tag-based VLANs
Port-based and 802.1Q tag-based VLANs
Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS
Internet Group Management Protocol (IGMP) versions 1 and 2 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 128 multicast groups
Head-of-line (HOL) blocking HOL blocking prevention
Security
IEEE 802.1X (Authenticator role) 802.1X: RADIUS authentication, and, MD5 hash
Port security Locks MAC addresses to ports, and limits the number of learned MAC addresses
Storm control Broadcast, multicast, and unknown unicast
Quality of Service
Priority levels 8 hardware queues
Scheduling Strict priority and weighted round-robin (WRR)
Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)
Class of service Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated Services (DiffServ)
Rate limiting Ingress policer, per VLAN and per port
Standards
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1350, RFC 1533, RFC 1541, RFC 1542, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2576, RFC 4330, RFC 1213, RFC 1215, RFC 1286, RFC 1442, RFC 1451, RFC 1493, RFC 1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 1157, RFC 1215, RFC 3416
IPv6
IPv6 IPv6 host mode
IPv6 over Ethernet
Dual IPv6/IPv4 stack
IPv6 neighbor and router discovery (ND)
IPv6 stateless address auto-configuration
DHCP v6 Client
Path maximum transmission unit (MTU) discovery
Duplicate address detection (DAD)
Internet Control Message Protocol (ICMP) version 6
IPv6 QoS Prioritize IPv6 packets in hardware
Multicast Listener Discovery (MLD) snooping Deliver IPv6 multicast packets only to the required receivers
IPv6 applications Web, ping, Trivial File Transfer Protocol (TFTP), DNS client, TELNET, SSH, Bonjour
IPv6 RFCs supported RFC 2463: ICMP version 6
RFC 3513: IPv6 address architecture
RFC 4291: IPv6 addressing architecture
RFC 2460: IPv6 specification
RFC 2461: Neighbor discovery for IPv6
RFC 2462: IPv6 stateless address auto-configuration
RFC 1981: Path maximum transmission unit (MTU) discovery
Management
Web user interface Built-in switch configuration utility for easy browser-based device configuration (HTTP). Supports configuration, system dashboard, system maintenance, and monitoring
SNMP SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Remote Monitoring (RMON) Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
IPv4 and IPv6 dual stack Coexistence of both protocol stacks to ease migration
Firmware upgrade Web browser upgrade (HTTP) and TFTP
Port mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 4 source ports can be mirrored to one destination port. A single session is supported.
VLAN mirroring Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 4 source VLANs can be mirrored to one destination port. A single session is supported.
DHCP (Options 66 and 67) Dynamic Host Configuration Protocol (DHCP) options facilitate tighter control from a central point (DHCP server) to obtain IP address, auto-configuration (with configuration file download)
Textview CLI Scriptable command-line interface
Localization Localization of GUI and documentation into multiple languages
Other management HTTP, RADIUS, port mirroring, TFTP upgrade, DHCP client, BOOTP, SNTP, ping, syslog, SSH; cable diagnostics; Telnet client (SSH secure support)
Power Efficiency
Energy Detect Automatically turns off power on RJ-45 port when the switch detects a link down
Active mode is resumed without loss of any packets when the switch detects the link is back up
General
MAC table Up to 8192 MAC addresses
Discovery
Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP-MED extensions LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices, which store the data in an MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones.
Power over Ethernet (PoE)
IEEE 802.3af PoE delivered on half of the RJ-45 ports within the listed power budgets Maximum power of 15.4W to any 10/100 Ethernet base port. The total power available for PoE per switch is as follows:
Power Dedicated to PoE -
Number of Ports That Support PoE -
Power consumption
Power Savings Mode Energy Detect
Power Consumption: Worst Case 110V/P=35.51W
220V/P=35.04W
Heat Dissipation (BTU/hr) 121.1
Ports
Total System Ports 48 Fast Ethernet
2 Gigabit Ethernet
RJ-45 Ports 48 Fast Ethernet
Combo Ports (RJ-45 + SFP) 2 Gigabit Ethernet combo
Buttons Reset button
Cabling type Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T
LEDs System, Link/Act, PoE, Speed
Flash 8 MB
CPU memory 64 MB
Packet buffer All numbers are aggregate across all ports, as the buffers are dynamically shared:
Environmental
Dimensions (W x H x D) 440 x 44 x 350 mm
17.35 x 1.74 x 13.8 in.
Unit weight 4.75 kg
10.47 lbs.
Power 100V-240V
1.0-.05A
50-60 HZ
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature 32° to 104°F (0° to 40°C)
Storage temperature -4° to 158°F (-20° to 70°C)
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 10% to 90%, relative, noncondensing
Acoustic noise and mean time between failures (MTBF)
Fan (Number) No
Acoustic Noise N/A
MTBF @ 40°C (hours) 12,6766
Warranty Limited Lifetime
Package Contents
• Cisco 200E Series Smart Switch
• Power cord
• Mounting hardware
• Serial Console Cable
• CD-ROM with user documentation (PDF) included
• Quick-start guide
Minimum Requirements
• Web browser: Mozilla Firefox version 2.5 or later; Microsoft Internet Explorer version 6 or later
• Category 5 Ethernet network cable
• TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in the network
