SF200E-24-CN

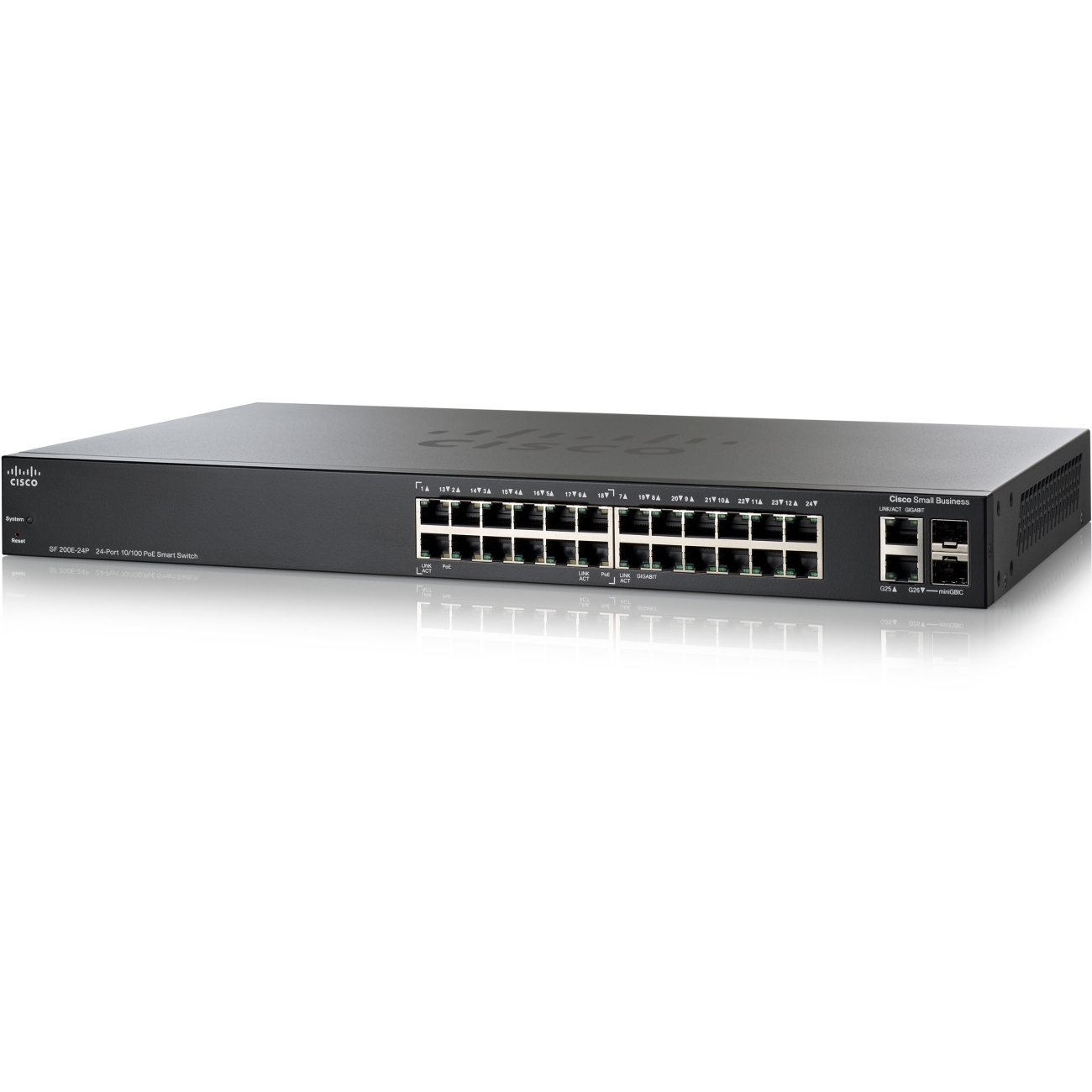

Model: SF200E-24-CN Cisco 200E Switch
Detail: SF200E-24 24-Port 10/100 Smart Switch
Price: $235.00
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Worldwide
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 235.00 In stock Brand New Sealed
OR

SF200E-24-CN SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (SF200E-24-CN)

Cisco 200E Series Smart Switches are a series of affordable smart switches that combine powerful network performance and reliability with the essential network management features you need for a solid business network. These scalable switches provide enhanced management, security, and quality-of-service (QoS) features beyond those of an unmanaged switch, at a lower cost than managed switches. And with an easy-to-use web user interface and the Cisco FindIT Network Discovery Tool, you can deploy and configure a rock-solid business network in minutes. Whether you need basic high-speed connectivity for your computers and servers or a comprehensive voice, data, and wireless technology solution, Cisco 200E Series switches can meet your business needs. Possible deployment scenarios include:

High-speed desktop connectivity. Cisco 200E Series switches can quickly and securely connect employees working in small offices with one another and with all of the servers, printers, and other device they use. High performance and reliable connectivity help speed up file transfers and data processing, improve network uptime, and keep your employees connected and productive.

Secure wireless connectivity. Cisco 200E Series switches work with Cisco and third-party wireless solutions to extend the reach of your network. Employees can work productively from conference rooms and common areas, collaborate in any office, and access business applications from wherever they are. Power over Ethernet (PoE) enables the switch to send power over the network cable to power wireless access points and simplifies the wireless deployment. And with embedded security, your employees can work with confidence, knowing that only authorized users can access the network and network applications.

Unified communications. The Cisco 200E Series provides QoS features to enable you to prioritize delay-sensitive traffic in your network and let you converge all of your communications solutions - such as IP telephony and video surveillance - over a single Ethernet network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses, and Cisco 200E Series switches have been rigorously tested to help ensure easy integration and full compatibility with these and other vendor products.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

SF200E-24-CN

Capacity in Millions of Packets per Second (mpps) (64-byte packets)

6.55

MAC table

Up to 8192 MAC addresses

Total System Ports

24 Fast Ethernet
2 Gigabit Ethernet

RJ-45 Ports

24 Fast Ethernet

Combo Ports
(RJ-45 + SFP)

2 Gigabit Ethernet combo

Buttons

Reset button

Flash

8 MB

CPU memory

64 MB

Dimensions (W x H x D)

440 x 44 x 202.5 mm

17.35 x 1.74 x 7.99 in.

Unit weight

3.34 kg

7.36 lbs.

Power

100V-240V

1.0-.05A

50-60 HZ

Compare to Similar Items

Table 2 shows the comparison of SF200E-24-CN, SF200E-24P-CN and SF200E-48P-CN.

Product Code

SF200E-24-CN

SF200E-24P-CN

SF200E-48P-CN

Capacity in Millions of Packets per Second (mpps) (64-byte packets)

6.55

6.55

10.12

Total System Ports

24 Fast Ethernet
2 Gigabit Ethernet

24 Fast Ethernet
2 Gigabit Ethernet

48 Fast Ethernet
2 Gigabit Ethernet

RJ-45 Ports

24 Fast Ethernet

24 Fast Ethernet

48 Fast Ethernet

Combo Ports
(RJ-45 + SFP)

2 Gigabit Ethernet combo

2 Gigabit Ethernet combo

2 Gigabit Ethernet combo

Flash

8 MB

8 MB

8 MB

CPU memory

64 MB

64 MB

64 MB

Power

100V-240V

1.0-.05A

50-60 HZ

100V-240V

2.0-1.0A

50-60 HZ

100V-240V

3.0-1.5A

50-60 HZ

Get More Information

Do you have any question about the SF200E-24-CN?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (SF200E-24-CN)

SF200E-24-CN Specifications

Performance

Switching capacity and forwarding rate

Capacity in Millions of Packets per Second (mpps) (64-byte packets)

6.55

Layer 2 Switching

Spanning Tree Protocol (STP)

Standard 802.1d STP support

Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default

Multiple Spanning Tree instances using 802.1s (MSTP)

Link Aggregation

Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

• Up to 4 groups

• Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

VLAN

Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs). Port-based and 802.1Q tag-based VLANs

Port-based and 802.1Q tag-based VLANs

Voice VLAN

Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS

Internet Group Management Protocol (IGMP) versions 1 and 2 snooping

IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 128 multicast groups

Head-of-line (HOL) blocking

HOL blocking prevention

Security

IEEE 802.1X (Authenticator role)

802.1X: RADIUS authentication, and, MD5 hash

Port security

Locks MAC addresses to ports, and limits the number of learned MAC addresses

Storm control

Broadcast, multicast, and unknown unicast

Quality of Service

Priority levels

8 hardware queues

Scheduling

Strict priority and weighted round-robin (WRR)

Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)

Class of service

Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated Services (DiffServ)

Rate limiting

Ingress policer, per VLAN and per port

Standards

Standards

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1350, RFC 1533, RFC 1541, RFC 1542, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2576, RFC 4330, RFC 1213, RFC 1215, RFC 1286, RFC 1442, RFC 1451, RFC 1493, RFC 1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 1157, RFC 1215, RFC 3416

IPv6

IPv6

IPv6 host mode

IPv6 over Ethernet

Dual IPv6/IPv4 stack

IPv6 neighbor and router discovery (ND)

IPv6 stateless address auto-configuration

DHCP v6 Client

Path maximum transmission unit (MTU) discovery

Duplicate address detection (DAD)

Internet Control Message Protocol (ICMP) version 6

IPv6 QoS

Prioritize IPv6 packets in hardware

Multicast Listener Discovery (MLD) snooping

Deliver IPv6 multicast packets only to the required receivers

IPv6 applications

Web, ping, Trivial File Transfer Protocol (TFTP), DNS client, TELNET, SSH, Bonjour

IPv6 RFCs supported

RFC 2463: ICMP version 6

RFC 3513: IPv6 address architecture

RFC 4291: IPv6 addressing architecture

RFC 2460: IPv6 specification

RFC 2461: Neighbor discovery for IPv6

RFC 2462: IPv6 stateless address auto-configuration

RFC 1981: Path maximum transmission unit (MTU) discovery

Management

Web user interface

Built-in switch configuration utility for easy browser-based device configuration (HTTP). Supports configuration, system dashboard, system maintenance, and monitoring

SNMP

SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM)

Remote Monitoring (RMON)

Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis

IPv4 and IPv6 dual stack

Coexistence of both protocol stacks to ease migration

Firmware upgrade

Web browser upgrade (HTTP) and TFTP

Port mirroring

Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 4 source ports can be mirrored to one destination port. A single session is supported.

VLAN mirroring

Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 4 source VLANs can be mirrored to one destination port. A single session is supported.

DHCP (Options 66 and 67)

Dynamic Host Configuration Protocol (DHCP) options facilitate tighter control from a central point (DHCP server) to obtain IP address, auto-configuration (with configuration file download)

Textview CLI

Scriptable command-line interface

Localization

Localization of GUI and documentation into multiple languages

Other management

HTTP, RADIUS, port mirroring, TFTP upgrade, DHCP client, BOOTP, SNTP, ping, syslog, SSH; cable diagnostics; Telnet client (SSH secure support)

Power Efficiency

Energy Detect

Automatically turns off power on RJ-45 port when the switch detects a link down

Active mode is resumed without loss of any packets when the switch detects the link is back up

General

MAC table

Up to 8192 MAC addresses

Discovery

Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP-MED extensions

LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices, which store the data in an MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones.

Power over Ethernet (PoE)

IEEE 802.3af PoE delivered on half of the RJ-45 ports within the listed power budgets

Maximum power of 15.4W to any 10/100 Ethernet base port. The total power available for PoE per switch is as follows:

Power Dedicated to PoE

-

Number of Ports That Support PoE

-

Power consumption

Power Savings Mode

Energy Detect

Power Consumption: Worst Case

110V/P=16.8W

220V/P=17.3W

Heat Dissipation (BTU/hr)

59.03

Ports

Total System Ports

24 Fast Ethernet
2 Gigabit Ethernet

RJ-45 Ports

24 Fast Ethernet

Combo Ports
(RJ-45 + SFP)

2 Gigabit Ethernet combo

Buttons

Reset button

Cabling type

Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T

LEDs

System, Link/Act, PoE, Speed

Flash

8 MB

CPU memory

64 MB

Packet buffer

All numbers are aggregate across all ports, as the buffers are dynamically shared:



64Mb

Supported Small Form-Factor Pluggable (SFP) Modules

SKU

MFEFX1

MFELX1

MFEBX1

MGBBX1

MGBSX1

MGBLH1

MGBLX1

Environmental

Dimensions (W x H x D)

440 x 44 x 202.5 mm

17.35 x 1.74 x 7.99 in.

Unit weight

3.34 kg

7.36 lbs.

Power

100V-240V

1.0-.05A

50-60 HZ

Certification

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Operating temperature

32° to 104°F (0° to 40°C)

Storage temperature

-4° to 158°F (-20° to 70°C)

Operating humidity

10% to 90%, relative, noncondensing

Storage humidity

10% to 90%, relative, noncondensing

Acoustic noise and mean time between failures (MTBF)

Fan (Number)

No

Acoustic Noise

N/A

MTBF @ 40°C (hours)

74,082

Warranty

Limited Lifetime

Package Contents

• Cisco 200E Series Smart Switch

• Power cord

• Mounting hardware

• Serial Console Cable

• CD-ROM with user documentation (PDF) included

• Quick-start guide

Minimum Requirements

• Web browser: Mozilla Firefox version 2.5 or later; Microsoft Internet Explorer version 6 or later

• Category 5 Ethernet network cable

• TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in the network
