Overview

Overview (S5720-56C-HI-AC)

Huawei S5720-56C-HI-AC is advanced Gigabit Ethernet switch that provides rich agile features, based on Huawei Versatile Routing Platform (VRP). With forty-eight Ethernet 10/100/1,000 ports, and four 10 Gig SFP+, the switch provides the ubiquitous service function to ensure consistent user experience. The Super Virtual Fabric (SVF) function virtualizes the entire network into one device. In addition, the switch supports flexible Ethernet networking, comprehensive VPN tunnel solutions, various security control methods, intelligent deployment, and simple operation and maintenance. The S5720-56C-HI-AC switch is the best choice for the branches of high-quality large- and middle-sized campus networks.

Quick Specs

Figure 1 shows the appearance of Huawei S5720-56C-HI-AC switch.

S5720-56C-HI-AC

 Table 1 shows the Quick Specs.

Product Code

S5720-56C-HI-AC

Ports

· 48 Ethernet 10/100/1,000 POE+ ports
· 4 x 10 Gig SFP+

Memory (RAM)

4 GB

Flash

400 MB

MAC Address Table Size

128 MAC

Voltage Required

AC:

Rated voltage range: 100V to 240V, 50/60 Hz Maximum voltage range: 90V to 264V, 47 Hz/63 Hz

Power Device

A  AC power supply

Power Consumption Operational

Without PD: < 188.74W,
With PD: < 1,739W (device: 299W, PD: 1,440W)

Forwarding performance

192 Mpps

Switching capacity

598 Gbit/s

Dimensions (W x D x H)

442 mm x 420 mm x 44.4 mm

Weight

10.6 kg

Product Details

Figure 2 shows the front panel of Huawei S5720-56C-HI-AC switch.

 S5720-56C-HI-AC-front

Note:

Forty-eight 10/100/1000BASE-T ports

Four 10GE SFP+ ports

USB port

USB port

One mini USB port

ETH management port

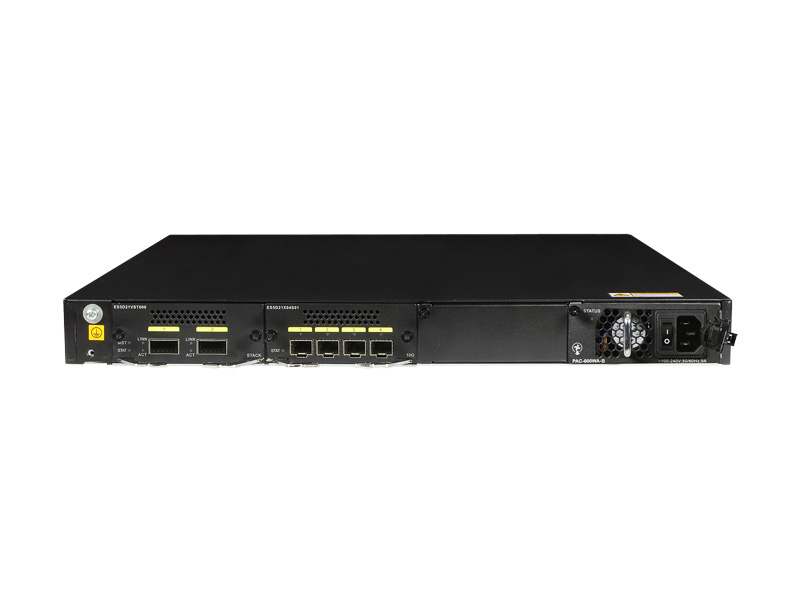

Figure 3 shows the back panel of Huawei S5720-56C-HI-AC switch.

S5720-56C-HI-AC-back

Note:

Ground screw

ESN label

Rear card slot 1

Rear card slot 2

Power module slot 2

Power module slot 1

*The ground screw is used with a ground cable.

* You can draw the ESN label out to view the ESN and MAC address of the switch.

*Rear card slot 1 is a reserved stack card slot.

Recommended Modules

Table 2 shows the recommended modules.

Model

Description

10G-SFP+ Optical Transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.1km,LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.3km,LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm,10km,LC)

Power Module



PAC-600WA-B

600W AC Power Module(Back to Front, Power panel side exhaust)

PDC-350WA-B

350W DC Power Module(Back to Front, Power panel side exhaust)

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45)

Compare with Similar Item

Table 3 shows the comparison of Huawei S5720-56C-HI-AC and S5720-56C-PWR-HI-AC.

Models

S5720-56C-HI-AC

S5720-56C-PWR-HI-AC

Fixed Ports

48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+

48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+

Power Supply

600W AC power supply



600W/1,150W AC power supply



Forwarding Performance

192 Mpps

192 Mpps

Switching Capacity

598 Gbit/s

598 Gbit/s

PoE

NA

Supported

Power Consumption

< 183.3W

Without PD: < 188.74W,
With PD: < 1,739W (device: 299W, PD: 1,440W)

Comparison between LI, SI, EI and HI

Huawei S5720 Series Enterprise Switches provides LI (Lite), SI (Standard), EI (Enhanced) and HI (Hyper) models for users. There are some differences among these four versions.

Click this PDF to know more.

Comparison of Huawei S5720-LI, SI, EI and HI Series Switches.pdf

Get More Information

Do you have any question about the Huawei S5720-56C-HI-AC switch?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (S5720-56C-HI-AC)

S5720-56C-HI-AC  Specification

MAC address table

IEEE 802.1d compliance

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

MAC address entries:
S5700S-LI series: 8K, S5700-LI/S5700-SI series: 16K, S5700-EI series: 32K, S5720-EI series: 64K, S5700-HI series: S5700-HI: 32K, S5710-HI: 456K, S5720-HI: 128K

VLAN

4K VLANs

Guest VLAN and voice VLAN

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN Mapping

SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)

Ring protection

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover

SEP

ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)

STP, RSTP, and MSTP

BPDU protection, root protection, and loop protection

BPDU Tunnel

Reliability

Ethernet OAM (IEEE 802.3ah and 802.1ag)

ITU-Y.1731

DLDP

LACP

E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series)

BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)

MPLS features

MPLS L3VPN

MPLS L2VPN(VPWS/VPLS)

MPLS-TE

MPLS QoS

Notes: supported by S5710-EI, S5700-HI and S5710-HI

IP routing

Static routing

RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series)

OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)

IPv6 features

Neighbor Discovery (ND)

Path MTU (PMTU)

IPv6 ping, IPv6 tracert, and IPv6 Telnet

ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type

MLD v1/v2 snooping

6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series)

Multicast

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics

IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet redirection

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms

WRED (supported by the S5710-EI and S5700-HI)

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface, and VLAN

Port isolation, port security, and sticky MAC

MFF

Blackhole MAC address entries

Limit on the number of learned MAC addresses

802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

Access Security

DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security

Management and maintenance

Virtual cable test

Port mirroring and RSPAN (remote port mirroring)

Remote configuration and maintenance using Telnet

SNMP v1/v2c/v3

RMON

Web NMS

HGMP

System logs and alarms of different levels

802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)

Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches)

NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)

sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series)

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)

Supports LNP (Similar to DTP)

Supports VCMP (Similar to VTP)

Operating environment

Operating temperature: 0℃–50℃

Relative humidity: 10%–90% (non-condensing)

Input voltage

AC:

Rated voltage range: 100 V to 240 V AC, 50/60 Hz

Maximum voltage range: 90 V to 264 V AC, 47/63 Hz

DC:

Rated voltage range: –48 V to –60 V, DC

Maximum voltage range: –36 V to –72 V DC

Note: PoE-support switches do not use DC power supplies.
