HWIC-2T

4.7 7
4.7/5.0
7 Review(s)
| 1 answered questions
Model: HWIC-2T Cisco Router High-Speed WAN Interface card
Detail: 2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card
List Price: US$805.00
Price: $321.20
You save: US$483.80 (60% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Ashburn, VA, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 321.20 In stock Brand New Sealed
OR

HWIC-2T SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (HWIC-2T)

Cisco HWIC-2T is a 2-port serial WAN interface card, made for Cisco1800, 1900, 2800, 2900, 3800, and 3900 Series Integrated Services Routers. HWICs help customers enable applications such as WAN access, legacy protocol transport, console server, and dial access server. You can mix and match HWICs to tailor cost-effective solutions for common networking problems such as remote network management, external dial-modem access, low-density WAN aggregation, legacy protocol transport, and high-port-density support.

Quick Specs

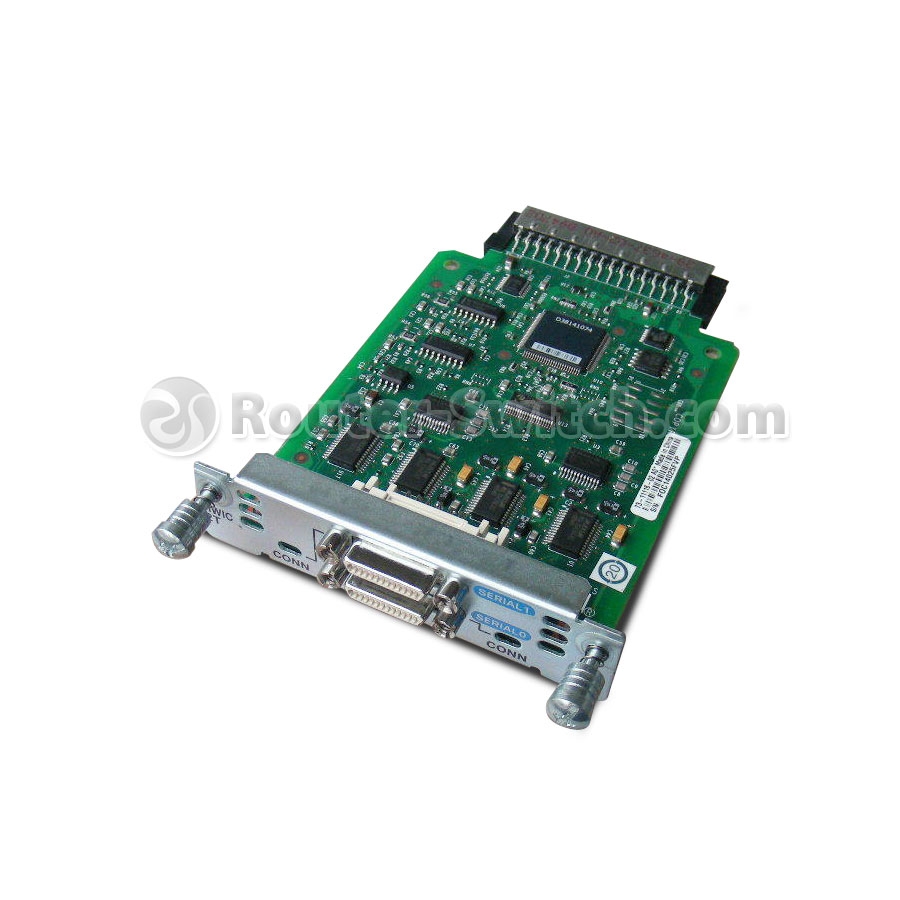

Figure 1 shows the front view of HWIC-2T.

HWIC-2T

Table 1 shows the Quick Specs of HWIC-2T.

Specification

HWIC-2T

Synchronous Support

Yes

Synchronous Maximum Speed (Per Port)

8 Mbps

Asynchronous Support

Yes

Asynchronous Maximum Speed (Per Port)

115.2 kbps

Bisync Support

Yes

Serial Protocols

EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21

Network Clock Synchronization

Yes

NEBS

Type 2/4

TelecommPTT

· TBR1 and 2
· JATE Digital
· NEBS

Dimension (H x W x D)

2.1 x 7.9 x 14.2 cm

Weight

0.68 Kg

The Supported Platforms

Figure 2 shows that HWIC-2T can be installed in the HWIC slot of the ISR routers.

HWIC-2T installed in a router

Table 2 shows the supported platforms and quantities.

Platforms

HWIC-2T

Cisco 1841

2

Cisco 1861

No

Cisco 1941

2

Cisco 2801

2

Cisco 2811, 2821, 2851

4

Cisco 2901, 2911, 2921, 2951

4

Cisco 3825 and 3845

4

Cisco 3925 and 3945

4

The Recommended Cables

Table 3 shows the smart serial cabling for HWIC-2T.

Product Number

Cable Type

Length

Connector Type

CAB-SS-V35MT

V.35 DTE

10 ft (3m)

Male

CAB-SS-V35FC

V.35 DCE

10 ft (3m)

Female

CAB-SS-232MT

EIA/TIA-232 DTE

10 ft (3m)

Male

CAB-SS-232FC

EIA/TIA-232 DCE

10 ft (3m)

Female

CAB-SS-449MT

EIA/TIA-449 DTE

10 ft (3m)

Male

CAB-SS-449FC

EIA/TIA-449 DCE

10 ft (3m)

Female

CAB-SS-X21MT

X.21 DTE

10 ft (3m)

Male

CAB-SS-X21FC

X.21 DCE

10 ft (3m)

Female

CAB-SS-530MT

EIA/TIA-530 DTE

10 ft (3m)

Male

CAB-SS-530AMT

EIA/TIA-530A DTE

10 ft (3m)

Male

Compare to Similar Items

Table 4 shows the comparison of Cisco HWICs.

Specification

HWIC-1DSU-T1

HWIC-1T

HWIC-2T

HWIC-2A/S

Synchronous Support

Yes

Yes

Yes

Yes

Synchronous Maximum Speed (Per Port)

1.544 Mbps

8 Mbps

8 Mbps

128 kbps

Asynchronous Support

No

Yes

Yes

Yes

Asynchronous Maximum Speed (Per Port)

-

115.2 kbps

115.2 kbps

115.2 kbps

Bisync Support

No

Yes

Yes

Yes

Serial Protocols

-

EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21

EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21

EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21

Network Clock Synchronization

Yes

Yes

Yes

Yes

NEBS

Type 1/3

Type 2/4

Type 2/4

Type 2/4

TelecommPTT

- TIA-968-A

- Industry Canada CS-03 Part II

- JATE Digital

- ID0002

- HK2017

- NEBS
- TBR1 and 2

- JATE Digital

- NEBS
- TBR1 and 2

- JATE Digital

- NEBS
- TBR1 and 2

- JATE Digital

- NEBS

Datasheet Download

Cisco ISR One- and 2-Port Serial and Asynchronous High-Speed WAN Interface Cards Datasheet.pdf

Get more information

Do you have any question about the HWIC-2T?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (HWIC-2T)

HWIC-2T Specifications

Type

Cisco 2-Port Serial WAN Interface Card

Manufacturer

Cisco

Part Number

HWIC-2T

Device Type

Expansion module

Form factor

Plug-in module

Specifications

Synchronous Support

Yes

Synchronous Maximum Speed (Per Port)

8 Mbps

Asynchronous Support

Yes

Asynchronous Maximum Speed (Per Port)

115.2 kbps

Bisync Support

Yes

Serial Protocols

EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21

Network Clock Synchronization

Yes

NEBS

Type 2/4

TelecommPTT

TBR1 and 2

JATE Digital

NEBS

Safety Approvals

UL 60950, CAN/CSA 22.2, CSA60950, GB 4943, AS/NZS 60950, EN60950, IEC 60950

Immunity

EN300386, CISPR24, EN55024, EN50082-1, 61000-4-2/3/4/5/6/8/11

Emissions

FCC Part 15 Class A, ICES-003 Class A, EN55022 Class A, CISPR22 Class A,
AS/NZSCISPR22 Class A, VCCI Class A, EN 300386, EN61000-3-2/3, CNS13438

Physical Specifications

Singlewide HWIC, no slot restrictions

Dimensions (H x W x D) 0.8 x 3.1 x 5.6 in. (2.1 x 7.9 x 14.2 cm)

Environmental Specifications

Operating temperature: 32 to 104°F (0 to 40°C)

 NEBS short-term operating temperature: 32 to 131°F (0 to 50°C)

Storage temperature: -4 to 149°F (-20 to 65°C)

Relative humidity: 10 to 90%, noncondensing

Q&A

Faq (HWIC-2T)

Which cable can be used to connect HWIC-2T High-Speed WAN Interface Cards?

CAB-SS-V35MT V.35 Cable for HWIC-1T, HWIC-2T, and HWIC-2A/S

Shipping & Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
DHL 2-4 business days
Fedex 2-4 business days
Hong Kong EMS 5-10 business days
Hong Kong Air Parcel 10-20 business days
By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.

Payment Methods

Paypal Master Card Visa
Discover American
Express
JCB
Wire Transfer eCheck WestUnion
Warranty

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Reviews

Customer Reviews

4.7 5
4.7 (7 reviews)
5 Stars
5
4 Stars
2
3 Stars
0
2 Stars
0
1 Stars
0

Share your thoughts with other customers?

Posted on 8/21/2016
Verified Buyer
55
Good price

Price is good. Thanks for the gift

Posted on 12/4/2015
Verified Buyer
55
Good product

Install easily, runs well

Posted on 4/6/2015
Verified Buyer
55
Ship fast

Ship fast and safe

Posted on 3/11/2015
Verified Buyer
55
Old one

Now Cisco has EHWIC and this HWIC is out, but it still can work in my 1921 router.

Posted on 2/11/2014
Verified Buyer
55
HWIC-2T

It supports a single serial connection at up to T1/E1 rate. no problem.

Posted on 12/12/2013
Verified Buyer
45
It can't run on my router.

I have no idea why it can't run when I installed it on my ISR4321 router.

Dear Elvis, HWIC-2T is made for Cisco1800, 1900, 2800, 2900, 3800, and 3900 Series Integrated Services Routers. Your router isn't included, so that the card can't run on your router. If you have any question, please be free to contact us via Live Chat or cisco@router-switch.com

Posted on 9/20/2012
Verified Buyer
45
Hwic-2t

I have no idea if i buy HWIC-2T card or HWIC-T, and your guys advice me HWIC-2T, but what are their difference?
