Overview

Overview (Huawei RH1288 V3 Rack Server)

Huawei FusionServer RH1288 V3 is a standard 1U, 2-socket rack server. It supports Intel® Xeon® E5-2600 v3 and v4 series processors with up to 20 cores per processor, unlocking superior performance for enterprises’ computing-intensive applications. Designed for cloud computing applications, enterprise applications requiring computing and storage resources, RH1288 V3 strikes an optimal balance between performance and density by supporting up to 1 TB memory and 16 TB local storage. This RH1288 V3 Rack Server offers 3 configurations, including 8-disk configuration 1, 8-disk configuration 2 and 4-disk configuration.

Quick Specs

Table 1.

Product

Huawei RH1288 V3 Rack Server

Processors

Intel® Xeon® E5-2600 v3/v4 series processors

Memory

16 DDR4 RDIMMs/LRDIMMs

Internal Storage

Hard disk configurations:

· 8 x 2.5-inch SAS/SATA HDDs or SSDs (4 NVMe SSDs supported by the NVMe model)
· 4 x 3.5-inch SAS/SATA HDDs

Built-in flash memory:

· 2 mini-SSD cards (SATADOMs)
· 2 SD cards

RAID

· RAID 0, 1, 10, 5, 50, 6, or 60
· Configured with a supercapacitor for power-off protection for the cache (optional)
· RAID state transition, configuration memory, self-diagnosis, and web-based remote configuration

LOM Network Ports

2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports

PCIe Expansion

Up to 3 PCIe slots

Fan Modules

5 hot-swappable fan modules in N+1 redundancy mode

Power Supply Units

2 hot-swappable PSUs in 1+1 redundancy mode

Management

· Uses Huawei Hi1710 management chip and independent ports
· Supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring
· Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios

Operating Temperature

5ºC to 45ºC (41ºF to 113ºF), ASHRAE Class A3 and A4 compliant

Dimensions (W x D x H)

RH1288 V3 with 3.5-inch hard disks: 436 mm x 748 mm x 43 mm

RH1288 V3 with 2.5-inch hard disks: 436 mm x 708 mm x 43 mm

Product Details

Figure 1 shows the appearance of RH1288 V3 server.

Figure 1-1 RH1288 V3 server 4-disk configuration.

HUAWEI RH1288 V3 RACK SERVER-4 disks

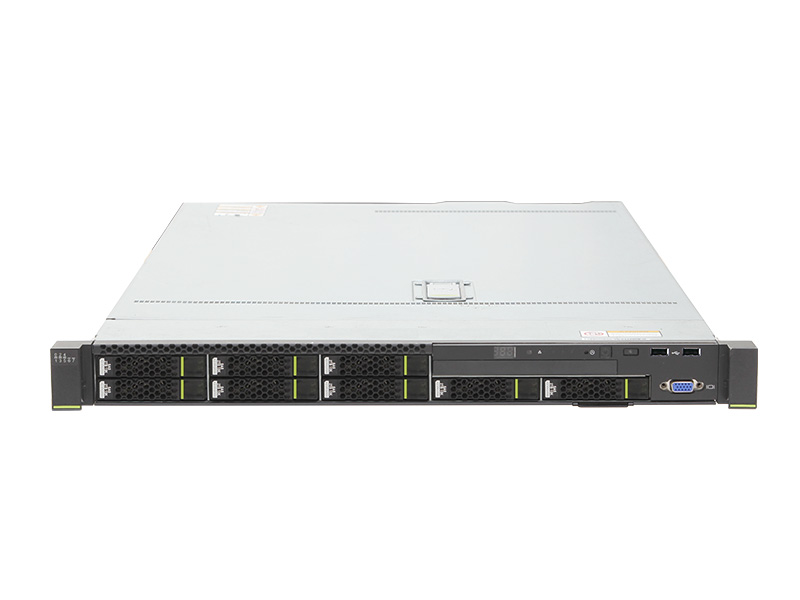

Figure 1-2 RH1288 V3 server 8-disk configuration.

HUAWEI RH1288 V3 RACK SERVER-8 disks

Figure 2 shows the front panel of RH1288 V3 server.

Figure 2-1 RH1288 V3 server 4-disk configuration.

HUAWEI RH1288 V3 RACK SERVER-4 disks-front

Note:

Hard Disks

UID button/indicator

Label (including the ESN label)

USB 2.0 port

NMI button

USB 2.0 port

Power button/indicator

VGA port

Figure 2-2 RH1288 V3 server 8-disk configuration 1 (2.5-inch backplane for SAS HDDs, SATA HDDs, or SSDs).

HUAWEI RH1288 V3 RACK SERVER-8 disks-front-1

Note:

Hard Disks

UID button/indicator

Video graphics array (VGA) port

USB 2.0 port

NMI button

USB 2.0 port

Power button/indicator

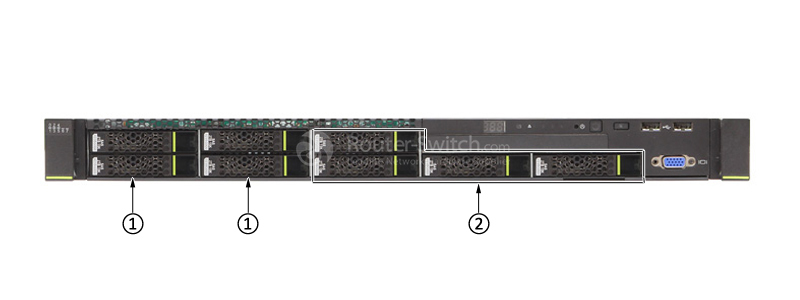

Figure 2-3 RH1288 V3 server 8-disk configuration 2 (2.5-inch backplane for NVMe PCIe SSDs).

HUAWEI RH1288 V3 RACK SERVER-8 disks-front-2

Note:

Hard Disks

NVMe PCIe SSD

Figure 3 shows the back panel of RH1288 V3 server.

HUAWEI RH1288 V3 RACK SERVER-back

Note:

Full-height PCIe slot

USB 3.0 port

Half-height PCIe slot

VGA port

LAN on motherboard (LOM)

Serial port

Management network port (Mgmt)

PSU

USB 3.0 port

Power socket for a power supply unit

(PSU)

Compare to Similar Items

Table 2 shows the comparison of HUAWEI RH1288 V3 RACK SERVER and HUAWEI RH2288H V3 RACK SERVER.

Model

HUAWEI RH1288 V3 RACK SERVER

HUAWEI RH2288H V3 RACK SERVER

Processors

Intel® Xeon® E5-2600 v3/v4 series processors

Intel® Xeon® E5-2600 v3/v4 series processors

Memory

16 DDR4 RDIMMs/LRDIMMs

24 DDR4 RDIMMs/LRDIMMs

LOM Network Ports

2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports

2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports

PCIe Expansion

Up to 3 PCIe slots

Up to 9 PCIe 3.0 slots

Fan Modules

5 hot-swappable fan modules in N+1 redundancy mode

Hot-swappable fan modules in N+1 redundancy mode

Power Supply Units

2 hot-swappable PSUs in 1+1 redundancy mode

2 hot-swappable PSUs in 1+1 redundancy mode

Get More Information

Do you have any question about the HUAWEI RH1288 V3 RACK SERVER?

Contact us now via Live Chat or cisco@router-switch.com.

Specification

Specification (Huawei RH1288 V3 Rack Server)

HUAWEI RH1288 V3 RACK SERVER Specifications

Form factor

1U rack server

Number of processors

1 or 2

Processor model

Intel® Xeon® E5-2600 v3/v4 series processors

Memory

16 DDR4 RDIMMs/LRDIMMs

Internal Storage

Hard disk configurations:

· 8 x 2.5-inch SAS/SATA HDDs or SSDs (4 NVMe SSDs supported by the NVMe model)
· 4 x 3.5-inch SAS/SATA HDDs

Built-in flash memory:

· 2 mini-SSD cards (SATADOMs)
· 2 SD cards

RAID

· RAID 0, 1, 10, 5, 50, 6, or 60
· Configured with a supercapacitor for power-off protection for the cache (optional)
· RAID state transition, configuration memory, self-diagnosis, and web-based remote configuration

LOM Network Ports

2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports

PCIe Expansion

Up to 3 PCIe slots

Fan Modules

5 hot-swappable fan modules in N+1 redundancy mode

Power Supply Units

2 hot-swappable PSUs in 1+1 redundancy mode

Management

· Uses Huawei Hi1710 management chip and independent ports
· Supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring
· Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios

Operating Temperature

5ºC to 45ºC (41ºF to 113ºF), ASHRAE Class A3 and A4 compliant

Dimensions (W x D x H)

RH1288 V3 with 3.5-inch hard disks: 436 mm x 748 mm x 43 mm

RH1288 V3 with 2.5-inch hard disks: 436 mm x 708 mm x 43 mm
