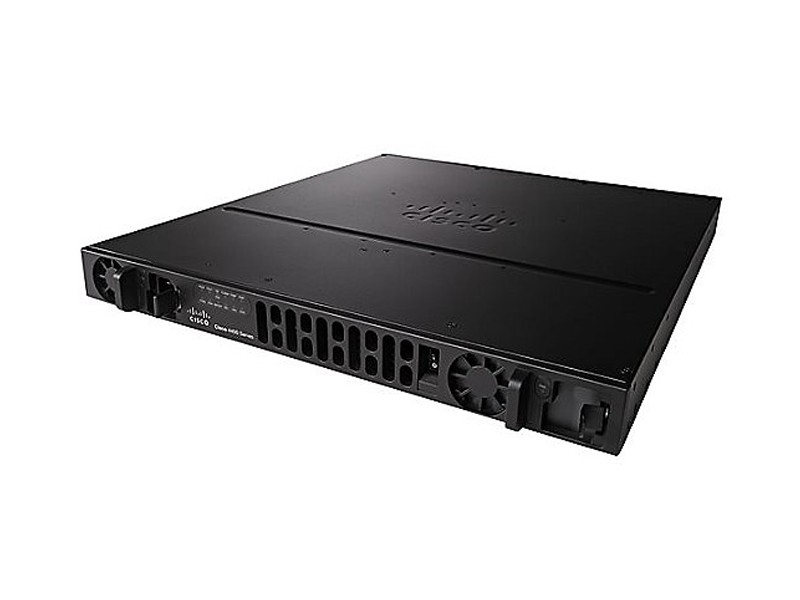

Cisco ISR4431-AX/K9

4.5 2
4.5/5.0
2 Review(s)
Model: Cisco ISR 4431 Advanced services router (2GE,2NIM,1SM,4G FLASH,4G DRAM,MPLS, OTV)
Detail: 500Mbps-1Gbps system throughtput, 4 WAN/LAN ports, 4 SFP ports, multi-Core CPU, Dual-power, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs
List Price: US$16,000.00
Condition: Brand New Sealed
Shipping:
Express Shipping to Worldwide
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 0.00 Brand New Sealed

Cisco ISR4431-AX/K9 SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (Cisco ISR4431-AX/K9)

ISR4431-AX/K9

Cisco ISR4431-AX/K9
4 Gigabit Ethernet ports, 4 SFP-base ports
3 NIM slots, 1 onboard ISC slots, Security bundle
L2TPv3, BFD, MPLS, VRF, VXLAN, LISP, OTV, VPLS, EoMPLS
2Gb DRAM for data plane, 2Gb DRAM for services plane, 8GB flash memory
2 USB ports, dual redundant power support
Pay-as-you-grow performance model, up to 1 Gbps system performance

ISR 4400 Series are design to deliver advanced services to the enterprise branches, they are ideal for mid-size to large branch environment, delivers unprecedent level of WAN intelligence. Scalability, High-performance, Network Services, Security and Voice are only a few benefits of Cisco 4400 Series ISR. These platform leverage separate dedicated control data and services CPUs for running multi-services with performance.Advanced network services enable the branch to utilize the WAN intelligently is really what ISR 4400 series all about. With feature like AVC, performance routing (PfR), WAAS make this platform obviously more than a router, moreover, the ISR 4400 series include supporting OnePk, AppNav, making the platform easier to scale the network and application integration.

ISR4431-AX/K9 integrated router combines high-performance, scalability, Data Center features and smart router is made to run multiple services. This is the only router in industry separates control data and services planes, so the benefits are numerous. With pay-as-you-grow performance, you can increase forwarding capacity when needed, you only pay for the performance you need. The ISR4431-AX/K9 runs multi-core, multi-threaded advanced secruity IOS-XE operating system to enable both WAN link security and MPLS and OTV services. Full featured WAN optimization with that run native on the motherboard without affecting performance, management and other capabilities. According to the scalability, ISR 4431 designed as a layer 7 router basically, the advanced network services enable the branch to utilize the WAN intelligently is really what ISR 4400 series all about.The Cisco ISR 4431 is the ultimate application delivery platform to mid-size or even large branch offices. This is literally routing redefined.

Specification

Specification (Cisco ISR4431-AX/K9)

Technical Specifications Cisco 4431
Aggregate Throughput 500Mbps to 1Gbps
Total onboard WAN or LAN 10/100/1000 ports 4
RJ-45-based ports 4
SFP-based ports 4
Enhanced service-module slots 0
Doublewide service-module slots 0
NIM slots 3
OIR (all I/O modules) Yes
Onboard ISC slot 1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) NA
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) NA
Default memory DDR3 ECC DRAM (data plane) 2 GB
Maximum memory DDR3 ECC DRAM (data plane) 2 GB
Default memory DDR3 ECC DRAM (control/services plane) 4 GB
Maximum memory DDR3 ECC DRAM (control/services plane) 16 GB
Default flash memory 8 GB
Maximum flash memory 32 GB
External USB 2.0 slots (type A) 2
USB console port -type B mini (up to 115.2 kbps) 1
Serial console port - RJ45 (up to 115.2 kbps) 1
Serial auxiliary port - RJ45
(up to 115.2 kbps)
1
Power-supply options Internal: AC, DC, and PoE
Redundant power supply Internal: AC, DC, and PoE
AC input voltage 100 to 240 VAC autoranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 3 to 1.3A
AC input surge current 60 A peak and less than 5 Arms per half cycle
Typical power (no modules) (watts) 65
Maximum power with AC power supply (watts) 250 (no PoE)
Maximum power with PoE power supply (platform only) (watts) 500 with PoE redundant
Maximum endpoint PoE power available from PoE power supply (watts) 250 W with optional redundancy
Shipping & Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
DHL 2-4 business days
Fedex 2-4 business days
Hong Kong EMS 5-10 business days
Hong Kong Air Parcel 10-20 business days
By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.

Payment Methods

Paypal Master Card Visa
Discover American
Express
JCB
Wire Transfer eCheck WestUnion
Warranty

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Reviews

Customer Reviews

4.5 5
4.5 (2 reviews)
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0

Share your thoughts with other customers?

Posted on 8/21/2016
Verified Buyer
55
no older network modules on Cisco 4000 Series

The older network modules are not supported on the Cisco 4000 Series.

Posted on 1/18/2016
Verified Buyer
45
ISR4431-AX/K9-speeds up to 2 Gbps

Wow, software services at speeds up to 2 Gbps.
