Model: C6800-8P10G-XL= - Cisco Catalyst 6800 Switch Module
Detail: Catalyst 6800 8-port 10GE with integrated DFC4-XL spare
List Price: US$35,700.00
Condition: Brand New Sealed
Express Shipping to Ashburn, VA, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 0.00 Brand New Sealed
C6800-8P10G-XL= SMARTnet Service Tool.

Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry

Overview (C6800-8P10G-XL=)

The Cisco Catalyst 6800 Family Switches offer a variety of 10-Gigabit Ethernet modules. Working in conjunction with the Catalyst 6500-E/6807-XL Supervisor Engine 2T/2TXL (VS-S2T-10G & VS-S2T-10GXL), they can serve different needs on campus deployments. The family includes three modules: the Catalyst 6800 32-port, 16-port, and 8-port 10-Gigabit Ethernet Fiber Modules. C6800-8P10G-XL= is a 8-port 10-Gigabit Ethernet Fiber Module with DFC4XL, it provides two 40G, eight 10G, eight 1G full-duplex transceiver ports. This C6800-8P10G-XL= is similar with the C6800-8P10G-XL. The C6800-8P10G-XL= is a spare one.

Quick Specs

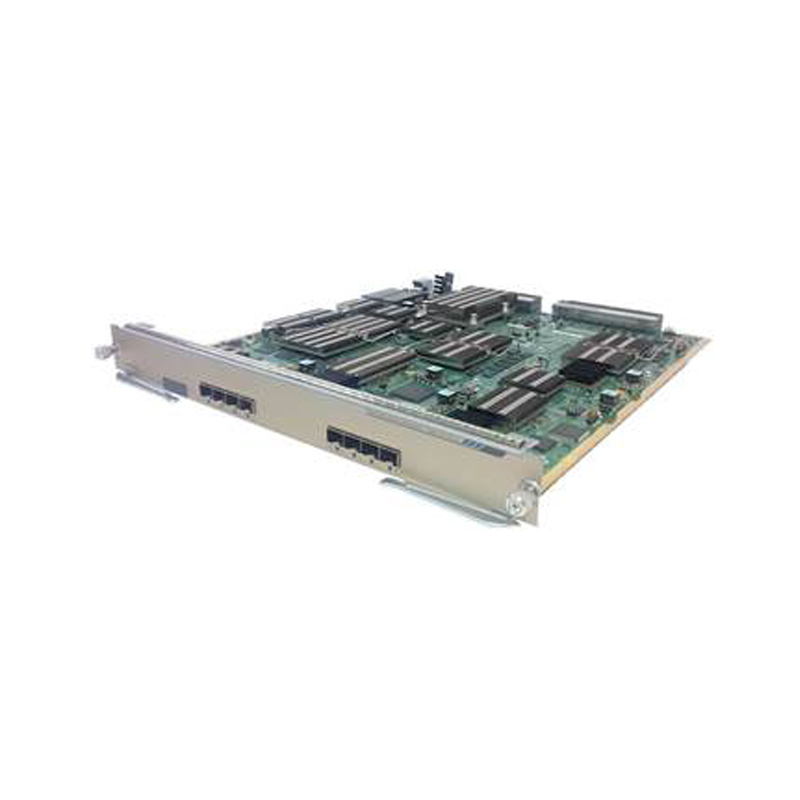

Figure 1 shows the 6800 Series 8-Port 10-Gigabit Ethernet Fiber Module.

 the 6800 Series 8-Port 10-Gigabit Ethernet Fiber Module

Table 1 shows the Quick Specs.

Product Code


Ports per module

·8 ports—Eight 1G ports, or eight 10G ports, or two 40G ports.
·Ports are numbered left to right.
·2 port groups. Port ranges per port group:
  ·1 to 4
  ·5 to 8

Cabling distance

Depends on the SFP transceiver installed in the module port

Maximum frame size

Up to 9216 bytes per frame

Module oversubscription rate

1:1 (When all eight 10G ports are used.)

Supervisor engine support

·Supervisor Engine 2T-10GE
·Supervisor Engine 6T

Software support

With Supervisor Engine 2T-10GE —Cisco IOS Release 15.2(1)SY or later

With Supervisor Engine 6T – Cisco IOS Release 15.3(1)SY or later

Fabric channel speed

In a Cisco Catalyst 6807-XL chassis—80 GB per second

In a Cisco Catalyst 6500-E series chassis—80 GB per second

TDR support

Supported with GLC-T (1G Copper SFP) transceivers

Digital Optical Monitoring (DOM) support

Supported with select 1G and 10G Fiber SFP/SFP+ transceivers

Operating temperature

Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Dimensions (H x W x D)

1.73 x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm)


11.02 lb (5.0 kg)

Product Details

Figure 2 shows the C6800-8P10G-XL= Ethernet Module Front Panel.

C6800-8P10G-XL= Ethernet Module Front Panel.


Status and ID LEDs

40G port IDs

10G ports (A total of two port groups)

The Accessories

Table 2 shows the recommended elements for the C6800-8P10G-XL=.




10G SFP Options





10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC)

GLC Options



1000BASE-BX SFP, 1310NM


Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM


Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Items

Table 3 shows the comparison of C6800-8P10G-XL= , C6800-16P10G= and C6800-32P10G-XL=.

Product Code




10GE ports

8 ports 1GE or 10GE

16 ports 1GE or 10GE

32 ports 1GE or 10GE

Port groups

2 port groups (N/A)

2 port groups (N/A)

4 port groups

Performance Mode



per port-group



per port-group


Switch fabric connection

80 Gbps in 6807-XL and 6500-E chassis

80 Gbps in 6807-XL and 6500-E chassis

160 Gbps in 6807-XL chassis

80 Gbps in 6500-E chassis


Get More Information

Do you have any question about the C6800-8P10G-XL=?

Contact us now via Live Chat or sales@router-switch.com.


Specification (C6800-8P10G-XL=)

C6800-8P10G-XL= Specification

Physical Specifications

Dimensions (H x W x D)

1.73 x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm)


11.02 lb (5.0 kg)

Environmental Specifications

Operating temperature

Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Humidity (RH) ambient (noncondensing)

10 to 90 percent

Operating altitude

Certified for operation: 0 to 6500 ft (0 to 2000 m)

Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)
